How Overlapping Level 0 Key Ranges Force RocksDB to Stall Ingestion During Heavy Writes

Traditional B-tree databases update records in place, degrading predictably as random disk operations saturate the storage controller. RocksDB, built on a Log-Structured Merge (LSM) tree architecture, differs in one critical respect: it appends writes instantly to memory, deferring all structural organization until later.

This deferred organization allows LSM trees to absorb massive ingestion spikes that would crush a conventional B-tree. However, that initial speed introduces a hidden architectural debt that the database must eventually pay back.

When the background processes that organize the data fall behind the ingestion rate, the database does not simply slow down. Instead, RocksDB protects its read performance by intentionally stalling, and eventually halting, all incoming writes.[1]

This backpressure mechanism is not triggered by a lack of disk space or memory. It is triggered by a specific concurrency bottleneck in the first layer of the storage hierarchy, where parallel processing becomes mathematically impossible.[1]

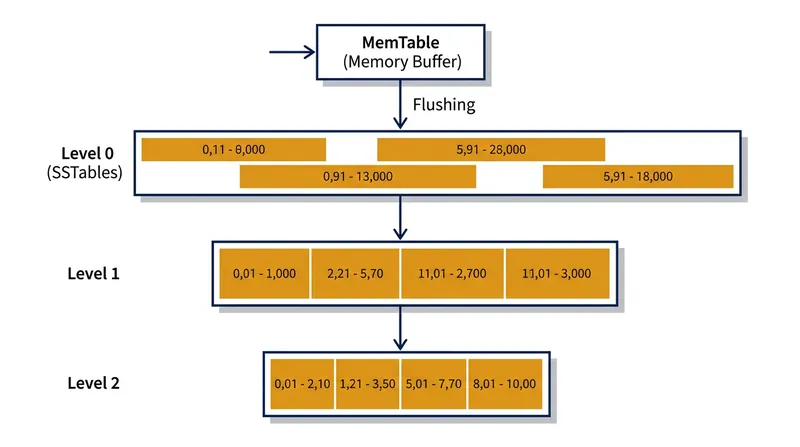

From Memory to Disk

Every write to RocksDB first lands in an in-memory data structure called a MemTable. This skip-list provides extremely fast write operations because it operates entirely in RAM, growing until it reaches a default capacity of 64 megabytes.[1]

Once the MemTable hits this capacity, it becomes immutable. A background thread then flushes its contents to persistent storage as a Sorted String Table (SSTable) file, dropping it into the database's first storage tier, known as Level 0.

This transition from memory to disk is highly efficient because it relies on sequential I/O. The database simply writes the sorted 64-megabyte block straight to the solid-state drive in one continuous motion.

However, this speed comes with a structural compromise. The newly created SSTable in Level 0 contains whatever random assortment of keys happened to be written during that brief ingestion window, prioritizing immediate durability over long-term organization.

The Overlap Problem

The structural compromise becomes apparent when comparing Level 0 to the rest of the LSM tree. In Level 1, Level 2, and beyond, RocksDB strictly enforces non-overlapping key ranges, ensuring a specific key exists in at most one file per level.[1]

"L0 files are memtable snapshots, so ranges overlap," notes a 2026 technical breakdown by Helius. "From L1 down, ranges are disjoint; now key j has exactly one home per level."

This overlap creates a severe penalty for read operations, commonly referred to as read amplification. When an application queries a key, RocksDB cannot simply use a binary search to pinpoint one file in Level 0.[1]

Because the requested data could be hiding in any of the overlapping snapshots, read queries must check every single file in Level 0. To execute a read, RocksDB constructs a merging iterator that opens a cursor into all of them simultaneously.[1]

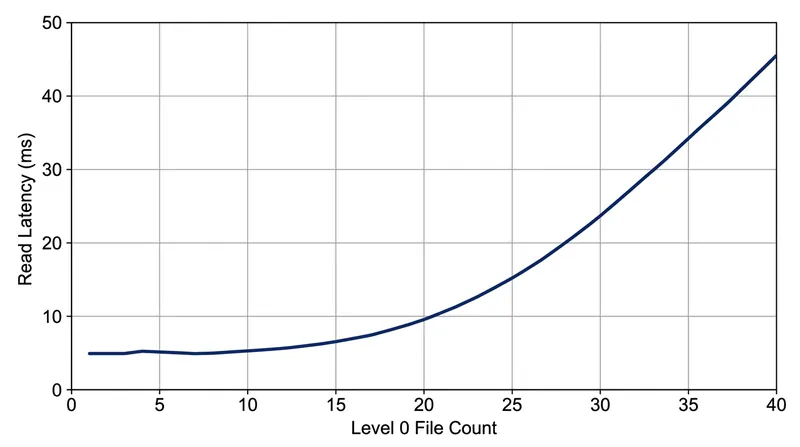

If Level 0 contains five files, the CPU must juggle five extra data streams for every single point lookup. If Level 0 grows to 20 files, the CPU overhead and disk I/O required to service a simple read query multiply accordingly, destroying the database's latency guarantees.

To prevent this read latency from degrading permanently, RocksDB must constantly move files out of Level 0 and merge them into the strictly organized Level 1. This background merging process is called compaction.[1]

The Compaction Bottleneck

Compaction is the engine that keeps an LSM tree functioning. When Level 0 accumulates enough files, RocksDB selects them and merges them with the overlapping files in Level 1, writing the result into new, strictly partitioned Level 1 files.[1]

In lower levels, RocksDB can run multiple compactions in parallel because the key ranges are disjoint. One background thread can compact keys 1 through 100 while a second thread simultaneously compacts keys 200 through 300.[1]

Level 0 does not allow this parallelism. Because a single Level 0 file might contain keys spanning the entire database, a compaction typically requires locking every file in Level 0 and most files in Level 1 to maintain consistency.

"We can only schedule a parallel L0->L1 compaction if it does not require any of the locked files, which is typically not the case," the RocksDB engineering team wrote in a 2017 architecture update.

The Write Stall Mechanism

Consequently, clearing Level 0 is almost always a single-threaded operation. If an application ingests data faster than this single compaction thread can merge it, SSTables begin piling up in Level 0.[1]

Because every additional file degrades read performance, RocksDB enforces strict, hardcoded limits on Level 0 accumulation. By default, when the tier hits 20 files, the database triggers the `level0_slowdown_writes_trigger` parameter.[1]

This threshold forces the database to artificially inject microsecond delays into user writes. If the ingestion rate remains high and the file count reaches 36, RocksDB hits the `level0_stop_writes_trigger`, completely blocking all incoming writes.[1]

The application will hang until the background compaction thread finally clears the backlog. This creates a frustrating scenario where a server might have dozens of idle CPU cores and terabytes of free NVMe storage, yet the database refuses to accept new data.

Mitigations and Trade-offs

To address this architectural bottleneck, RocksDB engineers introduced Intra-L0 compaction. When Level 1 is locked, the database can now merge several small Level 0 files together into one larger Level 0 file.

This L0-to-L0 compaction reduces the total file count, temporarily staving off the write stall limit. However, it increases write amplification, meaning the solid-state drive must endure more total writes for the same amount of user data.

Administrators can also enable subcompactions, a feature that attempts to partition a single L0-to-L1 compaction job across multiple threads. By setting `max_subcompactions` greater than one, the engine attempts to slice the overlapping key ranges into independent chunks.[1]

Another common tuning strategy involves increasing the MemTable size. By jumping from the default 64 megabytes to 256 megabytes, each flush creates a larger Level 0 file, reducing the frequency of flushes and giving the compaction thread more time to clear the backlog.

However, larger MemTables consume more RAM and increase the time required to recover from a crash, as the Write-Ahead Log must replay more data. Every tuning decision in an LSM tree is a zero-sum trade-off between memory usage, write amplification, and read amplification.

Ultimately, the Level 0 stall is an intentional design choice rather than a software bug. By halting ingestion, RocksDB honors its fundamental contract to provide bounded read latency, forcing the upstream application to respect the physical limits of the storage hardware.[2]
