Why DeLong's Test Uses U-Statistic Covariance to Compare Paired ROC Curves

Some data scientists argue that when comparing two machine learning classifiers on the same test set, a standard two-sample z-test on their AUCs is perfectly adequate. They insist that if a performance gap is genuinely real, it will stand out regardless of the statistical test applied.

Others maintain that treating those AUCs as independent is a fundamental mathematical error. They argue that ignoring the shared patient-level correlation artificially inflates the variance of the comparison, guaranteeing that subtle but genuine improvements in model performance will be dismissed as statistical noise.[5]

This disagreement centers on how to handle paired evaluations, where two models score the exact same hold-out set. Because the models are looking at the same underlying patients, their errors are inherently linked, meaning their performance metrics move together in predictable ways.

This is where DeLong’s test enters the picture. Published in 1988 by Elizabeth DeLong, David DeLong, and Daniel Clarke-Pearson, it remains the definitive standard for comparing paired Receiver Operating Characteristic (ROC) curves by explicitly modeling the covariance between them.[1][6]

Yet the mechanism behind the test—using the structural components of U-statistics to bypass resampling—is rarely understood by the practitioners who routinely call the function. Marketing teams frequently announce state-of-the-art classifiers based on nominal AUC bumps, but a proper DeLong test often reveals those gains to be illusions.[8]

The Anatomy of an AUC

To understand why the independence assumption fails, we first have to define what the Area Under the Curve (AUC) actually measures. It is not merely a geometric area plotted on a graph of sensitivity versus false-positive rates, though it is often taught that way.

As James Hanley and Barbara McNeil demonstrated in 1982, the AUC is a probability. Specifically, it represents the probability that a randomly chosen positive case is ranked with greater suspicion by the diagnostic model than a randomly chosen negative case.[2]

This probability is mathematically identical to the nonparametric Wilcoxon-Mann-Whitney U-statistic. It relies entirely on the relative ranks of the prediction scores, rather than their absolute calibration, making it highly resilient to outliers and skewed data distributions.[2][7]

Because it is a rank-based U-statistic, the AUC makes no assumptions about the underlying distribution of the test data. It does not require the scores to be normally distributed, which explains why it serves as a robust benchmark across entirely different families of classifiers.[1]

The Variance Inflation Trap

The statistical trap opens when a team builds a baseline model, trains a new challenger model, and evaluates both on the exact same test set. They now possess two AUCs—perhaps 0.84 for the baseline and 0.88 for the challenger—and need to prove the difference is real.[7]

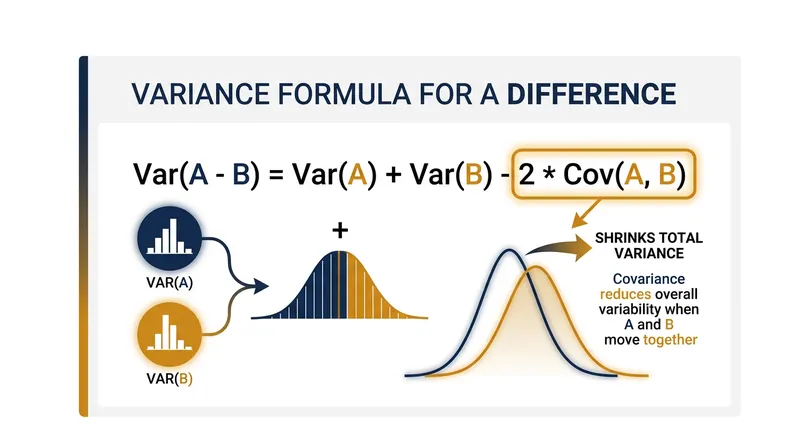

To prove the challenger is superior, they must calculate the variance of the difference between the two AUCs. The standard statistical formula for the variance of any difference is the variance of the first, plus the variance of the second, minus twice their covariance.[8]

If a practitioner applies an independent two-sample test, they implicitly assume the covariance between the models is zero. The formula consequently collapses to just the sum of the two individual variances, treating the models as if they were evaluated on completely different populations.[5]

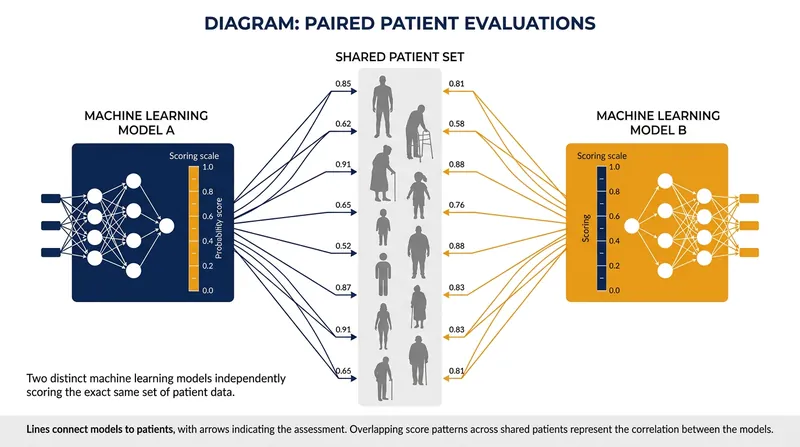

But because both models evaluated the exact same patients, their scores are positively correlated. A run of unambiguous, easy-to-classify patients inflates both AUCs simultaneously, while a sequence of borderline cases deflates both metrics in tandem.[1][7]

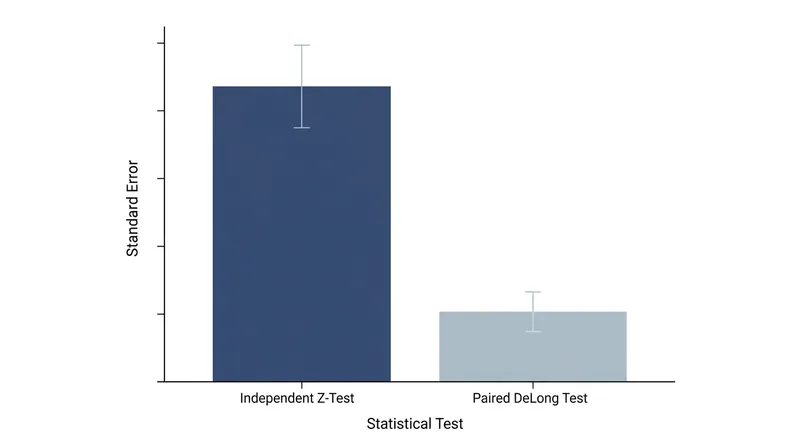

By assuming a covariance of zero instead of subtracting a positive covariance, the independent test artificially inflates the total variance of the difference. The confidence interval widens needlessly, the z-statistic shrinks, and the resulting p-value spikes, masking true performance gains.[8]

DeLong's U-Statistic Solution

The 1988 paper in Biometrics solved this exact problem. The authors needed a rigorous way to compare diagnostic tests in clinical trials without assuming independent samples, ensuring that paired study designs did not sacrifice their inherent statistical power.[1][6]

Their breakthrough was recognizing that because the AUC is a U-statistic, its full covariance structure can be derived directly from the empirical data. The method requires no bootstrapping, no iterative resampling, and no assumptions about how the underlying scores are distributed.[1]

DeLong’s method breaks each AUC down into per-subject structural components. For every individual patient in the dataset, the algorithm calculates exactly how often that specific patient was correctly ranked against all patients of the opposite clinical class.[1][7]

By comparing these per-subject components across the two competing models, the algorithm captures the precise degree to which the models succeed or fail on the same individuals. This calculation yields the true, positive covariance between the two classifiers.[1]

Subtracting this positive covariance from the sum of the variances shrinks the standard error to its correct, narrower width. The statistical power of the paired comparison is fully restored, allowing researchers to detect genuine improvements that a naive independent test would miss.[7][8]

Breaking the Computational Bottleneck

While mathematically elegant, the original DeLong algorithm scaled poorly to large datasets. Comparing every positive case against every negative case for multiple models requires quadratic time complexity, which chokes rapidly on modern machine learning workloads containing millions of rows.[3]

For decades, this computational cost forced data scientists into a frustrating compromise. They either had to aggressively downsample their test sets to run the DeLong test, or fall back on the flawed independent tests they knew were mathematically inappropriate for paired data.[8]

That bottleneck was finally broken in 2014 when Xu Sun and Weichao Xu published a fast implementation of DeLong’s algorithm in IEEE Signal Processing Letters. Their optimization fundamentally changed how the test is executed in modern software libraries.[3]

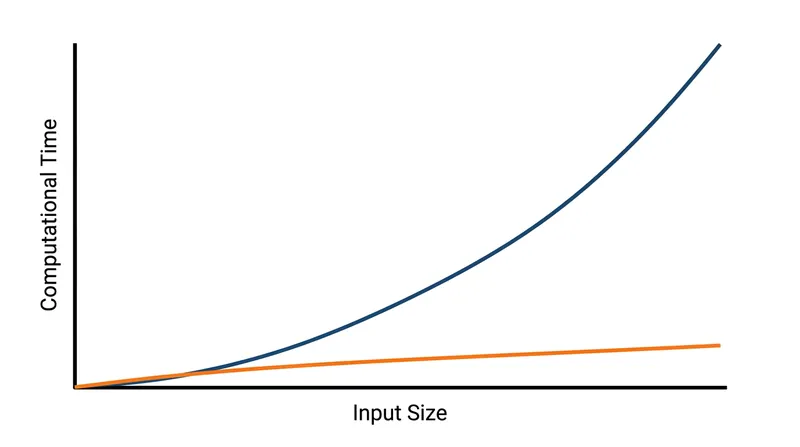

By leveraging the relationship between the Heaviside function and the mid-ranks of the samples, they reduced the time complexity from quadratic to linearithmic. This allowed the exact DeLong covariance matrix to be computed in fractions of a second, even on massive datasets.[3]

This algorithmic optimization allowed DeLong’s test to be integrated seamlessly into standard machine learning libraries. Today, executing the correct paired comparison is just as fast as running the naive independent one.[3][8]

Where the Test Breaks Down

Despite its ubiquity and speed, DeLong’s test is not a universal solution for model evaluation. It carries strict mathematical assumptions that are frequently violated in modern machine learning pipelines, particularly when dealing with heavily processed outputs.[4][5]

The most critical limitation is that the test only applies to strictly continuous or highly granular prediction scores. If a model outputs heavily discretized scores or hard binary classes, the rank-based U-statistic produces excessive ties, invalidating the covariance estimate.[4]

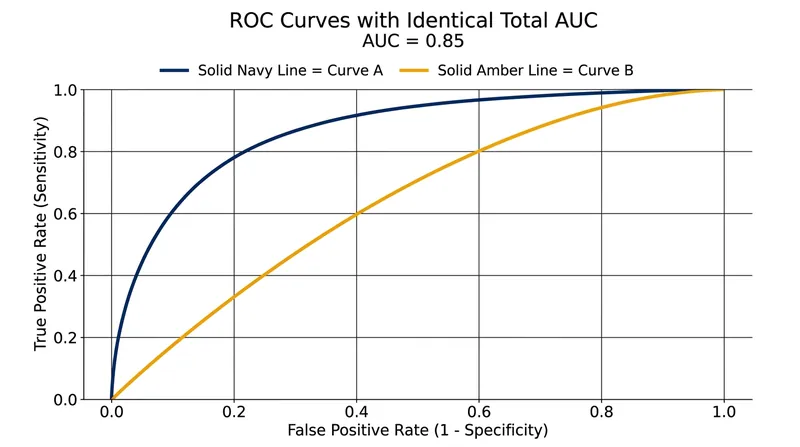

Furthermore, the test only evaluates the global area under the curve. Two models can have identical AUCs—and thus a non-significant DeLong result—while exhibiting completely different ROC shapes that cross each other at critical decision thresholds.[5][8]

In clinical settings where high specificity is paramount, a model that excels at low false-positive rates might be vastly superior. This remains true even if its total AUC matches a baseline model that performs well only at clinically irrelevant high false-positive rates.[8]

In those crossing-curve scenarios, researchers must abandon the global DeLong test entirely. Instead, they must compare partial AUCs over the specific operating range that matters, or rely on alternative non-parametric methods to determine which classifier truly serves the patient better.[5]
