How Decision Curve Analysis Uses Threshold Odds to Measure Clinical Net Benefit Beyond ROC Curves

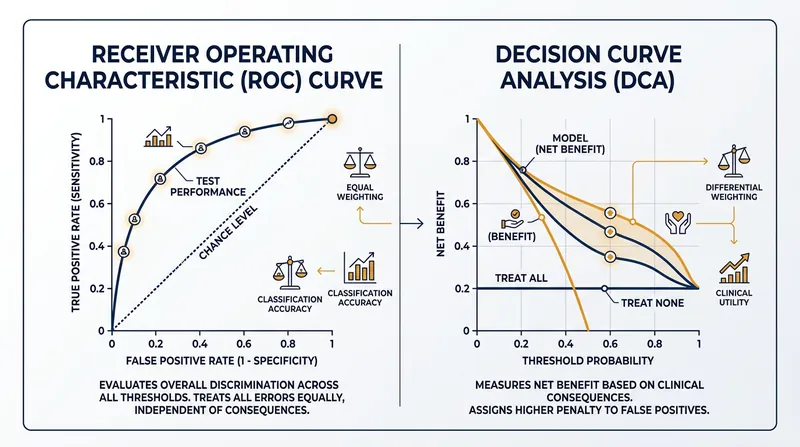

When evaluating a new diagnostic test, the standard approach relies on the Receiver Operating Characteristic (ROC) curve, a statistical plot that graphs a model's sensitivity against its false positive rate. The ROC curve treats every coordinate along its arc as equally valid, calculating an aggregate area under the curve (AUC) to score the model's overall accuracy.[3]

Decision curve analysis departs from this standard by recognizing a fundamental clinical reality: the cost of a false positive is rarely equal to the cost of a false negative. Instead of integrating across all possible mathematical thresholds, decision curves isolate the specific probability at which a clinician actually decides to intervene, penalizing false positives based on that exact clinical weight.[1][5]

"Prediction models are intended to inform clinical decision making," note the authors of the 2012 Annals of Internal Medicine guidelines, yet traditional accuracy metrics fail to incorporate those real-world consequences. A model might achieve a stellar 0.90 AUC by perfectly distinguishing patients at extreme high and low risks, while failing entirely at the 15 percent threshold where doctors actually prescribe medication.[3]

The Mechanics of Net Benefit

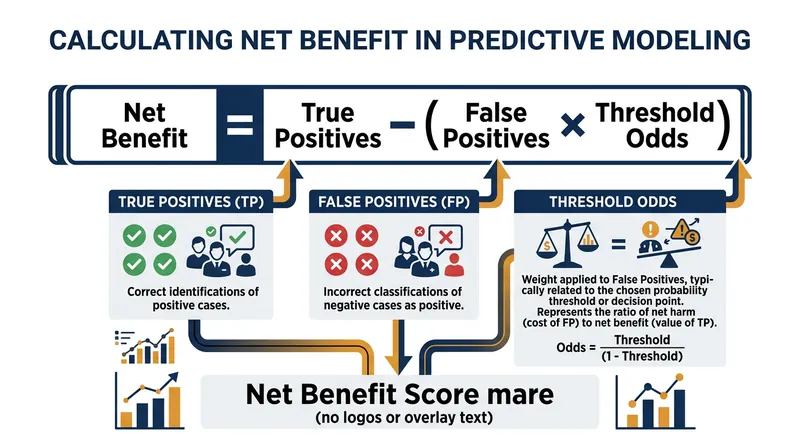

To bridge this gap, decision curve analysis calculates a metric called net benefit. The formula starts with the raw count of true positive diagnoses, but rather than simply adding true negatives, it subtracts the false positives after applying a strict mathematical penalty.[1][7]

That penalty is derived from the threshold probability, defined as the precise risk level where a patient and their doctor feel ambivalent about starting treatment. If a patient is willing to undergo a biopsy when their risk of cancer reaches 10 percent, that 10 percent figure becomes the anchor for the entire net benefit calculation.[1][5]

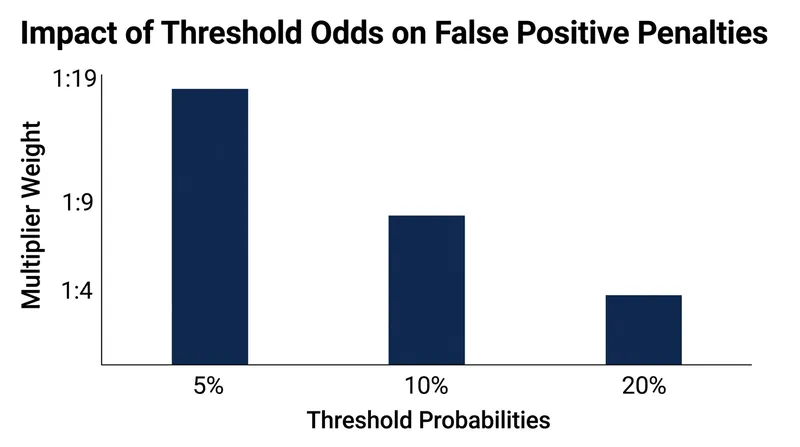

The threshold probability is converted into an odds ratio by dividing the threshold by one minus the threshold. At a 10 percent intervention threshold, the odds are 0.10 divided by 0.90, yielding a multiplier of 1 to 9. This means the model assumes one true positive is worth exactly nine false positives.[1]

If a dataset contains 1,000 patients and the model correctly identifies 100 true positives but flags 450 false positives, the standard accuracy might look acceptable. However, at a 10 percent threshold probability, those 450 false positives are multiplied by the 1-to-9 odds ratio, resulting in a penalty of 50. The net benefit drops to 50 per 1,000 patients, or 0.05.[1][7]

By multiplying the false positive count by this threshold odds ratio, the net benefit equation forces the statistical model to respect the patient's actual risk tolerance. If a machine learning algorithm flags too many healthy patients for a high-risk, invasive surgery, the heavy odds multiplier will drag the model's net benefit below zero.[2][5]

Why ROC Curves Fall Short

The traditional Area Under the ROC Curve (AUC) remains the most widely published metric for clinical algorithms, but it suffers from a fatal abstraction. The AUC measures a model's ability to rank a random sick patient higher than a random healthy patient, without specifying whether that ranking actually crosses a useful clinical threshold.[3]

Because the AUC integrates performance across all possible thresholds from 0 to 100 percent, it rewards models for making accurate predictions at probability levels no doctor would ever use. A prostate cancer model that perfectly separates patients with a 90 percent risk from those with a 99 percent risk gains AUC points, even though both groups would immediately receive biopsies anyway.[1][3]

This mathematical blind spot allows heavily marketed predictive algorithms to claim breakthrough accuracy while offering zero practical utility. A hospital system might purchase a sepsis prediction tool boasting an 0.85 AUC, only to find that at the 5 percent risk threshold where nurses actually initiate treatment, the model triggers overwhelming alarm fatigue.[2][6]

The Decision Curve in Practice

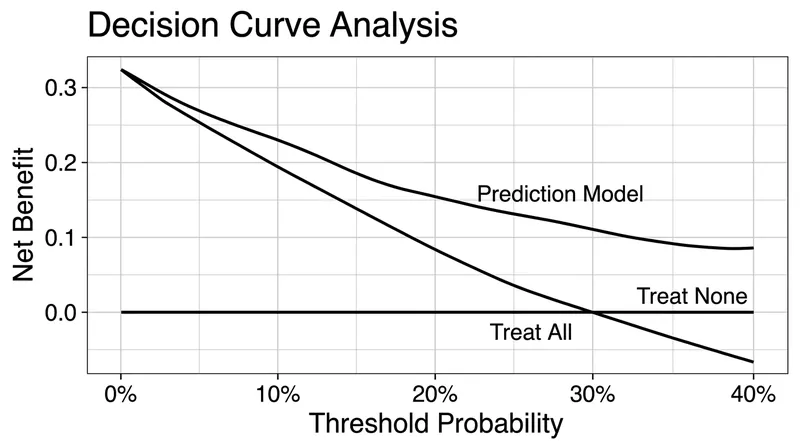

To visualize clinical utility, researchers plot the net benefit on the y-axis against a range of plausible threshold probabilities on the x-axis. This decision curve allows health systems to evaluate whether a model helps patients across different risk tolerances, rather than forcing a single arbitrary cutoff.[1][5]

Every decision curve analysis must include two default baselines: the "treat all" strategy and the "treat none" strategy. The "treat none" line sits flat at zero net benefit, representing the outcome if no patients receive the intervention and no false positives are incurred.[1][7]

The "treat all" curve starts high on the y-axis at a threshold of zero, but plunges downward as the threshold probability increases. As the clinical cost of a false positive grows heavier, treating every patient regardless of their actual risk quickly results in a negative net benefit.[1][2]

For a prediction model to justify its deployment, its decision curve must sit clearly above both the "treat all" and "treat none" baselines at the specific threshold probabilities relevant to the disease. If the model's curve dips below the "treat all" line at a 20 percent threshold, doctors would save more lives by simply giving the drug to everyone.[2][5]

The TRIPOD+AI Mandate

The rapid proliferation of artificial intelligence in healthcare has made the adoption of net benefit metrics increasingly urgent. Machine learning models, particularly deep neural networks, are highly adept at maximizing traditional loss functions and AUC scores by finding subtle, clinically irrelevant patterns in massive datasets.[6]

To combat the publication of mathematically impressive but clinically useless algorithms, the 2024 TRIPOD+AI statement updated the global reporting guidelines for clinical prediction models. The consensus statement explicitly requires researchers to report the clinical utility of their models, pushing the industry away from pure accuracy metrics.[6]

The TRIPOD+AI guidelines specifically target the opaque nature of regression and machine learning methods. Because clinicians cannot easily audit the internal logic of a deep learning model, the external validation of its net benefit becomes the only reliable measure of its safety.[6]

As the BMJ outlined in its foundational guidance, net benefit approaches force algorithm developers to state their assumptions about clinical consequences upfront. An AI vendor can no longer hide a massive false positive rate behind a high sensitivity score; the decision curve will expose the exact threshold where the model's utility collapses.[1][6]

Extensions and Edge Cases

While the standard net benefit formula accounts for the downstream costs of false positives, advanced extensions to decision curve analysis can also incorporate the direct harm of the diagnostic test itself. This is critical for models that recommend invasive procedures, where the test carries its own morbidity.[4]

If a prediction model determines whether a patient should undergo a spinal tap, the mathematical penalty must include the baseline risk of the spinal tap, regardless of the test result. Researchers adjust the net benefit equation by subtracting a "test harm" constant, shifting the entire decision curve downward.[4]

This adjustment reveals that highly accurate models can still be clinically harmful if the test they recommend is too dangerous. A model predicting a mild, easily treatable infection might show a positive net benefit in a standard analysis, but fall below zero once the 2 percent risk of the recommended biopsy is factored in.[4]

Despite its advantages, decision curve analysis requires clinicians to explicitly define the threshold probability, a task that many find uncomfortable. Quantifying exactly how many unnecessary biopsies equal one missed cancer forces the medical community to acknowledge the inherent trade-offs in diagnostic medicine.[2][3]

The Shift in Clinical Literature

Major medical journals have increasingly mandated decision curve analysis for any study proposing a new biomarker or predictive algorithm. The Journal of Clinical Oncology published strict guidance in 2016, warning that models evaluated solely on ROC curves often fail to improve patient outcomes in practice.[2]

The JCO guidance emphasized that assessing the clinical impact of risk prediction models requires more than just statistical discrimination. A model must demonstrate that using it to guide treatment decisions actually leads to better population-level outcomes than the default strategies.[2]

This shift represents a broader movement toward value-based statistics in medical research. By demanding that models prove their worth at the specific thresholds where human doctors actually make decisions, the field is slowly closing the gap between statistical significance and clinical reality.[1][3]

The transition from AUC to net benefit also provides a crucial defense against the hype surrounding medical AI. When a technology company announces a breakthrough diagnostic model, the decision curve strips away the marketing language, revealing exactly how many false positives the algorithm will inflict on a hospital's patient population.[6][8]

Ultimately, a prediction model is only as useful as the actions it changes. By penalizing false positives according to their true clinical weight, decision curve analysis ensures that the mathematical pursuit of accuracy does not come at the expense of patient safety.[1][2][8]
