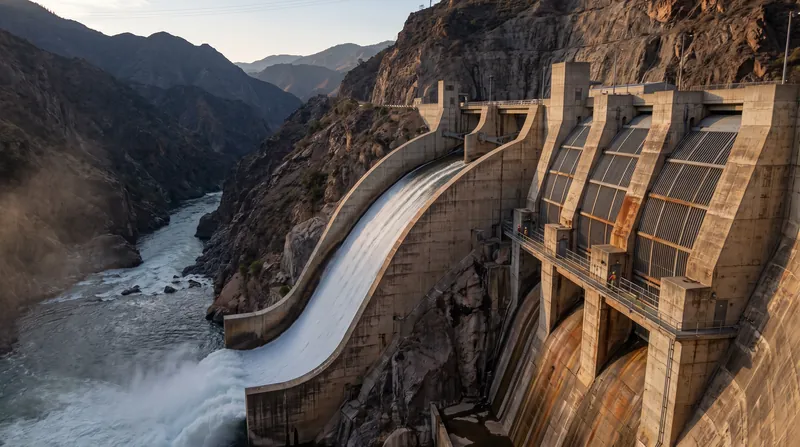

The Physics Equation That Dictates the Limits of Hydroelectric Power
The entire multi-billion-dollar hydropower industry is governed by a single mathematical formula that calculates exactly how much electricity can be extracted from falling water.
- Hydropower Developers
- Maximizing hydraulic head and flow rate is essential to justify the massive capital costs of dam construction.
- Environmental Hydrologists
- The ecological health of a river system must take precedence over maximizing the volumetric flow rate for electricity generation.
- Grid Operators
- The value of hydropower lies in its high conversion efficiency and the ability to instantly dispatch power to balance the grid.
Perspectives this story doesn't cover
- Local communities displaced by high-head reservoir flooding
- Downstream agricultural users dependent on regulated flow rates
Summary
- The power output of a hydroelectric dam is calculated by multiplying water density, gravity, flow rate, hydraulic head, and system efficiency.
- Water density and gravity are physical constants, meaning engineers can only manipulate flow rate, head, and efficiency to increase power.
- Friction in the pipes and mechanical resistance in the turbines typically cap a dam's deliverable power at 85 to 90 percent of its theoretical potential.
- Droughts cause an exponential drop in power generation by simultaneously reducing both the hydraulic head and the available flow rate.
- Pumped storage facilities rely on this same equation but lose 20 to 30 percent of their energy to efficiency penalties during the round-trip cycle.
On December 1, 2011, when physicist Tom Murphy published his "Do the Math" assessment quantifying the absolute physical limits of U.S. hydropower, the analysis hinged on a single, non-negotiable equation. The formula P = ηρgQH dictates exactly how much electrical power a hydroelectric facility can generate, defining the boundary between a financially viable dam and a stranded asset. As grid operators increasingly rely on dispatchable zero-carbon energy to backstop intermittent renewables, this mathematical relationship remains the inescapable arbiter of what a river can actually provide.[2]

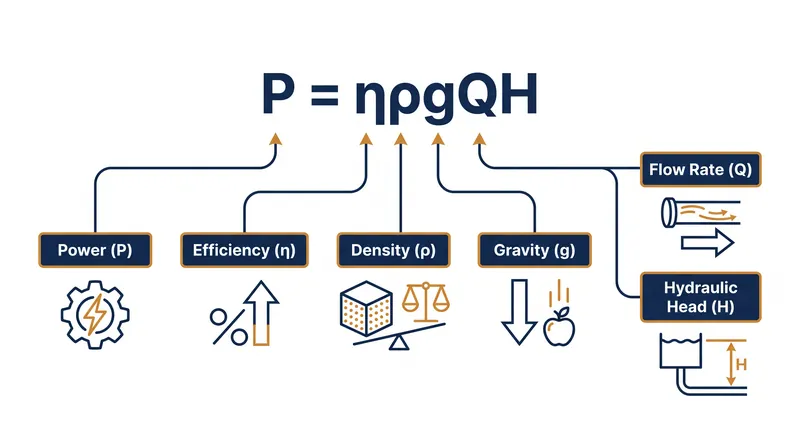

The equation is the literal translation of gravitational potential energy into electrical current. The left side of the formula, P, represents the total power output, typically measured in watts or megawatts. The right side contains five variables that account for the physical weight of the water, the force pulling it downward, the volume moving through the system, the vertical distance it falls, and the mechanical reality of the machinery it spins. Every engineering decision made during the construction of a dam is an attempt to optimize these specific variables to maximize the final megawatt output.
The first two variables on the right side are physical constants that engineers cannot alter. The Greek letter rho (ρ) represents the density of water, which is approximately 1,000 kilograms per cubic meter at standard temperatures. The letter g represents the acceleration due to gravity, fixed at 9.81 meters per second squared on Earth. Together, these constants mean that every cubic meter of water carries a specific, unchanging weight as it enters the penstock, establishing the baseline multiplier for the entire energy conversion process.[3][5]
The variable Q represents the volumetric flow rate, measured in cubic meters per second. This is the hydrological lifeblood of the dam. As the Stockholm Environment Institute's Water Evaluation And Planning (WEAP) system models, flow rate is determined by the river's natural discharge, upstream reservoir capacity, and seasonal precipitation. A massive river like the Columbia provides an enormous Q, allowing facilities like the Grand Coulee Dam to generate massive power even if their vertical drop is not the highest in the world.[3]
The variable H stands for hydraulic head, measured in meters. This is the vertical distance from the surface elevation of the reservoir down to the elevation of the turbine. The hydraulic head dictates the pressure of the water when it strikes the turbine blades. Doubling the height of a dam doubles the hydraulic head, which directly doubles the theoretical power output without requiring a single additional drop of water. This geometric advantage is why civil engineers prioritize deep, steep-walled canyons for major hydroelectric projects.
The relationship between Q and H defines the fundamental architecture of every hydroelectric facility. A run-of-the-river project typically has a very low H but compensates with a massive, continuous Q to generate baseload power without requiring a massive reservoir. Conversely, high-alpine dams in Switzerland or Norway operate with a relatively small Q but utilize a massive H, dropping water hundreds of meters down mountainsides through pressurized penstocks to generate equivalent power from a fraction of the water volume. The product of these two variables dictates the physical size of the turbines required.
The final variable, eta (η), represents the combined efficiency of the entire system. If the formula only calculated ρgQH, it would describe a perfect universe where 100 percent of the water's potential energy is converted into electricity. In reality, as engineering reference platforms like x-engineer.org detail, thermodynamic and mechanical losses are unavoidable at every stage of the conversion process. Engineers spend millions of dollars attempting to push η as close to 1.0 as the laws of physics will allow.[5]
The final variable, eta (η), represents the combined efficiency of the entire system.
Efficiency losses begin before the water even reaches the turbine. As water rushes down the penstock, friction against the pipe walls creates dynamic head loss. This means the effective H striking the turbine is always slightly lower than the gross H measured from the reservoir surface. Engineers mitigate this by widening penstocks and smoothing their interior surfaces, but the friction penalty can never be entirely eliminated, particularly in older facilities where sediment and scaling have roughened the steel or concrete.

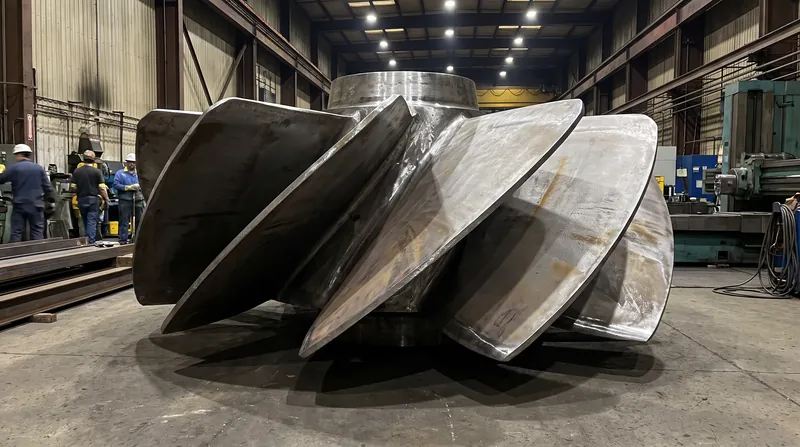

The turbine itself introduces the next efficiency penalty. The Wisconsin Valley Improvement Company notes that different turbine designs are engineered to capture specific ratios of flow and head. Pelton wheels are deployed for extreme high-head, low-flow scenarios, while Kaplan turbines resemble boat propellers and are optimized for low-head, high-flow rivers. Even operating at their absolute peak design point, the best modern turbines capture roughly 90 to 95 percent of the hydraulic energy, with the remainder lost to turbulence and mechanical friction.[4]
The generator introduces the final set of losses in the conversion chain. The mechanical rotation of the turbine shaft must spin massive electromagnets inside a copper stator to induce an alternating electrical current. Electrical resistance in the copper windings and magnetic hysteresis in the iron core bleed off another 2 to 4 percent of the energy as waste heat. This heat must be actively managed with dedicated cooling systems, which themselves consume a small fraction of the plant's total electrical output, further reducing the net power delivered to the grid.
When the hydraulic, mechanical, and electrical efficiencies are multiplied together, the resulting η for a modern hydroelectric plant typically lands between 0.80 and 0.90. This means that a dam operating at peak performance will deliver, at best, 90 percent of the theoretical energy calculated by the raw physics of the falling water. If a dam has a head of 100 meters and a flow of 50 cubic meters per second, the theoretical power is roughly 49 megawatts. With an 85 percent efficiency factor, the deliverable output drops to 41.7 megawatts.[5]
The U.S. Department of Energy relies heavily on this exact equation when estimating the economic parameters of the nation's remaining hydropower resources. When evaluating whether to retrofit the thousands of existing non-powered dams with generating equipment, analysts calculate the available Q and H to determine the maximum deliverable megawatts. If the resulting P is too low, the capital cost of installing custom turbines, reinforcing the concrete, and running new transmission lines cannot be justified by the projected electricity sales, rendering the site economically unviable regardless of its engineering feasibility.[1]

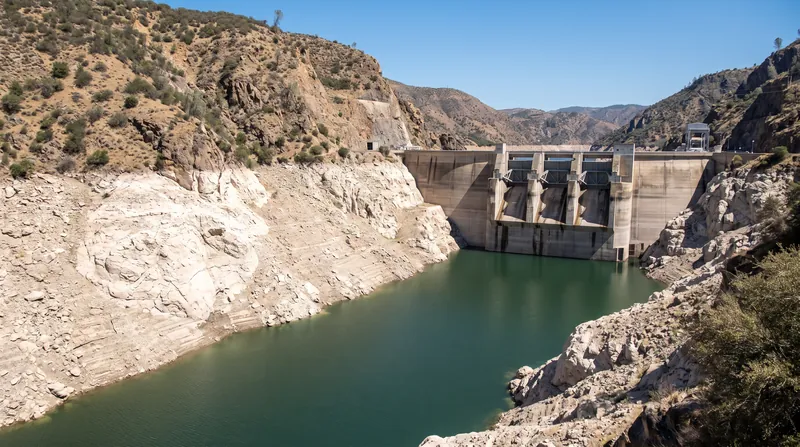

The formula also explains the devastating impact of drought on grid stability. When a reservoir's water level drops, the facility suffers a compounding penalty. The hydraulic head (H) decreases, reducing the pressure on the turbines. Simultaneously, operators are often forced to reduce the flow rate (Q) to conserve the remaining water supply and maintain environmental baselines downstream. Because P is the product of Q and H, a reduction in both variables causes the power output to plummet exponentially, stripping dispatchable capacity from the grid exactly when summer cooling demand peaks.
This mathematical reality governs pumped storage hydropower as well, which currently provides the vast majority of utility-scale energy storage in the United States. During periods of excess grid generation, operators consume electricity to pump water uphill, artificially creating H. When demand peaks, the water is released back down through the turbines. However, the efficiency variable (η) applies in both directions. The pumps lose energy to friction and heat on the way up, and the turbines lose energy on the way down.
As a result, a pumped storage cycle typically recovers only 70 to 80 percent of the original electrical energy invested. This round-trip efficiency loss is a physical toll exacted by the ρgQH equation that dictates the absolute limits of grid-scale storage. As the energy transition accelerates, grid planners must account for these rigid mathematical boundaries, recognizing that while markets and policies can be rewritten, the fundamental physics of falling water cannot be negotiated.
Definitions
- Hydraulic Head
- The vertical distance that water falls from a reservoir to a turbine, determining the water pressure available for power generation.
- Volumetric Flow Rate
- The volume of water passing through a system over a specific period of time, typically measured in cubic meters per second.
- Penstock
- The large pipe or channel that carries pressurized water from the reservoir down to the turbine inside a hydroelectric facility.
- Levelized Cost of Energy (LCOE)
- A financial metric that calculates the average net present cost of electricity generation for a power plant over its lifetime.
- Pumped Storage
- A system that acts as a giant battery by using excess grid electricity to pump water uphill to a reservoir, releasing it back through turbines when power is needed.
Questions & answers
What does the H stand for in the hydropower equation?
The H stands for hydraulic head, which is the vertical distance the water falls from the surface of the reservoir to the turbine. A larger head generates higher water pressure and more electrical power.
Why is the efficiency never 100 percent?
Energy is inevitably lost to friction as water travels down the penstock, mechanical resistance within the spinning turbine, and electrical heat losses inside the generator. Most modern plants achieve an overall efficiency between 80 and 90 percent.
How does drought affect a dam's power output?
Drought reduces both the volume of water available to flow through the turbines (Q) and the vertical height of the reservoir (H). Because power is the product of these two variables, a drop in water levels causes an exponential decrease in electricity generation.
Can a small dam generate as much power as a tall dam?
Yes, if the small dam has a significantly larger volumetric flow rate. A run-of-the-river facility with a low hydraulic head can match the output of a high-head alpine dam if it processes a massive volume of water.
Significance
As the global grid transitions to intermittent solar and wind energy, the reliability of our electricity supply increasingly depends on the dispatchable backup power provided by hydroelectric dams. Understanding the rigid physical limits of how much energy these facilities can actually generate reveals the hard boundaries of our clean energy transition.
