Sensible vs. Latent Heat: How ACCA Manual J Actually Dictates the Required Tonnage for Your HVAC System

The binding constraint for any residential HVAC system is that its cooling capacity must exactly match the physical heat transfer of the building envelope. If a unit is oversized, the entire thermodynamic process collapses.

Currently, this constraint is widely ignored in favor of outdated rules of thumb, like assigning one ton of cooling capacity for every 400 to 600 square feet of floor space. But square footage does not dictate thermal load. To actually condition a home, the equipment must satisfy two entirely different mathematical requirements simultaneously: lowering the air temperature and removing airborne moisture.[3][7]

These two requirements are governed by the ACCA Manual J load calculation, the mandatory engineering standard for residential HVAC sizing. Manual J splits the total cooling load into two distinct categories: sensible heat and latent heat. Sensible heat is the thermal energy you can measure with a standard thermometer—the heat that raises the dry-bulb temperature of the room. Latent heat is the energy absorbed or released during a phase change, which in a residential environment means the invisible moisture vapor suspended in the indoor air.[3][4]

"Sensible heat changes air temperature, while latent heat is associated with a phase change and, in HVAC systems, usually means adding or removing moisture," explains the engineering documentation from Turn2engineering. When a homeowner lowers the thermostat from 76°F to 72°F during a summer heatwave, they are explicitly asking the system to address the sensible load.

The thermostat only reads dry-bulb temperature; it is entirely blind to water vapor. Consequently, if the home feels clammy, sticky, or uncomfortably heavy at that 72°F setpoint, the system has successfully masked the temperature but completely failed to address the latent load.[4]

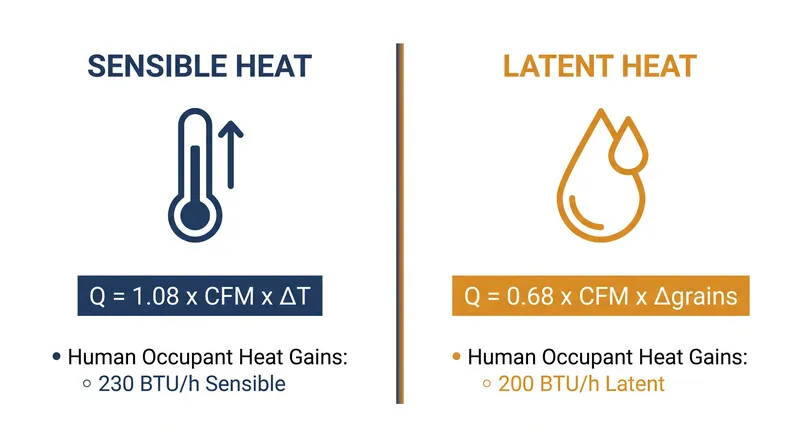

The underlying mathematics behind these two distinct loads reveal exactly why equipment sizing is so unforgiving. The sensible heat equation (Q = 1.08 × CFM × ΔT) relies strictly on the volume of air moving through the ductwork and the temperature differential across the coil.

Conversely, the latent heat equation (Q = 0.68 × CFM × Δgrains) relies on the difference in absolute moisture content, measured in grains of water. Because these formulas operate on entirely different physical variables, a poorly selected system can easily satisfy the sensible equation in minutes while completely failing to run long enough to satisfy the latent one.[1][4]

Internal heat gains further complicate the ratio between these two loads. According to standard energy models, a human occupant at rest generates approximately 230 British Thermal Units per hour (BTU/h) of sensible heat and 200 BTU/h of latent heat. Routine domestic activities like cooking, showering, and watering indoor plants add massive latent loads without significantly raising the dry-bulb temperature.

If the HVAC system is not explicitly sized to handle that specific ratio of sensible to latent heat—known in the industry as the Sensible Heat Ratio (SHR)—it will cool the air too quickly and shut off before the evaporator coil has time to extract the moisture.[1][5]

This dynamic is exactly why the ACCA Manual S equipment selection standard places a strict, legally enforceable cap on oversizing. Under Manual S guidelines, an air conditioner's rated capacity cannot exceed 115% of the calculated sensible cooling load. If a contractor installs a 4-ton (48,000 BTU/h) unit in a home that only requires 2.5 tons (30,000 BTU/h) of sensible cooling, the unit will inevitably short-cycle. It blasts a massive volume of cold air, drops the ambient temperature to the thermostat's setpoint in ten minutes, and abruptly shuts down.[3][7]

Because the oversized system only ran for ten minutes, the evaporator coil never stayed cold long enough to condense the 200 BTU/h of latent moisture generated by each occupant. The result is a cold, damp house that encourages mold growth, warps hardwood floors, and triggers structural condensation inside the wall cavities. To prevent this exact failure mode, the Manual J calculation demands precise, localized inputs: the U-factor of the windows, the R-value of the insulation, the orientation of the exterior walls, and the exact leakage rate of the ductwork.[3][6]

For commercial buildings, the stakes are identical but the regulatory standard changes to ASHRAE 183, which was most recently updated in 2024 to mandate the Heat Balance Method for accounting for radiant heat gain and thermal mass effects. But whether a project requires a residential Manual J or a commercial ASHRAE 183 calculation, the underlying physics remain absolute.

The required tonnage of the unit must be dictated by the math of the envelope, not the floor plan. If the sensible and latent loads are not calculated and matched to the equipment, the system will never deliver actual comfort.[2][7]
