The 80% Continuous Load Limit: Why a 20-Amp Circuit Can Only Safely Power 16 Amps of Devices

Homeowners often assume that a 20-amp circuit breaker is designed to safely run 20 amps of electrical devices indefinitely. It is a logical assumption for a buyer or renter to make—the number is printed right on the switch in the basement panel, seemingly guaranteeing that capacity. But plugging a 12-amp space heater and an 8-amp vacuum into the same 20-amp circuit for an afternoon cleaning session directly contradicts the National Electrical Code (NEC). When residents treat their electrical panels like simple math equations, adding up device amperages until they hit the breaker's printed limit, they unknowingly bypass a critical safety margin designed to prevent catastrophic hardware failure.[4]

The reality is that standard residential circuit breakers are not built to carry their full nameplate rating for extended periods. According to the NEC, any electrical draw expected to run for three hours or more is classified as a "continuous load." For these specific loads, the code mandates a built-in safety margin: the circuit breaker can only be loaded to 80% of its maximum capacity. This rule applies to everything from dedicated electric vehicle chargers running overnight to a string of heavy-duty grow lights in a basement. The 80% threshold is not a suggestion; it is a hard regulatory limit engineered to keep the physical components inside the metal breaker box from reaching dangerous temperatures during sustained use.[1][2]

For a renter trying to keep a drafty apartment warm or a buyer setting up a new home office, this math dictates exactly what can be plugged into the wall. A 20-amp circuit can only safely power 16 amps of continuous load, and a standard 15-amp bedroom circuit is capped at just 12 amps. The restriction exists because of thermal dynamics inside the breaker panel, not necessarily the copper wiring inside the walls. "The 80% rule has nothing to do with cable derating. It's about the overcurrent device, not the cable," explains electrical engineering firm ECalPro in their 2026 analysis of the standard. The copper wire might easily handle the full current, but the breaker itself becomes the thermal bottleneck.[2]

When a breaker carries its maximum rated current, the internal copper bus bars and lug terminations generate significant heat. Standard residential breakers—which are tested to UL 489 standards—are evaluated at 100% capacity only for short, intermittent durations. If they carry that full load continuously for hours on end, the internal components overheat. This sustained thermal stress can potentially melt the surrounding wire insulation or cause an electrical fire long before the breaker's internal trip mechanism actually activates. The breaker is designed to trip during a sudden spike or short circuit, but it relies on the 80% continuous load limit to survive the slow, steady heat buildup of a long-running appliance.[2][3]

To prevent this thermal degradation, the NEC requires the overcurrent protection device—the breaker itself—to be sized at 125% of the continuous load it is expected to carry. Mathematically, the inverse of 125% is exactly 80%. Therefore, if a homeowner wants to run a 16-amp continuous load, they are required to install a 20-amp breaker (16 multiplied by 1.25 equals 20). This calculation ensures that the breaker never operates above 80% of its tested capacity during normal, extended use, leaving a 20% buffer to absorb the heat generated by the electrical resistance at the connection points.[1][2]

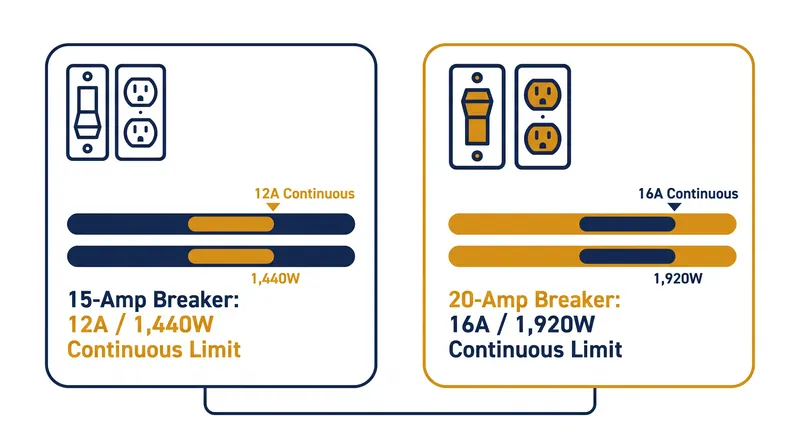

For the average homeowner, this abstract electrical math translates directly into hard wattage limits for everyday appliances. On a standard 120-volt residential electrical system, a 15-amp circuit can safely provide 1,440 continuous watts (calculated as 12 safe amps multiplied by 120 volts). A 20-amp circuit maxes out at 1,920 continuous watts (16 safe amps multiplied by 120 volts). Understanding these specific wattage ceilings is crucial when purchasing high-draw devices, as exceeding them means the appliance is slowly cooking the breaker panel, even if the switch does not immediately flip to the off position.[5]

This strict continuous wattage limit explains why nearly every consumer space heater sold in the United States is capped at exactly 1,500 watts. Running a 1,500-watt heater draws 12.5 amps from the wall. On a standard 15-amp bedroom circuit, that single appliance instantly exceeds the 12-amp continuous limit. If left running for more than three hours on a cold winter night, it pushes the breaker past its thermal safety threshold. This often results in nuisance tripping, or worse, hidden heat damage inside the panel that degrades the hardware over time, leaving the homeowner vulnerable to future electrical failures.[4][5]

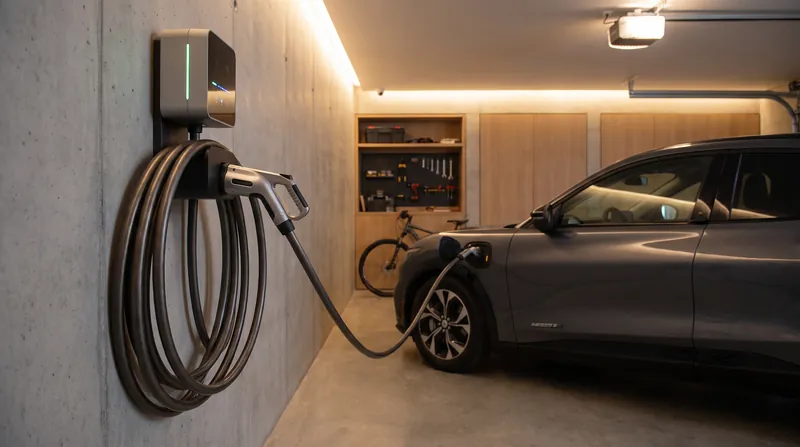

Electric vehicle chargers are another prime example for modern buyers navigating these limits. The NEC explicitly classifies EV charging as a continuous load, as vehicles routinely pull power for eight to ten hours overnight. A Level 2 charger designed to deliver 40 amps to a vehicle must be installed on a 50-amp circuit with appropriately sized wiring. Attempting to pull 50 amps through a 50-amp breaker for an overnight charge directly violates the 80% rule and risks catastrophic panel failure. The charger will physically operate, but the breaker terminations will eventually overheat and fail.[2][3]

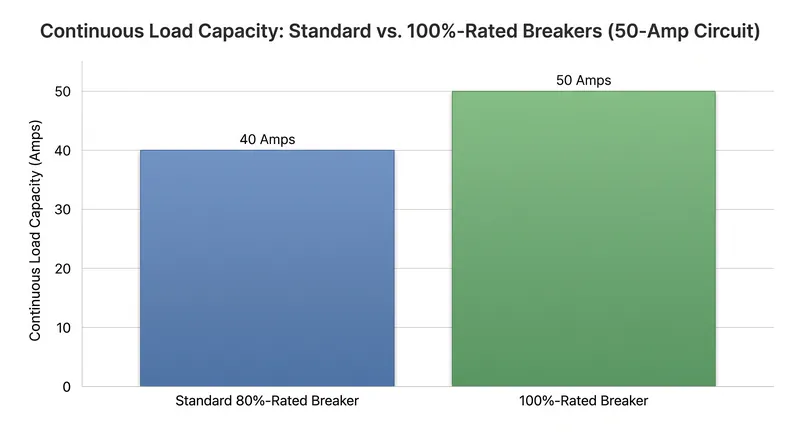

The electrical industry offers two distinct hardware paths for managing these continuous loads safely. The first is the standard 80%-rated breaker, which requires oversizing the circuit breaker and the corresponding copper wire to accommodate the anticipated heat. The second option is the 100%-rated breaker, a specialized commercial-grade device engineered with heavier internal components and advanced ventilation to run at its full nameplate capacity indefinitely without overheating. While both solve the thermal problem, they represent entirely different approaches to electrical engineering and panel design.[5]

Choosing between these two approaches dictates how an electrical panel is designed, how thick the copper wiring must be, and how much the overall installation will cost. While residential homes in 2026 are almost exclusively wired with standard 80% breakers due to cost and compatibility, the rapid rise of high-draw appliances like EV chargers, induction ranges, and heat pumps is forcing some homeowners and custom builders to look at commercial-grade solutions to maximize their limited panel space.[5]

Understanding the stark trade-offs between standard 80%-rated systems and 100%-rated commercial upgrades reveals exactly why the 80% continuous load limit exists in the first place. It is not an arbitrary penalty, but a physical necessity dictated by the thermal limits of standard consumer hardware. Ignoring this rule remains one of the most common, and dangerous, mistakes in DIY electrical work, underscoring why a breaker's printed number is only the beginning of the calculation for any safe home renovation or appliance upgrade.[1][5]
