The Brown, Blue, and Green-Yellow Standard: How International Wiring Codes Designate Electrical Phase, Neutral, and Ground

When a homeowner strips the jacket off an imported appliance cord to wire a replacement plug, or an electrician opens a modern European control panel, they are greeted by a strict, universally mandated palette: a brown conductor, a light blue conductor, and a wire striped in green and yellow. This specific visual language is not a manufacturer's preference but a legal requirement dictated by the International Electrotechnical Commission (IEC) under standard 60445. Originally codified as IEC 60446 before being merged into the broader 60445 standard in 2010, these colors serve as a critical safety interface between human hands and lethal voltage.[4][6]

The standard was developed to eliminate the lethal ambiguity that plagued early electrical installations, where a single country might use red for a live wire while a neighboring nation used red for ground. Today, the IEC 60445 standard is mandatory across the European Union, the United Kingdom, and many Asian and Pacific nations. It establishes a uniform system where color directly communicates a wire's function, regardless of the language spoken by the technician or the homeowner.[2][3]

Under the IEC single-phase AC system—the standard 230-volt power supplied to homes and offices—the brown wire is designated as the line, or phase, conductor. As Newark Electronics notes in its technical guidance, "The live wire carries energy to the device, while the neutral sends back the current received from the power supply to complete the electrical circuit." Because it is actively carrying voltage, the brown wire poses the primary shock hazard in the circuit.[1][2]

The return path for that current is provided by the neutral conductor, which the IEC strictly mandates must be light blue. The blue wire completes the electrical circuit by carrying the current back to the source. While it is nominally at zero volts relative to ground, a neutral wire can still carry dangerous current if the circuit is unbalanced or if a fault occurs, meaning it must be treated with the exact same caution as the live brown wire.[1][4]

The most universally recognized safety feature in the IEC standard is the protective earth, or ground, conductor, which is uniquely identified by a bi-color green and yellow stripe. This specific combination was chosen because it remains distinguishable even to individuals with red-green color blindness. The green-yellow wire does not carry current during normal operation; instead, it provides a safe, low-resistance path to the earth in the event of a short circuit, triggering the breaker to trip and preventing the appliance's metal casing from becoming electrified.[1][4]

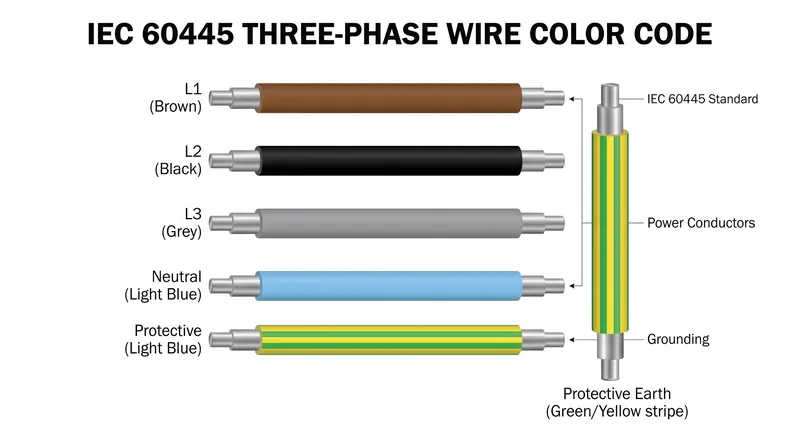

In three-phase industrial systems, which deliver power to heavy machinery and commercial buildings, the IEC expands the palette to identify the additional live phases. The first phase, designated L1, remains brown. The second phase, L2, is designated as black, and the third phase, L3, is grey. The neutral remains light blue, and the protective earth remains green-yellow. This consistency ensures that a technician moving from a residential lighting circuit to a factory motor control panel encounters the same foundational safety logic.[1][3][4]

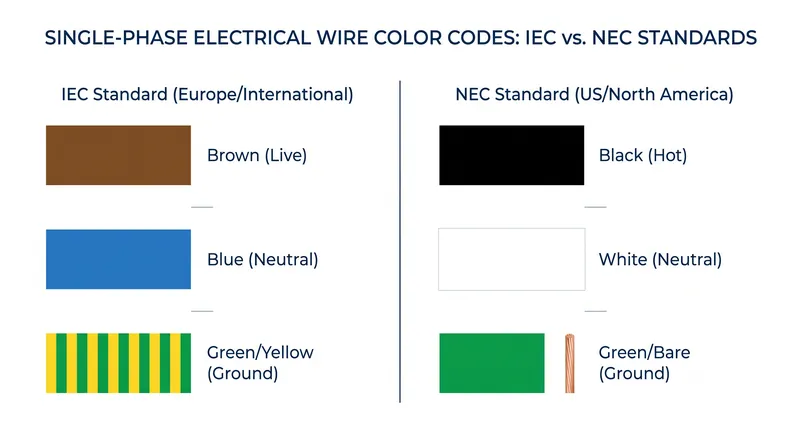

The global landscape of electrical standards, however, is not entirely unified, and the primary point of divergence lies across the Atlantic. In the United States, the National Electrical Code (NEC) dictates a completely different color scheme for 120-volt and 240-volt residential systems. Under the NEC, the live, ungrounded conductor is typically black, or red for a second phase, while the grounded neutral conductor is white or grey.[1][5]

This divergence creates a dangerous trap for the uninformed DIYer or homeowner. An American homeowner accustomed to the NEC might assume a black wire is hot and a white wire is neutral, but if they order an imported European pendant light online, they will find brown and blue wires instead. Conversely, a European renter might mistakenly assume a US white wire is a safe ground, when it is actually the neutral return path. The only point of universal agreement between the IEC and the NEC is the grounding conductor, which both standards recognize as green, bare copper, or green with a yellow stripe.[1][5]

For industrial control panels, the stakes of color identification are even higher. The IEC 60445 standard separates alternating current (AC) and direct current (DC) circuits by color to prevent dangerous cross-connections during maintenance. For example, 24-volt DC control circuits typically use blue for the negative common and brown or red for the positive, further emphasizing the need for technicians to verify voltage with a meter rather than relying solely on visual cues.[3]

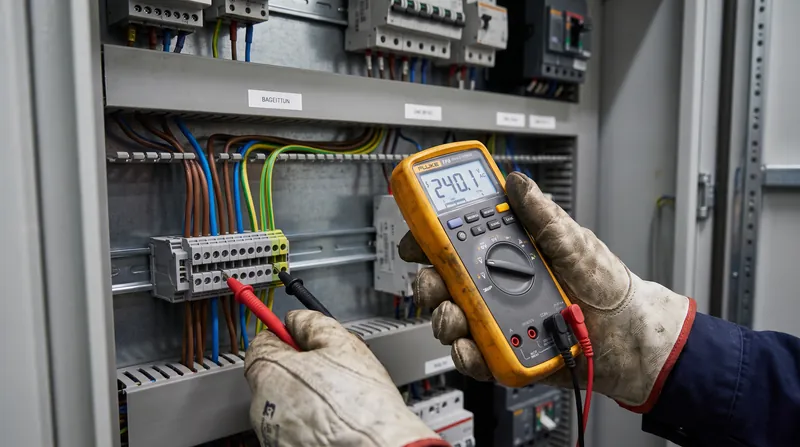

While the brown, blue, and green-yellow standard has brought unprecedented safety and consistency to international electrical work, it cannot replace fundamental testing protocols. Color codes provide the map, but as both the IEC and NEC emphasize, a wire's true state can only be confirmed by a voltmeter. The physical color of the insulation is the first line of defense, but the final verification always happens at the probe.[6]
