How Source, Reservoir, and Seal Rocks Dictate the Viability of Conventional Hydrocarbon Systems

Public perception often visualizes petroleum extraction as draining massive, hollow underground lakes—a misconception frequently reinforced by simplified media diagrams. The geological reality, documented across decades of basin assessments by the U.S. Geological Survey (USGS) and the Society of Petroleum Engineers (SPE), is entirely solid-state. Hydrocarbons exist exclusively within the microscopic pore spaces of solid rock, requiring a precise, chronological alignment of three distinct geological formations: a source, a reservoir, and a seal.[1][3]

The architecture of a conventional hydrocarbon system begins with the source rock. These are typically fine-grained sedimentary rocks, such as black shales, deposited in low-oxygen environments millions of years ago. According to 2014 geological models published by Geology In, a viable source rock must contain a minimum Total Organic Carbon (TOC) threshold, generally exceeding 1% to 2% by weight. Without this baseline organic density, the rock cannot generate commercial volumes of hydrocarbons, regardless of subsequent heating.[5][7]

Burial depth and thermal history act as the catalyst. As tectonic subsidence buries the source rock, geothermal gradients heat the organic matter, known as kerogen. The SPE defines the "oil window" as a strict thermal bracket between 60°C and 120°C, typically occurring at depths of 2,000 to 4,000 meters. If the temperature remains below 60°C, the kerogen remains immature; if it exceeds 120°C, the system cracks the oil into natural gas, and beyond 200°C, it degrades into inert graphite.[3]

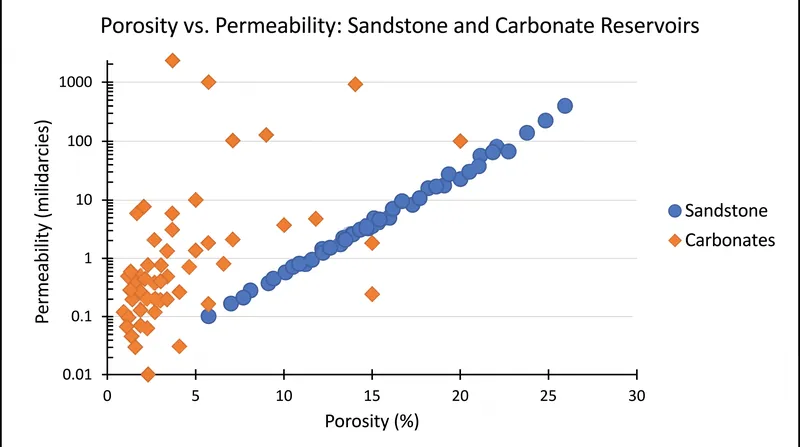

Once generated, the hydrocarbons are expelled from the low-permeability source rock and begin a buoyancy-driven vertical migration. This transit terminates when the fluids encounter the second critical component: the reservoir rock. A 2021 curriculum from the Maricopa Open Digital Press notes that conventional reservoirs, predominantly sandstones and carbonates, must possess significant porosity to store the fluids. Viable conventional reservoirs typically exhibit porosity ranging from 10% to 25% of the total rock volume.[6]

Storage capacity alone is insufficient without flow capacity, known as permeability. Permeability measures the interconnectedness of the pore spaces, dictating how easily fluids can move toward a wellbore. In conventional systems, reservoir permeability must generally exceed 1 millidarcy. If the pores are isolated, the oil remains trapped in place, transitioning the geology from a conventional system into an unconventional tight-oil or shale play.[3][7]

The upward migration of oil and gas is only halted by the third component: the seal rock, or caprock. "A seal is a relatively impermeable rock, commonly shale, anhydrite, or salt, that forms a barrier or cap above and around reservoir rock such that fluids cannot migrate beyond the reservoir," according to the Society of Exploration Geophysicists (SEG) Wiki. This barrier requires microscopic pore throats so narrow that the capillary entry pressure exceeds the upward buoyant force of the underlying hydrocarbon column.[4]

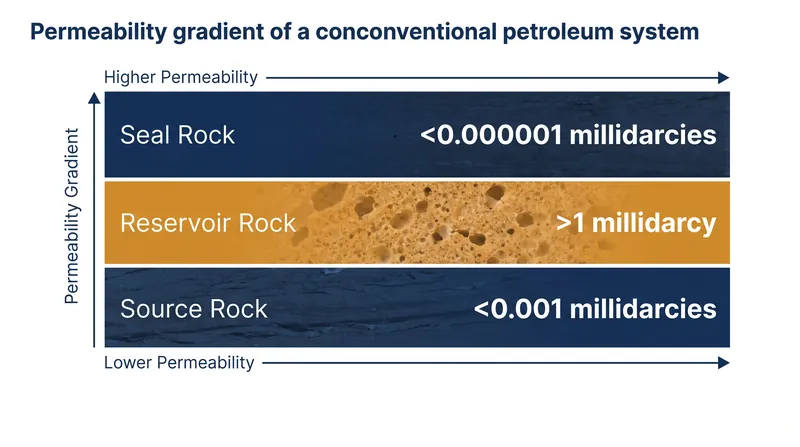

Effective seal rocks operate at extreme permeability deficits. While a reservoir rock might boast 100 millidarcies of permeability, a high-quality evaporite (salt) seal often registers below 0.000001 millidarcies. This massive permeability gradient—spanning eight orders of magnitude—is the physical mechanism that traps the resource in place over geological timescales, preventing it from seeping to the surface and oxidizing.[4][8]

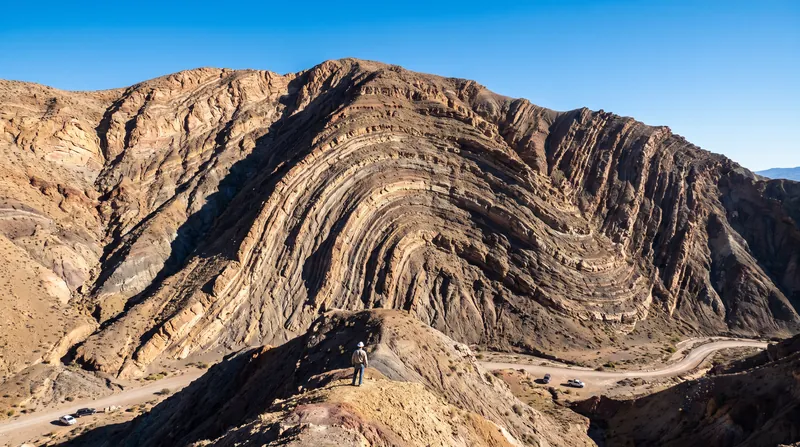

The spatial arrangement of the reservoir and seal creates the trap. Traps are broadly categorized into structural traps, such as anticlines and fault blocks formed by tectonic deformation, and stratigraphic traps, created by changes in rock types, such as ancient coral reefs or pinch-outs. A 2015 USGS assessment of the Cotton Valley Group in the East Texas Basin demonstrated how complex faulting can create hundreds of isolated structural traps within a single regional system.[1]

The ultimate constraint on any conventional system is timing. Basin modelers map the chronological sequence of deposition, trap formation, and hydrocarbon generation. If tectonic forces create a perfect structural trap in 2026, but the underlying source rock entered the oil window and expelled its hydrocarbons 50 million years ago, the trap will be barren. The trap must exist before the migration occurs.[2][7]

Modern assessments, such as the USGS evaluation of the Denver Basin Province, rely on mapping these three components in three-dimensional space. By quantifying the volume of mature source rock, the porosity of the reservoir, and the integrity of the seal, geologists can calculate the probabilistic volume of undiscovered conventional resources. When any single variable in this triad fails, the conventional system collapses, leaving the hydrocarbons either dispersed to the surface or locked immovably in the source rock.[2][8]
