Latent Heat of Boil-Off Vaporization Maintains Minus 162°C: Why LNG Tankers Transport Liquid Methane Without Active Chillers

A modern liquefied natural gas carrier transports up to 174,000 cubic meters of liquid methane across warm equatorial oceans. The cargo must remain at minus 162 degrees Celsius to prevent catastrophic pressure buildup. Yet, these massive vessels do not carry active refrigeration plants to chill their holds.[1]

Instead, the maritime LNG industry relies on a passive thermodynamic mechanism known as auto-refrigeration. By allowing a tiny, controlled fraction of the cargo to boil into vapor, the liquid continuously cools itself. The phase change absorbs the heat leaking through the ship's hull.[2]

This delicate thermal balance dictates the design of every LNG carrier on the water today. From the spherical aluminum tanks of the 1970s to the integrated membrane systems of the 2020s, naval architecture focuses entirely on managing heat ingress. The goal is to minimize evaporation while maintaining the cryogenic state.[1]

Understanding how latent heat protects billions of dollars of energy cargo reveals the engineering precision behind global gas markets. The mechanism turns an apparent loss of product into the exact thermodynamic engine that makes intercontinental transport possible.[4]

The Physics of Phase Change

Methane, the primary component of natural gas, condenses into a liquid at minus 162 degrees Celsius under atmospheric pressure. In this state, its volume shrinks by a factor of 600, making bulk transport economically viable. However, maintaining that extreme temperature against the ambient ocean requires constant thermal management.[2]

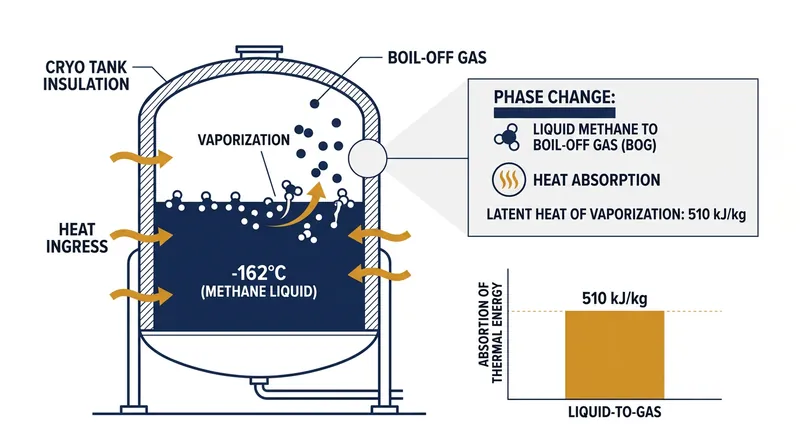

When heat inevitably penetrates the ship's insulation, it does not raise the temperature of the liquid. Instead, the thermal energy breaks the intermolecular bonds of the liquid methane, converting it into a gas. This process is governed by the latent heat of vaporization.[3]

For methane, the latent heat of vaporization is approximately 510 kilojoules per kilogram. This means every kilogram of liquid that flashes into vapor absorbs 510 kilojoules of thermal energy from its surroundings. The remaining liquid pool is stripped of that heat, locking its temperature at the boiling point.[2][3]

This phenomenon, known as auto-refrigeration, is the same principle that makes a sweating human feel cold in a breeze. As long as the vapor is allowed to escape the immediate liquid surface, the bulk cargo cannot warm up. The phase change acts as an impenetrable thermal shield.[3]

If the tank were completely sealed, the evaporating gas would increase the internal pressure. Higher pressure raises the boiling point, which would eventually allow the liquid temperature to climb. Therefore, continuous venting of this boil-off gas is a structural necessity.[1]

Tank Design and Thermal Ingress

Because auto-refrigeration consumes the cargo, naval architects go to extreme lengths to limit how much heat reaches the liquid. The first purpose-built LNG carrier, the Methane Pioneer in 1959, proved that thick balsa wood and aluminum could insulate cryogenic cargo. Modern designs have evolved into two dominant containment systems.[1]

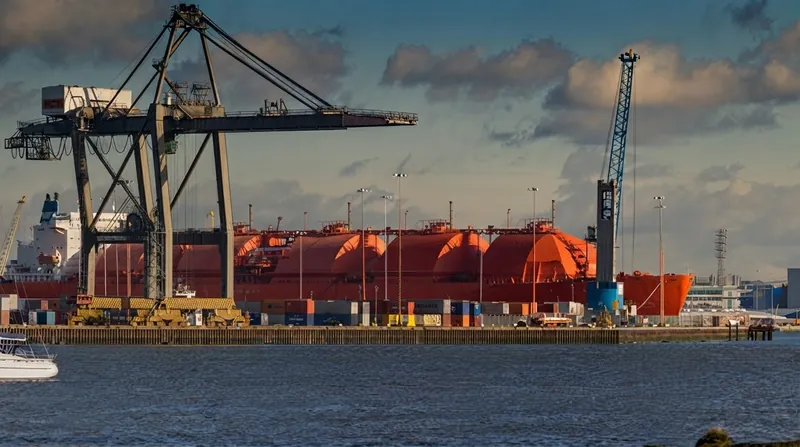

The Moss Maritime design, recognizable by the massive spherical domes protruding from the ship's deck, uses independent aluminum or nickel-steel tanks. These spheres are wrapped in thick layers of polystyrene or polyurethane foam. Their shape minimizes the surface-area-to-volume ratio, naturally reducing heat transfer.[1]

Today, the industry heavily favors membrane containment systems, pioneered by the French engineering firm Gaztransport and Technigaz. Membrane tanks are integrated directly into the ship's hull, maximizing cargo capacity. They rely on thin layers of Invar or stainless steel supported by complex insulation boxes.[1]

A modern membrane system uses reinforced polyurethane foam panels and glass wool joints to block thermal ingress. The temperature gradient across a hull can be staggering, spanning from 30 degrees Celsius in the ambient air to minus 162 degrees Celsius inside the tank over just a few meters.[4]

Despite these advanced materials, no insulation is perfect. A baseline amount of thermal energy always bleeds through the hull, driving the continuous evaporation of the liquid methane. Engineers measure this inevitable phase change using a strict industry metric.[1]

The Boil-Off Rate Metric

The efficiency of an LNG carrier is defined by its boil-off rate, commonly abbreviated as BOR. This figure represents the percentage of the total liquid cargo volume that evaporates every 24 hours. It is the most critical performance guarantee negotiated between shipyards and fleet operators.[1]

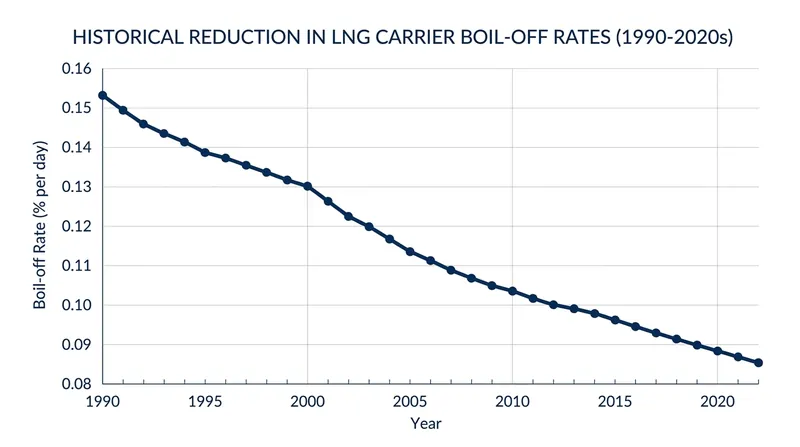

In the 1990s, a standard LNG carrier typically experienced a boil-off rate of 0.15 percent per day. For a vessel carrying 135,000 cubic meters of cargo, that meant losing over 200 cubic meters of liquid to evaporation daily. The industry has spent the last three decades driving that number down.[1]

Modern 174,000-cubic-meter vessels equipped with the latest membrane insulation routinely achieve a boil-off rate of 0.085 to 0.1 percent per day. This incremental improvement saves thousands of tons of cargo over a multi-week voyage from the United States to East Asia.[4]

The boil-off rate is not entirely static. It fluctuates based on the ship's operating profile. A laden voyage with full tanks experiences a different evaporation profile than a ballast voyage, where only a small heel of liquid is retained to keep the tanks cold.[1]

Rough seas also spike the boil-off rate. When the ship pitches and rolls, the liquid sloshes against the tank walls, increasing the wetted surface area and generating friction. This kinetic energy translates directly into heat, accelerating the vaporization process.[2]

Managing the Vapor

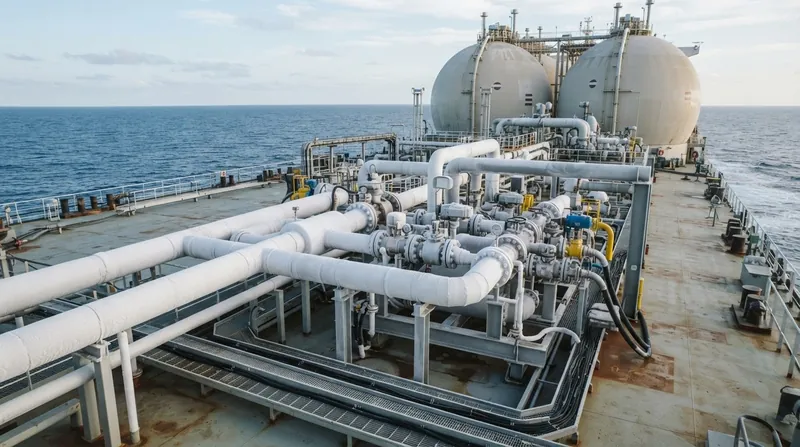

The continuous generation of boil-off gas presents a secondary engineering challenge, as the vapor must go somewhere. If left in the tank, the pressure would quickly exceed the structural limits of the containment system. For decades, ships simply burned this gas in steam boilers to drive their propellers.[1]

Today, modern LNG carriers use dual-fuel diesel-electric engines or slow-speed two-stroke dual-fuel engines. These power plants are designed to consume the boil-off gas directly as marine fuel. The cargo effectively propels the ship, turning a thermodynamic necessity into free transit energy.[1]

When the ship is moving slowly or idling in port, the engines may not consume enough gas to manage the tank pressure. In these scenarios, vessels rely on a Gas Combustion Unit. This specialized incinerator safely burns the excess methane, preventing dangerous overpressurization without venting raw greenhouse gases.[4]

Some of the newest carriers feature onboard reliquefaction plants. These active refrigeration systems capture the boil-off gas, compress it, and cool it back into a liquid before returning it to the tank. While energy-intensive, reliquefaction preserves the maximum amount of cargo for delivery.[1]

The choice between burning the gas for propulsion, incinerating it, or reliquefying it depends entirely on the charter contract. When global natural gas prices spike, operators prioritize reliquefaction to save the valuable cargo, opting to burn cheaper heavy fuel oil in the engines instead.[4]

Economic and Environmental Stakes

The thermodynamic elegance of auto-refrigeration underpins a massive global supply chain. In 2023, over 400 million tons of liquefied natural gas moved across the oceans, entirely dependent on the latent heat of vaporization. Without this passive cooling, intercontinental gas trade would be physically impossible.[2]

However, the environmental stakes of managing boil-off gas are immense. Methane is a potent greenhouse gas, with a warming potential more than 28 times greater than carbon dioxide over a century. Venting raw boil-off gas into the atmosphere is strictly prohibited under international maritime regulations.[2]

The push for lower boil-off rates continues to drive naval innovation. Engineering firms are experimenting with vacuum-insulated panels and advanced composites to push the daily evaporation rate below 0.07 percent. Every fraction of a percent saved translates directly to lower emissions and higher delivered yields.[4]

The modern LNG carrier remains a marvel of applied physics. By harnessing the exact mechanism that causes the cargo to degrade, engineers have created a self-sustaining thermal system. The liquid methane sacrifices a piece of itself so the rest can survive the journey.[4]
