Amine Units Strip Hydrogen Sulfide and Carbon Dioxide Through Reversible Exothermic Absorption

Plant operators face a constant, expensive tension when processing raw natural gas and refinery streams. They must maximize the removal of highly corrosive acid gases to meet strict pipeline specifications, but doing so requires a massive energy penalty to boil and regenerate the chemical solvents used in the process.[5]

The debate centers on which chemical solvent strikes the right balance between aggressive purification and sustainable energy consumption. Highly reactive solvents guarantee that almost no hydrogen sulfide or carbon dioxide escapes, but they bind so tightly that separating them later consumes vast amounts of steam.[2][5]

Conversely, selective solvents require significantly less energy to boil, but they allow more carbon dioxide to slip through into the final product. This trade-off dictates the operating economics of thousands of gas sweetening facilities worldwide, where the cost of steam generation often determines the plant's profitability.[1][5]

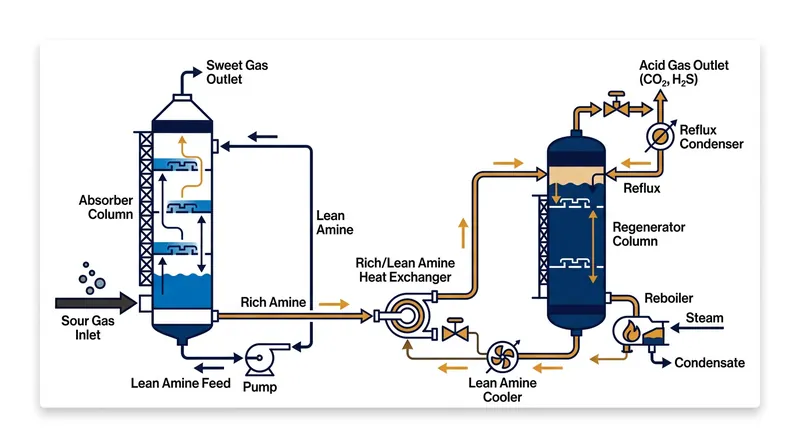

At the heart of this balancing act is the amine treating unit, a towering separation system that strips acid gases from hydrocarbon streams. By leveraging reversible exothermic absorption, these units capture toxic contaminants at high pressures and release them when heated, allowing the solvent to be used continuously in a closed loop.[2][4]

The Chemistry of Acid Gas Absorption

The gas sweetening process relies on aqueous alkanolamine solutions, which act as weak bases. When sour gas containing hydrogen sulfide and carbon dioxide enters the bottom of an absorber column, it flows upward and contacts the liquid amine flowing downward over a series of trays or packing material.[2][4]

"The amine is a weak base, and the acid gases are weak acids, so the two react through an acid-base mechanism," notes Q2 Technologies in their technical breakdown of the sweetening process.[2]

Because of this mechanism, hydrogen sulfide protonates the amine almost instantly. Carbon dioxide is absorbed either directly or through a slower bicarbonate pathway, depending on the specific molecular structure of the amine used.[2]

This chemical reaction is highly exothermic, meaning it releases a significant amount of heat as the bonds form. As the amine solution absorbs the acid gases, its temperature rises, typically operating in an optimal absorption window between 40 and 50 degrees Celsius at high pressures, such as 1,200 kilopascals.[1][4]

The liquid that collects at the bottom of the absorber is known as rich amine, as it is fully loaded with captured hydrogen sulfide and carbon dioxide. Meanwhile, the purified hydrocarbon stream, now stripped of its corrosive contaminants, exits the top of the column as sweet gas ready for pipeline transport.[3][4]

Breaking the Bonds in the Regenerator

Capturing the acid gases is only half the process; the solvent must be cleaned and recycled for the unit to operate economically. The rich amine is pumped from the high-pressure absorber to a low-pressure regenerator column, where thermal energy is applied to reverse the chemical reactions.[2][4]

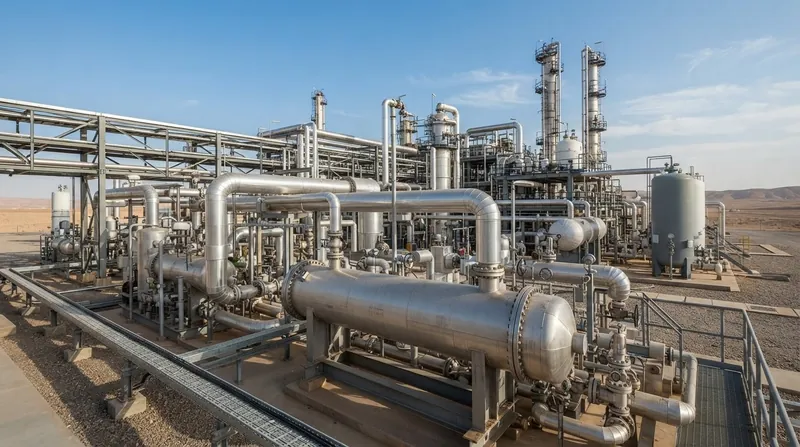

Before entering the regenerator, the rich amine passes through a cross heat exchanger. This critical piece of equipment recovers sensible heat by using the hot, newly cleaned amine exiting the regenerator to pre-heat the cold rich amine, reducing the total energy the system must supply.[1][5]

Inside the regenerator, a reboiler applies heat—usually via low-pressure steam at three to five bar—to raise the amine solution's temperature to between 110 and 125 degrees Celsius. This intense heat breaks the chemical bonds holding the hydrogen sulfide and carbon dioxide, stripping them out of the liquid.[1][3]

"In order to minimize the cost of CO2 capture process, the reduction of energy requirement for regeneration is essential as it contributes to about 70% of the operating cost," researchers at Universiti Teknologi Petronas noted in their simulation analysis.

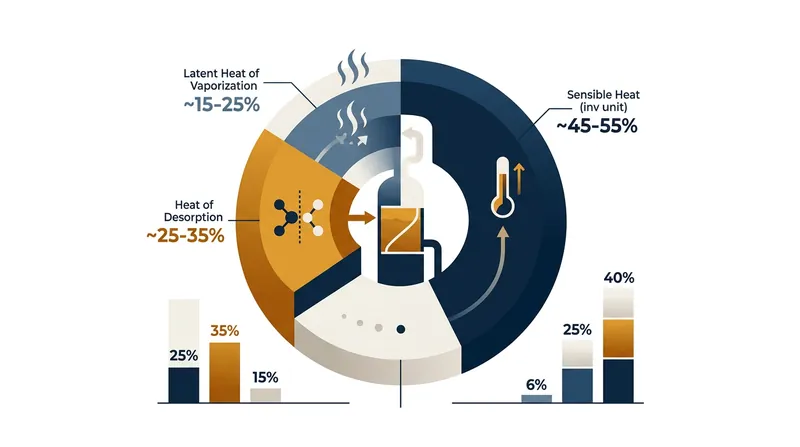

The reboiler's thermal duty must be sufficient to reverse the exothermic absorption, raise the liquid to its boiling point, and vaporize enough water to create stripping steam. Once stripped of its acid gas load, the solvent exits the bottom of the regenerator as lean amine and is pumped back to the absorber.[2]

The Energy Penalty of Primary Amines

The specific type of amine chosen dictates both the efficiency of the absorption and the magnitude of the reboiler duty. Primary amines, such as monoethanolamine (MEA), are highly reactive and form very stable carbamate bonds with carbon dioxide, ensuring excellent gas purification.[1][4]

However, breaking those stable bonds requires a massive energy input during regeneration. The chemical heat of reaction for carbon dioxide with MEA is approximately 1,920 kilojoules per kilogram, which forces the reboiler to work exceptionally hard to strip the solvent clean.[1]

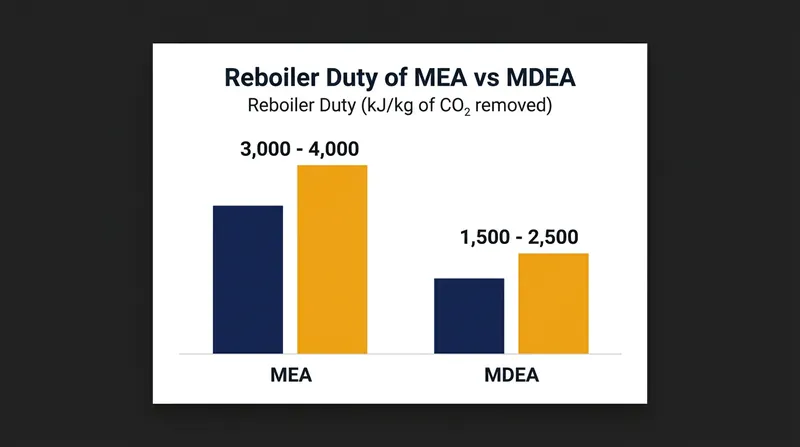

When factoring in the sensible heat and the latent heat of vaporization, the total reboiler duty for an MEA system typically reaches 3,000 to 4,000 kilojoules per kilogram of carbon dioxide removed. This high energy penalty makes primary amines expensive to operate in facilities with large volumes of acid gas.[1][5]

Furthermore, MEA is highly susceptible to degradation if the reboiler temperature exceeds 125 degrees Celsius. Overheating the solvent causes it to break down into corrosive byproducts, leading to severe equipment damage and requiring operators to constantly inject fresh makeup amine.[3][5]

The Shift Toward Selective Solvents

To reduce these massive energy costs, many modern gas plants have transitioned to tertiary amines like methyldiethanolamine (MDEA). Unlike primary amines, MDEA cannot form carbamates directly with carbon dioxide; instead, it relies on a slower hydration reaction to form bicarbonates.[2][4]

This slower reaction rate allows MDEA to selectively absorb hydrogen sulfide while allowing a significant portion of the carbon dioxide to slip through untreated. For facilities that only need to remove toxic hydrogen sulfide to meet sulfur specifications, this selectivity prevents the system from wasting energy capturing harmless carbon dioxide.[1][2]

The bonds formed by MDEA are also much weaker, requiring significantly less thermal energy to break. The heat of reaction for carbon dioxide with MDEA is only about 1,420 kilojoules per kilogram, drastically lowering the baseline energy required in the regenerator column.[1]

As a result, the total reboiler duty for an MDEA system drops to between 1,500 and 2,500 kilojoules per kilogram of carbon dioxide removed. This reduction in steam consumption can save a large processing facility millions of dollars annually in fuel costs.[1][5]

Managing Heat-Stable Salts and Corrosion

Despite the closed-loop design, amine solvents do not last forever and are vulnerable to contamination. If oxygen or strong acids enter the gas stream, they react with the amine to form heat-stable salts, which cannot be broken down by the temperatures achieved in the reboiler.[2][5]

As these heat-stable salts accumulate in the circulating solution, they tie up the active amine molecules, reducing the solvent's capacity to absorb hydrogen sulfide. When the salt concentration exceeds roughly two percent by weight, the plant's stripping efficiency drops noticeably.[2][5]

High concentrations of heat-stable salts also drastically increase the corrosivity of the amine solution. The salts strip away the protective iron sulfide layers on the inside of carbon steel pipes, leading to rapid localized corrosion, particularly in the hot sections of the regenerator and reboiler.[2][5]

To combat this, operators must either continuously bleed off a portion of the contaminated solvent and replace it with fresh chemical, or utilize a specialized reclamation unit. Reclaimers boil the amine under vacuum conditions and add strong bases to neutralize the salts, recovering the pure solvent.[2][5]

Balancing Purity Against Operating Costs

The design of an amine treating unit ultimately reflects a compromise between capital expenditure, operating costs, and product purity. A plant utilizing MEA requires a larger reboiler and more steam generation capacity, but it can achieve extremely low acid gas concentrations with a shorter absorber column.[1][5]

Conversely, a plant utilizing MDEA saves heavily on steam and reboiler sizing, but the slower absorption kinetics may require a taller column with more internal trays to ensure adequate contact time between the gas and the liquid.[1][5]

To bridge this gap, chemical suppliers in 2026 increasingly offer formulated amines—custom blends that mix MDEA with small amounts of primary or secondary amines. These blends aim to combine the low regeneration energy of a tertiary amine with the rapid reaction kinetics of a primary amine.[4][5]

As global energy costs rise and emissions regulations tighten, the optimization of amine sweetening units remains a critical focus for the hydrocarbon industry. Every kilojoule saved in the reboiler directly reduces the facility's overall carbon footprint and improves its operating margins.[1][5]
