Joule-Thomson Throttling Drops Natural Gas Temperatures 0.5°C per Bar, Forcing City Gate Stations to Pre-Heat Pipelines

When high-pressure natural gas arrives at a municipal boundary, its pressure drops so violently that the pipeline infrastructure would freeze solid without continuous active heating. Transmission lines carry fuel across vast distances at extreme compression, but local distribution networks cannot safely handle those forces.

The transition occurs at a facility known as a city gate station, where heavy-duty regulators step the pressure down to usable levels. This mechanical throttling triggers a severe thermodynamic reaction that fundamentally alters the state of the gas.

As the gas expands through the regulator valve, it absorbs energy from its own internal heat, plunging the temperature of the flow stream. The steel piping, the valves, and the surrounding air rapidly lose heat to the chilled fuel.

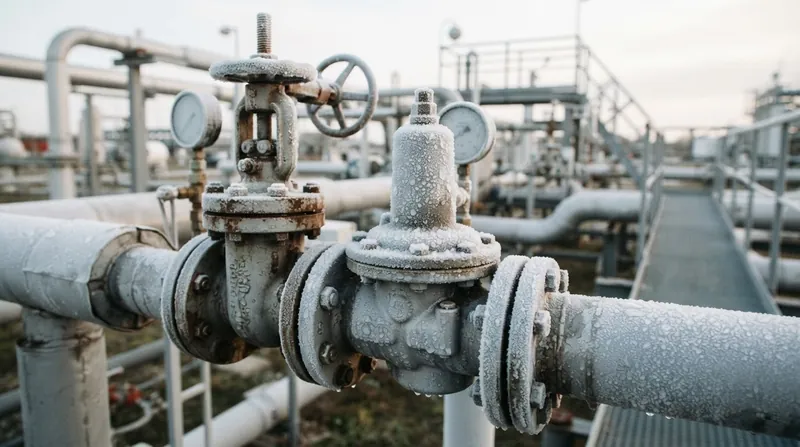

Without intervention, this sudden temperature drop causes ambient moisture to freeze on the outside of the equipment, while internal condensation creates ice blocks that can physically tear the regulator apart.

The physics of expansion cooling

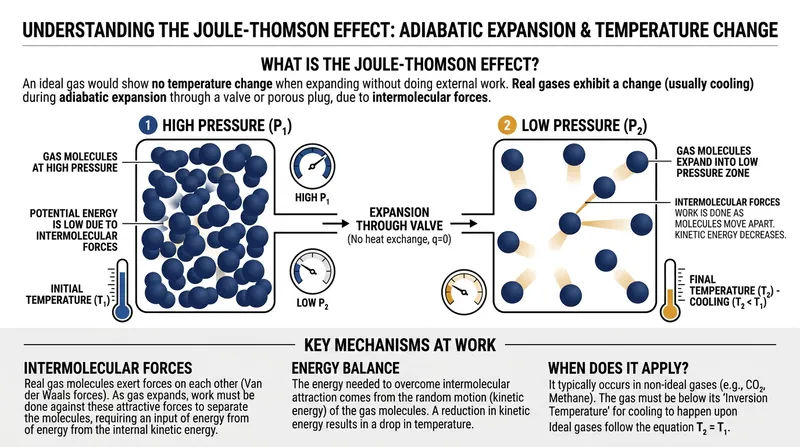

This phenomenon is known as the Joule-Thomson effect, named for the 19th-century physicists who first described how real gases behave during isenthalpic expansion. Unlike an ideal gas, which maintains a constant temperature when expanded in a vacuum, real natural gas molecules exert slight attractive forces on one another.

Pulling those molecules apart during a pressure drop requires work, and that work consumes the thermal energy of the gas itself. "The temperature change experienced during a Joule-Thomson expansion is quantified by the Joule-Thomson coefficient," notes engineering software developer FluidFlow.

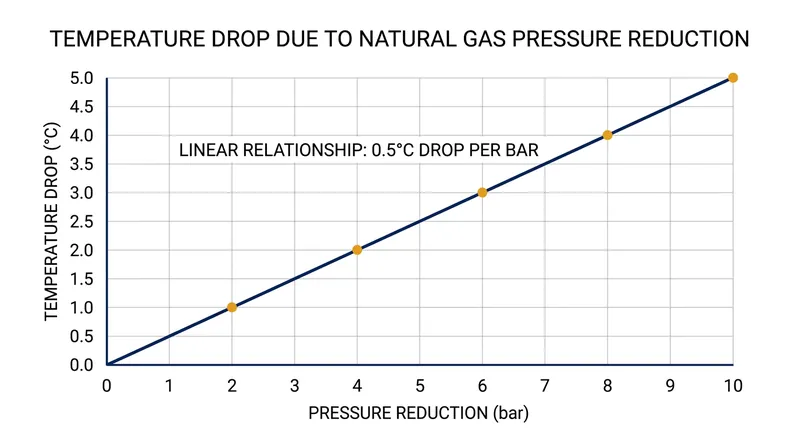

For natural gas, that coefficient is highly predictable and poses a constant engineering challenge. "With natural gas, the average temperature drop will be approximately 1°Celsius for every 2 bar drop in pressure," states technical guidance from fluid systems manufacturer Swagelok.

In Imperial units, this translates to a loss of about 7 degrees Fahrenheit for every 100 pounds per square inch of pressure reduction. When a city gate station drops transmission pressure from 60 bar down to 15 bar, the gas temperature plummets by 22.5 degrees Celsius.

If the gas arrives from the underground pipeline at a mild 10 degrees Celsius, the throttling process will push the flow stream down to negative 12.5 degrees Celsius. This deep freeze introduces severe mechanical vulnerabilities to the distribution network.[1]

Hydrates and flow assurance

The immediate danger of this temperature drop is not just standard ice, but the formation of hydrocarbon hydrates. Natural gas always carries trace amounts of water vapor from the reservoir, which reacts violently under these specific thermodynamic conditions.

"Hydrate is a frozen mixture of water and hydrocarbons," notes documentation from automation firm Emerson. "This bonding of water around the hydrocarbon molecule forms a compound which can freeze above 32°F (0°C)."[1]

These hydrates form hard, ice-like plugs that adhere to the internal walls of the pipeline and the intricate moving parts of the pressure regulator. A hydrate blockage can completely halt the flow of gas to a municipality, triggering widespread outages.

Even a partial blockage forces the regulator to compensate by opening wider, which alters the downstream pressure and destabilizes the local grid. To prevent this catastrophic failure, pipeline operators must artificially elevate the temperature of the gas before it reaches the throttling valve.

The water bath heater mechanism

The standard industry solution is the indirect water bath heater, a massive piece of thermal equipment installed upstream of the pressure regulator. These heaters operate by burning a portion of the very natural gas they are processing.

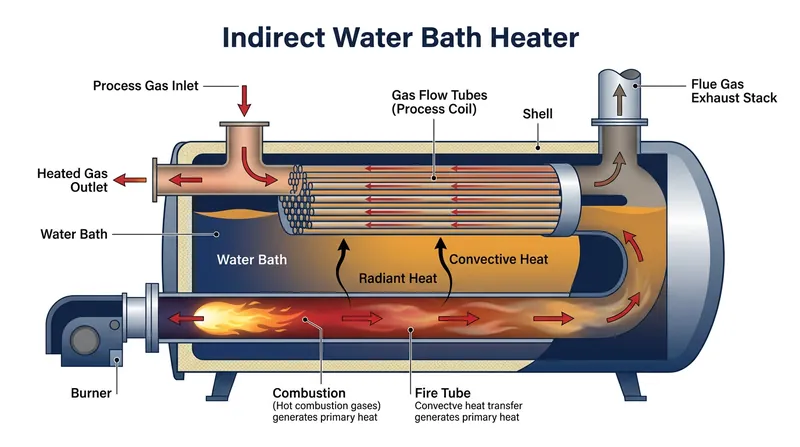

Inside the unit, a fuel gas-fired burner shoots a flame into a submerged fire tube, which heats a large reservoir of distilled water or a water-glycol mixture. The high-pressure natural gas flows through a separate bundle of tubes immersed in this same hot bath.[2]

By utilizing a liquid bath rather than direct flame, the system ensures a uniform heat transfer that prevents the gas from reaching dangerous thermal extremes. The gas absorbs enough thermal energy to survive the impending pressure drop without crossing the hydrate formation threshold.[2]

If the downstream target requires the gas to remain above 5 degrees Celsius, and the Joule-Thomson drop will strip away 22 degrees, the water bath heater must push the incoming gas to at least 27 degrees Celsius before it enters the regulator.

Efficiency and emissions costs

This thermodynamic necessity imposes a continuous energy penalty on the distribution network. City gate stations must constantly consume fuel simply to move gas from a high-pressure pipe to a low-pressure pipe, creating a permanent baseline of emissions.

Indirect water bath heaters are notoriously inefficient, with thermal efficiencies often falling below 40 percent. The majority of the combustion heat escapes through the exhaust stack, venting directly into the atmosphere rather than warming the gas stream.[2]

A 2024 analysis published in the journal Energy found that capturing this waste heat with advanced heat pipes could save a single city gate station over 500,000 standard cubic meters of gas annually. This upgrade would prevent 756 tons of carbon dioxide emissions per facility.[2]

Until such recovery systems become standard under updated American Society of Mechanical Engineers codes, distribution networks remain bound by the physics of expansion. The pressure must drop, the temperature will follow, and the fires must burn to keep the pipelines clear.

Hydrogen blending complications

The physics of pressure reduction face a new complication as grids begin blending hydrogen into natural gas supplies to lower carbon intensity. Hydrogen possesses a negative Joule-Thomson coefficient under standard pipeline conditions, completely altering the thermal math.

Instead of cooling during expansion, hydrogen actually heats up. "Hydrogen behaves exactly the opposite way: it heats up (under practical conditions) when expanded," reports the Danish Gas Technology Centre.

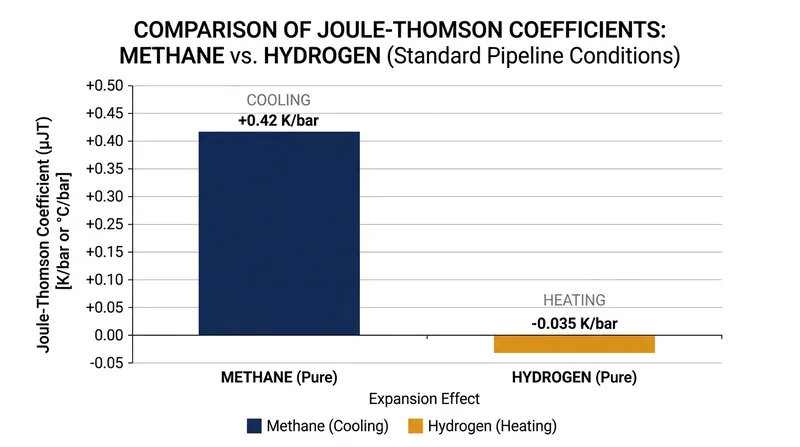

While the temperature increase for pure hydrogen is relatively small—about 0.03 degrees Kelvin per bar—blending it with methane alters the overall thermal profile of the flow stream. The distinct molecular behaviors compete during the throttling process.

As hydrogen concentrations rise, the cooling effect of the methane is partially offset, which reduces the total pre-heating demand at the city gate station. This shifting dynamic forces engineers to constantly recalibrate their water bath heaters to avoid overheating the downstream network.

Recovering expansion energy

Rather than simply burning fuel to fight the Joule-Thomson effect, some modern facilities are replacing standard throttling valves with turboexpanders. These devices route the expanding gas through a turbine, converting the pressure drop into rotational mechanical energy.

The turbine can drive a generator to produce zero-emission electricity for the local grid. While the gas still cools during this process—even more so than through a standard valve, due to the extraction of work—the generated power can offset the facility's heating costs.

Widespread adoption of turboexpanders remains limited by high capital costs and the strict reliability mandates of municipal gas delivery. For now, the indirect water bath heater remains the critical thermal bridge between long-haul transmission and local consumption.
