Why Refineries Operate Below 40 Torr to Avert Thermal Cracking in Heavy Crude

The critical threshold in any petroleum refinery is exactly 370°C. When raw crude oil enters an atmospheric distillation column, operators can safely heat the liquid mixture to separate lighter fractions like gasoline, kerosene, and diesel. The process relies on applying heat until the components boil.[2]

But pushing the furnace temperature past that 370°C mark triggers a destructive chemical reaction known as thermal cracking. First developed intentionally in 1913 to break down molecules, uncontrolled thermal cracking in a primary distillation column is disastrous. The covalent bonds holding large hydrocarbon chains together begin to snap apart prematurely.[1][4]

This uncontrolled cracking produces petroleum coke, a solid, carbon-rich residue that rapidly accumulates on the metal surfaces of the distillation column. Within hours, this coking can plug the furnace tubes and force an emergency shutdown of the entire refining process.[1]

Because of this strict 370°C temperature ceiling, the heaviest components of crude oil cannot be boiled and separated at normal atmospheric pressure. They exit the bottom of the primary column as a thick, dark mixture known as atmospheric residue.[2]

This residual oil still contains highly valuable heavy distillates, including the base stocks for lubricating oils and the heavy gas oil needed to produce additional diesel. Extracting them requires a physical workaround that bypasses the temperature limit entirely.[2][3]

Manipulating Vapor Pressure

The solution lies in the fundamental relationship between ambient pressure and a liquid's boiling point. Boiling occurs when the vapor pressure of a liquid equals the pressure of the surrounding environment. If the ambient pressure drops, the energy required to induce boiling drops with it.[1]

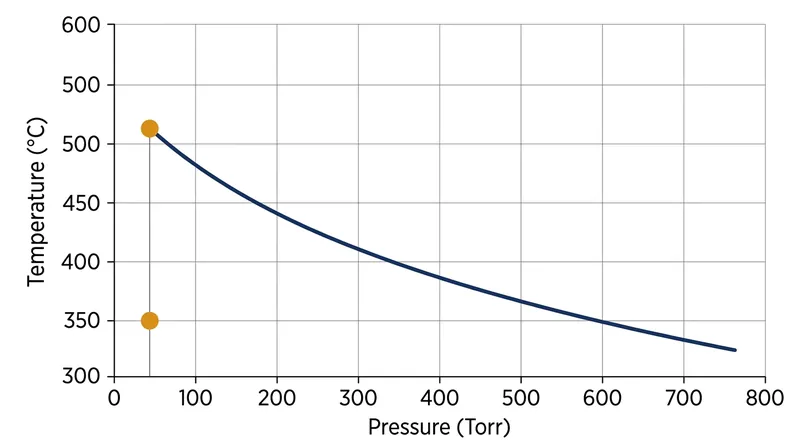

By artificially lowering the ambient pressure inside a sealed vessel, engineers can force a liquid to boil at a significantly lower temperature. This physical principle, governed by the Clausius-Clapeyron relation, is the foundation of industrial vacuum distillation.[1]

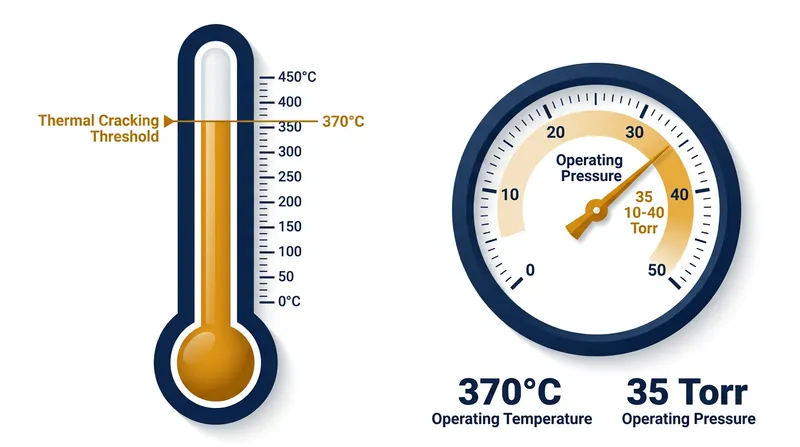

The atmospheric residue is pumped into a secondary vessel called a vacuum distillation unit. Here, massive steam ejectors or mechanical vacuum pumps evacuate the internal gases to drop the absolute pressure to between 10 and 40 Torr.[1][3]

To put that metric into perspective, standard atmospheric pressure at sea level is 760 Torr. Operating at 40 Torr means the column functions at roughly five percent of normal atmospheric pressure, creating a near-vacuum environment for the heavy oil.[1][2]

Under these extreme low-pressure conditions, the boiling points of the heavy hydrocarbon molecules plummet by 150°C to 200°C. The heavy distillates can now vaporize safely between 340°C and 360°C, remaining comfortably below the 370°C thermal cracking threshold.[1][5]

The U.S. Energy Information Administration summarizes the operational advantage of this pressure reduction: "At low pressures, the boiling point of the ADU bottoms is low enough that lighter products can vaporize without cracking, or degrading, the oil."[2]

Designing for Low Pressure

Constructing a distillation column that operates at 40 Torr requires massive industrial engineering. Because the ambient pressure is so low, the volume of vapor produced per barrel of liquid expands drastically compared to atmospheric conditions.[1]

To accommodate this massive vapor expansion without increasing the internal pressure, vacuum distillation columns are built with enormous diameters. A typical industrial vacuum unit can measure up to 15 meters wide and stand over 50 meters tall.[1]

Inside the column, traditional distillation trays are largely abandoned. Standard trays create too much physical resistance, which would cause an unacceptable pressure drop from the top of the towering structure down to the bottom.[1]

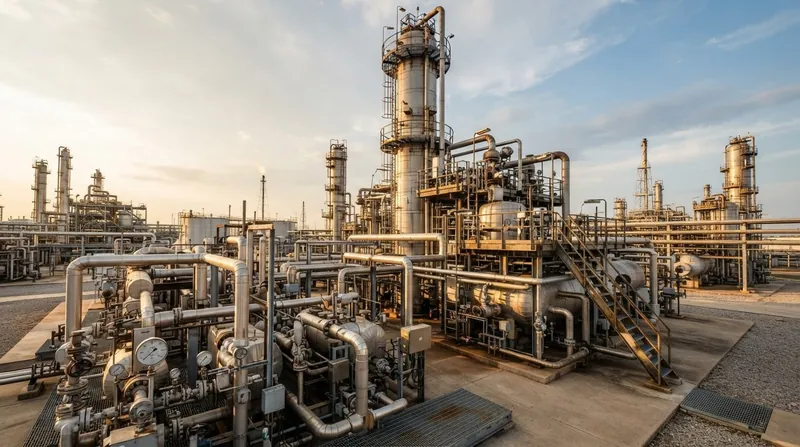

Instead, engineers fill the interior with structured sheet metal or randomly dumped packing materials, such as Raschig rings. This packing provides a massive surface area for the rising vapor and falling liquid to interact while maintaining the near-vacuum conditions.[1]

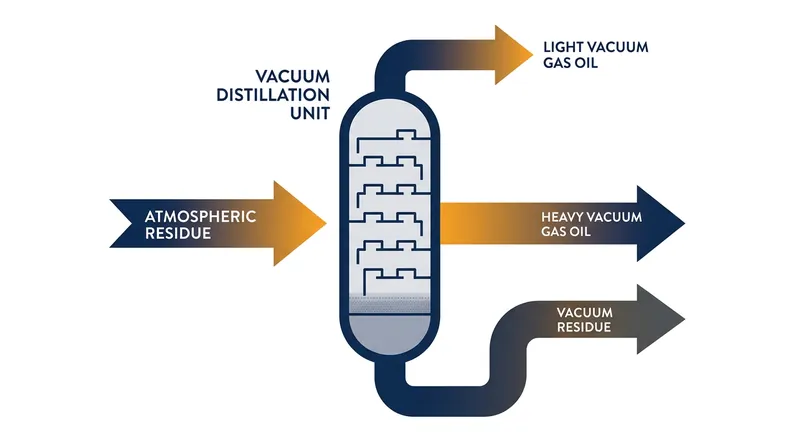

The heated feed enters the lower section of the column, where the reduced pressure causes the lighter heavy-distillates to instantly flash into vapor. The heaviest, non-boiling components fall to the bottom to be collected as vacuum residue.[3]

Extracting Heavy Distillates

As the vapor rises through the packing material, it gradually cools and condenses at different heights within the column. Operators draw off these separated fractions, known as side draws, at specific temperature intervals to isolate different products.[1]

The primary products recovered are light vacuum gas oil and heavy vacuum gas oil. These intermediate streams are too heavy to be used directly as fuel, but they serve as critical feedstocks for downstream conversion units.[2][3]

Refineries route these gas oils into hydrocracking or fluid catalytic cracking units, where specialized catalysts safely break the large molecules into high-value gasoline and diesel. Without the vacuum unit, these molecules would be trapped in the low-value residue.[2][3]

The catalytic cracking process relies on these specific vacuum gas oils because they contain the exact carbon-chain lengths required to yield high-octane motor fuels. If these chains were thermally cracked in the atmospheric column, they would degrade into less desirable, lower-octane components.[2][4]

Certain crude oil blends also yield specialized lubricating oil base stocks from the vacuum column. These highly refined heavy oils are essential for manufacturing motor oils, industrial greases, and hydraulic fluids used across the global economy.[3]

The material that refuses to boil even at 10 Torr collects at the very bottom of the tower. This vacuum residue, essentially liquid asphalt, is either sold for road paving or sent to a coker unit for extreme thermal processing.[1][3]

Managing Scale and Coking

Despite the lower operating temperatures, vacuum distillation units still face severe operational challenges. The heavy crude residue entering the tower carries organic and inorganic contaminants that accumulate over time.

Heavy waxes and asphaltenes can precipitate out of the liquid, coating the structured packing and the heat exchanger tubes. This fouling reduces the efficiency of the heat transfer and restricts the flow of vapor through the column.[1]

If the vacuum pumps fail or the pressure inadvertently rises, the boiling points immediately shift upward. To maintain vaporization, the furnace would have to fire hotter, risking a breach of the 370°C cracking limit and triggering rapid coke formation.[1]

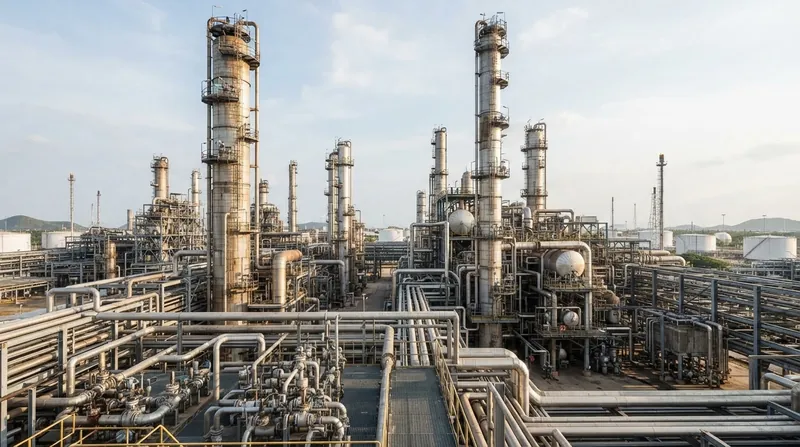

Consequently, operators must continuously monitor the absolute pressure and the furnace outlet temperatures. Advanced control systems adjust the steam injection and the pump-around cooling loops to keep the thermal profile perfectly balanced.[2]

The steam injected at the bottom of the column serves a dual purpose in this balancing act. It strips the remaining light hydrocarbons from the falling liquid residue, and it further reduces the partial pressure of the hydrocarbon vapors, enhancing the vacuum effect.[1]

When fouling becomes too severe, the refinery must take the unit offline for chemical decontamination. This maintenance is costly, making precise temperature and pressure control the highest priority for refinery engineers managing the vacuum column.[5]

Maximizing Barrel Yield

The economic viability of a modern petroleum refinery depends entirely on its ability to extract every possible drop of usable fuel from a barrel of crude oil. The vacuum distillation unit is the linchpin of this deep-refining strategy.[2][3]

By rescuing heavy gas oils from the residual waste stream, the vacuum unit increases the total yield of transportation fuels by up to 20 percent. This efficiency reduces the total volume of raw crude oil that must be extracted from the ground to meet global energy demand.[2][5]

Furthermore, preventing thermal cracking in the primary distillation phase drastically reduces the formation of petroleum coke. Coke is a high-carbon, high-emission byproduct that creates significant environmental liabilities when burned as a cheap industrial fuel.[1][4]

Ultimately, the physics of boiling point depression allows the global energy infrastructure to operate with far greater efficiency. By manipulating pressure rather than simply adding heat, engineers turn heavy, unusable sludge into the fuels that power the global economy.[5]
