Capillary Forces Lock Two-Thirds of Reservoir Crude in Micron Pores Because Waterfloods Cannot Overcome Interfacial Tension

Squeezing a soaked household sponge releases nearly all the water it holds, because the pores are large and the fluid easily deforms. Extracting crude oil from deep subterranean sandstone differs in one fundamental respect: the fluid is forced through microscopic rock throats while fighting the immense interfacial tension between oil and water.

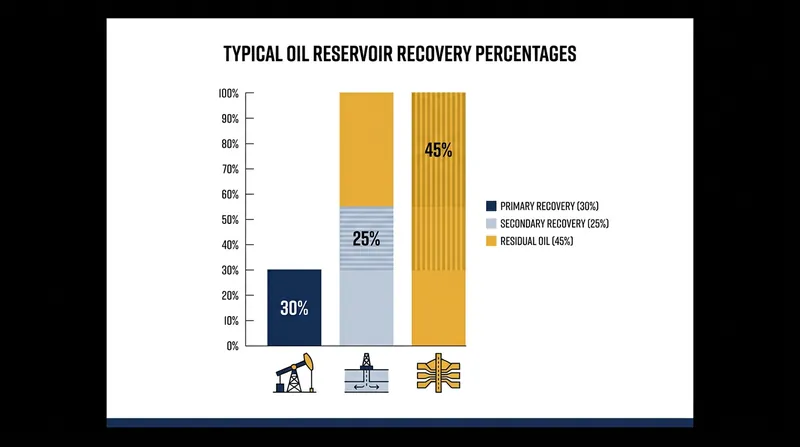

That microscopic resistance dictates the global energy supply. When a conventional oil field reaches the end of its standard operational life, operators have typically extracted only one-third of the original oil in place.

The remaining two-thirds—billions of barrels of crude—sit permanently stranded underground. "Traditional primary and secondary production methods typically recover one third of oil in place, leaving two thirds behind," notes a historical analysis published in Semantic Scholar.[1]

The Limits of Waterflooding

When an oil reservoir is first tapped, natural geological pressure drives the crude to the surface. This primary recovery phase is highly efficient but short-lived, usually exhausting its natural drive after extracting just 10 to 20 percent of the reservoir's total volume.

To maintain pressure and sweep the remaining crude toward production wells, petroleum engineers deploy secondary recovery, universally known as waterflooding. Operators pump millions of gallons of water into injection wells, creating a physical wall of fluid that pushes the oil ahead of it.

Waterflooding is the pre-eminent extraction method globally, responsible for the vast majority of current production. However, it is inherently constrained by the physical properties of the fluids. Water is typically less viscous than crude oil, leading to a phenomenon called viscous fingering.

During viscous fingering, the thinner water bypasses the thicker oil, carving narrow channels through the rock rather than sweeping it uniformly. Once the water breaks through to the production well, the well begins pumping mostly water, rendering further extraction economically unviable.

Even in perfectly swept zones where the water successfully contacts the oil, the secondary recovery phase stalls. The waterflood simply lacks the physical force required to dislodge the crude from the rock's microscopic architecture, leaving 60 to 70 percent of the original oil trapped in place.

The Physics of Capillary Trapping

The failure of waterflooding occurs at the micrometer scale. Reservoir rock is not a hollow cavern, but a dense matrix of compressed sand or carbonate, riddled with tiny interconnected voids. The passages connecting these voids, known as pore throats, are often just a few microns wide.

"In most oil reservoirs, a large amount of oil remains unrecoverable because it is stuck in the micron-scale pore throats of reservoir rocks," explains Nanji Hadia, a research scientist at Singapore's Agency for Science, Technology and Research.[4]

As water floods the reservoir, it displaces the continuous channels of oil, breaking the crude into isolated, disconnected droplets known as ganglia. Because oil and water are immiscible, a rigid boundary forms between the two fluids, governed by interfacial tension.

Interfacial tension acts like a tight elastic skin around each oil droplet. When the waterflood attempts to push an oil ganglion through a pore throat that is narrower than the droplet itself, the droplet must deform to squeeze through.

The capillary forces resisting that deformation are immense. "Capillary forces are a key factor which holds back the oil in these tiny pore throats," Hadia notes. The water simply flows around the trapped droplet, leaving the oil permanently locked in the rock matrix.[4]

Engineers also measure the Bond number, which compares gravitational forces to capillary forces. However, in these microscopic horizontal pore throats, gravity is far too weak to pull the oil upward, leaving capillary trapping as the absolute dominant force preventing extraction.[2]

The Capillary Number Dictates Recovery

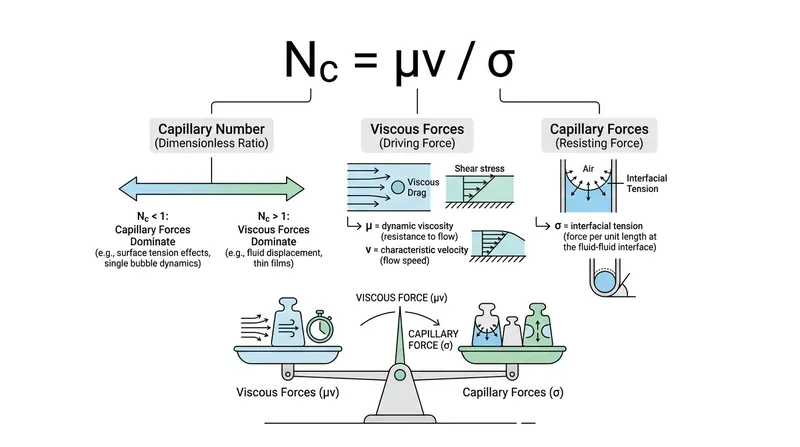

Petroleum engineers quantify this microscopic stalemate using a dimensionless metric called the capillary number. The capillary number represents the mathematical ratio between the viscous forces trying to mobilize the oil and the capillary forces trying to trap it.[2]

The equation for the capillary number divides the product of the displacing fluid's viscosity and velocity by the interfacial tension between the oil and water. A higher capillary number indicates that the pushing forces have overwhelmed the trapping forces.

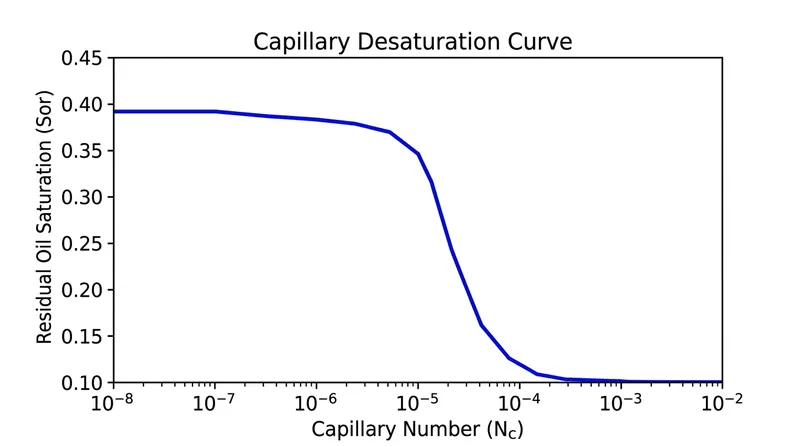

Standard waterfloods operate at a very low capillary number, typically ranging from 10⁻⁷ to 10⁻⁶. At this ratio, capillary forces completely dominate the physical environment, and the residual oil saturation remains stubbornly high, regardless of how long the waterflood continues.[2]

To mobilize the trapped ganglia, engineers must increase the capillary number by two to three orders of magnitude. Foundational research published by the Society of Petroleum Engineers indicates that in strongly water-wet rock systems, residual oil mobilization only begins when the capillary number reaches 10⁻⁵ to 10⁻⁴.[2]

Hitting that critical threshold fundamentally alters the physics of the reservoir. If operators can push the capillary number past 10⁻⁴, the residual oil saturation drops precipitously, potentially unlocking an additional 15 to 25 percent of the original oil in place.

Why Pushing Harder Fails

Looking at the capillary number equation, operators theoretically have three variables they can adjust to mobilize the oil: they can increase the velocity of the injected water, increase the viscosity of the water, or decrease the interfacial tension.

Increasing the velocity of the waterflood seems like the simplest solution to raise the viscous force, but it is physically impossible in the field. Pumping water faster requires drastically increasing the injection pressure at the wellhead.

Every geological formation has a strict fracture pressure limit. If engineers exceed this limit, the rock physically cracks, creating massive artificial fissures. The injected water will immediately flow through these new cracks, bypassing the oil-bearing pores entirely and ruining the sweep.

Increasing the viscosity of the injected fluid is more viable. Operators frequently add heavy polymers to the waterflood to thicken it, which improves the sweep efficiency and mitigates viscous fingering. However, polymer flooding alone only increases recovery by a modest 5 percent, falling short of the critical capillary threshold.

Chemical Enhanced Oil Recovery

Because the numerator of the capillary equation is strictly limited by rock mechanics, engineers must attack the denominator. The only physically viable way to bridge the three-order-of-magnitude gap is to drastically reduce the interfacial tension between the oil and the water.[5]

This is the foundation of chemical Enhanced Oil Recovery. Operators inject specialized surfactant chemicals—similar to industrial detergents—into the reservoir. These molecules concentrate at the boundary between the oil and water, breaking down the rigid elastic skin surrounding the trapped ganglia.

The reduction in interfacial tension is staggering. While the natural interfacial tension between crude oil and water is approximately 30 millinewtons per meter, a properly formulated surfactant flood can drop that value to below 0.01 millinewtons per meter.[3]

To maximize efficiency, operators often deploy an alkali-surfactant-polymer combination. The alkali reacts with natural acids in the crude to generate additional surfactants in situ, while the polymer thickens the water to ensure the chemical slug sweeps uniformly across the entire reservoir.

At these ultra-low tensions, the capillary forces effectively vanish. The oil droplets easily deform, slipping through the micron-scale pore throats and rejoining the fluid flow. The capillary number spikes, and the previously stranded crude is swept toward the production well.[5]

Economic and Environmental Stakes

Despite the clear physical mechanism, chemical enhanced oil recovery remains relatively rare globally. The synthetic surfactants required to achieve ultra-low interfacial tensions are expensive, and injecting thousands of tons of chemicals into subterranean formations carries significant financial risk if the reservoir geology is poorly understood.

Environmental concerns also limit deployment. Many traditional synthetic surfactants rely on sulfates and sulfonates, which resist biodegradation and pose long-term risks to adjacent groundwater systems. Regulators increasingly demand rigorous environmental impact assessments before approving chemical injection projects.[4]

To secure the remaining two-thirds of the world's conventional crude, the industry is pivoting toward biological alternatives. Researchers are currently engineering biodegradable biosurfactants that can match the interfacial tension reductions of synthetic chemicals, aiming to unlock the trapped ganglia without leaving a toxic footprint in the rock.[3]
