Drilling Mud Density Must Stay Between Formation Pore Pressure and Rock Fracture Limits to Avert Deep Well Blowouts

At 10,000 feet below the earth's surface, the fluids trapped inside porous rock exert a natural pressure of roughly 4,300 pounds per square inch. That magnitude is equivalent to the weight of a heavy pickup truck resting on a single square inch. If a drill bit pierces that rock without an equal opposing force, the well will violently erupt.

The primary defense against that eruption is not a mechanical valve, but a continuous column of engineered fluid known as drilling mud. Drilling engineers pump this dense mixture of clay, water, and weighting agents down the drill pipe to create hydrostatic pressure. This fluid column acts as a liquid cork, holding the earth's natural forces at bay.[1]

Balancing that fluid column is the most critical calculation in well engineering. The mud must be heavy enough to suppress the formation fluids, but light enough to avoid cracking the surrounding rock. Navigating this delicate balance is how the petroleum industry safely extracts hydrocarbons without triggering catastrophic blowouts.

The lower bound of pore pressure

The minimum required density for drilling mud is dictated by the formation pore pressure. Pore pressure is the natural outward force exerted by water, oil, or gas trapped within the microscopic voids of the subterranean rock. In a normally pressurized geological sequence, this force increases at a predictable rate as the well deepens.

Engineers calculate this natural baseline using a standard freshwater gradient of 0.433 psi per foot of depth. At a true vertical depth of 10,000 feet, a normal formation exerts exactly 4,330 psi of pore pressure. The drilling mud column must generate a hydrostatic pressure strictly greater than this number to maintain well control.

If the mud density falls too low, the hydrostatic pressure drops below the pore pressure, allowing formation fluids to flow into the wellbore. This unwanted influx is known in the industry as a "kick." A kick is the earliest warning sign of declining well control and the immediate precursor to a blowout.[1]

When a kick occurs, the invading gas or oil displaces the heavier drilling mud, further reducing the hydrostatic pressure in a dangerous feedback loop. If the rig crew fails to detect the pressure anomaly and shut in the well, the expanding gas will race toward the surface. That uncontrolled release of explosive hydrocarbons is a blowout.[1]

The upper bound of fracture limits

While a kick sets the minimum mud weight, the mechanical strength of the rock sets the absolute maximum. This upper limit is known as the fracture gradient. It represents the specific pressure threshold at which the rock formation will physically crack and break apart under the weight of the fluid column.[2]

Fracture gradients vary wildly depending on the local geology, but a typical threshold at 10,000 feet might sit around 0.63 psi per foot, yielding a fracture pressure of 6,300 psi. If the drilling mud is mixed too heavily and exceeds this limit, the fluid will hydraulically fracture the wellbore wall.

When the rock cracks, the drilling mud escapes into the newly formed fissures instead of circulating back to the surface. This phenomenon, called "lost circulation," is a severe operational failure. Losing mud into the formation immediately drops the fluid level in the well, which slashes the hydrostatic pressure and can paradoxically trigger a kick.[1][2]

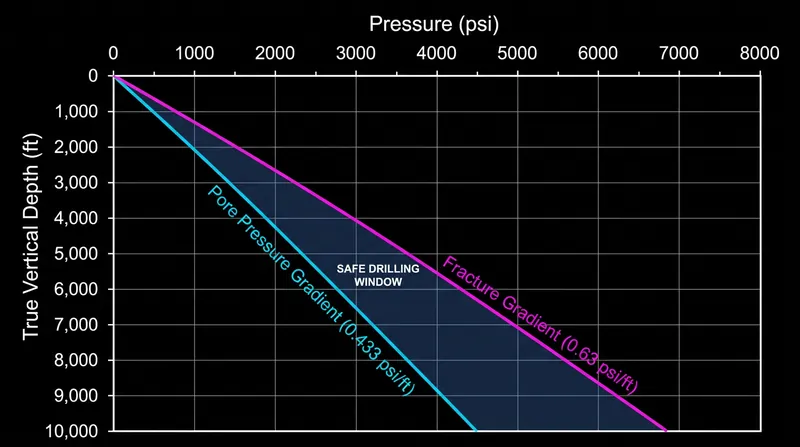

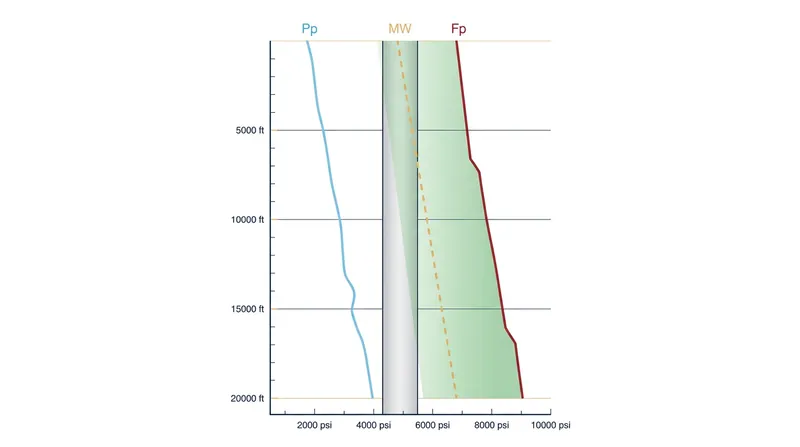

The space between the pore pressure and the fracture pressure is known as the mud weight window. This window defines the safe operating margin for the drilling fluid. As long as the mud's hydrostatic pressure remains inside this shaded band, the well remains stable, preventing both fluid influx and rock failure.

Calculating the safe operating margin

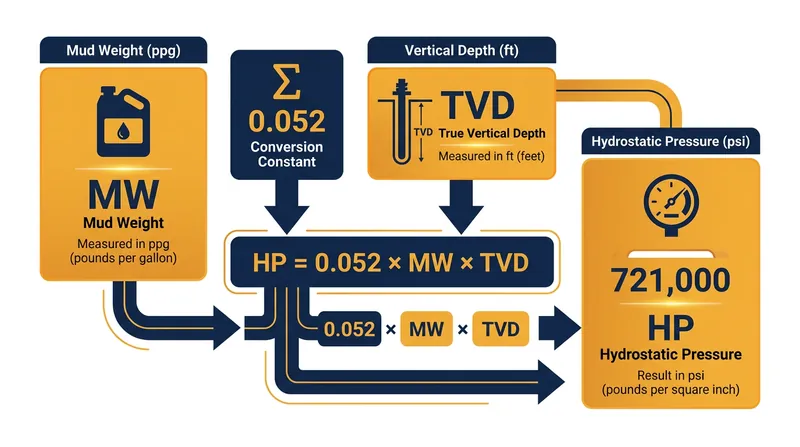

To stay inside the mud weight window, drilling engineers rely on a universal conversion formula. The hydrostatic pressure of the mud column in psi is calculated by multiplying the mud weight in pounds per gallon (ppg) by the true vertical depth in feet, and then multiplying by a constant of 0.052.

For a well at 10,000 feet with a normal pore pressure of 4,330 psi and a fracture limit of 6,300 psi, the math dictates a strict operational band. The mud weight must stay above 8.33 ppg to prevent a kick, but below 12.12 ppg to avoid fracturing the rock. This 1,970-psi margin is the driller's safety net.[3]

In shallow wells or normally pressurized zones, this window is comfortably wide. Engineers typically target a safe overbalance of 200 to 500 psi above the pore pressure. This slight excess ensures that minor pressure fluctuations during drilling do not accidentally invite formation fluids into the wellbore.

However, in deepwater environments or depleted reservoirs, the mud weight window can narrow drastically. Abnormal geological compaction can drive pore pressures dangerously close to the fracture gradient. In these critical zones, the safe operating margin can shrink to less than half a pound per gallon, leaving zero room for error.[2]

Mapping the subsurface pressures

Advanced geomechanical modeling is required before the drill bit ever breaks ground. Since the introduction of the Bowers curve methodology in 1995, specialists have analyzed offset well data and seismic surveys to build three-dimensional models of the subsurface stresses. This predictive work maps the expected pressures foot by foot along the trajectory.[2]

"The mud weight window defines the safe drilling margin, constrained by pore pressure on the lower bound and fracture gradient on the upper bound," notes a 2025 geomechanical analysis published by the Christian University of Indonesia. If modeling reveals a zone where these limits converge, the well design must be physically altered.[2]

Engineers will plan to set a steel casing string just above the narrow window. Cementing this casing in place isolates the weaker upper formations, allowing the crew to safely increase the mud weight for the deeper, higher-pressure sections without fracturing the shallow rock.[2]

Maintaining the exact required mud density requires constant vigilance on the rig floor. Mud loggers continuously monitor the fluid returning from the well, tracking its density, temperature, and gas-to-liquid ratio. Any sudden drop in mud weight or spike in gas content signals an impending pressure imbalance.[1]

Managing fluid density in real time

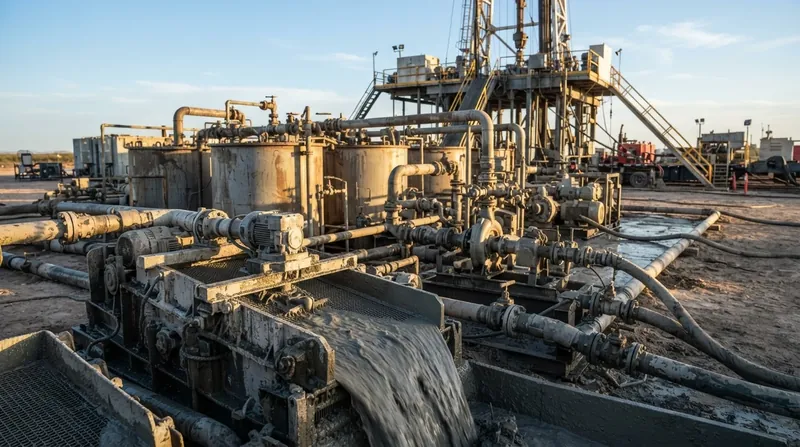

When drilling through an abnormally pressurized zone, the crew must incrementally add weighting agents, such as barium sulfate, to the mud pits. This heavy mineral increases the fluid's density without thickening it into an unpumpable paste. The adjusted mud is then circulated down the drill string to restore the necessary overbalance.[1]

The physical movement of the drill pipe also affects the pressure balance. Pulling the pipe out of the hole too quickly acts like a syringe, creating a suction effect known as "swabbing" that temporarily lowers the bottom-hole pressure. If the mud weight window is narrow, a swab pressure drop can easily induce a kick.[1]

Conversely, pumping the mud too fast creates friction against the wellbore walls, adding an equivalent circulating density (ECD) to the static mud weight. If the ECD pushes the total bottom-hole pressure past the fracture gradient, the formation will break. Engineers must constantly adjust pump rates to keep the dynamic pressure within the safe window.

The mechanical failsafe barrier

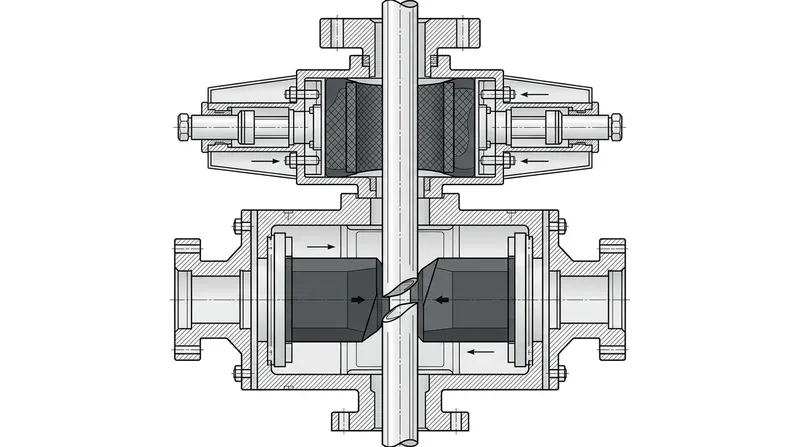

When fluid management fails and a kick enters the wellbore, the rig relies on its final line of defense: the blowout preventer (BOP). The BOP is a massive stack of high-pressure hydraulic valves installed directly on the wellhead. It is designed to physically seal the well and contain the escaping fluids.[1]

A standard BOP stack includes an annular preventer, which uses a reinforced rubber element to close tightly around any size of drill pipe. Below it sit the ram preventers, featuring heavy steel blocks that can shear entirely through the drill string and seal the open hole in an absolute emergency.[1]

Once the BOP is closed, the well is considered "shut in." The crew can then read the stabilized pressures on the surface gauges to determine exactly how much the formation pore pressure has exceeded the mud weight. This data allows them to calculate the exact density of the "kill mud" required.[1]

The kill mud is a specially weighted fluid designed to permanently overpower the kick. The crew carefully pumps this heavy mud down the drill string while simultaneously bleeding off the invading gas through a specialized choke manifold. This synchronized process restores the hydrostatic balance without fracturing the rock.[1]

If the BOP fails to seal, or if the crew reacts too slowly, the well pressure will violently breach the surface. Following the catastrophic Macondo blowout in 2010, the industry fundamentally overhauled its blowout preventer testing standards, mandating stricter maintenance and redundant control systems to ensure these valves function under extreme duress.[1]

Ultimately, safe drilling is an exercise in applied physics. The mechanical steel of the blowout preventer is only a contingency plan. The true structural integrity of the well relies entirely on the liquid column of drilling mud, perfectly balanced between the earth's natural desire to erupt and its capacity to shatter.[3]
