The Phase Diagram and Inhibitors That Prevent Methane Hydrate Formation in Subsea Pipelines

At 3,000 feet below the ocean surface, where the ambient seawater temperature hovers at a near-freezing 39.2 degrees Fahrenheit (4 degrees Celsius) and hydrostatic pressure exceeds 1,300 pounds per square inch, the physical state of natural gas fundamentally changes. Water and methane molecules, flowing together from a subterranean reservoir, cross a strict thermodynamic threshold dictated by the deepwater environment.[5]

Under these specific high-pressure, low-temperature conditions, the water molecules construct a rigid, hydrogen-bonded lattice that physically traps the methane gas inside. The resulting structure, known as a clathrate or methane hydrate, resembles packed ice but burns when ignited. According to the National Energy Technology Laboratory, a single cubic meter of this solid hydrate contains up to 164 cubic meters of compressed methane gas.[4]

In subsea pipelines, these crystalline solids represent a catastrophic operational risk. As the hydrate crystals accumulate along the inner steel walls, they restrict the flow area and eventually form solid plugs. A hydrate plug can span hundreds of feet, completely halting production and creating severe localized pressure spikes that can rupture the pipeline infrastructure.[6]

"Gas hydrates are one of the most critical flow assurance challenges in deepwater oil and gas production," notes a review published in MDPI's Energies journal. To prevent these blockages, flow assurance engineers must manipulate the phase diagram—the mathematical relationship between pressure and temperature that dictates when hydrates can physically exist.[3]

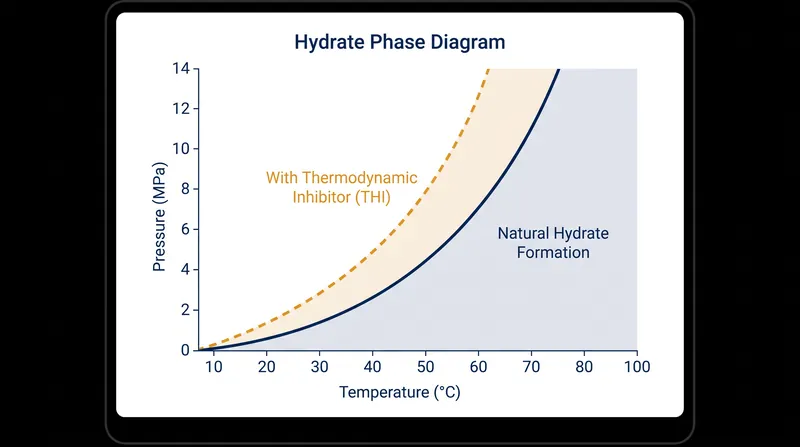

The traditional method relies on Thermodynamic Hydrate Inhibitors (THIs), primarily methanol or monoethylene glycol (MEG). These chemicals operate by fundamentally altering the thermodynamic environment. By bonding with the free water molecules in the pipeline, THIs shift the entire hydrate phase boundary toward lower temperatures and higher pressures, effectively moving the pipeline's operating conditions out of the danger zone.[1][3]

However, this thermodynamic shift requires massive chemical volumes. Rodanco, a chemical additive manufacturer, details that THIs must be injected at concentrations ranging from 10 percent to 50 percent of the total water volume in the pipeline. For a high-water-cut well producing 10,000 barrels of water per day, an operator must continuously pump, recover, and regenerate up to 5,000 barrels of methanol daily.[1]

That volumetric requirement imposes severe capital and structural penalties on offshore platforms. The topside infrastructure required to store, pump, and separate thousands of barrels of MEG or methanol adds hundreds of tons of weight and tens of millions of dollars in capital expenditure to a deepwater facility.[7]

To bypass the mass constraints of THIs, the industry developed Low-Dosage Hydrate Inhibitors (LDHIs). Rather than changing the thermodynamic phase boundary, LDHIs operate on the kinetics of crystal formation. They are injected at concentrations of just 0.1 percent to 1.0 percent by volume, reducing the chemical logistics footprint by a factor of 50 to 100 compared to traditional thermodynamic methods.[2][7]

LDHIs are divided into two distinct chemical classes: Kinetic Hydrate Inhibitors (KHIs) and Anti-Agglomerants (AAs). KHIs are water-soluble polymers that bind to the microscopic hydrate nucleation sites, physically delaying the growth of the crystals for a specific period—often 24 to 48 hours—allowing the fluids to reach the processing facility before a plug can form.[2][3]

Anti-Agglomerants, conversely, do not stop the crystals from growing. Instead, these surface-active agents attach to the hydrate particles and disperse them throughout the liquid hydrocarbon phase. The hydrates form, but they remain a slushy, pumpable slurry rather than fusing into a solid pipeline-rupturing plug.[3]

The trade-off for this reduced injection volume is a strict operational envelope. KHIs are limited by "subcooling"—the temperature difference between the pipeline's operating temperature and the natural hydrate formation temperature. If the subcooling exceeds roughly 20 degrees Fahrenheit, the kinetic delay fails, and the hydrates crystallize rapidly.[6]

Anti-Agglomerants face a different constraint: they require a continuous liquid hydrocarbon phase to disperse the hydrate slurry. If the pipeline produces primarily dry gas with high water content and minimal liquid condensate, the AA chemicals have no medium in which to suspend the crystals, rendering them ineffective.[6]

The selection between these three chemical pathways dictates the entire architecture of a deepwater development. An operator choosing MEG must build a massive topside regeneration plant, while an operator selecting a KHI must guarantee that the pipeline transit time remains shorter than the chemical's kinetic delay window, even during an unplanned shutdown.[7]
