How the Antikythera Mechanism Rewrote the History of Technology

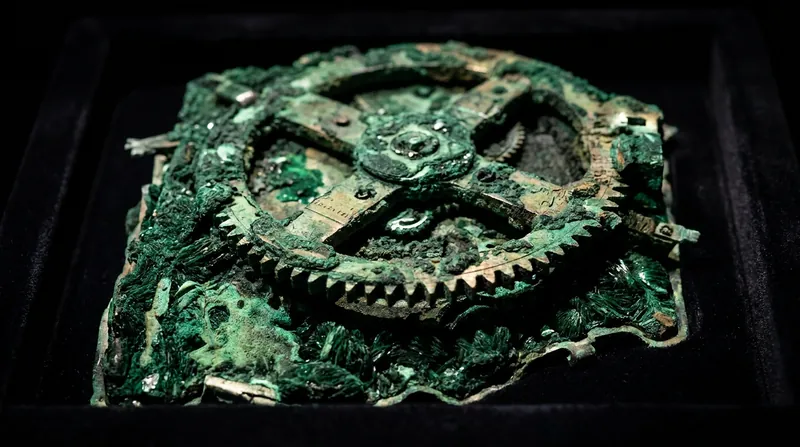

In the spring of 1901, Greek sponge divers exploring a Roman-era shipwreck near the tiny Mediterranean island of Antikythera recovered a heavily encrusted lump of bronze from the sea floor. Initially overshadowed by the spectacular marble and bronze statues found alongside it in the wreckage, the corroded artifact sat quietly in the National Archaeological Museum in Athens for months. Eventually, the calcified lump split apart, revealing something that defied all expectations of the ancient world: precision gearwheels. The discovery was so anomalous that it took decades for the scientific community to fully grasp what had been pulled from the Aegean Sea.[2][5]

For decades, the artifact remained a profound and controversial mystery. The exposed gears featured neatly cut triangular teeth, closely resembling the intricate inner workings of a modern clock or a post-Renaissance automaton. Yet, the shipwreck was firmly dated by multiple lines of archaeological evidence to the first century BCE. The existence of such a sophisticated mechanical device from antiquity was so jarring that some mainstream historians initially ignored it, assuming it was an anachronistic intrusion into the wreck, while fringe theorists speculated about extraterrestrial origins. It simply did not fit the established narrative of human technological progress.[3][4]

Today, the Antikythera Mechanism is universally recognized as the world's oldest known analog computer, a testament to the staggering capabilities of ancient engineers. Housed in a wooden case roughly the size of a shoebox or mantel clock, the device was a hand-powered calculator designed to predict astronomical events with astonishing accuracy. Its discovery fundamentally rewrote the history of technology, proving that ancient Greek engineering was at least a millennium ahead of what scholars previously believed. Nothing of comparable mechanical complexity would appear in the archaeological record until the development of medieval European cathedral clocks in the fourteenth century.[2][4][5]

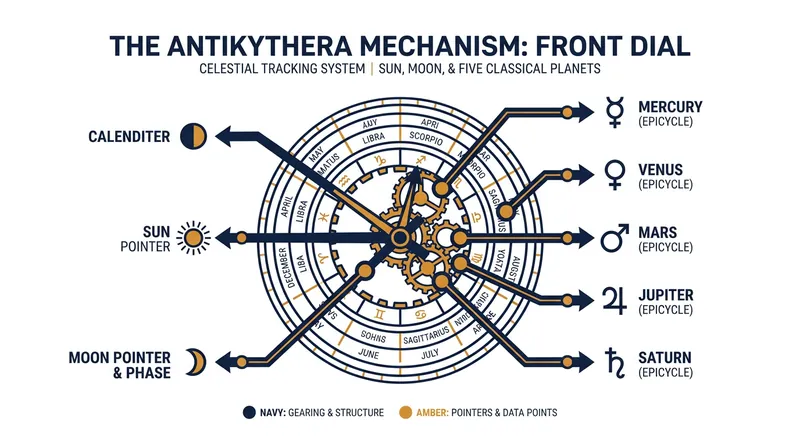

To operate the mechanism, a user would turn a small hand crank located on the side of the wooden exterior case. This rotational input drove a highly complex train of interlocking bronze gearwheels that calculated the relative positions of celestial bodies over time. The front face of the device featured a large, prominent circular dial displaying the ancient Greek Cosmos. This display tracked the movements of the Sun, the Moon, and the five planets visible to the naked eye in antiquity—Mercury, Venus, Mars, Jupiter, and Saturn—providing a real-time mechanical planetarium.[3][4]

The mechanism's astronomical outputs were incredibly detailed and mathematically rigorous. A rotating half-silvered ball displayed the current phase of the Moon, while individual pointers tracked the precise paths of the planets through the zodiac. Most remarkably, the device modeled the Moon's irregular orbit—where its velocity increases at perigee and decreases at apogee—using a clever pin-and-slot mechanism. This physical gearing perfectly replicated the complex lunar theories developed by the astronomer Hipparchus of Rhodes, demonstrating a seamless fusion of theoretical astrophysics and practical mechanical engineering.[1][3]

On the back of the wooden case, two large spiral dials provided further temporal and astronomical data for the user. One dial functioned as a sophisticated calendar, while the other was dedicated entirely to predicting lunar and solar eclipses. By turning the hand crank, a user could look decades into the future to determine exactly when an eclipse would occur, based on the 223-month Babylonian saros cycle. The mechanism even indicated the time of day the eclipse would happen and its likely color, providing invaluable data for agricultural and religious planning.[3][4]

The device was not purely for abstract astronomy; it also connected the movements of the cosmos directly to human society and culture. A smaller subsidiary dial on the back tracked the four-year cycle of the Panhellenic games, including the ancient Olympics. By integrating this cultural calendar into the astronomical calculator, the mechanism ensured that these vital athletic and religious events remained perfectly synchronized with the heavens, reflecting the deep interconnectedness of ancient Greek civic life and the natural universe.[5][6]

Unlocking the deepest secrets of the Antikythera Mechanism required the application of modern, cutting-edge technology. Because only 82 fragmented pieces survive today—representing roughly a third of the original device—researchers had to find a way to look inside the corroded bronze without destroying the fragile artifact. In 2005, an international research team utilized high-resolution microfocus X-ray computed tomography (CT) to peer through the calcified crust, capturing three-dimensional data of the internal structures that had been hidden for two millennia.[1][2]

The resulting X-ray scans revealed a staggering level of internal complexity, identifying 30 surviving gearwheels hidden within the fragments. Even more crucially, the imaging uncovered thousands of tiny text characters engraved on the bronze plates inside the mechanism. These inscriptions effectively served as a comprehensive user manual, detailing the specific planetary periods the machine calculated and explaining exactly how the cosmos was displayed on the front dial, providing researchers with the mathematical blueprint needed to understand the device.[1][2]

The translated inscriptions confirmed that the ancient Greeks had successfully integrated the arithmetic-based astronomical records of the Babylonians with their own geometric theories of the universe. However, understanding how the physical gears actually produced the complex planetary motions described in the text remained a massive, seemingly impossible three-dimensional puzzle. Because the front of the mechanism was largely destroyed in the shipwreck, researchers were left to theorize how the planetary displays were mechanized, leading to decades of debate and competing models.[1][3]

A major breakthrough finally arrived in 2021, when a multidisciplinary team from University College London (UCL) published a comprehensive, mathematically sound model of the front gearing system in the journal Scientific Reports. The researchers discovered an elegant way to arrange the gears that perfectly matched both the physical evidence of the surviving bronze fragments and the detailed mathematical descriptions found in the X-rayed inscriptions, solving a puzzle that had baffled scientists for over a century.[1][2]

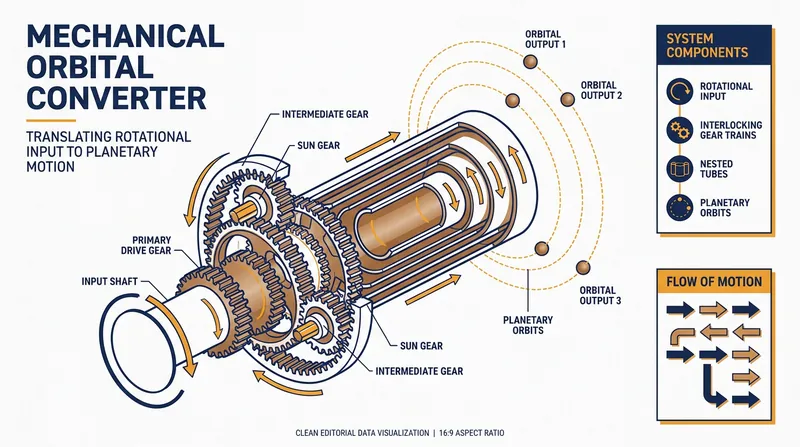

The UCL team's model demonstrated exactly how the mechanism calculated the highly accurate 462-year cycle for Venus and the 442-year cycle for Saturn. To achieve this within the confined space of the wooden case, the ancient engineers utilized a brilliant system of nested tubes that carried the astronomical outputs from the internal gear trains to the front dial. The researchers described this mechanical architecture as an impressive tour de force of ancient Greek brilliance, confirming the device's status as a work of unparalleled genius.[1][2]

Despite these massive advances in understanding, profound uncertainties about the Antikythera Mechanism remain unresolved. The exact identity of the master engineer or workshop that designed and built the device is still unknown. While the use of Hipparchus's lunar theory points to the island of Rhodes as a highly probable origin, other calendrical evidence suggests connections to the colonies of Corinth. This has led some historians to speculate that the device might be linked to the intellectual lineage of Archimedes, though definitive proof remains elusive.[7]

Furthermore, historians and archaeologists still fiercely debate why this transformative technology seemingly vanished from the historical record. The Antikythera Mechanism is so refined and mathematically perfect that it must have been the culmination of a long tradition of mechanical development, yet no other geared mechanisms from antiquity have survived. Whether this knowledge was lost during the violent collapse of the Hellenistic world, or whether similar bronze devices were simply melted down for scrap metal in later centuries, remains one of history's greatest open questions.[3][7]

Today, the ongoing study of the Antikythera Mechanism continues to inspire both academic researchers and the general public. Museum curators, horologists, and engineers around the world have constructed fully functional, scale replicas using the tools and materials that would have been available to the ancient Greeks. These physical reconstructions prove the feasibility of the theoretical models and allow modern visitors to turn the crank, watching the ancient cosmos come to life exactly as it did two thousand years ago.[5][6]

Ultimately, the Antikythera Mechanism is far more than just an ancient calculator; it is a profound window into how the ancient Greeks perceived reality itself. By capturing the complex movements of the cosmos in interlocking bronze gears, they demonstrated a fundamental belief that nature operates according to predefined, rational, and machine-like rules. It is a sweeping philosophical statement rendered in mechanical engineering, laying the conceptual and technological foundation for the modern scientific worldview we hold today.[3][7]
