How Cascade, Mixed Refrigerant, and SMR Liquefaction Cycles Dictate LNG Plant Efficiency and Capital Costs

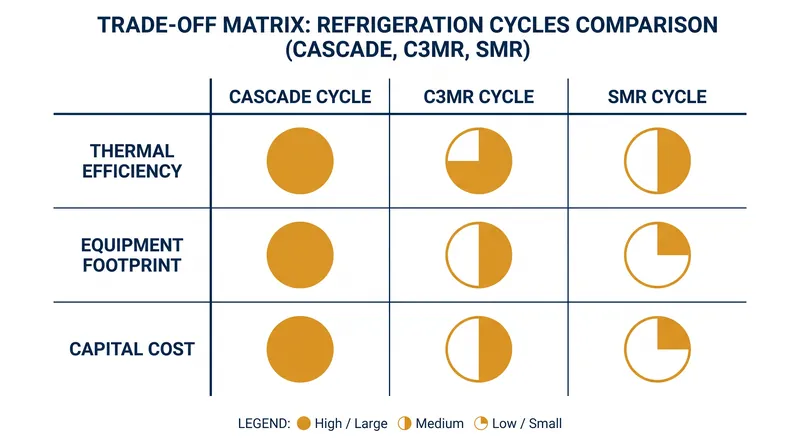

The optimal liquefied natural gas (LNG) production cycle depends entirely on plant scale and location: cascade cycles maximize thermal efficiency at the cost of a massive footprint, single-mixed refrigerant (SMR) cycles minimize equipment count for offshore use, and propane pre-cooled mixed refrigerant (C3MR) strikes the industry-standard balance for large onshore terminals. The engineering trade-off centers fundamentally on thermodynamics versus capital expenditure. Cooling natural gas to its liquid state requires immense mechanical work, and the method chosen to extract that heat dictates the physical size, cost, and operational complexity of the entire export facility.[3]

Building an LNG export terminal requires billions of dollars in upfront capital, with the liquefaction trains themselves accounting for 30% to 40% of the total facility cost. Natural gas, which is predominantly methane, must be cooled to approximately -162°C (-260°F) to condense into a liquid, reducing its volume by a factor of 600 for marine transport. Achieving these cryogenic temperatures requires driving massive compressors that push refrigerant fluids through miles of heat exchangers, a process that consumes roughly 8% to 10% of the feed gas itself when powered by traditional gas turbines.[1]

The physics of cooling a gas mixture are complex because natural gas does not condense at a single temperature; it cools along a curve as its heavier hydrocarbon components drop out before the methane liquefies. To match this cooling curve efficiently, engineers rely on refrigeration cycles. The earliest commercial baseload facilities, developed in the 1960s, utilized the pure cascade cycle. This approach uses three separate refrigeration loops—typically propane, ethylene, and methane—each operating at different pressures and temperatures to step the natural gas down to its final cryogenic state.

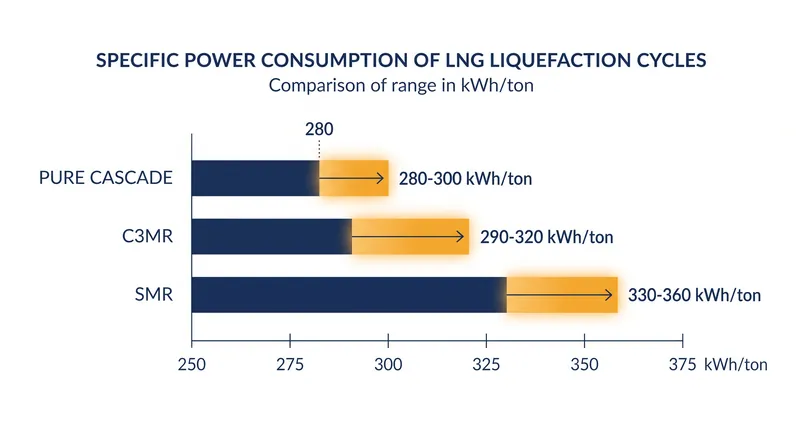

The primary advantage of the pure cascade cycle, such as the ConocoPhillips Optimized Cascade process used extensively in Australia and the U.S. Gulf Coast, is its thermodynamic efficiency. By using pure refrigerants, the cycle can achieve a specific power consumption of 280 to 300 kilowatt-hours per ton of LNG produced. However, this efficiency requires three distinct compressor strings, three sets of drivers, and a sprawling network of heat exchangers. The resulting capital expenditure and massive physical footprint make it viable only for large onshore sites where space is abundant.[3]

To reduce this equipment count, the industry developed the mixed refrigerant (MR) concept. Instead of using multiple pure fluids in separate loops, an MR cycle blends nitrogen, methane, ethane, and propane into a single fluid. Because it is a mixture, the refrigerant boils over a temperature range rather than at a single point, allowing it to closely match the natural gas cooling curve within a single heat exchanger. The simplest iteration of this concept is the Single-Mixed Refrigerant (SMR) cycle.[1][2]

SMR cycles require only one main compressor and one cryogenic heat exchanger, drastically reducing the plant's footprint and upfront capital cost. This makes SMR the dominant choice for small-scale peak-shaving facilities and modular trains producing less than 1.5 million tonnes per annum (MTPA). More recently, it has become the preferred technology for Floating LNG (FLNG) vessels. "For offshore environments where deck space is measured in tens of thousands of dollars per square meter, equipment count is the primary constraint," notes a 2024 analysis by the Oxford Institute for Energy Studies.

The trade-off for SMR's compact design is a significant penalty in thermal efficiency. SMR cycles typically require 330 to 360 kilowatt-hours per ton of LNG, meaning they consume more energy to produce the same volume of product compared to cascade systems. Furthermore, operators must constantly adjust the exact composition of the mixed refrigerant to match variations in ambient temperature and feed gas composition, adding operational complexity to the simplified hardware.[3]

Seeking a middle ground between the high efficiency of cascade systems and the low equipment count of SMR, Air Products and Chemicals, Inc. (APCI) introduced the Propane Pre-cooled Mixed Refrigerant (C3MR) cycle in the 1970s. This hybrid approach uses a pure propane loop to pre-cool the natural gas to roughly -30°C, followed by a mixed refrigerant loop to take the gas down to -162°C. By splitting the cooling duty, C3MR optimizes the compressor loads and heat exchanger sizes.[2]

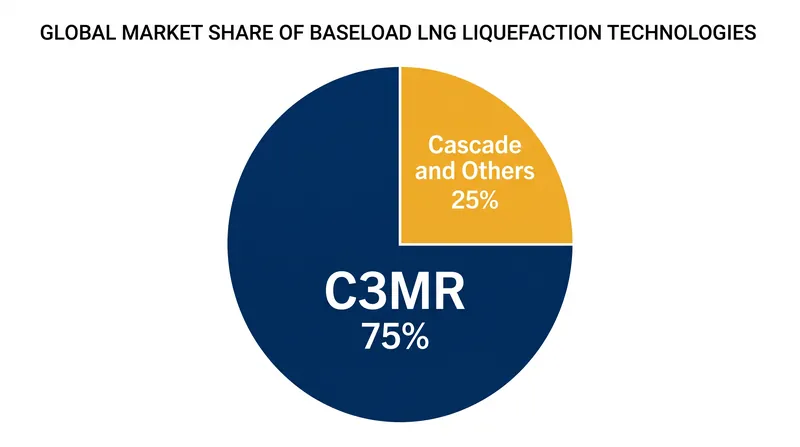

The C3MR cycle has become the undisputed industry standard, accounting for approximately 75% of global baseload LNG capacity. It achieves a specific power consumption of 290 to 320 kilowatt-hours per ton—nearly matching the pure cascade cycle—while requiring significantly less physical space and fewer compressor strings. A standard C3MR train can comfortably scale to produce 4 to 5 MTPA, hitting the sweet spot for major onshore export terminals in Qatar, the United States, and Australia.[1][2]

As the LNG industry evolves, the criteria for selecting a liquefaction cycle are shifting. Historically, the choice was dictated by the size of available industrial gas turbines used to drive the compressors. Today, the push to decarbonize LNG production is leading developers to replace gas turbines with electric motors (e-drives) powered by renewable grids, a shift visible in the 2025 expansion plans for several U.S. facilities. Electric drives change the optimal compressor sizing, slightly altering the economic calculus between C3MR and cascade designs.[1][3]

Ultimately, the selection of a liquefaction cycle locks in a facility's operating economics for decades. A 10 MTPA facility shifting from a thermal efficiency of 300 kWh/ton to 320 kWh/ton will consume an additional 200 gigawatt-hours of energy annually. The engineering decision rests on whether the capital cost of capturing that efficiency outweighs the spatial constraints of the site, a calculation that ensures cascade, SMR, and C3MR will all maintain distinct roles in the global gas trade.[3]
