DIY Rainwater Harvesting: How to Build a System, Legalities, and Benefits

Capturing water as it falls from the sky is one of the oldest human practices, yet it is experiencing a distinctly modern renaissance. As utility bills climb and regional droughts become more frequent, homeowners are increasingly looking upward to secure their own water supply. Rainwater harvesting—the simple act of catching, filtering, and storing rain—has evolved from a rural necessity into a mainstream suburban DIY project.[7]

For thousands of years, civilizations relied on elaborate catchment systems to survive dry seasons. Today, modern domestic rainwater harvesting systems apply those same ancient principles using PVC pipes, mesh screens, and food-grade plastic barrels. Whether built to water a small vegetable garden or to supply an entire household's non-potable needs, these systems offer a tangible step toward self-sufficiency.[2]

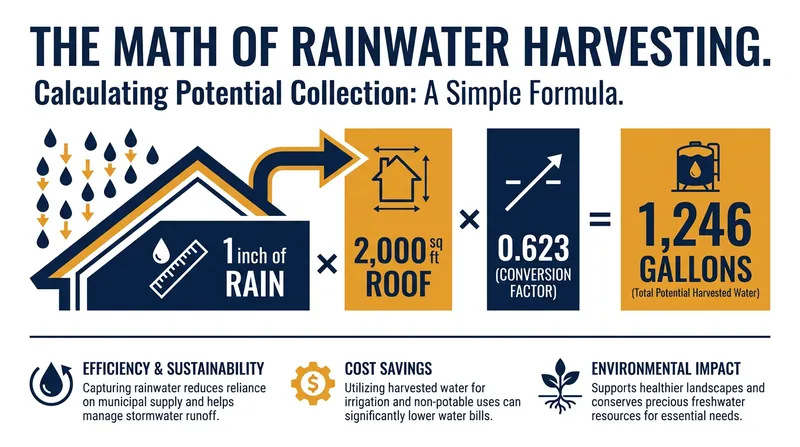

The sheer volume of water that can be harvested from a standard roof is often surprising to first-time builders. A widely used formula dictates that one inch of rainfall on a 1,000-square-foot roof yields roughly 600 gallons of water. For an average 2,000-square-foot home, a single heavy storm dropping one inch of rain can generate over 1,200 gallons. Over the course of a year, even in regions with moderate precipitation, a home can easily shed tens of thousands of gallons.[4][5]

Beyond the immediate financial relief of lower municipal water bills, harvesting rainwater provides profound environmental benefits. The most significant impact is the reduction of stormwater runoff. In natural landscapes, rain soaks into the ground, but in urban and suburban environments, impervious surfaces like roofs and driveways force water to flow rapidly into municipal drainage systems.[1][3]

This uncontrolled runoff is a primary driver of local water pollution. As stormwater rushes across lawns and asphalt, it picks up fertilizers, pesticides, pet waste, and automotive oil, carrying them directly into nearby streams and rivers. By intercepting this water at the source, a home harvesting system acts as a localized flood control mechanism, protecting the broader watershed from erosion and chemical contamination.[1][4]

For gardeners, the benefits of rainwater extend directly to plant health. Municipal water is typically treated with chlorine or chloramines to ensure it remains safe as it travels through miles of piping. While safe for humans, these chemicals can inhibit beneficial soil microbes. Rainwater, by contrast, is naturally soft, slightly acidic, and entirely free of municipal treatment chemicals, making it the ideal hydration source for sensitive plants and vegetables.[3][4]

Building a basic DIY system requires understanding the anatomy of water collection. The process begins with the catchment area—almost always the home's roof. Water flows down the pitch into standard gutters, which channel it toward the downspouts. In a harvesting setup, the downspout is modified to divert this flow into a storage vessel rather than dumping it onto the ground.[3]

However, simply routing a downspout directly into a barrel is a recipe for stagnant, contaminated water. The most critical component of a high-quality system is the first-flush diverter. When rain begins to fall, the initial runoff washes the roof clean of accumulated dust, pollen, leaves, and bird droppings. If this initial slug of water enters the storage tank, it introduces organic matter that will quickly decay and breed bacteria.[5]

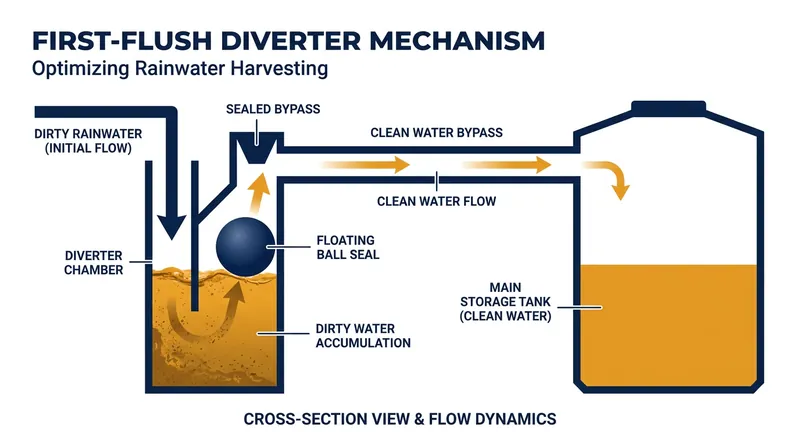

A first-flush diverter solves this problem mechanically. It is typically a vertical length of PVC pipe installed just before the main storage tank. The dirty initial runoff flows into this vertical chamber until it fills up. Once the chamber is full, a floating ball valve seals it off, allowing the subsequent—and much cleaner—rainwater to bypass the diverter and flow directly into the storage tank. A slow-drip valve at the bottom of the diverter empties it between storms, resetting the system.[5][7]

In addition to the diverter, pre-filtration is essential. Leaf screens installed over the gutters prevent large debris from clogging the downspouts, while a fine mesh screen over the tank's inlet keeps out smaller particulates and, crucially, prevents mosquitoes from accessing the water to lay eggs.[4]

The storage vessel itself is the centerpiece of the system. For DIY builders, recycled 55-gallon food-grade barrels are the standard starting point. These barrels are inexpensive, durable, and relatively easy to plumb. It is vital that the storage tank is completely opaque; if sunlight penetrates the plastic, algae will rapidly bloom in the nutrient-rich water.[4][5]

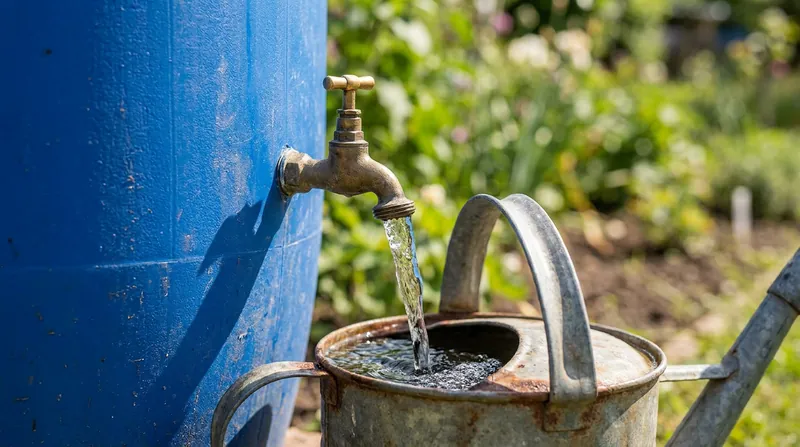

Siting the tank requires careful planning due to the sheer weight of the stored water. A single gallon of water weighs 8.3 pounds, meaning a full 55-gallon barrel weighs over 450 pounds. The tank must be placed on a perfectly level, reinforced foundation of treated lumber, concrete blocks, or compacted gravel. Elevating the tank a few feet off the ground also provides gravity-fed water pressure, making it easier to attach a hose or fill a watering can from the bottom spigot.[4]

Every system must also account for overflow. Once the tank is full, excess water needs a safe exit route. An overflow valve installed near the top of the barrel should connect to a hose that directs water at least several feet away from the home's foundation, preventing structural damage or basement flooding during heavy downpours.[4]

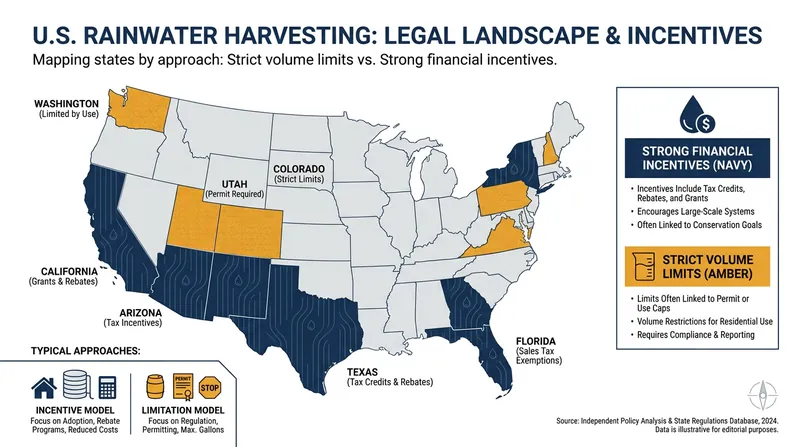

While the mechanics of building a system are straightforward, the legal landscape surrounding rainwater collection is notoriously misunderstood. A persistent internet myth claims that collecting rainwater is illegal. In reality, rainwater harvesting is legal in all 50 states, though the regulations governing it vary dramatically depending on local water doctrines.[5][6]

In the Western United States, water law is largely governed by the doctrine of prior appropriation, which dictates that water rights belong to the first person to historically claim them. Because all water eventually flows into rivers and aquifers, some states view rooftop collection as intercepting water that legally belongs to downstream users. Colorado, for example, strictly limits residential collection to a maximum of 110 gallons across two barrels, while Utah requires registration for systems over a certain size.[5][6]

Conversely, states facing acute water scarcity or municipal infrastructure strain actively encourage the practice. Texas is a national leader in this regard, offering a 100% sales tax exemption on all rainwater harvesting equipment and preventing homeowners' associations from banning the practice. California and numerous local municipalities offer financial rebates to residents who install rain barrels, viewing distributed storage as a vital tool for drought resilience.[5][6]

Finally, builders must decide how the water will be used. The vast majority of DIY systems are designed strictly for non-potable uses: landscape irrigation, washing cars, or flushing toilets. Upgrading a system to provide safe drinking water is a significantly more complex engineering challenge. Potable systems require NSF 61 certified tanks to prevent chemical leaching, multi-stage micron filtration, and ultraviolet light or chlorination treatment to ensure the water meets health standards.[3][5]

For most homeowners, a basic non-potable setup is the perfect entry point. Building a DIY rainwater harvesting system is a scalable, rewarding weekend project that immediately lowers utility costs. More importantly, it transforms a home from a passive consumer of municipal resources into an active participant in the local watershed, capturing the sky's most valuable resource one storm at a time.[4][7]
