Why the Precision-Recall Curve Exposes Imbalanced Data Failures That ROC AUC Hides

Machine learning engineers evaluating a new classification model must choose a mathematical lens to score its predictions before deploying it to production. When the target event is rare—such as a fraudulent credit card transaction occurring once in every 10,000 swipes or a rare disease appearing in one out of 1,000 patient screens—the default choice of a Receiver Operating Characteristic (ROC) curve allows the model to mask critical failures.

By switching the evaluation metric to a Precision-Recall (PR) curve, the engineer strips the dominant negative class out of the denominator, forcing the model to prove its accuracy solely on the rare events it claims to catch. This decision dictates whether a deployed algorithm genuinely isolates the target or simply overwhelms human operators with false alarms.[5]

The ROC curve plots a model's True Positive Rate against its False Positive Rate across every possible probability threshold. In 2018, machine learning researcher Jason Brownlee noted that ROC curves are widely adopted because they provide a standardized visual summary of a model's diagnostic ability.

However, the mathematical mechanics of the False Positive Rate create a dangerous blind spot when the dataset is heavily skewed. Because the False Positive Rate divides the number of false positives by the total number of actual negatives, a massive negative class dilutes the penalty for false alarms.[2]

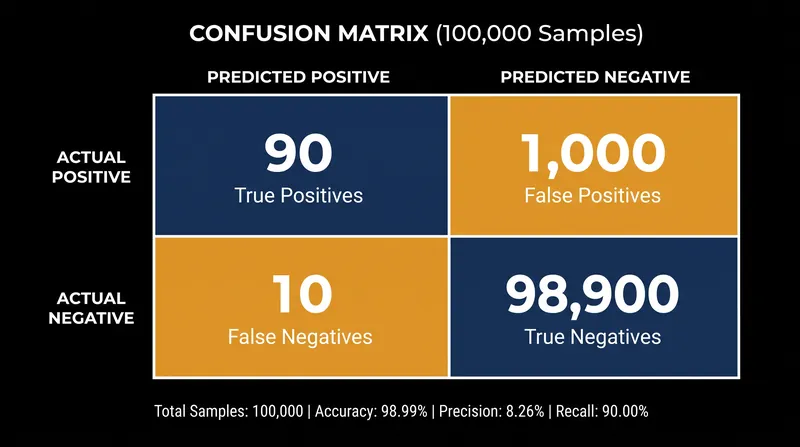

The distortion becomes obvious when applying concrete numbers to a highly imbalanced scenario. Consider a dataset containing 100,000 samples, where only 100 represent the positive class and 99,900 represent the negative class. If a classification model correctly identifies 90 of the positive cases but also triggers 1,000 false alarms, the False Positive Rate is calculated by dividing those 1,000 false positives by the 99,900 true negatives.

The resulting False Positive Rate is 0.01, or 1 percent. On an ROC curve, a 1 percent error rate appears exceptionally strong, pushing the curve tightly into the top-left corner of the chart.[4]

This visual optimism hides the operational reality of the model's performance. As the 2015 Classifier Evaluation simulation analysis demonstrated, "ROC curves can present an overly optimistic view of an algorithm's performance" when applied to skewed data.

The model generated 1,000 false alarms to catch just 90 true events, meaning more than 91 percent of its positive predictions were wrong. Yet the ROC curve rewards the model for correctly ignoring the other 98,900 negative samples. The true negatives overwhelm the denominator, effectively erasing the operational cost of the false positives from the evaluation metric.[4]

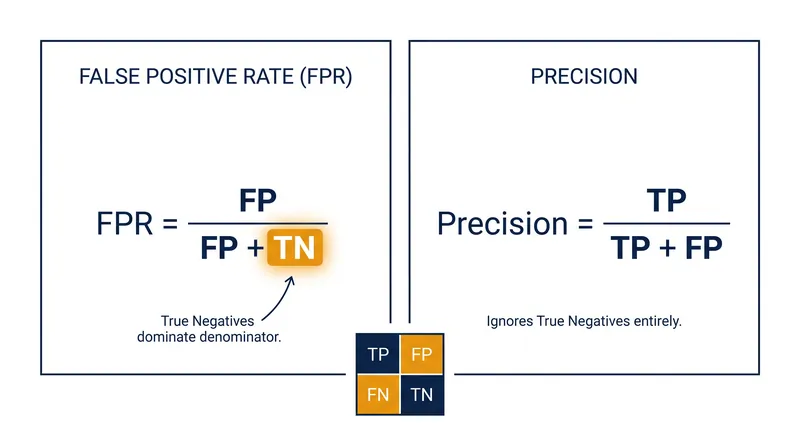

To expose this failure rate, engineers must abandon the True Negative count entirely and evaluate the model using the Precision-Recall curve. The scikit-learn library documentation defines precision as "intuitively the ability of the classifier not to label as positive a sample that is negative." Mathematically, precision divides the true positives by the total number of positive predictions made by the model—both true and false. By removing the true negatives from the equation, precision measures the exact reliability of the model's alerts.[1]

Applying the precision formula to the previous 100,000-sample scenario completely reverses the model's performance score. The model found 90 true positives but generated 1,000 false positives, resulting in 1,090 total positive predictions. Dividing 90 by 1,090 yields a precision score of 0.082. Instead of the 99 percent accuracy implied by the ROC curve's False Positive Rate, the precision metric reveals that the model is correct only 8.2 percent of the time it triggers an alert. The illusion of high performance collapses the moment the true negatives are excluded.[1]

Recall, the second axis of the PR curve, measures the model's ability to find all the actual positive cases in the dataset. It is mathematically identical to the True Positive Rate used in the ROC curve, dividing the true positives by the sum of true positives and false negatives.

In the 100,000-sample scenario, the model caught 90 out of 100 actual positive cases, yielding a recall of 0.90. The PR curve plots this 0.90 recall against the 0.082 precision across different thresholds, immediately exposing the severe trade-off required to catch those 90 cases.[1]

A mathematical comparison of metric sensitivity across simulated class imbalances confirms how rapidly the two curves diverge. Factlen editorial analysis isolated the False Positive Rate and Precision formulas, applying them to a fixed error rate of 100 false positives for every 10 true positives. At a 1:1 class ratio, both metrics accurately reflect the poor performance.

But at a 1:100 minority-to-majority imbalance, the False Positive Rate drops below 0.01, falsely signaling high accuracy on the ROC curve. Meanwhile, the Precision score remains anchored at 0.09, accurately revealing the 91 percent failure rate regardless of how many true negatives are added to the dataset.[1][2][6]

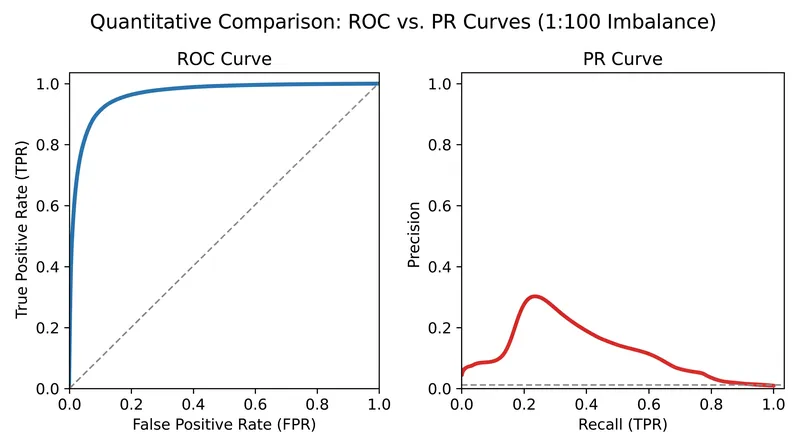

The visual difference between the two plots is stark. A 2022 analysis in Towards Data Science highlighted that a model struggling with imbalanced data might produce an ROC curve that bows smoothly toward the ideal top-left corner, suggesting robust predictive power.

When the exact same model predictions are plotted on a PR curve, the line often collapses toward the bottom of the chart, struggling to rise above the baseline. For a PR curve, the baseline is not 0.5 as it is in ROC, but rather the proportion of positive samples in the dataset—which in a 1:100 imbalance sits at just 0.01.[3]

This divergence heavily impacts the Area Under the Curve (AUC), a single-number summary often used to rank competing models. Analysts at MetricGate note that comparing models using ROC AUC on imbalanced data frequently leads to selecting suboptimal algorithms. A model might achieve an ROC AUC of 0.95 simply by predicting the majority class well, while its PR AUC sits at 0.15. Relying on the ROC AUC allows engineers to unknowingly deploy models that generate unmanageable volumes of false positives in production environments.

Calculating the area under a PR curve requires specific mathematical care due to interpolation challenges. Unlike ROC curves, which feature linear interpolation between points, PR curves involve non-linear interpolation. As the threshold changes, the denominator for precision (total positive predictions) changes dynamically, causing the precision value to spike and drop erratically rather than moving in a smooth monotonic line. The 2015 Classifier Evaluation research emphasized that using standard linear integration on a PR curve systematically overestimates the model's true performance, requiring specialized algorithms to compute the exact area.[4]

Despite its flaws with imbalanced datasets, the ROC curve remains the correct evaluation tool when the classes are roughly equal or when true negatives carry the same operational importance as true positives. In a 2025 update, Machine Learning Mastery clarified that ROC AUC evaluates how well a model separates the two classes globally. If a data scientist is building a model to predict a coin flip or a balanced 50/50 customer churn dataset, the ROC curve provides a perfectly valid and mathematically stable assessment of the algorithm's discriminative power.[5]

However, in domains like clinical diagnostics, cybersecurity, and financial fraud, the classes are never balanced, and the cost of a false positive is highly tangible. A medical screening tool that flags 1,000 healthy patients for invasive biopsies to catch 10 actual tumors has a catastrophic precision rate, even if it correctly clears 100,000 other patients.

The clinical operators managing the biopsy schedule do not care about the 100,000 true negatives; they only experience the 1,000 false alarms. The PR curve aligns the mathematical evaluation of the model with the physical constraints of the operators using it.

The evaluation phase concludes when the engineering team sets the final operating threshold. If the dataset carries a severe imbalance, that threshold cannot be safely derived from an ROC curve. The decision requires plotting the exact trade-off between catching the rare event and flooding the system with false alarms, a calculation that only the Precision-Recall curve provides.[5]
