Torque-Sensing vs. Slip-Sensing: How Different Differentials Distribute Power in All-Wheel Drive

When a 2022 Acura MDX Type S navigates a low-traction corner, its drivetrain does not simply spin all four wheels equally. Instead, an electronic control unit monitors steering angle, wheel speed, and yaw, dynamically shifting power to the outside wheels to push the vehicle through the turn. This active redistribution of power—known as torque vectoring—represents the modern extreme of all-wheel drive (AWD) engineering, a discipline that has spent half a century trying to solve a single physics problem: how to maintain forward momentum when individual tires lose their grip on the road.[5]

The mechanical solutions to that problem divide the automotive industry into two distinct engineering philosophies. On one side are torque-sensing systems, which rely on the physical friction of internal gears to instantly redirect power the moment resistance changes. On the other are slip-sensing architectures, which operate primarily in two-wheel drive until wheel spin forces an electronic or hydraulic clutch to engage the secondary axle. How a manufacturer chooses between these two approaches dictates not only a vehicle's manufacturing cost, but its fundamental behavior in rain, snow, and high-performance driving.[2][5]

To understand the divergence, one must first look at the baseline open differential. When a vehicle travels in a straight line, the wheels on both sides rotate at identical speeds. However, during a turn, the outer wheels travel a wider arc and must spin faster than the inner wheels. An open differential allows this speed variance, but it possesses a fatal flaw in low-traction environments: power follows the path of least resistance. If one wheel hits a patch of ice, the open differential sends all available engine torque to that spinning wheel, leaving the tire with actual grip entirely unpowered.[3][5]

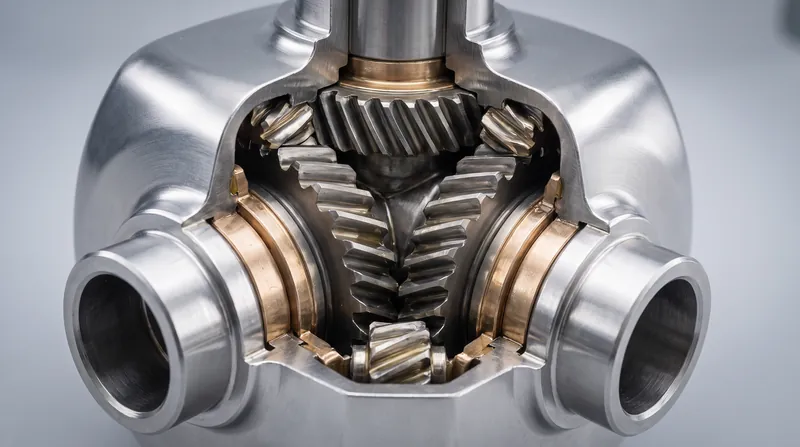

Torque-sensing systems, most famously embodied by the Torsen (Torque-Sensing) differential, were designed to eliminate that vulnerability without relying on external sensors. Developed in the late 20th century and popularized by Audi's early Quattro systems, the Torsen differential utilizes a complex arrangement of helical worm gears and worm wheels. According to engineering documentation from the EuroMotor Virtual College, this specific gear geometry creates internal friction when an axle begins to lose traction.[3][4]

Because a worm gear can turn a worm wheel, but a worm wheel cannot turn a worm gear, the Torsen differential inherently binds when a speed differential exceeds its designed bias ratio. This binding action mechanically forces torque away from the slipping wheel and directs it to the axle with greater resistance—the one with traction. The reaction is instantaneous, governed entirely by the laws of physics rather than a silicon processor.[3][4]

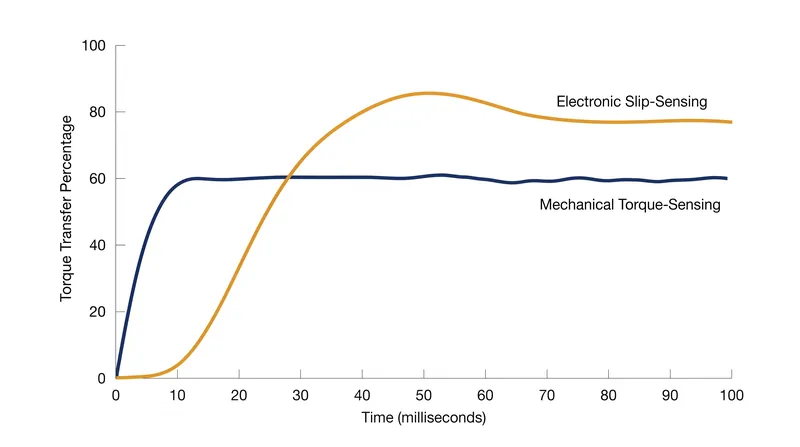

The primary advantage of a torque-sensing architecture is its zero-latency response. Because the system is permanently engaged and mechanically reactive, power shifts before a wheel can complete even a fraction of a rotation without grip. AWD Wiki notes that this continuous power delivery makes Torsen-equipped vehicles highly predictable at the limit of adhesion, which is why the architecture remains a staple in longitudinal-engine performance sedans and dedicated off-road platforms.[4]

However, mechanical torque-sensing carries distinct penalties. The complex machining required for helical gears makes Torsen differentials expensive to manufacture. Furthermore, because they are permanently engaged, they incur constant parasitic drivetrain losses, reducing overall fuel efficiency. Most critically, a purely mechanical Torsen differential requires at least some resistance on both axles to function; if one wheel is entirely suspended in the air with zero traction, the gear binding cannot initiate, and the system acts like an open differential.[2][4]

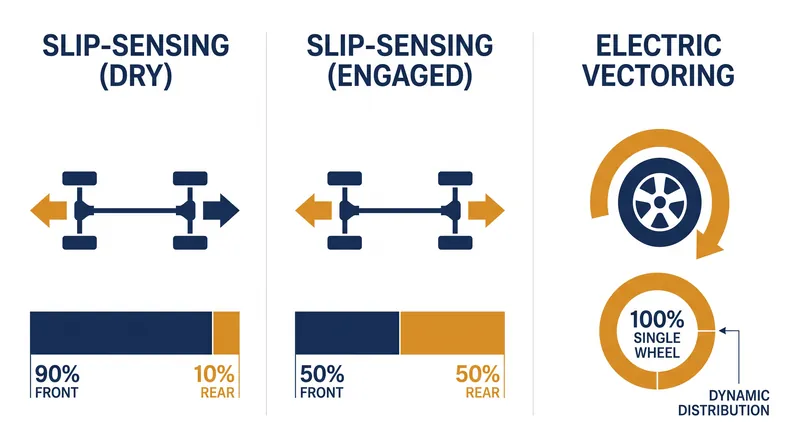

Slip-sensing systems emerged as a lighter, more fuel-efficient alternative, particularly for vehicles with transversely mounted engines. Often associated with the Haldex coupling used extensively by the Volkswagen Auto Group, these systems fundamentally alter the AWD equation. Under normal, dry-road conditions, a slip-sensing vehicle operates almost entirely in two-wheel drive—typically sending 90 to 95 percent of engine power to the front wheels.[2]

Power reaches the rear axle only when a multi-plate wet clutch pack engages. In early iterations, this engagement was entirely reactive. When wheel speed sensors detected that the primary driven wheels were spinning faster than the secondary wheels, a hydraulic pump would pressurize the clutch pack, locking the driveshaft and sending up to 50 percent of the available torque to the rear axle. This architecture saves fuel during highway cruising and requires significantly less physical packaging space than a mechanical center differential.[1][2]

The historical critique of slip-sensing systems has been their inherent latency. Because the system must detect slip before it can react, early models allowed a momentary loss of traction before the rear wheels engaged—a delay that performance drivers found unsettling. However, modern electronic control units have largely erased that gap. Contemporary slip-sensing systems are proactive rather than strictly reactive.[1]

By monitoring throttle position, steering angle, and lateral acceleration, modern controllers can anticipate traction loss. As detailed in research published by MDPI on control allocation methods for AWD systems, advanced algorithms now pre-emptively lock the center coupling during aggressive acceleration or sharp cornering, effectively engaging all-wheel drive before any physical slip occurs. This software-driven approach allows engineers to tune the vehicle's handling characteristics dynamically, altering the torque split based on the selected driving mode.[1]

The evolution of electronic control has culminated in active torque vectoring. While traditional AWD systems manage power between the front and rear axles, torque vectoring differentials independently distribute power between the left and right wheels. J.D. Power notes that differential-based torque vectoring utilizes multi-plate clutches on either side of the axle. When cornering, the system electronically engages the outside clutch, overdriving the outer wheel to generate yaw and physically push the vehicle's nose into the turn.[5]

This level of granular control transforms vehicle dynamics. Instead of merely preventing wheel spin, the drivetrain actively assists in steering. The system can instantly shift from a 50/50 left-right split on a straightaway to sending the majority of axle torque to a single outside wheel during a high-speed maneuver. The result is a dramatic reduction in understeer and a higher threshold for lateral grip.[1][5]

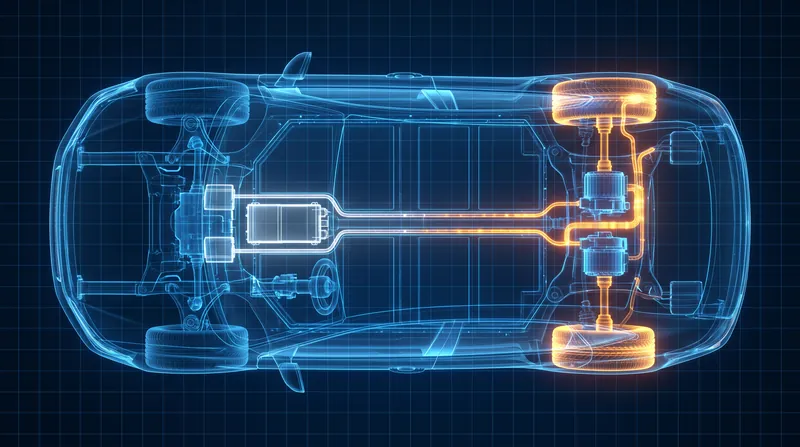

The transition to electric vehicles (EVs) is currently rewriting the rules for both torque-sensing and slip-sensing architectures. Internal combustion engines require complex mechanical differentials and driveshafts to distribute power from a single centralized powerplant. EVs, by contrast, can utilize multiple independent motors. J.D. Power highlights that electric torque vectoring represents the newest form of the technology, noting that 'this setup allows for the purest form of torque vectoring, as each wheel receives individual control with up to 100 percent of the available torque.'[5]

In a multi-motor EV, the debate between mechanical binding and hydraulic clutch engagement becomes obsolete. The vehicle's control software simply commands a specific torque output for each corner of the car, adjusting delivery hundreds of times per second. This architecture achieves the zero-latency response of a Torsen differential while exceeding the dynamic flexibility of the most advanced slip-sensing clutch packs.[1][5]

For the current generation of internal combustion and hybrid vehicles, the choice between torque-sensing and slip-sensing remains a matter of application. Heavy-duty trucks and premium longitudinal platforms continue to leverage the unbreakable mechanical immediacy of torque-sensing gears. Meanwhile, the vast majority of crossovers and transverse-engine architectures rely on the packaging efficiency and software-defined adaptability of slip-sensing clutches.[2][6]

The engineering trajectory is clear: mechanical complexity is steadily giving way to computational authority. As control algorithms grow more sophisticated and electric motors replace mechanical driveshafts, the physical gears that once defined all-wheel drive performance are being superseded by code. The final arbiter of traction is no longer the friction between two metal surfaces, but the processing speed of the silicon monitoring them.[1][6]
