How Aerospike Engines Maintain Thrust Efficiency Across Altitudes

The fundamental geometry of the rocket engine forces a permanent aerodynamic standoff between two incompatible environments. Propulsion engineers optimizing for the launch pad demand a narrow, tightly constrained nozzle bell, arguing that the dense sea-level atmosphere will otherwise crush the exhaust plume inward and induce dangerous flow separation. Conversely, engineers designing for the vacuum of orbit require a massive, widely flared bell, pointing out that a narrow nozzle chokes the exhaust and squanders the thermodynamic potential of the expanding gases. Because a solid metal bell cannot physically change its expansion ratio during ascent, every conventional rocket flies with a compromised architecture that perfectly satisfies neither camp.[1][2]

The physics of this penalty dictate the design of modern launch vehicles. As the engineering reference Aerospaceweb explains, in a standard bell nozzle at low altitudes, "the higher atmospheric pressure pushes the exhaust inward. This inequality causes the exhaust to become separated from the nozzle walls reducing the amount of thrust generated." This condition, known as overexpansion, robs the vehicle of critical lifting force when it is heaviest. In the upper atmosphere, the exhaust expands too widely past the nozzle exit, spilling thrust outward rather than pushing the vehicle forward in a condition called underexpansion.[2]

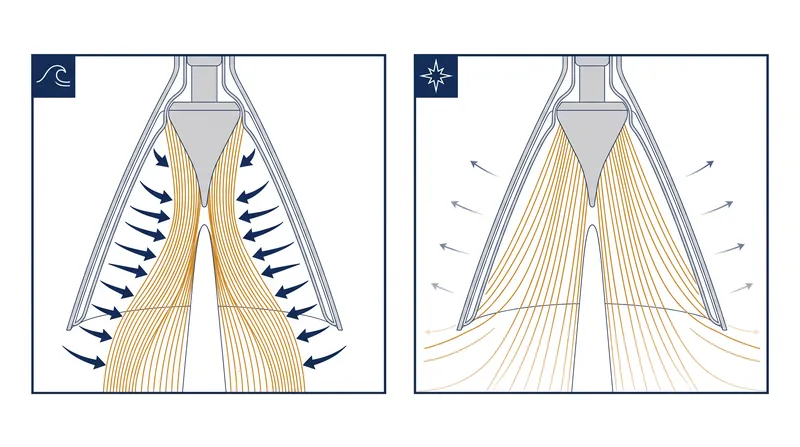

The aerospike engine inverts this architecture entirely to solve the expansion problem. Instead of firing hot exhaust through the inside of a hollow bell, an aerospike fires the exhaust along the outside of a central, tapered ramp or plug. The combustion gases are directed inward against this solid centerbody, while the ambient atmosphere itself acts as the invisible outer wall of the nozzle. As a result, the aerospike "maintains its aerodynamic efficiency across a wide range of altitudes," behaving as an inherent altitude compensator.[1][2]

This configuration creates a dynamic, self-adjusting exhaust plume. As the vehicle ascends and the surrounding atmospheric pressure drops, the invisible outer boundary of the exhaust plume naturally expands outward. The exhaust remains perfectly attached to the central spike at all times, ensuring that the maximum possible thrust is directed axially downward. By dynamically adjusting to the surrounding air pressure, the aerospike avoids the severe overexpansion penalties on the launch pad while matching the high-expansion efficiency of vacuum engines in orbit.[1][2]

The theoretical advantages of this continuous optimization are massive, particularly for vehicle mass. A conventional multi-stage rocket discards its heavy, sea-level-optimized first stage precisely because those engines become dead weight in the upper atmosphere. An aerospike engine, by contrast, maintains high specific impulse from the pad to orbit, making it the propulsion system of choice for single-stage-to-orbit (SSTO) vehicle concepts. During the 1990s, NASA's X-33 VentureStar program selected the RS-2200 linear aerospike engine for exactly this reason, though the program was ultimately canceled before flight.[1]

Despite the aerodynamic elegance, the architecture introduces severe thermal and structural hurdles that have kept it grounded for decades. In a traditional bell nozzle, the hottest exhaust gases are concentrated in the center of the plume, safely away from the engine walls. In an aerospike, the high-temperature combustion flow is wrapped directly around the central spike, subjecting the hardware to immense, sustained thermal loads. Cooling that central spike requires complex regenerative systems that pump cryogenic propellant through the structure before ignition, adding significant weight and manufacturing complexity.[1][3]

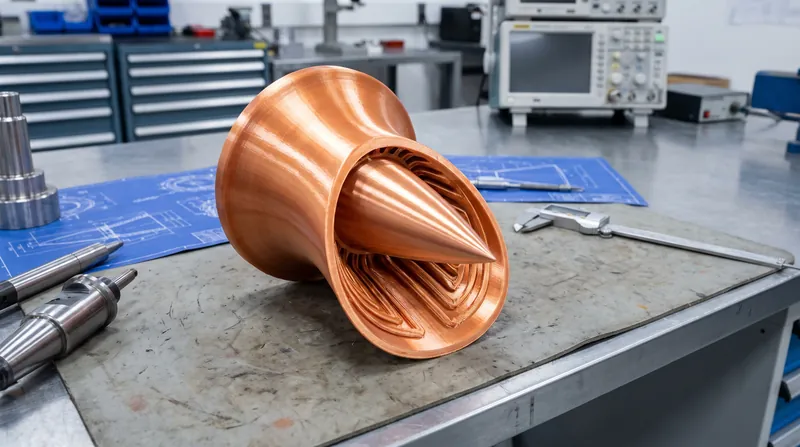

Modern additive manufacturing and advanced materials are beginning to solve those historical bottlenecks, sparking a renaissance in aerospike development. In September 2024, the Indian aerospace firm SpaceFields successfully hot-fired a suborbital aerospike prototype at its Challakere facility, achieving a peak thrust of 2,000 newtons. In Germany, POLARIS Spaceplanes was commissioned in February 2025 to develop a reusable hypersonic research aircraft, aiming to transport payloads of up to 1,000 kilograms into space by 2028 using advanced propulsion concepts.[1]

The transition from suborbital prototyping to orbital flight requires massive scaling. Commercial launch providers are adapting the concept for orbital hardware, such as Stoke Space, which is currently testing a reusable vehicle that utilizes a central passive bleed to create an aerospike-like effect. Its Nova booster engine is designed to produce over 100,000 pounds-force (440 kilonewtons) of thrust upon lift-off. The Stoke Space Nova booster engine is designed to produce approximately 222 times the thrust of the SpaceFields prototype, illustrating the massive scaling required to move from suborbital testing to orbital launch.[1][3]

The ultimate prize driving this engineering effort is a launch system that requires no staging, no discarded hardware, and no compromised engine bells. If the thermal management and weight penalties of the central spike can be fully mitigated by 3D-printed alloys, the aerospike engine offers a thermodynamic ideal. It represents a propulsion system that perfectly matches its environment at every millisecond of the ascent, fundamentally altering the economics of space access.[1][2][3]
