Specific Impulse, Thrust, and Cost: The Trade-Offs of Solid, Liquid, and Hybrid Rocket Propellants

Engineers designing launch vehicles face an inescapable physical compromise: maximize the energy extracted from every kilogram of propellant, or minimize the complexity and cost of the plumbing required to burn it. Proponents of liquid bipropellant systems argue that the high specific impulse of cryogenic liquids like liquid oxygen and liquid hydrogen is the only viable path to deep space, accepting the immense cost of turbopumps and complex valving.

Conversely, advocates for solid rocket motors prioritize reliability and density, arguing that a pre-mixed, cast-in-place propellant grain eliminates the risk of pump failure and reduces launch costs, even if it means sacrificing the ability to throttle or shut down the engine once ignited.

Between these two established architectures sits the hybrid rocket motor. A hybrid system stores its oxidizer as a liquid or gas—such as liquid oxygen or nitrous oxide—and its fuel as a solid grain, often a hydrocarbon like hydroxyl-terminated polybutadiene or paraffin wax. When thrust is required, the liquid oxidizer is injected into the hollow core of the solid fuel grain and ignited. Because the fuel and oxidizer exist in different phases, they cannot mix catastrophically, eliminating the risk of the explosive detonations that haunt liquid and solid systems alike.[1][4]

The defining metric for any of these systems is specific impulse, measured in seconds, which quantifies how efficiently an engine converts propellant mass into thrust. Liquid systems dominate this metric. A liquid oxygen and liquid hydrogen engine can achieve a vacuum specific impulse of roughly 450 seconds.

Solid rocket motors, utilizing ammonium perchlorate composite propellant, typically peak around 270 to 290 seconds. Hybrid motors occupy the middle tier; a well-optimized nitrous oxide and paraffin wax hybrid engine can deliver a specific impulse between 290 and 320 seconds, depending on the expansion ratio of the nozzle.[2][6]

The trade-off for the hybrid's moderate specific impulse is a drastic reduction in system complexity and cost. In a typical oxygen-based hybrid rocket, the solid fuel accounts for only about 30 percent of the total propellant mass, operating at an oxidizer-to-fuel mixture ratio of 2.0 to 3.0.

If the architecture shifts to a nitrous-oxide-based system, the fuel mass fraction drops below 15 percent, with mixture ratios reaching 6.0 to 8.0. This high oxidizer-to-fuel ratio means the combustion chamber can be significantly smaller and lighter than a comparable solid rocket motor, while requiring only a single fluid feed system rather than the dual turbopumps demanded by liquid engines.[4][5]

Crucially, the hybrid architecture retains the operational flexibility of a liquid engine. Because combustion depends entirely on the flow of the liquid oxidizer, a hybrid motor can be throttled deeply, shut down entirely, and restarted in flight. NASA's development of fast-acting, deep-throttling hybrid motors has demonstrated that modulating the oxidizer valve can precisely control the regression rate—the speed at which the solid fuel surface burns away. This capability is impossible in a traditional solid rocket motor, which burns to depletion once the igniter is fired.[1]

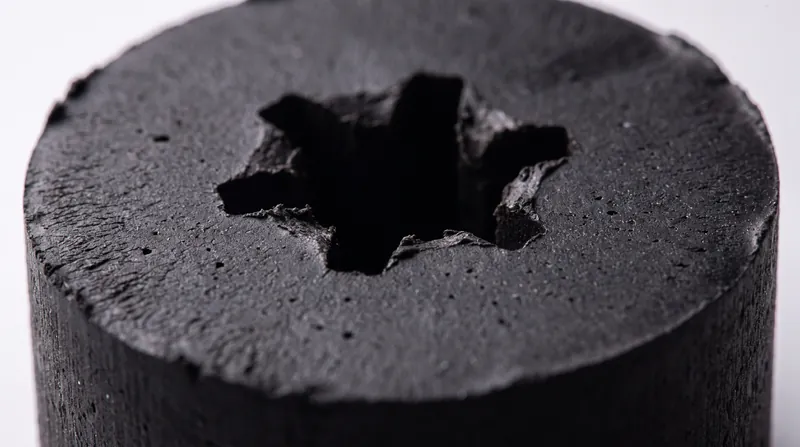

However, hybrid motors are not without their own engineering hurdles. The primary limitation is the regression rate of the solid fuel. Because combustion occurs only in the boundary layer where the vaporized fuel meets the oxidizer, the fuel burns away relatively slowly. To generate the massive thrust required for orbital launch vehicles, engineers must design complex fuel grains with multiple ports to increase the burning surface area, which reduces the volumetric efficiency of the motor.

In 2023, researchers at McGill University developed a computational model for a nitrous oxide and paraffin wax hybrid engine targeting an apogee of 3,048 meters, highlighting the delicate balance between oxidizer mass flow rate and fuel grain dimensions required to maintain stable combustion.[3][5][6]

Recent advancements in fuel chemistry are attempting to solve this regression rate problem. The shift toward liquefying fuels, such as paraffin wax, has shown promise. Unlike traditional rubber-based binders, paraffin melts and forms a thin liquid layer on the surface of the grain before vaporizing. The high-velocity oxidizer flow strips droplets from this liquid layer, entraining them into the flame zone and dramatically increasing the regression rate. This mechanism allows for simpler, single-port fuel grains that improve the overall density and volumetric specific impulse of the motor.[3][4]

Environmental considerations are also reshaping the propellant trade space. According to Francesco Barato's 2023 review in Aerospace, "Hybrid rockets using specific oxidizer–fuel combinations are considered a green alternative to current propulsion systems, as they do not release very toxic or polluting exhausts, but only much less harmful substances such as carbon monoxide/dioxide and soot." This contrasts sharply with traditional solid rocket motors that rely on ammonium perchlorate, which produces hydrochloric acid as a primary exhaust product.[4]

The selection of a rocket propellant architecture remains a strict exercise in balancing mass, efficiency, and operational risk. Liquid systems will continue to dominate heavy-lift and deep-space applications where specific impulse is paramount, while solid motors remain the standard for military applications and strap-on boosters requiring immediate, high-thrust reliability. But as commercial spaceflight seeks to lower the barrier to entry, the hybrid motor's unique combination of safety, throttleability, and reduced mechanical complexity offers a compelling alternative for suborbital tourism, sounding rockets, and upper-stage orbital maneuvering.
