The Mechanics of Steer-by-Wire: How Redundant Actuators Replace the Mechanical Steering Column

On November 30, 2023, the automotive steering architecture fundamentally fractured when the first mass-production light vehicle without a physical mechanical link between the driver's hands and the front wheels was delivered to consumers. For over a century, a forged steel column had connected the steering wheel to the rack-and-pinion gear. That physical shaft dictated that every degree of input at the wheel resulted in a mathematically fixed rotation at the tires, modified only slightly by variable-pitch gear teeth. The introduction of fully decoupled steer-by-wire systems severed that link, replacing the steel column with a network of sensors, control modules, and electric motors.[4]

The architecture begins at the driver's hands. In a steer-by-wire system, the traditional steering wheel is replaced by a hand-wheel actuator. This unit contains high-resolution optical or magnetic encoders that measure the exact angle and rotational velocity of the driver's input. Because there is no physical connection to the road, this actuator must also house a dedicated electric feedback motor. This motor artificially generates the resistance, centering force, and tactile feedback that a driver expects to feel, simulating the physical resistance of tires scrubbing against asphalt.

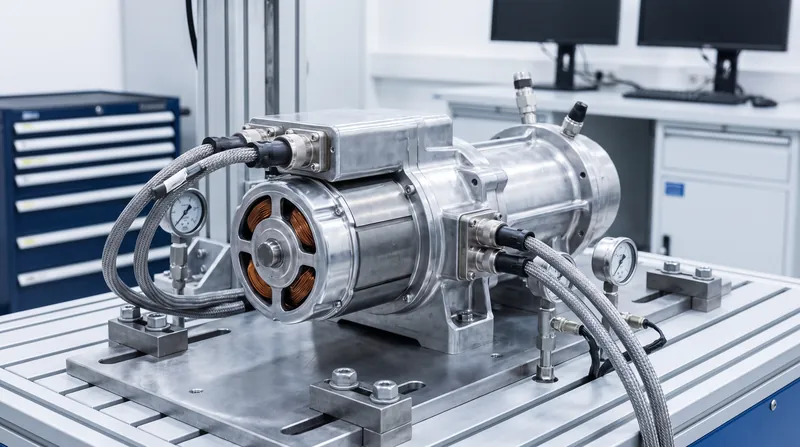

At the front axle, the traditional hydraulic or electrically assisted rack is replaced by a road-wheel actuator. This component consists of a heavy-duty electric motor—often a dual-wound brushless DC motor—that physically pushes and pulls the tie rods to turn the wheels. The road-wheel actuator receives digital commands from the central steering control module, executing the requested angle in milliseconds. It also measures the lateral forces acting on the tires and sends that data back up to the hand-wheel actuator, which translates those forces into the artificial feedback felt by the driver.[2][5]

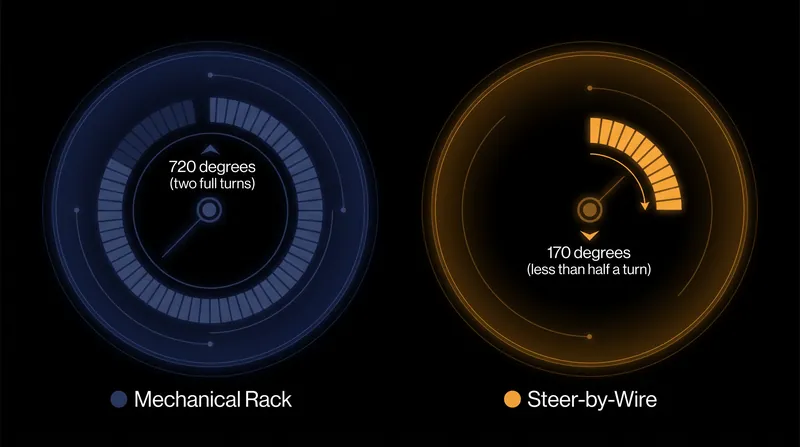

The primary engineering justification for severing the mechanical column is the ability to infinitely vary the steering ratio. A traditional mechanical rack typically requires between 720 and 900 degrees of rotation—two to two-and-a-half full turns—to move the wheels from full left lock to full right lock. Steer-by-wire systems can dynamically alter this ratio based on vehicle speed. At parking lot speeds, the software can map a mere 170 degrees of yoke rotation to the full lock-to-lock articulation of the front wheels, eliminating the need for hand-over-hand maneuvers.[1][4]

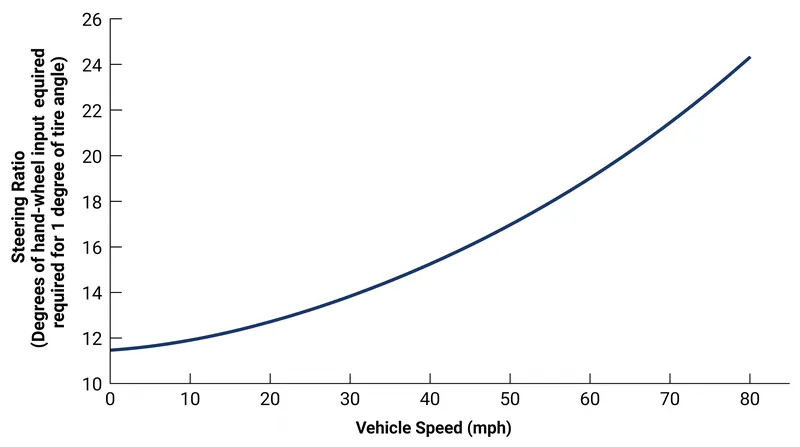

As vehicle speed increases, that hyper-sensitive ratio becomes a liability. A system that requires only 85 degrees of input to reach full lock would be dangerously twitchy at 70 miles per hour. Consequently, the steering control module continuously dilutes the ratio as velocity climbs. At highway speeds, the same 85 degrees of input might only result in a two-degree change in tire angle. This dynamic scaling allows for rapid low-speed maneuverability while maintaining high-speed stability, a decoupling that mechanical variable-ratio racks can only approximate.[1]

The elimination of the mechanical column introduces a critical failure mode: a total loss of electrical power or a software fault could leave the vehicle unsteerable. To satisfy federal motor vehicle safety standards, steer-by-wire architectures rely on aerospace-grade redundancy. The road-wheel actuator is typically driven by two independent electric motors, or a single motor with two completely isolated sets of copper windings. If one winding fails, the other can provide sufficient torque to safely guide the vehicle to a stop.[2][3]

Redundancy extends to the power supply. A steer-by-wire system cannot rely on a single 12-volt or 48-volt battery. The architecture requires at least two independent power networks, often backed by a localized supercapacitor or a secondary lithium-ion buffer battery dedicated solely to the steering system. The communication network between the hand-wheel and road-wheel actuators also utilizes dual-channel data buses, ensuring that a severed wire or a corrupted data packet does not interrupt the steering command.[1][2]

"The transition to fully decoupled steering architectures requires a paradigm shift from mechanical fail-safe design to operational fault tolerance, where the system must remain available post-fault," according to a 2024 SAE International technical standard on drive-by-wire redundancy. This operational fault tolerance is what allows regulators to certify vehicles without a mechanical backup.[1]

Beyond variable ratios, steer-by-wire offers significant packaging advantages. The mechanical steering column is a rigid, intrusive component that dictates the placement of the driver's seat, the dashboard architecture, and the routing of the firewall. It also presents a severe hazard during a frontal collision, requiring complex collapsible joints to prevent it from being driven into the cabin. Removing the column frees up substantial volume beneath the dashboard, allowing engineers to push the firewall forward, expand cabin space, and simplify crash-structure design.[3][5]

Despite the packaging and dynamic benefits, the transition to steer-by-wire is not without friction. The primary uncertainty lies in the calibration of the artificial feedback. Mechanical steering systems transmit a wealth of high-frequency information about road texture, grip limits, and tire slip directly to the driver's hands. Replicating this tactile bandwidth through a feedback motor requires immense computational power and highly sophisticated algorithms. Early iterations of steer-by-wire have been criticized for feeling synthetic or isolating, filtering out the subtle cues that drivers rely on to gauge traction in adverse weather conditions.

The regulatory framework governing steering systems is also adapting. For decades, regulations like the United Nations Economic Commission for Europe Regulation 79 mandated a positive mechanical link between the steering control and the road wheels. Amendments to these standards now permit fully electronic steering, provided the system demonstrates a failure probability equivalent to or lower than that of a mechanical system. This requires manufacturers to submit exhaustive fault-tree analyses and failure mode and effects analyses before a steer-by-wire vehicle can be homologated for public roads.[3]

Looking forward, steer-by-wire is a foundational technology for advanced driver-assistance systems and autonomous driving. A mechanical steering column rotates when an automated system executes a lane-keeping maneuver, which can be disconcerting to the driver. A steer-by-wire system allows the road wheels to turn independently of the hand-wheel, enabling the vehicle to make micro-corrections for crosswinds or uneven camber without disturbing the driver's hands. As the industry moves toward higher levels of automation, the ability to completely decouple the steering input from the vehicle's trajectory becomes a structural necessity rather than a luxury feature.[4][5]
