How Speculative Decoding Bypasses the Memory Bandwidth Bottleneck in AI Inference

In modern microprocessor design, branch prediction accelerates computing by guessing which path a program will take to keep the instruction pipeline full. Speculative decoding applies a parallel philosophy to artificial intelligence, but with a crucial distinction: instead of guessing the path of instructions, it guesses the actual data—the next several words of text—using a miniature neural network, relying on the massive primary network only to grade the homework.[3]

The fundamental speed limit of a large language model is not how fast its processors can multiply numbers, but how fast it can move them. In standard autoregressive generation, producing a single word requires loading the entire model's weights—often exceeding 140 gigabytes for a 70-billion parameter model—from high-bandwidth memory into the compute cores.[3]

"LLM inference is heavily memory-bandwidth bound," notes a 2023 technical analysis published by Hugging Face researchers. Because the model must wait for the memory transfer to complete before calculating the next token, the massive computational power of modern GPUs sits idle for a fraction of a millisecond during every step.

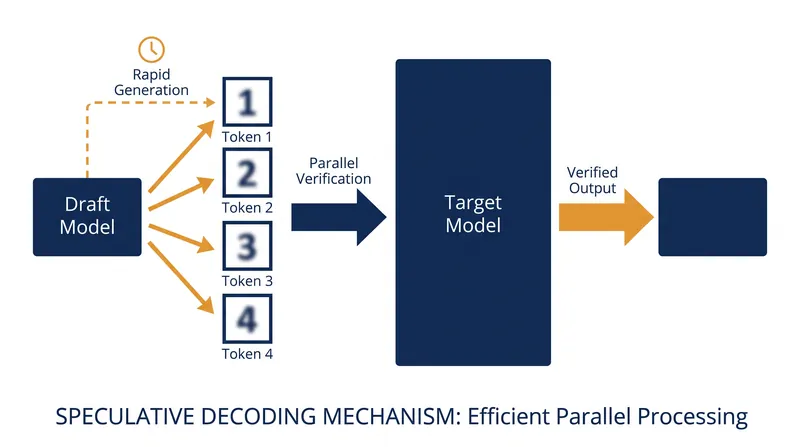

Speculative decoding solves this by introducing a deliberate asymmetry into the architecture. A much smaller "draft" model—perhaps 1.5 billion parameters compared to the target model's 70 billion—is tasked with rapidly generating a sequence of, for example, four potential next tokens. Because the draft model is small enough to fit comfortably within the GPU's fastest cache, it produces these guesses in a fraction of the time.[1][3]

The massive target model then receives this sequence of four drafted tokens. Instead of generating them one by one, it performs a single forward pass over all four simultaneously. This parallel verification uses the exact same amount of memory bandwidth as generating a single token from scratch, effectively bypassing the von Neumann bottleneck.[2][3]

If the target model's internal probability distribution agrees with the draft model's choices, all four tokens are accepted instantly. The system has just generated four words for the time and memory cost of one, resulting in a massive spike in tokens-per-second throughput.[1]

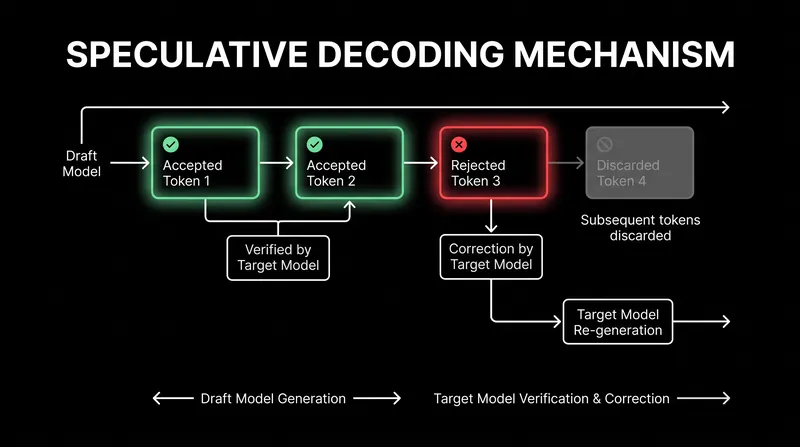

When the models disagree, the system gracefully degrades rather than failing. If the target model rejects the third drafted token, it accepts the first two, discards the rest, and uses its own calculation to output the correct third token. The process then begins again from that point.[2]

Crucially, this is not an approximation that sacrifices quality for speed. The mathematical formulation of speculative sampling, first detailed in independent 2023 papers by researchers at Google and DeepMind, guarantees that the final output distribution is mathematically identical to what the target model would have produced alone.[1][2]

The practical results of this mathematical guarantee are substantial. In benchmark tests detailed in the DeepMind preprint, speculative decoding accelerated the 70-billion parameter Chinchilla model by a factor of 2.5 without any degradation in output quality or reasoning capability.[2]

The efficiency of the system hinges entirely on the alignment between the draft and target models. If the draft model is too small, its guesses are consistently rejected, and the overhead of running it actually slows the system down. If it is too large, generating the drafts takes too long, eroding the speed advantage.[3]

Hardware constraints also dictate the limits of this approach. While speculative decoding saves memory bandwidth, it requires additional memory capacity to hold the Key-Value (KV) cache for both models simultaneously, forcing engineers to balance speed against available Video RAM.

As open-source developers increasingly deploy models locally on consumer hardware, techniques that bypass memory bottlenecks dictate what is possible. Speculative decoding allows high-capability models to run at reading speed on hardware that would otherwise struggle to produce a few words per second.[3]
