Decoupled Cross-Attention Isolates Image Features From Text Embeddings to Preserve Character Consistency Across Diffusion Generations

A standard text-to-image diffusion model like Stable Diffusion XL contains roughly 2.6 billion parameters, yet it routinely fails at a task a human artist masters on day one. It cannot draw the exact same character twice.[3][6]

When users attempt to force consistency using text alone, they write exhaustive prompts detailing hair color, eye shape, and clothing. Despite these precise instructions, the model inevitably hallucinates variations in facial structure across different generation seeds.[5]

The root cause of this amnesia lies in how diffusion models process instructions. They rely on a mechanism called cross-attention, which acts as a mathematical bridge between the textual prompt and the visual canvas being generated.[1][3]

In standard cross-attention, text embeddings from a language model serve as the Keys and Values, while the model's internal image features act as the Queries. This architecture works perfectly for translating words into pixels, but it breaks down when users try to inject a reference image directly into the stream.[3]

The Feature Bleeding Bottleneck

When developers first attempted to add image prompts to these models, they simply concatenated the image features with the text tokens. This forced the network to process both modalities through the exact same attention pathways simultaneously.[2][3]

The immediate result was a phenomenon known as feature bleeding. Because the text and image data were entangled in the same matrix, a prompt asking for a character in a red jacket might cause the character's face to turn red.[2][4]

The model simply could not distinguish which parts of the reference image represented the character's core identity and which parts were just contextual noise. The background of the reference photo would frequently overwrite the setting requested in the text prompt.[4][5]

To bypass this limitation, creators historically relied on fine-tuning methods like DreamBooth or Low-Rank Adaptation. These techniques update the model's actual weights to memorize a specific character, but they require minutes of dedicated training time and significant computational resources for every new subject.[2][5]

How Decoupled Cross-Attention Works

The breakthrough in zero-shot consistency arrived with the introduction of decoupled cross-attention, pioneered by architectures like the IP-Adapter. Instead of forcing image and text data through the same bottleneck, this method builds a parallel processing highway.[2][3]

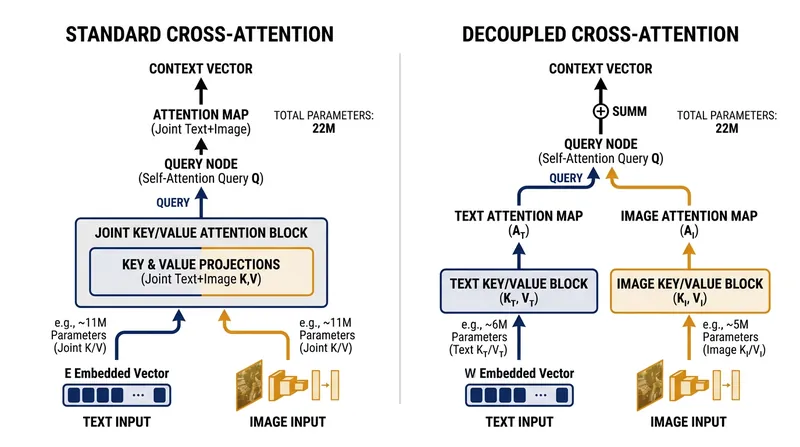

In a decoupled system, the model retains its original cross-attention layer for text, but adds a second, entirely separate cross-attention layer dedicated exclusively to image features. The visual identity and the textual instructions never mix during the initial extraction phase.[2][3]

The Query matrix, which represents the current state of the generated image, is shared between both layers. However, the text gets its own Key and Value matrices, and the reference image gets a new, independent set of Key and Value matrices.[2][3]

The outputs of these two parallel attention layers are then mathematically summed together before moving to the next stage of the network. This isolation allows the model to pull structural layout instructions from the text prompt while pulling fine-grained identity details strictly from the reference image.[2][3]

The Math of Modality Isolation

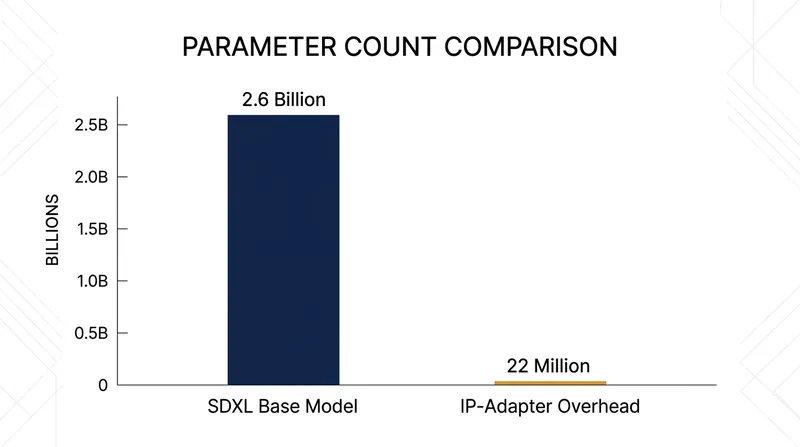

The efficiency of this decoupled architecture is striking. By duplicating only the Key and Value projection matrices for the image modality, the IP-Adapter achieves robust character consistency while adding just 22 million parameters to the network.[2][3]

Compared to a 2.6-billion-parameter base model, this represents less than a one percent increase in total size. It proves that modality isolation is fundamentally a routing problem rather than a capacity problem, requiring better pathways rather than larger models.[2][6]

Because the original text-to-image pathways remain completely frozen and unchanged, the model retains all of its original knowledge and prompt-following capabilities. The network does not forget how to draw a cyberpunk city just because it is looking at a photo of a specific face.[2][3]

The reference image is processed by a vision encoder into a 1024-dimensional embedding before it enters the attention layer. This dense mathematical representation captures the character's visual essence without carrying over the original lighting, pose, or background environment.[3][4]

Users can even adjust a specific weight parameter during generation, dialing the influence of the image prompt up or down. A lower weight allows for more creative interpretation of the text, while a higher weight strictly enforces the facial geometry of the reference.[3]

Expanding to Multi-Subject Control

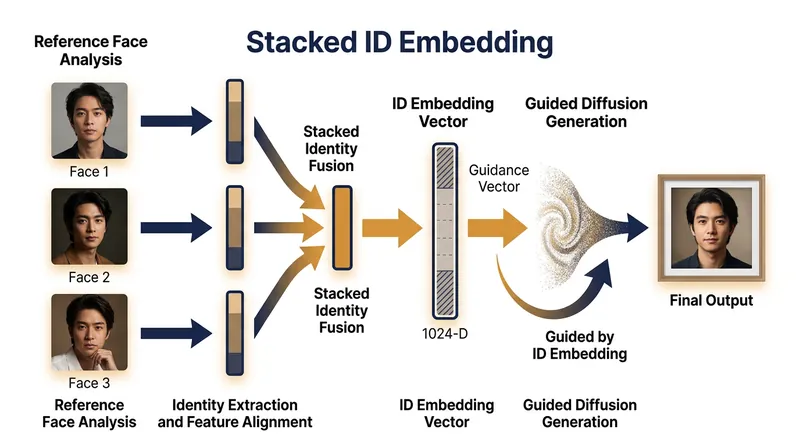

Decoupled cross-attention has rapidly evolved beyond single-character preservation. Newer frameworks take this isolated architecture further by stacking multiple identity embeddings together before feeding them into the cross-attention layer.[2][6]

By feeding the model three or four different photos of the same person, the stacked embedding creates a more robust, three-dimensional understanding of the character's face. This eliminates the biases of a single reference shot and improves consistency across extreme angles.[2][6]

Researchers are also applying this isolation technique to fine-grained attributes beyond facial identity. Systems like AttriStory use targeted loss functions on these decoupled attention maps to ensure that specific clothing textures and colors remain consistent across multi-panel narratives.[1]

Because these adapters operate entirely at the attention layer rather than altering the base weights, they can be stacked seamlessly with other control mechanisms. A user can combine a decoupled identity adapter with a structural tool to dictate the exact pose of the consistent character.[2][3]

This composability transforms diffusion models from unpredictable slot machines into reliable rendering engines. Creators can now produce continuous comic books, storyboards, and video assets featuring the exact same cast of characters without training a single custom model.[1][5]

The Future of Attention Routing

The success of decoupled cross-attention is now influencing the design of next-generation foundational models. Rather than treating image prompting as an afterthought, newer architectures are building isolated modality pathways directly into their base training regimens.[1][6]

This shift is particularly evident in the transition from U-Net architectures to Diffusion Transformers. While early transformers merged all tokens into a single sequence, researchers are actively developing isolated attention mechanisms to preserve character consistency in these massive new models.[1][6]

By refining how attention maps localize specific attributes during the earliest steps of the denoising process, developers are granting users unprecedented control. The ability to lock a character's identity while freely changing their environment represents a fundamental leap in generative capability.[1][6]

Limitations and the Drift Wall

Despite its massive efficiency gains, decoupled cross-attention is not a flawless replacement for full model fine-tuning. Because it relies on reference-steering rather than embedded memory, it faces distinct limitations over extended generation sequences.[4][5]

Across a long series of generations with drastically changing poses and extreme lighting conditions, the character's face can begin to experience visual drift. Subtle structural details degrade as the model struggles to map the two-dimensional reference embedding onto complex movements.[4][5]

The system also struggles when the text prompt directly contradicts the core features of the reference image. If the reference shows a character with short hair and the prompt demands flowing locks, the summed attention outputs clash and produce visual artifacts.[3][5]

For commercial animation studios requiring absolute pixel-perfect consistency across thousands of frames, a dedicated fine-tuned model remains the gold standard. The permanent weight updates of a Low-Rank Adaptation provide a deeper, more resilient understanding of the character's geometry.[5][6]

However, for rapid prototyping, dynamic storytelling, and zero-shot character generation, decoupled attention has permanently altered the landscape. It bridges the gap between textual intent and visual identity, proving that the key to consistency is simply keeping the instructions separate.[1][6]
