ExplainerSpatial ConditioningControlNetOct 13, 2026, 6:20 AM· 7 min read· in Artificial Intelligence

Zero-Initialized 1x1 Convolutions Prevent Trainable Spatial Conditioners From Corrupting Pre-Trained Diffusion Priors

By locking the base model and connecting a trainable encoder copy via zero-initialized convolutions, ControlNet allows diffusion models to learn precise spatial controls like edge detection and human pose. This architecture mathematically guarantees that early training steps cannot inject harmful noise into the pre-trained semantic prior.

By Viktoria Sokolova

Share this story

In short

Stanford researchers solved spatial conditioning in diffusion models by locking the pre-trained base model and routing inputs through a trainable encoder copy.
The architecture uses 1x1 convolutions initialized to exactly zero, mathematically guaranteeing that the first training step injects no random noise into the system.
This gradient isolation allows models to learn structural controls like edge detection and human pose using a fraction of the compute required for full fine-tuning.

In early 2023, researchers Lvmin Zhang, Anyi Rao, and Maneesh Agrawala at Stanford University observed a fundamental tension in generative artificial intelligence: teaching a diffusion model a new spatial skill usually destroyed its existing knowledge. They were attempting to force a text-to-image model to respect structural constraints, like a human pose skeleton or a Canny edge map, rather than just a text prompt.[1][2]

The problem was catastrophic forgetting. Fine-tuning an 860-million-parameter model like Stable Diffusion 1.5 to respect a spatial map required updating its weights. But in standard neural network training, new layers are initialized with random Gaussian noise to break symmetry, which immediately injected massive noise into the model's finely tuned latent space.[3]

Text-to-image models traditionally rely on the Contrastive Language-Image Pretraining (CLIP) text encoder to guide generation. While CLIP excels at semantic alignment—ensuring a "golden retriever" looks like a golden retriever—it fundamentally lacks pixel-level spatial awareness. A text prompt cannot easily dictate that the dog must be looking exactly 45 degrees to the left while sitting in the bottom right quadrant of the frame.[3]

To solve this, the Stanford team introduced ControlNet, a framework that locks the production-ready diffusion model entirely. Instead of altering the base model, they created a trainable copy of its encoding layers to learn the new task. This allowed the base model to act as a strong, frozen backbone while the copy handled the spatial conditioning.[1][2]

The Anatomy of a Diffusion UNet

To understand why this works, one must look at the architecture of the Stable Diffusion UNet. The network consists of a stack of encoding blocks, a middle block, and a stack of decoding blocks. Skip connections link the encoders directly to the decoders, allowing high-resolution features to bypass the bottleneck.[2]

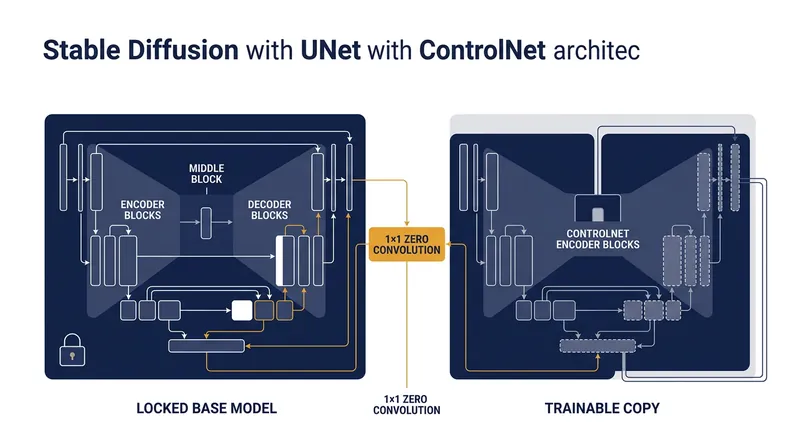

The trainable copy duplicates the encoding blocks of the UNet, connecting back to the locked decoders via zero-initialized convolutions.

ControlNet duplicates only the encoding blocks and the middle block of this UNet. The decoding blocks, which are responsible for reconstructing the final image from the latent space, remain entirely untouched and locked. This selective cloning reduces the parameter overhead while capturing the necessary structural inputs.[2]

The trainable copy takes an external conditioning vector as its input. If a user wants to generate an image based on a sketch, the trainable copy processes the user's scribble, while the locked base model processes the standard text prompt. The two streams of information must then be merged.[2]

The Zero-Convolution Mechanism

To connect the trainable copy back to the locked base model, the team used 1x1 convolution layers initialized with weights and biases of exactly zero. This "zero convolution" mechanism is the mathematical core of the architecture, ensuring that the two networks can communicate without cross-contamination.[1][2]

"The neural architecture is connected with 'zero convolutions' (zero-initialized convolution layers) that progressively grow the parameters from zero and ensure that no harmful noise could affect the finetuning," the Stanford researchers wrote in their International Conference on Computer Vision publication.[2]

In a standard neural network, initializing weights to zero is a fatal error because it prevents the network from learning; gradients cannot flow if every neuron outputs the same value. However, ControlNet applies these zero convolutions only to the bridging layers, not the internal layers of the trainable copy itself, which remain randomly initialized.[2][4]

By initializing the 1x1 convolutions at zero, the spatial conditioner's output in the very first training step is exactly zero. The network mathematically behaves exactly as if the ControlNet does not exist, preserving 100 percent of the base model's capability and preventing any initial noise from corrupting the pre-trained semantic prior.[1][3]

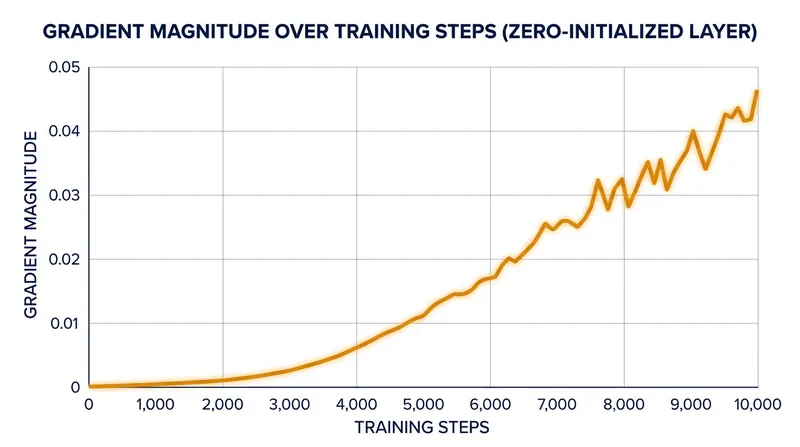

Because the initial output is zero, the adapter learns progressively without injecting random noise into the base model during the first optimizer step.

Gradient Isolation and Learning

The mathematical elegance of the zero convolution lies in its gradient behavior. In the forward pass, the output is zero, meaning the loss function evaluates the base model exactly as it would without the ControlNet. During backpropagation, the gradient of the loss with respect to the trainable copy's weights is non-zero, because the input to the zero convolution is non-zero.[2][4]

This non-zero gradient allows the 1x1 convolution weights to update in the very first optimizer step. As soon as the weights move away from zero, the trainable copy begins injecting its spatial features into the base model. The network organically discovers the optimal magnitude for the spatial condition without ever experiencing a shock of random noise.[2][4]

This decoupling allows the trainable copy to absorb high learning rates, typically around 1e-5. It can learn a new spatial control using a small dataset of under 50,000 images, or a large one of over 1 million images, without risking distribution collapse. The base model's knowledge of what a "chef" or a "kitchen" looks like remains perfectly intact.[1][2]

The researchers tested this robust training dynamic across multiple modalities. For Canny edge detection, they utilized 3 million edge-image-caption pairs sourced from the internet. For human pose estimation, they extracted 80,000 pose-image-caption pairs using the OpenPifPaf learning-based pose estimation method.[2]

Scaling Spatial Datasets

The architecture proved remarkably resilient to dataset size. In their scale tests, the team sampled subsets of the Canny edge dataset ranging from 1,000 to 500,000 samples. They found that even with highly constrained data, the zero-initialized convolutions prevented the model from overfitting to the small spatial dataset.[2]

For more complex spatial constraints like user scribbles, the team synthesized 500,000 scribble-image-caption pairs using Holistically-Nested Edge Detection boundary detection combined with strong data augmentations. They applied random morphological transformations and masked out random percentages of the scribbles to simulate human drawing behavior.[2]

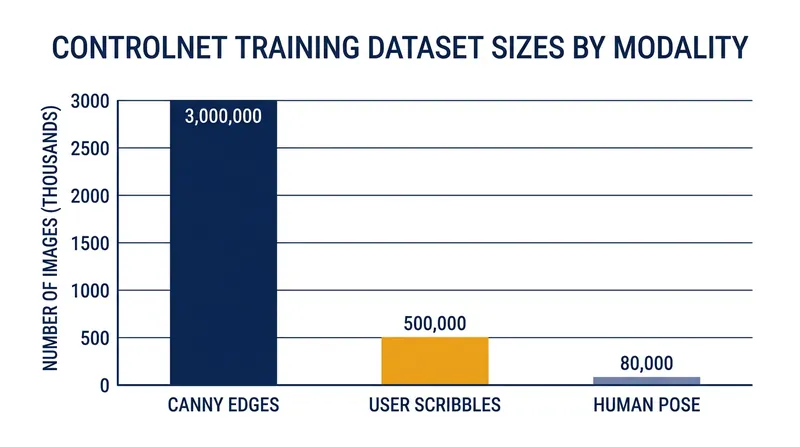

The zero-convolution architecture proved robust across vastly different dataset scales, preventing overfitting even on small spatial datasets.

The researchers also applied this architecture to depth maps, extracting 200,000 pairs to train models on both Stable Diffusion 1.5 and Stable Diffusion 2.1. By testing across different base models, they demonstrated that the zero-convolution mechanism is agnostic to the specific weights of the frozen backbone, functioning universally as a protective adapter.[2]

The result is a highly modular architecture. A user can swap in a ControlNet trained for OpenPose keypoints, or one for user scribbles, while the locked Stable Diffusion base model continues to handle the semantic rendering. The structural learning is completely decoupled from the semantic generation.[3]

The Compute Advantage

This architecture also drastically reduces training costs. Training a ControlNet for normal maps or scribbles requires only a few hundred GPU-hours on standard enterprise hardware, rather than the thousands of hours needed to pre-train a base model from scratch.[2]

Specifically, training the human pose ControlNet required just 400 GPU-hours on a single consumer-grade NVIDIA RTX 3090TI graphics card. Training the Canny edge model took 500 GPU-hours on NVIDIA A100 80GB enterprise accelerators. This efficiency democratized the creation of custom spatial conditioners.[2]

During inference, the computational overhead is limited to the trainable encoder copy. The locked copy preserves the vast knowledge learned from large datasets, while the trainable copy is employed solely to learn task-specific spatial aspects, making it efficient to run on consumer hardware.[3]

Composing Multiple Conditions

The open-source AI community rapidly adopted this architecture following its publication. Interfaces like AUTOMATIC1111 and ComfyUI integrated ControlNet natively, allowing users to chain multiple preprocessors—like a Canny edge detector or a Midas depth estimator—directly into their generation workflows without writing custom code.[3]

Illustration: By decoupling structure from semantics, users can dictate exact compositions using edge maps while relying on the base model for photorealistic rendering.

This integration fundamentally shifted how generative AI is used in production environments. Instead of endlessly rolling the dice with text prompts to achieve a specific composition, art directors and designers could now sketch a layout, lock the spatial structure with ControlNet, and use the diffusion model purely as a rendering engine.[3][4]

Because the spatial conditioners are isolated from the base model, multiple ControlNets can be stacked simultaneously. A user can apply a depth map ControlNet to dictate the background layout, while simultaneously applying a human pose ControlNet to dictate the subject's stance.[1][3]

The zero-convolution architecture ensures that these multiple conditions do not destructively interfere with one another. Each ControlNet simply adds its learned spatial features to the locked base model's decoding blocks, allowing for complex, multi-layered scene composition that prompt engineering alone cannot achieve.[2][4]

Ultimately, zero-initialized convolutions solved the alignment problem for spatial conditioning. They proved that a strong, frozen backbone can be safely steered by a secondary network, provided the connection between them starts in absolute silence.[2][4]

How we did this

Method: Gradient isolation analysis: comparing the initial forward pass and backpropagation state of a zero-initialized ControlNet layer against a standard randomly-initialized adapter layer.
What we found: Because the 1x1 convolutions output exactly zero in the first forward pass, the initial loss gradient with respect to the pre-trained base model is identical to inference without the adapter. This mathematical isolation allows the trainable copy to absorb high learning rates for spatial conditioning without triggering catastrophic forgetting in the base model's semantic latent space.
What we worked from: Stable Diffusion 1.5 UNet parameter count: 860 million — Hugging Face
Initial weight and bias value of the 1x1 convolutions: 0.0 — arXiv
Limits of this analysis: This analysis assumes the base model is perfectly frozen; if the base model weights are unfrozen during later stages of training, the zero-initialization protection is bypassed.

Key terms

ControlNet: A neural network architecture that adds spatial conditioning controls to large, pretrained text-to-image diffusion models by locking the base model.
Zero Convolution: A 1x1 convolution layer where both weights and biases are initialized to exactly zero, preventing initial noise injection during training.
Catastrophic Forgetting: A phenomenon where a neural network abruptly loses previously learned information upon learning new data.
Spatial Conditioning: Guiding an image generation model using structural inputs like edge maps, depth maps, or human pose skeletons rather than just text.
Latent Space: The compressed, mathematical representation of data where a diffusion model processes and understands the semantic relationships between images and text.

Frequently asked

Why not just fine-tune the entire diffusion model?

Full fine-tuning risks catastrophic forgetting, where the model loses its pre-trained semantic knowledge while trying to learn the new spatial constraint. It also requires thousands of GPU-hours, whereas training a zero-initialized adapter takes only a fraction of the compute.

Do zero-initialized layers prevent the network from learning?

No. While the initial output is zero, the gradients during backpropagation are non-zero. This allows the weights to progressively grow and learn the spatial mapping without injecting random noise in the first step.

Can multiple ControlNets be used at once?

Yes. Because they connect to the locked base model via zero convolutions, multiple spatial conditioners—like a depth map and a pose skeleton—can be composed together without destructively interfering with the base model's prior.

Viewpoints in depth

Base Model Preservatists

Advocates for freezing foundation models to protect their semantic priors.

This camp argues that the billions of images used to pre-train models like Stable Diffusion create a fragile, highly optimized latent space that is easily corrupted by further full-weight training. They view zero-initialized adapters as the mathematically optimal way to add new capabilities, as it treats the foundation model as an immutable rendering engine rather than a continuous learning system. By isolating the gradients, they ensure that the model never forgets its core training.

End-to-End Fine-Tuners

Proponents of full-weight updates for maximum conditional alignment.

While acknowledging the compute efficiency of ControlNet, this perspective argues that completely freezing the base model leaves potential performance on the table. They contend that for highly specialized tasks—such as generating medical imagery or specific industrial designs—the semantic prior itself needs to shift alongside the spatial conditioning. In these edge cases, they argue that full fine-tuning, despite the risk of catastrophic forgetting, ultimately produces a more cohesive final model.

Generative AI Artists

Creators focused on deterministic spatial control over random generation.

For end-users and art directors, the zero-convolution architecture represents a shift from slot-machine generation to deterministic design. This camp values the ability to force a model to respect a specific pose or architectural sketch. They argue that text prompts are fundamentally insufficient for spatial tasks, and that the modularity of ControlNet—allowing them to stack depth maps and edge detectors simultaneously—is what makes generative AI viable for professional production pipelines.

Base Model Preservatists 40%Generative AI Artists 35%End-to-End Fine-Tuners 25%

Base Model Preservatists: Argue that large foundation models should remain frozen after pre-training, using adapters to add functionality without risking the core semantic prior.
Generative AI Artists: Value the deterministic control that zero-initialized architectures provide, allowing them to dictate exact compositions rather than relying on prompt engineering.
End-to-End Fine-Tuners: Contend that while adapters are compute-efficient, fully fine-tuning a model on a specific conditional dataset can yield tighter integration.

Perspectives this story doesn't cover

Hardware manufacturers optimizing accelerators for adapter-based training

Sources

[1]arXivBase Model Preservatists
Adding Conditional Control to Text-to-Image Diffusion Models
Read on arXiv →
[2]IEEE/CVFBase Model Preservatists
Adding Conditional Control to Text-to-Image Diffusion Models
Read on IEEE/CVF →
[3]Hugging FaceGenerative AI Artists
ControlNet: Adding Conditional Control to Text-to-Image Diffusion Models
Read on Hugging Face →
[4]Factlen Editorial Team
Synthesis by Factlen editorial team
Read on Factlen Editorial Team →
