Intel Foundry Unveils Hyper-Large Chip Packaging Blueprint to Scale AI Training Systems

As artificial intelligence models grow exponentially in size and complexity, the physical hardware required to train them is hitting a fundamental wall. For decades, the semiconductor industry relied on shrinking transistors to pack more power into a single silicon die. But today's frontier AI workloads demand unprecedented compute density, pushing single chips to their maximum printable size—a manufacturing boundary known as the reticle limit.[1][2]

To bypass this physical constraint, the industry is shifting from monolithic chips to "chiplets"—specialized tiles of silicon stitched together to function as a single, massive brain. At the 2026 IEEE Electronic Components and Technology Conference (ECTC), Intel Foundry unveiled a comprehensive blueprint for the next generation of these systems, detailing "hyper-large form factor" (HLFF) packages that dwarf anything currently on the market.[1]

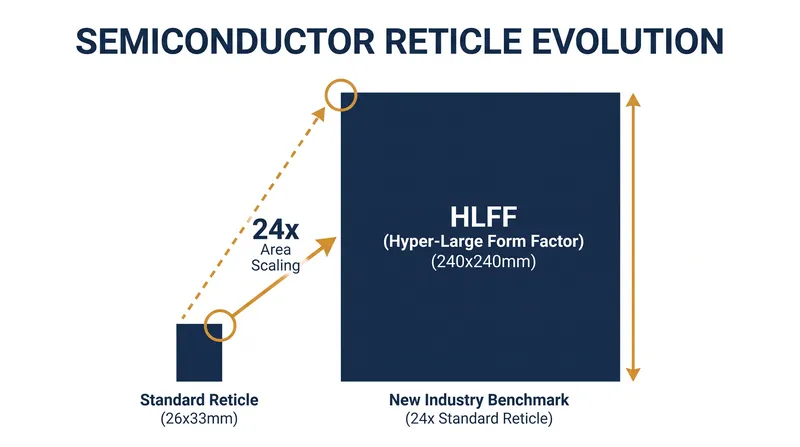

The newly detailed HLFF architecture aims to scale AI chip packages to a staggering 240 by 240 millimeters. To put that into perspective, this achieves a 24x reticle size—meaning the combined silicon area is 24 times larger than the maximum size a standard lithography machine can print in a single exposure.

"We've moved past the era of one big chip to a system of chips, almost like a silicon mosaic," explained Katie Prouty, manager of Intel's Fab 9 advanced packaging facility in Rio Rancho, New Mexico. This facility has become the epicenter of Intel's U.S.-based advanced packaging efforts, transforming from a legacy wafer fab into a critical hub for next-generation AI hardware.[2]

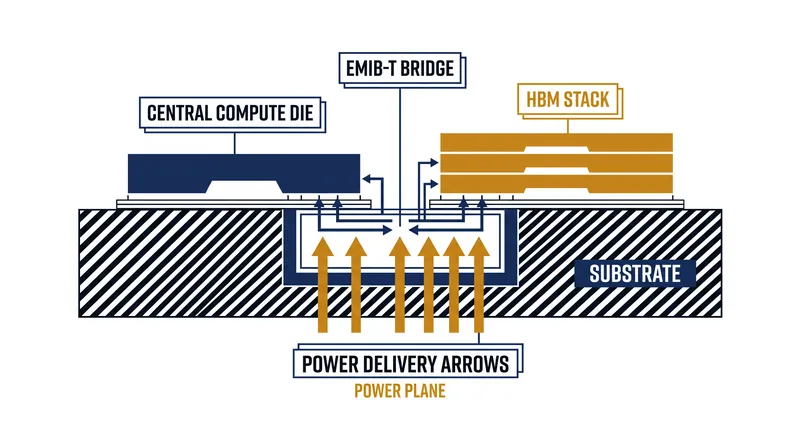

Building a package of this magnitude requires more than just placing chips side-by-side; they must communicate with zero bottleneck. Intel's solution relies heavily on its Embedded Multi-die Interconnect Bridge (EMIB) technology. Instead of using a massive, expensive silicon interposer as a foundational layer, EMIB embeds tiny, high-speed silicon bridges directly into the organic substrate only where connections are needed.[1][2]

The latest iteration, EMIB-T, takes this a step further by adding vertical channels through the bridge itself. This allows power to be delivered directly to the compute dies and high-bandwidth memory (HBM) from below, rather than routing it around the interconnects. This vertical power delivery is crucial for maintaining signal integrity and power efficiency in systems that integrate dozens of distinct silicon tiles.[1]

However, designing a massive package on a whiteboard is entirely different from manufacturing it reliably. As Intel's Advanced Design team pushed the architectural boundaries, the Assembly Technology Development team had to solve a critical manufacturing roadblock: encapsulation.

Encapsulation is the process of injecting a protective "underfill" material between the chiplets and the substrate to protect the microscopic solder bumps from thermal and mechanical stress. In standard packages, this liquid material only needs to flow about 22 millimeters. In hyper-large packages, it must travel up to 43 millimeters through a dense forest of connections.

"When you talk about 5x-10x reticle scales, the underfill has to reach much larger distances," industry analysts noted, explaining that the increased distance adds resistance, making it incredibly difficult to remove air pockets and voids. A single microscopic void in the underfill can cause the entire multi-thousand-dollar AI package to fail under the intense heat of operation.

Intel Foundry solved this encapsulation wall through three coordinated levers: material chemistry, dispensing strategy, and curing processes. Engineers developed a new underfill formulation with significantly lower viscosity, allowing it to flow further without sacrificing the mechanical rigidity required to protect the chips.

Combined with a redesigned dispensing strategy, Intel successfully validated void-free encapsulation on test vehicles exceeding 5x and 7x reticle sizes. One test chip housed 18 separate dies, including 12 HBM sites, achieving perfect encapsulation at flow distances of up to 40 millimeters.

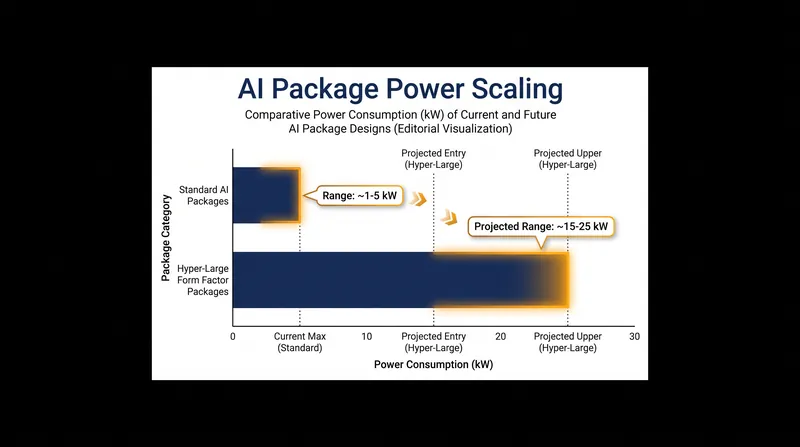

With the physical manufacturing constraints addressed, the next hurdle for these hyper-large packages is thermal management. Intel projects that fully realized HLFF packages will consume between 15 and 25 kilowatts (kW) of power each.

Dissipating that much heat from a concentrated area requires a radical departure from traditional data center cooling. Instead of a single massive cold plate, Intel's blueprint proposes a modular, cell-based cooling architecture featuring independently controlled thermal zones and embedded sensors, designed to scale beyond 5 kW of cooling per individual module.

The implications of this packaging blueprint extend far beyond Intel's own product lines. As an "Open System Foundry," Intel is offering these advanced packaging services to external customers, allowing AI accelerator designers to mix and match chiplets from different foundries—including TSMC or Samsung—onto Intel's massive substrates.[1]

This flexibility is reshaping the economics of AI hardware. According to market research firm The Futurum Group, packaging architecture is becoming a "central determinant of what next-generation AI accelerators can achieve." By shifting from monolithic designs to modular chiplets, companies can dramatically improve manufacturing yields and lower cost structures.

The ecosystem is already aligning around these new capabilities. Electronic Design Automation (EDA) giants like Cadence and Synopsys have certified their AI-driven design flows for Intel's latest nodes and advanced packaging technologies, giving chip architects a trusted path to design these massive systems.

Looking ahead, Intel Foundry is already researching the next bottlenecks. Engineers are developing glass core substrates to replace traditional organic materials, offering better power stability and lower warpage for massive packages. They are also pioneering co-packaged optics (CPO), which will move optical-to-electrical signal conversion directly onto the package to handle the immense bandwidth demands of future AI clusters.[1]

For now, the breakthrough in hyper-large encapsulation marks a critical milestone. By successfully scaling past the reticle limit, the semiconductor industry has secured the hardware runway necessary to train the next generation of frontier AI models, ensuring that physical manufacturing limits will not stall the pace of artificial intelligence research.
