How the Chain Rule Propagates Error Signals Backward to Update Neural Network Weights

A neural network learns by making a prediction, measuring how wrong it is, and sending that error backward through its layers to adjust every connection. It accomplishes this through backpropagation, an algorithm that is fundamentally the 17th-century calculus chain rule applied in reverse to compute exactly how much each individual weight contributed to the final mistake. [1][4] When a model generates an output, it is executing a massive composite mathematical function. To correct an error, the system must untangle that function to assign blame to specific parameters. By calculating the gradient of the loss function from the output back to the input, backpropagation provides the precise direction and magnitude required to update each weight. [5][1][4][5]

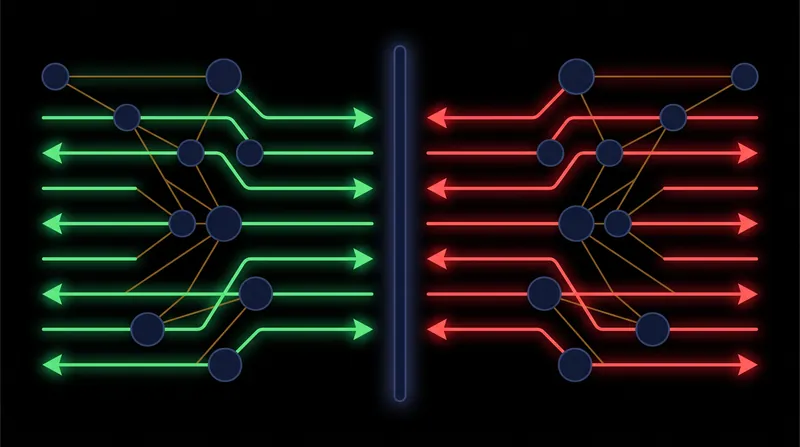

To understand how the error travels backward, it is necessary to map how data travels forward. A neural network is structured as a computational graph—a network of nodes where each node represents a mathematical operation. [2] During the forward pass, input data, such as the numerical pixel values of an image, enters the first layer of nodes. Each connection between nodes carries a specific weight, which multiplies the input value. The node then sums these weighted inputs, adds a bias term, and passes the result through an activation function. [5][2][5]

This activation function introduces non-linearity into the system, allowing the network to model complex, real-world data distributions rather than just drawing straight lines. [4] The output of one layer becomes the input for the next, cascading through the computational graph until the final layer produces a prediction. At this stage, the network's weights are entirely fixed. The forward pass is purely a calculation of the current state; it does not alter the network's internal structure, nor does it improve its accuracy. [1][1][4]

Once the prediction is generated, the system evaluates its accuracy using a loss function. This mathematical formula measures the distance between the network's output and the actual ground-truth answer provided in the training data. [4] For example, a quadratic cost function calculates the squared difference between the predicted and target values, condensing the network's entire performance on that specific input into a single scalar number. [5] This scalar loss represents the total error. The objective of training is to minimize this number, but doing so requires knowing precisely which of the network's millions of weights are responsible for the error. [4][4][5]

This is where the chain rule of calculus becomes the engine of artificial intelligence. Formulated by Gottfried Wilhelm Leibniz in 1676, the chain rule is a formula for calculating the derivative of composite functions—functions nested inside other functions. [3] Because a neural network is essentially a long series of nested equations, the chain rule allows the system to compute the derivative of the overall loss function with respect to any individual weight. [4][3][4]

In a simple, single-variable scenario, if a composite function is defined as f(g(x)), the chain rule states that the derivative is the derivative of the outer function multiplied by the derivative of the inner function. [3] However, neural networks require the multivariable chain rule. A single weight in an early layer affects the output of its specific neuron, which then feeds into dozens or hundreds of neurons in the next layer, each of which feeds into the next. [2] The multivariable chain rule sums the gradients across all these diverging paths to calculate the total impact of that single weight on the final loss. [5][2][3][5]

Backpropagation executes this multivariable chain rule in a specific, highly economical order known as reverse-mode automatic differentiation. [1] Instead of calculating how a change in one weight ripples forward to affect the output—which would require a separate computational pass for every single parameter—the algorithm starts at the single scalar loss and works backward. [5] It first computes the gradient of the loss with respect to the final layer's outputs. Then, it uses those values to calculate the gradients for the weights in that layer, and passes the error signal back to the previous hidden layer. [5][1][5]

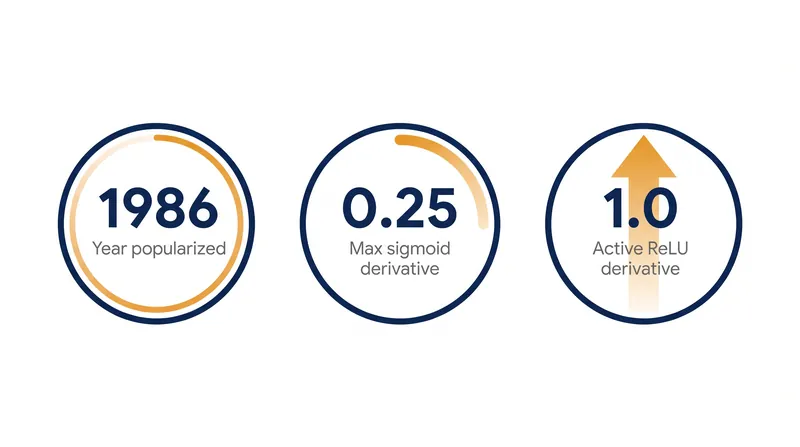

This backward flow of error signals is the defining characteristic of the algorithm, famously popularized in an October 1986 paper by David Rumelhart, Geoffrey Hinton, and Ronald Williams titled "Learning representations by back-propagating errors." [4] While the underlying calculus had existed for centuries, their paper demonstrated that applying it systematically to multi-layer networks allowed hidden layers to learn useful internal representations of data. [5] By moving right-to-left through the network's computational graph, backpropagation reuses intermediate derivatives, making the training of deep networks computationally feasible. [1][1][4][5]

When computing the gradient for a weight in an early layer, the algorithm does not need to recalculate the entire chain of derivatives up to the output. It simply multiplies the local derivative of that specific weight by the error signal that has already been calculated and passed down from the layers immediately above it. [2] This recursive property means that the error signal acts as a messenger, carrying the accumulated gradient information backward through the network's connections. [5][2][5]

A critical component of this local derivative calculation is the derivative of the activation function itself. During the backward pass, the error signal flowing into a neuron is multiplied by the derivative of its activation function evaluated at the exact value computed during the forward pass. [2] For a Rectified Linear Unit (ReLU) activation, this derivative is extremely simple: it is 1.0 if the forward input was positive, and 0.0 if it was negative. [4] This acts as a gate, allowing the error signal to pass through active neurons while completely blocking it from inactive ones. [1][1][2][4]

In modern deep learning frameworks, these individual node-level calculations are vectorized and executed as massive matrix multiplications. [1] The error signals for an entire layer are represented as a vector, and the weights connecting it to the previous layer are represented as a matrix. By multiplying the weight matrix by the error vector, the system computes the incoming error for the previous layer in a single operation. [5] This process relies heavily on the Hadamard product, an element-wise multiplication of vectors that aligns the error signals with the specific neurons that generated them. [5][1][5]

The computational efficiency of this reverse-mode approach is the mathematical bedrock of the generative AI boom. In a modern large language model with 100 billion parameters, forward-mode differentiation would require 100 billion separate forward passes to compute the full gradient for a single training example. [1] Backpropagation computes the gradient for all 100 billion parameters simultaneously in a single backward sweep. [5] The computational cost of this backward pass is roughly twice that of the forward pass, meaning the system can evaluate the error and calculate the necessary updates for every weight with remarkable speed. [2][1][2][5]

Once the backward pass delivers the full gradient—a massive tensor containing the partial derivative for every weight and bias—an optimization algorithm takes over. Gradient descent, or a more advanced variant like Adam, uses these derivatives to update the parameters. [1] The gradient points in the direction of the steepest increase in error, so the optimizer adjusts the weights in the exact opposite direction, scaled by a hyperparameter known as the learning rate. [4] This cycle of forward pass, loss calculation, backward pass, and weight update is repeated millions of times across vast datasets until the network converges. [5][1][4][5]

Despite its mathematical elegance, backpropagation introduces specific structural vulnerabilities to deep networks. Because the algorithm relies on the continuous multiplication of derivatives, networks using certain activation functions can suffer from the vanishing gradient problem. [5] The derivative of the classic sigmoid activation function has a maximum value of 0.25. When backpropagation multiplies a chain of these derivatives across ten or twenty layers, the error signal shrinks exponentially. By the time it reaches the earliest layers, the gradient approaches zero, effectively halting the learning process for those weights. [4][4][5]

Furthermore, the algorithm imposes a massive memory burden on the hardware. To compute the local derivatives during the backward pass, the system must store the intermediate activation values generated during the forward pass. [2] In a large language model processing thousands of tokens, this activation memory can easily exceed the capacity of a single GPU, requiring complex engineering solutions like gradient checkpointing—where intermediate values are discarded and recomputed on the fly—to prevent out-of-memory errors. [1][1][2]

While researchers continue to explore biologically plausible alternatives and forward-learning algorithms that do not require a global backward pass, backpropagation remains the undisputed foundation of the AI industry. [4] As Michael Nielsen notes in his foundational text on the subject, the algorithm does more than just train models; it provides "detailed insights into how changing the weights and biases changes the overall behaviour of the network." [5] By systematically applying a 300-year-old calculus rule to modern silicon, backpropagation turns the abstract goal of artificial intelligence into a solvable optimization problem. [1][5][1][4][5]
