TSMC Enters Volume Production of 2nm Process Node Ahead of Schedule, Accelerating AI Chip Roadmaps

Taiwan Semiconductor Manufacturing Company (TSMC) has officially commenced volume production of its highly anticipated 2-nanometer (N2) process node, achieving this critical manufacturing milestone a full quarter ahead of its original late-2026 target.[1][3]

The early arrival of N2 silicon represents a watershed moment for the global semiconductor industry, particularly for the rapidly expanding artificial intelligence sector, which relies entirely on leading-edge fabrication to sustain its growth.

For the past two years, AI hardware developers have been constrained by a 'power wall,' a physical limitation where the sheer energy required to run increasingly massive neural networks threatened to outpace the electrical capacities of modern data centers.

TSMC's 2nm process directly addresses this bottleneck by introducing a fundamentally new transistor architecture known as Gate-All-Around Field-Effect Transistors, or GAAFETs, replacing the older FinFET designs.

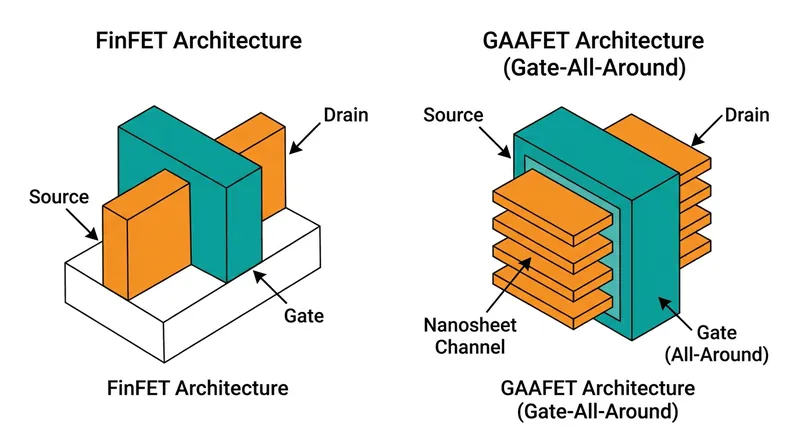

Unlike the previous FinFET designs that powered the last decade of smartphones and GPUs, GAAFETs surround the conducting channel with the gate on all four sides, rather than just three.[2]

This 360-degree control drastically reduces electrical leakage, a persistent problem at microscopic scales, allowing the transistor to switch on and off with unprecedented precision and minimal energy waste.[2]

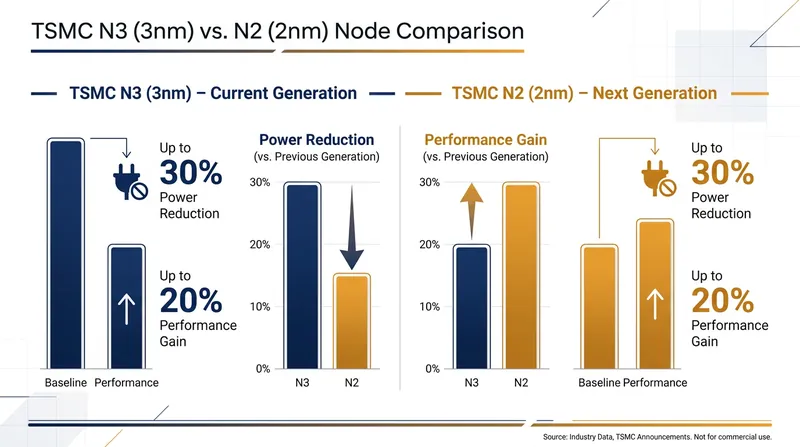

The practical result of this architectural shift is a promised 25 to 30 percent reduction in power consumption at the exact same speed compared to TSMC's current 3nm node, or alternatively, a 15 to 20 percent performance boost at the same power level.[1]

For AI accelerator designers like Nvidia and AMD, this thermal headroom is transformative, enabling them to pack billions more transistors onto a single die without melting the surrounding server infrastructure.

Industry analysts report that major TSMC clients have already begun accelerating their product roadmaps in response to the early N2 volume production, eager to capitalize on the efficiency gains.[1]

Apple, traditionally the first in line for TSMC's cutting-edge nodes, is expected to debut N2 silicon in its upcoming consumer devices, while AI-focused firms are aggressively booking fab capacity for next-generation data center GPUs.

The successful ramp-up of the N2 node also highlights TSMC's continued mastery of Extreme Ultraviolet (EUV) lithography, the immensely complex optical technology required to print patterns just a few atoms wide onto silicon wafers.[2]

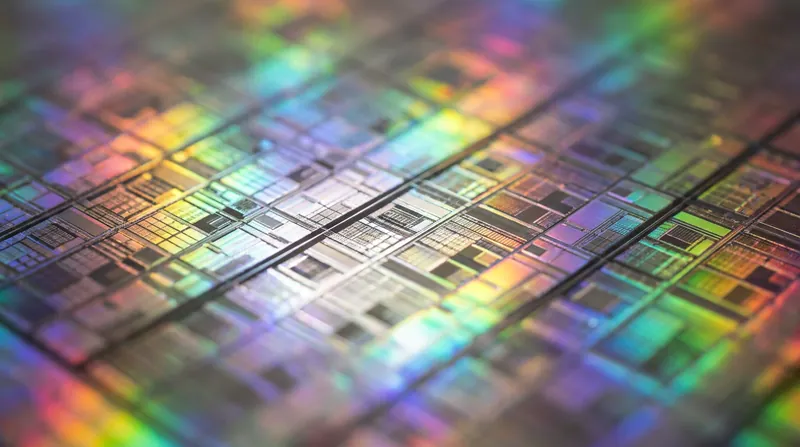

Reports from TSMC's Hsinchu and Kaohsiung fabrication plants indicate that early yield rates—the percentage of functional chips per wafer—have exceeded internal projections, a rarity for a node transition of this magnitude and complexity.

While the cost per wafer for N2 is estimated to be significantly higher than previous generations, the sheer density of compute it offers makes the economics highly favorable for hyperscale cloud providers who measure costs in performance-per-watt.[3]

Ultimately, the accelerated timeline for 2nm silicon ensures that the hardware foundation for the next leap in artificial intelligence—from advanced reasoning models to embodied robotics—is firmly in place, keeping the spirit of Moore's Law alive for another generation.
