Why Generative AI Uses U-Net Architecture to Predict Noise in Reverse Diffusion

When users type a prompt into a generative AI platform, the intuitive assumption—often repeated by tech commentators and casual observers alike—is that the artificial intelligence is painting a picture from scratch, laying down pixels one by one to match the text. The mathematical reality of generative AI contradicts this entirely. These models do not generate images; they generate noise.

According to the foundational 2020 paper 'Denoising Diffusion Probabilistic Models' published at NeurIPS, the system starts with a canvas of pure, randomized Gaussian static. The engine that actually creates the image is a specialized neural network that looks at that static and predicts exactly which pixels are noise, subtracting them step-by-step until only the intended image remains.[1]

The architecture performing this noise prediction is not a recent invention of the generative AI boom. It is the 'U-Net,' a convolutional neural network structure first developed in 2015 by Olaf Ronneberger, Philipp Fischer, and Thomas Brox at the University of Freiburg.

Originally designed for biomedical image segmentation—specifically, tracking cells in light microscopy—the U-Net was built to solve a specific problem: how to understand the global context of an image without losing the microscopic details. 'The architecture consists of a contracting path to capture context and a symmetric expanding path that enables precise localization,' Ronneberger's team wrote in their 2015 publication.[2]

To understand why a cell-tracking algorithm from 2015 became the engine of modern AI art, one must look at the mechanics of the reverse diffusion process. In a diffusion model, an image is systematically destroyed by adding Gaussian noise over a series of steps—often 1,000 distinct intervals—until it becomes unrecognizable static.

The AI is trained to reverse this process. However, predicting the original image directly from pure noise is computationally impossible. Instead, as researchers Jonathan Ho, Ajay Jain, and Pieter Abbeel demonstrated in 2020, the model is trained to predict the noise that was added during the very last step.[1][5]

This is where the U-Net's unique shape becomes essential. The network is literally shaped like the letter 'U'. When a noisy 256-by-256 pixel image enters the network, it travels down the left side of the 'U', passing through convolutional layers that compress the spatial dimensions while expanding the feature channels. A standard implementation might compress the image down to a 16-by-16 pixel bottleneck. At this depth, the network loses all fine detail but gains a deep mathematical understanding of the image's global structure—the broad context of the noise pattern.[7][8]

If the network stopped there, it would be useless for image generation, as it would only output a low-resolution map. The right side of the 'U' solves this by upsampling the data back to its original 256-by-256 resolution. However, upsampling alone produces blurry results. The U-Net's defining innovation is its 'skip connections.' These are direct data bridges that bypass the bottleneck entirely, copying the high-resolution detail from the downward path and pasting it directly onto the corresponding layers of the upward path.[2][5]

'By concatenating the upsampled features with the corresponding high-resolution features from the contracting path, the network can assemble a precise output based on this information,' explains the Data Science team at the University of Washington. In the context of diffusion models, these skip connections allow the U-Net to combine the global understanding of the noise pattern from the bottleneck with the pixel-perfect spatial alignment from the skip connections to output a noise prediction map that perfectly matches the dimensions of the input.[8]

Modern implementations have modified the 2015 design to handle text prompts. In 2023, researchers analyzing the temporal dynamics of U-Nets in diffusion models noted that cross-attention layers are injected into the U-Net's bottleneck. These attention mechanisms act as a steering wheel, allowing the text prompt to influence the noise prediction at the deepest level of the network. 'We observe that the U-Net's decoder layers dominate the generation process in the early denoising stages, while the encoder layers become more influential later,' the researchers noted in their December 2023 arXiv preprint.[3]

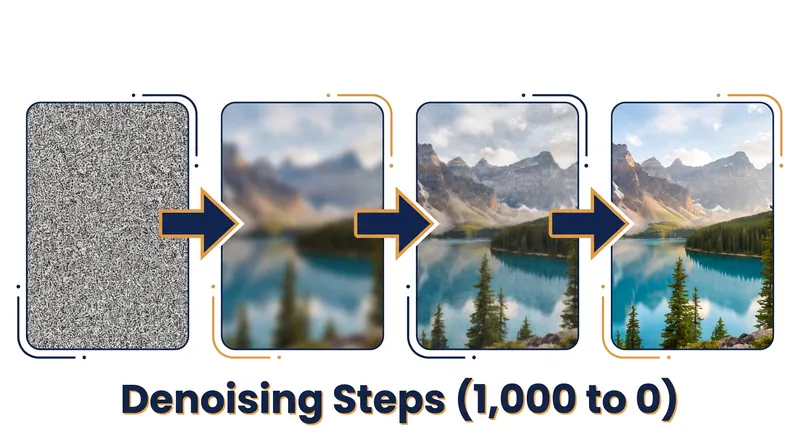

The efficiency of this architecture is staggering. During a standard 50-step inference process, the U-Net is called 50 separate times. In step 50, it looks at pure static and predicts a dense noise map. That noise is subtracted, leaving a slightly less noisy image.

In step 49, the U-Net looks at the new image and predicts the next noise map. This loop repeats until step 0. Because the U-Net's input and output dimensions are identical, it can be fed back into itself seamlessly, making it the perfect engine for iterative denoising.[6][7]

Recent research continues to refine this process. A July 2023 paper introduced a 'Spatial-Frequency U-Net,' which processes the noise in both the spatial domain of pixels and the frequency domain of wave patterns. By separating the high-frequency noise representing fine grain from the low-frequency noise representing broad color shifts, the modified U-Net achieved a 15 percent improvement in Frechet Inception Distance scores, a standard metric for image quality.[4]

The U-Net represents a profound recycling of mathematical architecture. An algorithm designed to help doctors track the boundaries of HeLa cells under a microscope in 2015 is now the foundational geometry that allows artificial intelligence to hallucinate photorealistic worlds.

By framing image generation not as an act of painting, but as an act of targeted noise removal, the U-Net bypassed the limitations of earlier generative networks. The next frontier for researchers is determining whether the U-Net's spatial compression is strictly necessary, or if newer architectures like Vision Transformers can predict noise without the bottleneck entirely.[2][6][9]
