How Processing-in-Memory Architectures Bypass the Von Neumann Bottleneck in AI Accelerators

The fundamental paradox of modern artificial intelligence hardware is that processors have never been faster, yet they spend most of their time waiting. In a traditional von Neumann architecture, the logic gates that perform calculations are physically separated from the dynamic random-access memory (DRAM) that stores the data. As large language models scale to hundreds of billions of parameters, the narrow bus connecting the processor to the memory has become a critical bottleneck.[5]

The energy economics of this divide are punishing. Moving a single byte of data from off-chip memory to a central processing unit (CPU) or graphics processing unit (GPU) consumes between 100 and 1,000 times more energy than performing a floating-point calculation with that same byte.

During the decoding phase of LLM inference, where the model generates text one token at a time, the workload is almost entirely memory-bound. The GPU finishes its vector-matrix multiplications in a fraction of a nanosecond and then idles, burning power while it waits for the next batch of weights to arrive across the interconnect.[1][5]

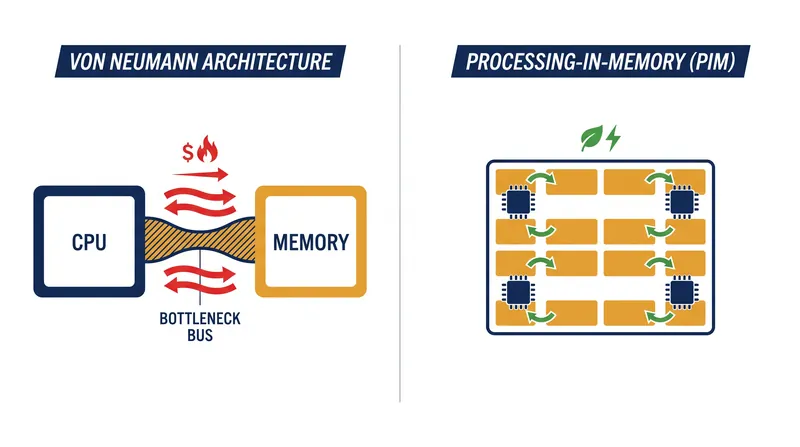

Processing-in-Memory (PIM) architectures attempt to bypass this limitation by inverting the traditional computing paradigm: rather than moving the data to the compute, they move the compute to the data. By embedding logic gates directly inside the memory chips, PIM systems eliminate the off-chip data transfer entirely. This approach exposes the massive internal bandwidth of the memory arrays, allowing computations to happen in parallel across thousands of memory banks simultaneously.[1][4]

The French startup UPMEM pioneered the first commercial general-purpose PIM, embedding 32-bit reduced instruction set computer (RISC) processors directly into standard DDR4 memory banks. While highly effective for database queries and integer-based workloads, the UPMEM architecture lacks the floating-point arithmetic units necessary to handle the heavy computational load of modern neural networks. To address the specific demands of AI, memory manufacturers have had to design specialized accelerators that integrate directly with high-bandwidth memory standards.[1]

Samsung demonstrated the industrial viability of this approach with its HBM-PIM architecture, known as Aquabolt-XL. By integrating programmable 16-bit floating-point (FP16) Single Instruction Multiple Data (SIMD) engines directly into the boundaries of High Bandwidth Memory (HBM2) banks, Samsung allows concurrent processing across multiple memory banks. A typical PIM-AI dual in-line memory module (DIMM) built on this concept can deliver 1.6 terabytes per second of aggregate internal bandwidth and up to 128 teraflops of compute capacity, scaling almost linearly with the memory size.[1][4]

SK Hynix has similarly targeted the LLM inference market with its Accelerator-in-Memory (AiM) technology. Their GDDR6-AiM chips are specifically designed to accelerate the vector-matrix multiplications that dominate transformer-based models. At the 2023 AI Hardware & Edge AI Summit, SK Hynix showcased the AiMX accelerator card, demonstrating a 13-billion parameter model running on a server equipped with the prototype.[3]

The performance gains reported by these memory-centric designs represent a structural shift in how AI hardware is evaluated. Eui-cheol Lim, vice president of the Solution Development division at SK Hynix, stated that "SK hynix's AiMX is a solution that delivers higher performance while consuming less power, and costing less than conventional GPUs."

The company reports that the AiMX system reduces data processing time by more than 10-fold compared to traditional GPU setups, while simultaneously consuming 80 percent less power. By executing the operations where the parameters reside, the system avoids the thermal and latency penalties of the external memory bus.[3]

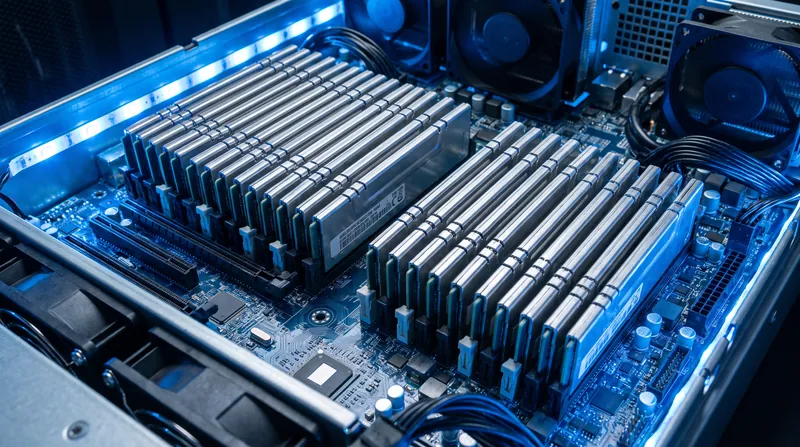

However, the transition to PIM is not merely a hardware swap; it requires a fundamental rewrite of the software ecosystem. Traditional compilers and software development kits (SDKs) are designed for a centralized processor managing a hierarchy of caches. Utilizing PIM requires explicit memory management, where developers must manually partition workloads and orchestrate data transfers between the host and the distributed memory-processing units.[1][2]

Researchers are actively developing new frameworks to abstract these complexities. A 2024 study on subarray-level parallelism proposed adaptive tiling strategies to handle the varying matrix sizes common in smaller language models, achieving a 3.9-fold speedup in token generation time. Until these software abstractions mature, the adoption of PIM will likely remain confined to highly specialized datacenter applications where the energy savings justify the engineering overhead.[2][5]

AI

As generative AI models continue to grow, the physical limits of data transport will increasingly dictate hardware design. The von Neumann bottleneck can no longer be brute-forced with wider external buses or larger processor caches. By shifting the thermal and power limits entirely to the logic gates embedded within the memory, PIM architectures decouple future parameter scaling from the constraints of the interconnect, establishing memory as the new engine of computation.[5]
