The SHA-1 Hash and Time-Step Math That Generates a Six-Digit One-Time Password

A six-digit authenticator code is the remainder of a 31-bit integer divided by one million, derived from a 160-bit cryptographic hash of the current time and a secret key. When a user opens an app like Google Authenticator or Authy, the software does not request a new code over the network; instead, it independently performs a mathematical operation defined in a 2011 standard called RFC 6238, ensuring its output exactly matches the server's expectation for that specific 30-second window.[4]

The mechanism, known as a Time-Based One-Time Password (TOTP), is often marketed by security vendors as an impenetrable cryptographic shield. In reality, it is a highly lossy compression function that prioritizes human readability over mathematical complexity. The system works precisely because it throws away the vast majority of its own cryptographic work, relying entirely on the premise that the starting ingredients—the secret seed and the clock—cannot be guessed.[1]

The process begins during account setup, when a server generates a random secret key, typically represented as a Base32 string and displayed as a QR code. When the user scans this code, the authenticator app stores the secret locally. From that moment on, the server and the device share the same starting material, allowing them to run identical calculations in parallel without ever communicating again.[3]

To generate a code, the algorithm needs a moving factor. In the older HMAC-Based One-Time Password (HOTP) standard, defined in 2005 by RFC 4226, this moving factor was a sequential counter that incremented with each login. TOTP replaces that counter with the current Unix time—the number of seconds elapsed since January 1, 1970.[1][4]

Because a code that changes every second would be impossible to type, the algorithm divides the current Unix time by a fixed time step, which defaults to 30 seconds. "The TOTP algorithm takes the current timestamp and a shared secret key to generate a new numeric code every 30 seconds," notes Descope's 2025 technical breakdown of the protocol. This division creates a stable integer that remains constant for the duration of the window, ensuring the user has time to read and enter the digits.[4]

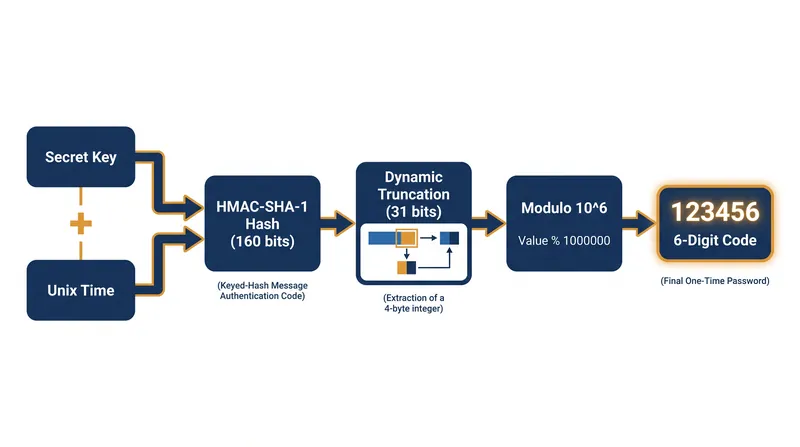

With the secret key and the time step integer in hand, the algorithm feeds both into a cryptographic hash function. The default function specified by the Internet Engineering Task Force (IETF) is HMAC-SHA-1. This operation scrambles the inputs together, producing a 160-bit output, which is equivalent to 20 bytes of data.[1][4]

A 160-bit hash is mathematically robust, but it is entirely useless for consumer authentication. Displayed in hexadecimal, it would be a 40-character string—far too long for a user to quickly type into a login prompt. To solve this, the algorithm performs an operation called dynamic truncation.[1]

Dynamic truncation extracts a small, unpredictable slice of the 160-bit hash. The algorithm looks at the very last byte of the 20-byte hash and reads its lower four bits. These four bits form a number between 0 and 15, which the algorithm uses as an offset index.[1][3]

Using that offset, the algorithm jumps to that specific byte in the hash and extracts exactly four consecutive bytes—32 bits of data. To avoid software bugs caused by different systems interpreting the first bit as a positive or negative sign, the algorithm deliberately masks out the most significant bit, leaving a clean 31-bit integer.[1]

At this stage, the algorithm has successfully reduced a 160-bit cryptographic hash down to a 31-bit number. This intermediate integer can be as large as 2.14 billion. However, a 10-digit number is still considered too cumbersome for rapid human data entry.

The final step is a simple modulo operation. The algorithm takes the 31-bit integer and divides it by 10 to the power of the desired code length. For a standard six-digit code, it divides the integer by 1,000,000 and keeps the remainder. If the remainder is 492,817, that becomes the code displayed on the screen. If the remainder is just 42, the app pads it with leading zeros to display 000042.[1][3]

This mathematical sequence reveals a stark reality about TOTP security: the algorithm deliberately discards 80.6 percent of the original SHA-1 hash—129 of the 160 bits—before the final modulo reduction. The six digits the user types are not cryptographically secure on their own; they are merely a temporary byproduct of a secure, hidden process.[1][5]

Because the final output is so constrained, the system is highly vulnerable to phishing. If an attacker intercepts the six-digit code and the user's password, they have a 30-second window to use those credentials on the real site. The math cannot detect who is entering the code, only that the code matches the expected output for that specific half-minute.

Despite the reliance on SHA-1—a hashing algorithm that the National Institute of Standards and Technology (NIST) formally deprecated for digital signatures due to collision vulnerabilities—TOTP remains secure against mathematical reverse-engineering. "The default HMAC-SHA-1 function could be replaced by HMAC-SHA-256 or HMAC-SHA-512," the IETF authors noted in RFC 6238, but the industry largely ignored the suggestion.[4]

Security firm Protectimus highlighted this inertia in a 2023 analysis, noting that while SHA-256 is objectively stronger, the truncation process renders the upgrade practically meaningless for TOTP. Because the algorithm throws away most of the hash anyway, the theoretical vulnerabilities of SHA-1 do not give an attacker a viable path to reverse-engineer the original Base32 secret from a six-digit remainder.[2]

The more pressing vulnerability is clock drift. The algorithm assumes the server and the smartphone agree on the exact Unix time. If a smartphone's internal clock drifts by just two minutes, it will generate codes that are four time-steps ahead of or behind the server.[2]

To prevent users from being locked out by minor synchronization issues, servers typically implement a look-ahead window. When a user submits a code, the server does not just calculate the hash for the current 30-second step; it calculates the hashes for the previous step and the next step as well. If the user's code matches any of those three results, the server accepts the login and quietly notes the time offset for future authentications.[3]

This mathematical simplicity is why TOTP defeated earlier, proprietary hardware tokens. By relying on standard Unix time and open-source HMAC-SHA-1 hashing, the protocol allowed any developer to build an authenticator app and any service to verify the codes without paying licensing fees. The math is entirely deterministic, requiring no network connection, no proprietary hardware, and no centralized authority.

As the industry slowly pivots toward passkeys and cryptographic hardware that resist phishing, the six-digit TOTP code remains the fallback standard. Its survival is a testament to the durability of RFC 6238—a protocol that accepted massive cryptographic data loss in exchange for a string of numbers short enough for a human to type before a 30-second timer runs out.[4][5]
