The Mechanics of Vehicle Architecture: Comparing Body-on-Frame, Unibody, and Space Frame on Safety, Cost, and Capability

Walk onto any dealership lot today, and you are immediately confronted by a hidden engineering tension that will dictate your insurance premiums, your safety, and your repair bills for the next decade. Modern vehicles are vastly safer in a high-speed collision than their predecessors, yet that exact safety engineering means a 15-mph fender bender in a supermarket parking lot can now result in a totaled vehicle. The culprit is not fragile sheet metal, but the fundamental architecture beneath it.

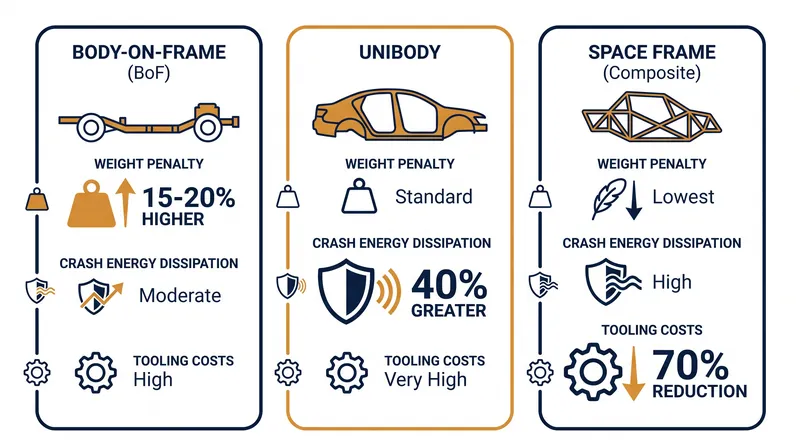

Resolving this tension requires looking past the leather seats and infotainment screens to the vehicle's skeleton. For a century, the automotive industry has relied on three primary structural philosophies: body-on-frame, unibody, and space frame. Each represents a distinct set of compromises between manufacturing cost, passenger safety, and long-term durability.

The oldest and most rugged of these is the body-on-frame design, often called a ladder frame. Imagine a heavy steel ladder laid flat, with the engine, suspension, and wheels bolted directly to it, and the passenger cabin dropped on top as a separate piece. This architecture defined the first century of the automobile and remains the standard for heavy-duty pickup trucks, large SUVs, and commercial transit vehicles.

For a fleet operator or a buyer who regularly tows a heavy boat, the ladder frame offers unmatched utility. Because the frame is a massive, independent steel structure, it resists the twisting forces of heavy payloads. Furthermore, in a minor collision, the separate body panels can often be replaced without compromising the underlying structural integrity, keeping repair costs manageable.

However, that ruggedness comes with severe penalties. Frame bodies carry a significant weight penalty—often 15 to 20 percent higher mass than an equivalent unibody design. This extra weight destroys fuel efficiency and reduces the range of electric vehicles. More critically, ladder frames are inherently rigid from bumper to bumper, meaning they transfer the violent kinetic energy of a crash directly into the passenger cabin rather than absorbing it.[1]

Enter the unibody, or monocoque chassis, which dominates modern driveways. In a unibody design, there is no separate frame. Instead, the floor pan, roof, and pillars are stamped and welded together to form a single, unified structural shell. The vehicle's skin and skeleton are one and the same.[5]

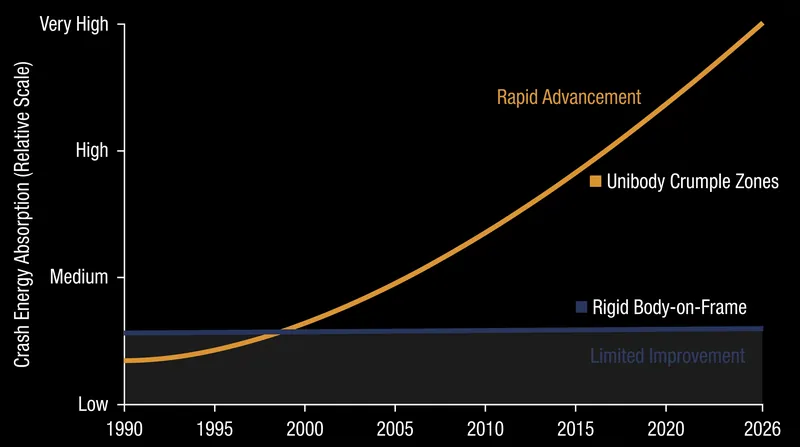

The unibody revolutionized automotive safety. By engineering specific sections of the shell to crush in a controlled manner—known as crumple zones—unibody vehicles act like giant shock absorbers during a collision. Crash analysis of car body structures demonstrates that unibody designs dissipate kinetic energy far more effectively than rigid ladder frames, dramatically reducing the forces exerted on occupants.[2]

For the average commuter, this means walking away from a highway crash that would have been fatal in a body-on-frame vehicle. But this safety comes at a steep financial cost. Because the entire vehicle is a single structural unit, a moderate impact that bends a rear quarter panel can permanently tweak the entire chassis. What looks like minor cosmetic damage often compromises the vehicle's structural integrity, leading insurance companies to declare it a total loss.

This dynamic is driving up insurance premiums nationwide. Buyers are purchasing incredibly safe vehicles, but they are essentially buying single-use safety structures. Once the crumple zone does its job, the vehicle is often financially unviable to repair.

The third architecture, the space frame, offers a glimpse into the future of high-performance and electric vehicles. Unlike a unibody formed from stamped steel sheets, a space frame is constructed from a network of interlocking tubes or extruded profiles—often aluminum or carbon fiber—covered by non-structural body panels.

Space frames offer the holy grail of automotive engineering: extreme torsional rigidity combined with ultra-lightweight construction. Predicting the crashworthiness of these structures reveals that when built with advanced lightweight materials, space frames can match or exceed unibody safety metrics while shedding hundreds of pounds.[4]

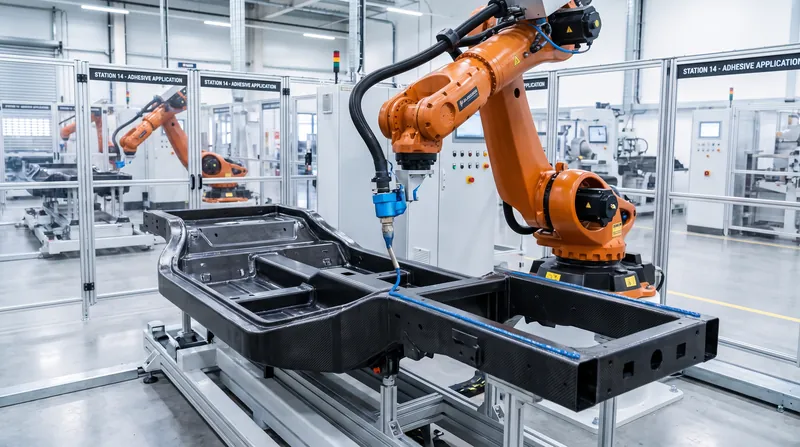

The barrier to space frame adoption has always been manufacturing complexity. Welding complex aluminum nodes or curing carbon fiber is vastly more expensive than stamping steel. However, new joining techniques for thermoplastic materials are changing the math. By using advanced adhesives and composite bonding, engineers are developing modular space frames that can be assembled quickly and cheaply.[3]

This modularity is the key to solving the repairability crisis. If a thermoplastic space frame vehicle is involved in a crash, the damaged composite nodes can theoretically be unbolted and replaced, rather than scrapping the entire vehicle. It combines the crash energy absorption of a unibody with the modular repairability of a classic ladder frame.[6]

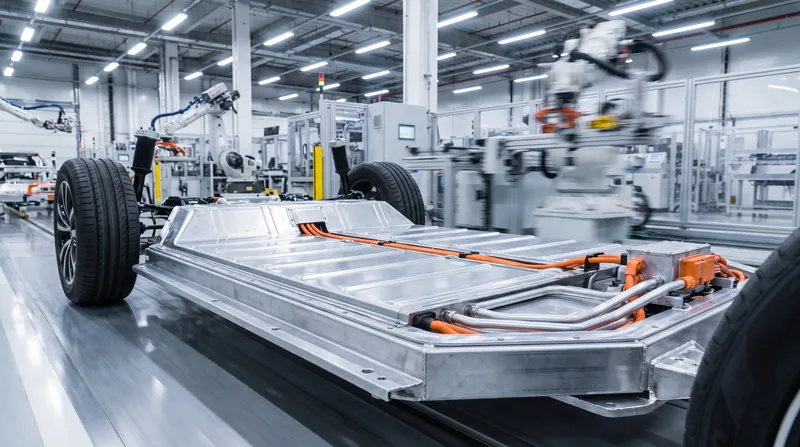

The shift toward electric vehicles is accelerating this architectural evolution. Heavy battery packs require robust structures to protect them from punctures during a crash, while simultaneously demanding lightweight chassis designs to maximize driving range.

Some automakers are attempting to adapt traditional ladder frames for electric trucks, but the weight penalties are severe. Others are integrating the battery pack directly into the unibody structure, making the battery a stressed member of the chassis. This improves rigidity but makes battery replacement nearly impossible.[1]

Ultimately, the vehicle you choose dictates the hidden costs of ownership. A unibody crossover offers superior daily safety and fuel economy, but carries the risk of expensive collision repairs. A body-on-frame SUV provides towing supremacy and cheap minor repairs, but sacrifices ride quality and crash energy absorption. As advanced joining methods and composite space frames move from supercars to mass-market EVs, the industry is finally inching toward a design that doesn't force buyers to choose between surviving a crash and affording the repair bill.
