The Mechanics of the US Patent System: Comparing Utility, Design, and Plant Patents for Scope and Duration

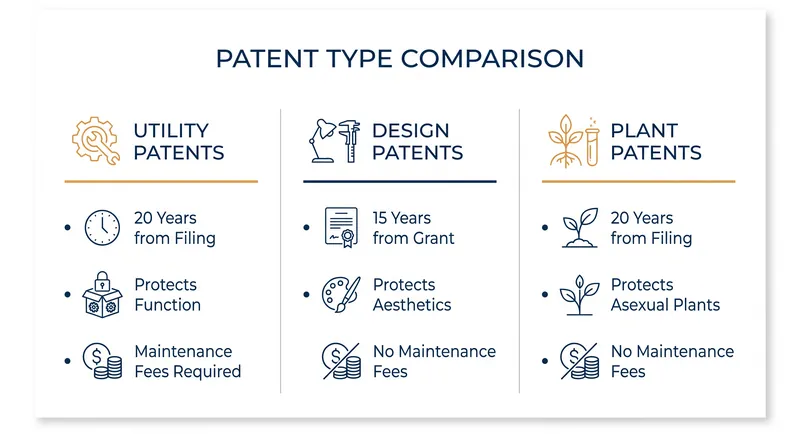

An inventor holding a newly minted US patent has exactly 20 years from the date they filed their application to exclude others from making, using, or selling their creation—provided they secured a utility patent. If they secured a design patent, that clock shifts to 15 years from the date of grant, with no maintenance fees required. The United States Patent and Trademark Office (USPTO) divides intellectual property into three distinct lanes: utility, design, and plant patents. Choosing the right lane dictates what is protected, how long the protection lasts, and how much it costs to maintain.[1][2][3]

Utility patents are the heavy lifters of the intellectual property world, accounting for roughly 90% of all patents issued by the USPTO. They protect the way an article is used and works. If you invent a new type of folding mechanism for a smartphone, a more efficient electric motor, or a novel chemical compound, you need a utility patent. The protection is broad, covering the functional mechanics of the invention regardless of how it looks on the outside.[1][4][5]

However, that broad functional protection comes with the highest barrier to entry and the steepest ongoing costs. A utility patent lasts for 20 years from the earliest filing date of the application. To keep it alive for that full term, the patent holder must pay escalating maintenance fees at 3.5, 7.5, and 11.5 years after the grant date. Missing a payment means the patent expires early, instantly pushing the invention into the public domain.[1][3]

Design patents serve a completely different master: aesthetics. While a utility patent protects how a product works, a design patent protects how it looks. This covers the visual ornamental characteristics embodied in, or applied to, an article of manufacture. The shape of a Coca-Cola bottle, the specific curvature of a car fender, or the layout of a graphical user interface are all candidates for design patent protection.[2][6][7]

The strategic advantage of a design patent lies in its cost structure and timeline. Design patents last for 15 years from the date they are granted, not the date they are filed. More importantly, once a design patent is granted, the USPTO requires zero maintenance fees. The upfront legal costs are also typically a fraction of those required for a utility patent, because the application relies almost entirely on detailed drawings rather than pages of complex technical claims.[2][5][7]

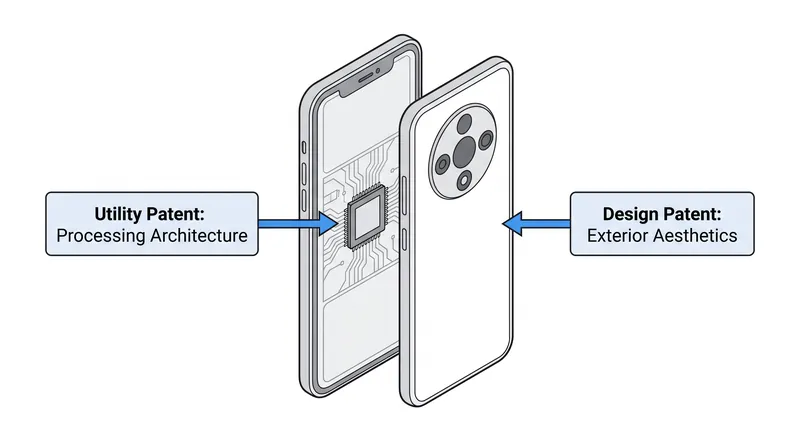

The limitation of a design patent is its narrow scope. If a competitor creates a product that functions identically to yours but looks substantially different, your design patent offers no protection. This is why companies with high-value consumer products often file for both. A smartphone manufacturer will secure a utility patent for the internal processing architecture and a separate design patent for the exterior bezel and camera housing. This dual-track strategy creates a layered intellectual property shield.[4][6]

The third and most niche category is the plant patent. This protection is granted to anyone who has invented or discovered and asexually reproduced any distinct and new variety of plant. Asexual reproduction—meaning the plant is reproduced by means other than seeds, such as cutting or grafting—is the critical statutory requirement. This ensures that the patent holder can exactly replicate the plant, proving it is a stable, distinct variety rather than a genetic fluke.[3][5]

Plant patents share the 20-year lifespan of utility patents, measured from the date of filing. They are heavily utilized by the agricultural and horticultural industries to protect new varieties of apple trees, disease-resistant grapevines, or novel colors of roses. Like design patents, plant patents do not require periodic maintenance fees to remain in force, making them highly cost-effective over their two-decade lifespan.[1][3][6]

The application process for all three types requires navigating the concept of prior art. The USPTO will only grant a patent if the invention is novel and non-obvious. If the invention has been described in a printed publication, in public use, or on sale anywhere in the world before the application date, the patent will be denied. This makes pre-filing confidentiality paramount for any inventor looking to secure their rights.[1][4]

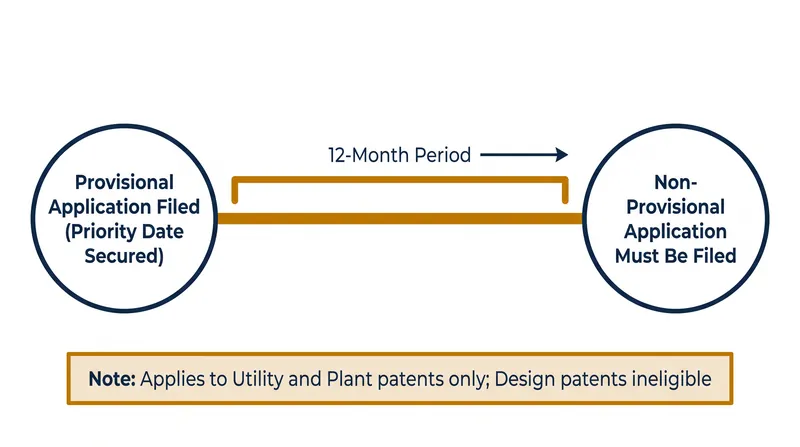

Provisional applications offer a strategic stepping stone, but only for utility and plant patents. A provisional application acts as a low-cost placeholder, securing an early filing date without requiring formal patent claims or an oath. The inventor then has exactly 12 months to file a formal non-provisional application, or the provisional status expires. Design patents, notably, cannot claim priority to a provisional application; inventors must file a formal design application from day one.[3][5][7]

Enforcement remains the ultimate test of any patent. The USPTO grants the right to exclude others, but it does not police the market. If a competitor infringes on a utility, design, or plant patent, the patent holder must fund the litigation to stop them. Because utility patents cover broad functional concepts, they are often more expensive to litigate and defend against invalidation challenges than the highly specific, visually bounded claims of a design patent.[1][4][7]

Ultimately, the choice between utility, design, and plant patents is a calculation of commercial value versus administrative burden. Utility patents offer the strongest market monopoly but demand high upfront drafting costs and a 20-year commitment to maintenance fees. Design patents offer a cheaper, maintenance-free route to protect brand aesthetics, while plant patents secure the biological innovations that drive modern agriculture.[8]
