The Mathematics of Silicon: How the Poisson Yield Model Translates Defect Density into Working Chips

Industry marketing often suggests that a silicon wafer with a low defect density guarantees a near-perfect harvest of working processors. The reality on the fabrication floor is far less forgiving, as the margin for error is virtually nonexistent.

A single microscopic particle, if it lands in a critical area, renders an entire chip useless. The relationship between the number of flaws on a wafer and the number of functional chips it produces is not a straight line, but an exponential decay governed by a statistical formula known as the Poisson yield model.[1][2]

The Poisson model serves as the foundational equation foundries use to predict die yield. It states that the probability of a chip working—the yield—is equal to the mathematical constant e raised to the negative power of the chip's area multiplied by the defect density. In simpler terms, as either the size of the chip or the number of defects per square centimeter increases, the percentage of functional chips drops exponentially. This equation forms the baseline for all semiconductor manufacturing economics.[2][4]

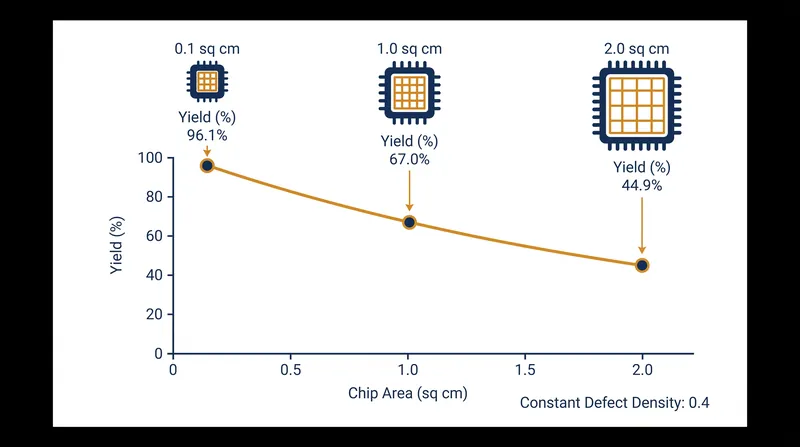

This mathematical relationship explains why manufacturing large processors is exponentially more difficult than making small ones. If a fabrication process averages 0.4 defects per square centimeter, a tiny 0.1-square-centimeter mobile chip has a 96.1% chance of surviving intact. However, a massive 2.0-square-centimeter AI accelerator built on that exact same wafer has only a 44.9% chance of working.

A standard 300-millimeter silicon wafer contains roughly 70,685 square millimeters of usable area. If a foundry prints 100-square-millimeter chips (1.0 square centimeter), a defect density of 0.4 yields approximately 67.0% functional dies, meaning roughly 473 out of 706 chips will work.[2][4]

Foundries measure defect density meticulously because it dictates the economics of a new process node. In September 2024, industry analysts noted that Intel's 18A process had achieved a defect density below 0.40 defects per square centimeter, a threshold that makes high-volume manufacturing economically viable.

As Vik's Newsletter reports, "Poisson's yield model usually works well for the die sizes are small compared to the wafer diameter and when the defects are quite uniformly distributed along the wafer." Leading fabs generally target a defect density of 0.1 defects per square centimeter before moving a node into full production, ensuring that over 90% of standard-sized chips are functional.[3]

The Poisson model carries a significant limitation: it assumes that defects are sprayed randomly and uniformly across the entire wafer. In actual semiconductor manufacturing, defects tend to cluster. A scratch, a droplet of contaminant, or a lithography error often ruins a specific neighborhood of chips while leaving the rest of the wafer pristine. Because the model ignores this physical reality, it treats every defect as an independent event that will strike a unique chip, which skews the probability curve.[1][2]

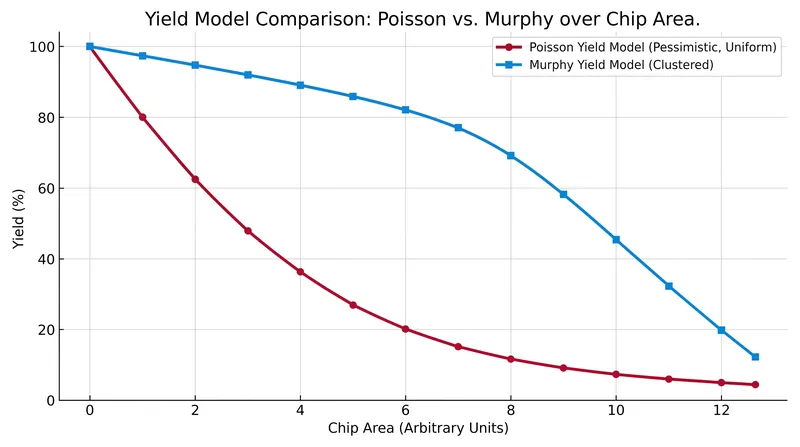

Because of this clustering effect, the Poisson model is widely considered pessimistic for large chips. If defects cluster together, they strike the same chips multiple times, effectively sparing other chips that the Poisson model assumes would be hit. To account for this, the industry developed alternative equations, such as the Murphy, Seeds, and Negative Binomial models, which adjust the math to reflect how defects actually group together on the silicon. These mixed-distribution models provide a more accurate, and often higher, yield prediction for massive processors.[2][5]

Despite its pessimism, the Poisson model remains the baseline for the industry. It provides a worst-case scenario that helps foundries set baseline expectations for new architectures. When a company calculates that a new chip design is too large to yield profitably under the Poisson model, they often pivot to a chiplet architecture. By breaking the large processor into several smaller chips that are manufactured separately and stitched together later, architects mathematically sidestep the exponential penalty of large die sizes.[3]

Predicting yield is fundamentally an exercise in managing uncertainty. By translating microscopic flaws into macroeconomic forecasts, statistical models allow semiconductor manufacturers to price their chips, plan their fab capacity, and determine when a new manufacturing node is truly ready for the market. The math dictates the architecture: as long as the Poisson penalty exists, the industry will continue to favor smaller, modular chiplets over monolithic silicon, ensuring that the theoretical models align with the physical realities of the cleanroom.[1][3]
