How Hemodialysis Uses Countercurrent Flow and a Semipermeable Membrane to Clear Uremic Toxins

In 1943, in a small hospital in the Nazi-occupied Netherlands, physician Willem Kolff watched blood flow through 20 meters of sausage casing wrapped around a wooden drum, submerged in a bath of saline. As the drum rotated, the microscopic pores in the cellophane casing allowed lethal urea to seep out of the blood and into the saltwater, while keeping the larger red blood cells safely inside. That crude apparatus—the world’s first artificial kidney—proved a fundamental principle of physics could save a human life. Today, the modern hemodialysis machine refines that exact principle, using millions of hollow synthetic fibers and a fluid dynamic trick called countercurrent flow to clear uremic toxins from the blood of millions of patients worldwide.[4]

When the kidneys fail, the body loses its primary filtration system, leading to a rapid accumulation of metabolic waste products known as uremic toxins. These solutes—ranging from small water-soluble compounds like urea and creatinine to larger middle molecules—drive systemic inflammation, oxidative stress, and cardiovascular damage. To remove them, hemodialysis relies on a dialyzer, a plastic cylinder about a foot long containing thousands of hollow capillary tubes. These tubes act as a semipermeable membrane, a physical barrier with microscopic pores that dictate exactly what can and cannot pass between the blood and the surrounding cleansing fluid, called dialysate.[1][4][5]

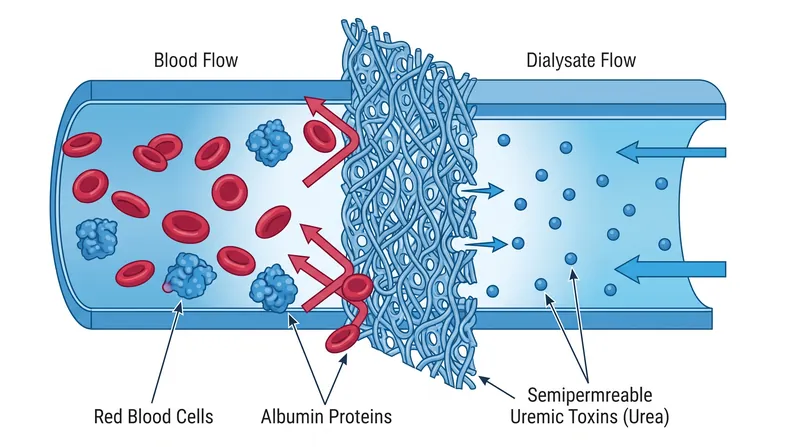

The physics of this clearance rely entirely on diffusion—the natural movement of particles from an area of high concentration to an area of low concentration. As uremic blood enters the dialyzer, it is packed with waste products, while the fresh dialysate on the other side of the membrane contains none. Driven by this steep concentration gradient, the toxins are pulled through the pores of the semipermeable membrane and into the dialysate. Meanwhile, essential components like red blood cells, white blood cells, and large plasma proteins are physically too large to fit through the pores, ensuring they remain safely in the bloodstream.[2]

But diffusion has a natural limitation: equilibrium. If blood and dialysate were to flow through the dialyzer in the same direction—a setup known as concurrent flow—the rapid transfer of toxins would quickly equalize the concentration on both sides of the membrane. Once the dialysate becomes as saturated with waste as the blood, diffusion stops, leaving a significant portion of the blood uncleared. To solve this, modern dialyzers employ countercurrent flow geometry, a mechanism that fundamentally alters the efficiency of the treatment.

In a countercurrent system, blood is pumped down through the hollow fibers while the dialysate is pumped upward, in the exact opposite direction, through the space surrounding the fibers. This means that as the blood travels through the dialyzer and loses its toxins, it continually encounters fresher, cleaner dialysate. The concentration gradient is never allowed to reach equilibrium. By the time the blood reaches the end of the dialyzer, where its toxin levels are at their lowest, it is exposed to the absolute freshest dialysate, ensuring that the physical pull of diffusion remains strong across the entire length of the membrane.[2]

The efficiency gains of this opposite-flow architecture are substantial, allowing a standard hemodialysis session to clear the necessary volume of toxins in three to four hours, rather than requiring patients to remain connected to the machine for entire days. The dialysate itself is carefully calibrated, containing specific concentrations of electrolytes like sodium, calcium, and bicarbonate to ensure that while toxins are pulled out, essential ions are either retained or actively replenished in the blood to correct metabolic acidosis.[1][2]

However, the elegant physics of the semipermeable membrane and countercurrent flow face a severe biological bottleneck when it comes to protein-bound uremic toxins (PBUTs). Compounds like indoxyl sulfate and p-cresyl sulfate are highly toxic, contributing heavily to the endothelial dysfunction and cardiovascular disease that drive mortality in dialysis patients. But unlike free-floating urea, up to 90 percent of the mass of these toxins circulates tightly bound to albumin, the most abundant protein in human blood plasma.[3][5][6]

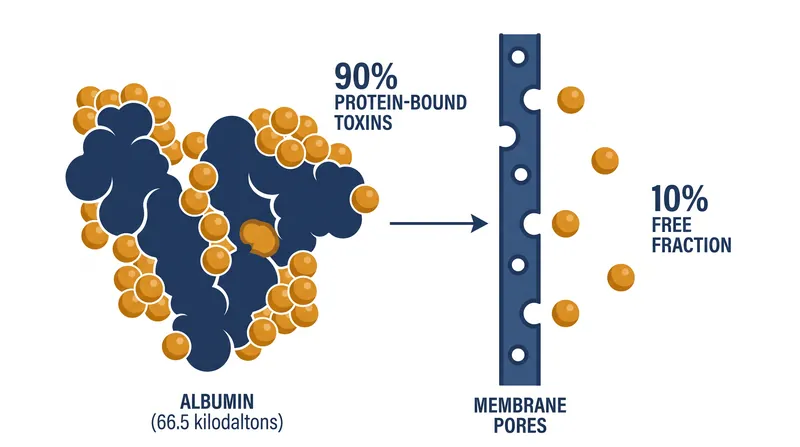

Because albumin is a massive molecule—weighing roughly 66.5 kilodaltons—it is far too large to pass through the pores of a standard semipermeable membrane. Consequently, any toxin bound to it is also trapped in the bloodstream. The countercurrent flow can only exert its diffusive pull on the tiny 10 percent free fraction of the toxin that is not bound to a protein. Even with a perfectly maintained concentration gradient, the physical geometry of the dialyzer cannot overcome the chemical affinity between the toxin and the albumin, leaving these dangerous compounds largely uncleared by conventional hemodialysis.[3][5]

To address this limitation, nephrology researchers are actively developing advanced clearance strategies. Hemodiafiltration adds a second physical mechanism called convection. By using hydrostatic pressure, it forces water across the membrane, dragging larger middle molecules along with it in a process known as solvent drag. While convection significantly improves the clearance of mid-sized toxins compared to diffusion alone, it still struggles to dislodge the tightly bound PBUTs from their albumin carriers.[1][5]

Future interventions may involve chemical displacers—substances infused into the blood to temporarily break the bond between the toxin and the albumin, artificially increasing the free fraction just before the blood enters the dialyzer. Other experimental approaches include mixed-matrix membranes embedded with sorbents that actively adsorb the toxins. Until those technologies mature and reach the clinic, the countercurrent dialyzer remains the definitive lifeline for end-stage renal disease, a triumph of fluid dynamics that turns a simple concentration gradient into a substitute for a human organ.[3][6][7]
