The R=1/U Formula: How Thermal Resistance and Transmittance Dictate Building Envelope Energy Loss

Under the U.S. Department of Energy’s 10 CFR 460.102 building thermal envelope requirements, a manufactured home built in Climate Zone 3 must feature ceiling insulation with a minimum R-value of 38, while its windows must maintain a maximum U-factor of 0.32. That regulatory standard dictates the materials builders must purchase, but it relies on two entirely different mathematical languages to describe the exact same physical process: the movement of heat through a solid barrier.[3]

The distinction between R-value and U-factor is not a matter of preference, but of physics and geometry. R-value measures thermal resistance—how effectively a specific material stops heat from passing through it. U-factor, or thermal transmittance, measures the rate at which heat transfers through an entire assembly, including the frame, the glass, and the air gaps.[1][2]

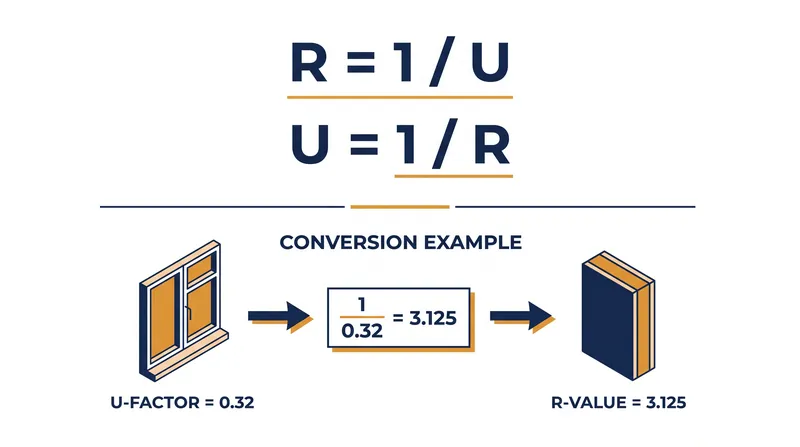

The relationship between the two is a direct mathematical inverse, defined by the formula R = 1/U, or conversely, U = 1/R. If a homeowner purchases a window with a U-factor of 0.25, dividing one by 0.25 reveals that the window assembly provides an R-value of exactly 4.[7]

The National Insulation Association defines the baseline metric clearly in its 2024 technical guidance. "R-value is a measure of thermal resistance," the organization states, noting that "the higher the R-value, the greater the insulating effectiveness." Because R-values are additive, a builder can stack an R-13 fiberglass batt inside a wall cavity with an R-5 continuous exterior foam board to achieve a total wall cavity resistance of R-18.[1]

U-values operate under a different set of rules. Writing for ArchDaily in April 2024, architecture researchers emphasize that the U-value is "the foundation of energy-efficient envelopes," measuring the heat transfer in watts per square meter Kelvin (W/m²K). Because it measures a rate of loss rather than a capacity for resistance, a lower U-value indicates superior performance.[5]

This creates a persistent point of friction in construction documents. The Utah Energy Code guidelines published in September 2020 highlight the necessity for "consistency on all construction documents" when dealing with these thermal factors, particularly because fenestration—windows and doors—is almost exclusively rated in U-factors, while opaque walls and ceilings are rated in R-values.[4]

The reason for this split lies in the complexity of the products. A window is not a uniform slab of material. It contains multiple panes of glass, argon gas fills, aluminum or vinyl framing, and rubber spacers. Assigning a single R-value to a window would misrepresent how heat moves through the highly conductive frame compared to the insulated glass.[2][6]

The U-factor accounts for the entire assembly. When the Department of Energy mandates a U-factor of 0.32 for a Climate Zone 3 window, that figure represents the area-weighted average of heat loss across the glass, the edge-of-glass, and the frame combined.[3]

The NBS, in its 2015 technical breakdown, explains that calculating a U-value requires understanding the thermal resistance of each individual component layer, plus the internal and external surface resistances. "A U-value is a measure of heat loss," the NBS notes, and calculating it accurately is essential for determining a building's overall carbon footprint.[2]

High-performance building standards, such as those used in Passive House design, rely heavily on this conversion. Emu Passive’s 2016 engineering brief on thermal transmittance notes that while North American consumers are trained to look for high R-values, the global scientific standard defaults to U-values to capture the full picture of energy loss.[6]

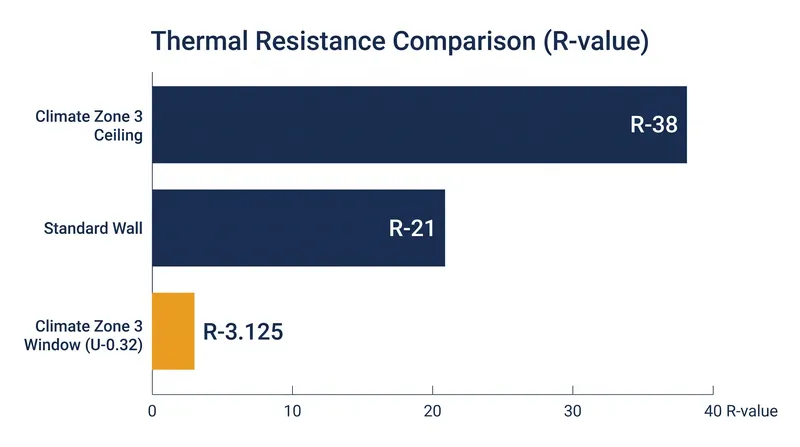

Converting between the two metrics exposes the stark reality of building envelope performance. Using the R = 1/U formula, that regulatory U-0.32 window translates to an R-value of just 3.125.[3][7]

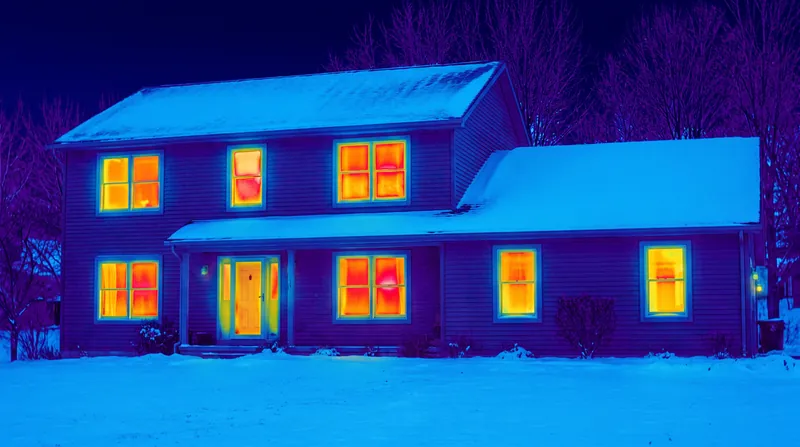

Placed next to an R-38 ceiling or an R-21 wall, the window is mathematically revealed as a massive thermal hole in the building envelope. The wall resists heat transfer more than six times as effectively as the window assembly installed within it.[3][7]

This mathematical reality dictates how energy efficiency budgets should be spent. Upgrading wall insulation from R-21 to R-30 yields a marginal reduction in overall heat loss, but upgrading a window from a U-factor of 0.50 (R-2) to 0.25 (R-4) cuts the heat loss through that specific opening in half.[7]

However, thermal resistance and transmittance only tell part of the story. Neither metric accounts for air leakage, which can account for up to 40% of a home's heating and cooling costs, nor do they measure the Solar Heat Gain Coefficient (SHGC), which tracks how much solar radiation passes through the glass.[4]

The R=1/U formula provides a level playing field for evaluating materials, but it remains a static measurement of conductive heat transfer. As building codes tighten toward net-zero targets in the coming decade, mastering the conversion between resistance and transmittance is the first mandatory step for anyone specifying the envelope of a modern structure.[7]
