C-Rate vs. Amp-Hour: How Two Metrics Dictate a Battery's Maximum Power Output and Total Capacity

A 100-amp-hour battery does not always deliver 100 amp-hours. When subjected to a 2C discharge rate—meaning it is drained in 30 minutes—a standard 100Ah unit yields only 80Ah of usable energy. The missing 20% is lost to internal resistance and heat. This discrepancy highlights the danger of buying a battery based solely on its Amp-hour (Ah) rating without checking its C-rate, a metric that dictates how fast that energy can safely and efficiently leave the cell.[4]

The Amp-hour rating measures the total storage pool. In technical terms, one Amp-hour equals 3,600 coulombs of electric charge, representing one amp of current flowing steadily for one hour. If a solar backup system requires 10 amps to run a refrigerator, a 100Ah battery theoretically provides 10 hours of runtime.[5]

However, this theoretical math assumes a perfect energy transfer. In real-world applications, the speed at which the energy is extracted fundamentally alters how much energy is actually available. This is where the C-rate becomes the governing metric for battery performance.

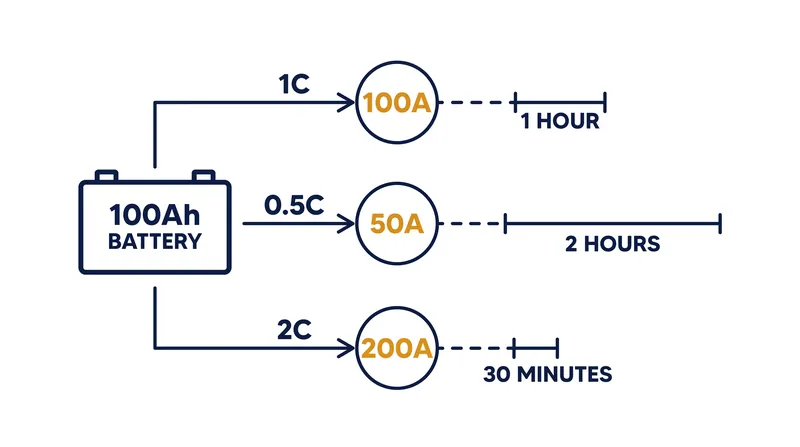

The C-rate measures the speed of the drain relative to the battery's total capacity. A 1C rate means the battery is discharged entirely in exactly one hour. For a 100Ah battery, a 1C discharge equals a continuous 100-amp draw.[1]

Scaling the C-rate changes the time and the current proportionally. A 0.5C rate equals a 50-amp draw over two hours. Conversely, a 2C rate pulls 200 amps, draining the battery in just 30 minutes. High-drain devices like power tools, drones, or electric vehicle motors demand high C-rates, while off-grid solar storage typically relies on low C-rates spread over many hours.[1]

The conflict between Ah and C-rate arises because battery capacity is not a static number. Manufacturers typically establish the advertised Ah rating on the box using a highly favorable 0.05C rate—a slow, 20-hour discharge. At this gentle pace, internal resistance remains low, heat generation is minimal, and the battery delivers its maximum theoretical energy.[1]

When consumers apply a high C-rate load to a battery rated at a low C-rate baseline, the usable capacity plummets. "By discharging the 1Ah battery at the faster 2C-rate, or 2A, the battery should ideally deliver the full capacity in 30 minutes," notes a 2011 Battery University technical bulletin. "In reality, internal losses turn some of the energy into heat and lower the resulting capacity to about 95 percent or less." This thermal loss causes far more dramatic drops in older chemistries.[1]

If a consumer sizes a battery bank purely on Ah for a high-draw application—like starting an RV air conditioner—the system will shut down prematurely. The voltage sags under the high C-rate demand, triggering the battery management system to cut power long before the theoretical Amp-hours are depleted.

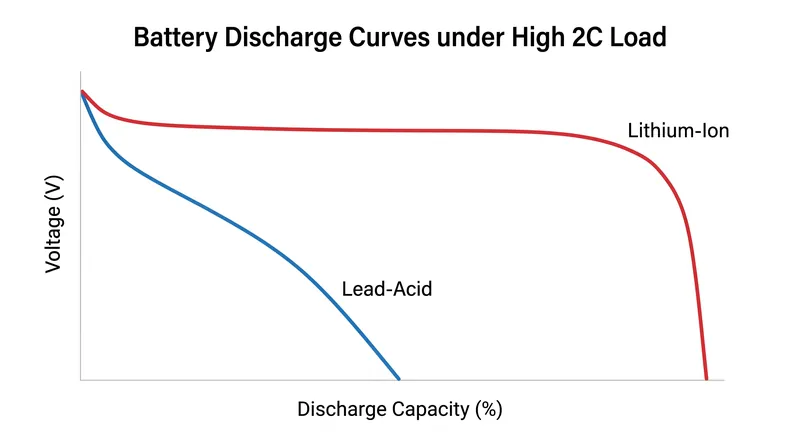

Different battery chemistries handle C-rate stress differently. Standard lead-acid batteries suffer severe capacity penalties under high C-rates. This non-linear relationship between discharge rate and usable capacity is mathematically described by Peukert's Law, which shows that as the rate of discharge increases, the battery's available capacity decreases exponentially.[4]

In contrast, modern lithium-ion and lithium iron phosphate (LiFePO4) cells maintain a much flatter discharge curve. These advanced chemistries allow the battery to deliver closer to its rated Ah even when pushed past a 1C discharge rate. This stability makes lithium the preferred choice for applications where high power output is just as important as total energy storage.

Industrial and stationary battery systems are strictly governed by these metrics. The IEEE Guide for Application and Management of Stationary Batteries Used in Cycling Service outlines precise sizing calculations to ensure that a battery bank can handle the required C-rate without degrading prematurely. In these commercial deployments, undersizing the C-rate capability leads to rapid cell deterioration and costly replacements.[3]

The C-rate also dictates charging speeds, which is a critical factor in the electric vehicle industry. In 2021, solid-state battery developer QuantumScape defined its fast-charging capabilities using C-rates, noting that a 3C charge rate fills a battery from zero to 100% in just 20 minutes. For a driver at a highway charging station, that speed metric is far more relevant than the battery's total Ah.

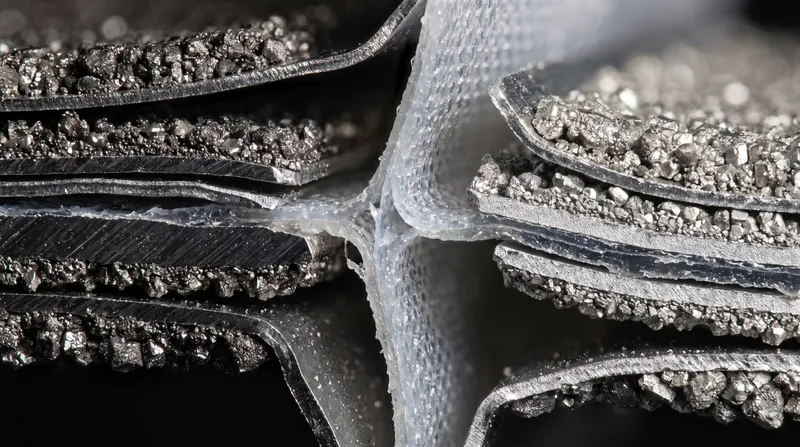

Fast charging at high C-rates introduces mass transfer limitations within the battery. As lithium ions rush through the electrolyte and separator, diffusion limits can cause lithium plating on the anode if the C-rate exceeds the cell's design parameters. This plating permanently reduces the battery's Amp-hour capacity and introduces severe safety risks.

To prevent this, battery engineers must balance the physical design of the cell. Thinner electrodes allow for higher C-rates by reducing the distance ions must travel, but this design reduces the total amount of active material, thereby lowering the overall Amp-hour capacity. Thicker electrodes maximize Ah but restrict the safe C-rate.

For consumers buying portable power stations, marine batteries, or solar storage, the actionable takeaway is to match the C-rate capability to the heaviest expected load. If an inverter draws 200 amps to start a heavy appliance, the battery bank must be rated for at least a 2C discharge if it is a 100Ah system, regardless of how many total hours it needs to run.[2]

Ignoring the C-rate and looking only at the Ah rating guarantees a system that looks large on paper but fails under a real-world load. By understanding how the speed of the drain dictates the size of the pool, buyers can select batteries that actually deliver the power they promise.
