How Shorter Contact Patches Make Wide Bicycle Tires Roll Faster at Equal Pressures

Upgrading to wider bicycle tires only saves energy if the internal air pressure and the casing material remain identical to the narrow tires they replace. When inflated to the exact same pressure, a 32-millimeter tire requires fewer watts to maintain speed than a 25-millimeter tire of the same model.[4]

For decades, cyclists assumed skinny tires rolled faster because they looked aerodynamic and transmitted harsh road feedback. Modern laboratory testing proves the opposite, revealing that wider rubber is mechanically more efficient.[3]

The actionable takeaway for riders buying new equipment is straightforward: choose the widest tire your bicycle frame safely clears. At 80 pounds per square inch, a premium 32-millimeter road tire saves roughly 1.3 watts of energy per wheel compared to its 25-millimeter counterpart.[2]

Over a 100-kilometer ride, that mechanical efficiency translates to minutes saved without any additional physical effort. This counterintuitive reality comes down to how pneumatic tires support weight on a hard surface.

A bicycle tire does not rest on a single point; it flattens against the ground to create a contact patch. The area of that patch is dictated entirely by the rider's weight divided by the tire pressure, meaning a narrow tire and a wide tire at the same pressure share the exact same contact area.[4]

The Geometry of Deformation

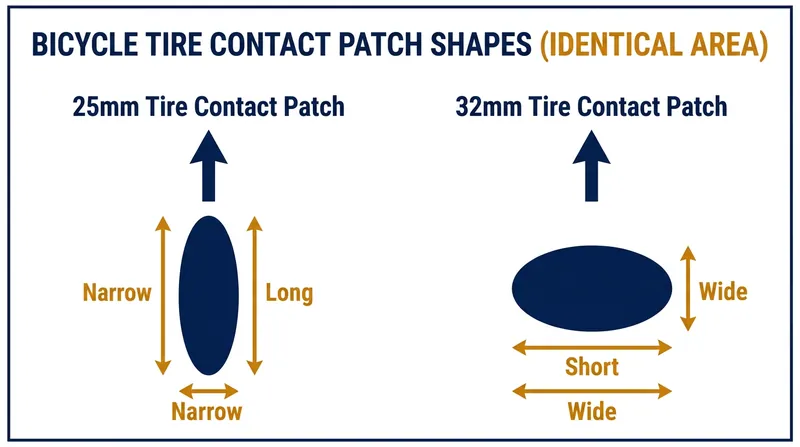

While the total area remains identical, the shape of the contact patch changes drastically with tire width. A narrow 23-millimeter tire creates a long, slender footprint that stretches far along the circumference of the wheel.

To form this elongated shape, a significant portion of the tire's sidewall and tread must bend and flatten as it rolls into the contact zone. A wider 32-millimeter tire creates a footprint that is short and wide.

Because the patch does not extend as far along the direction of travel, less of the tire's circumference is forced to deform at any given moment. This shorter longitudinal deflection is the mechanical secret to the wider tire's superior speed.[3]

Every time rubber and casing threads bend, internal friction generates heat. Engineers call this energy loss hysteresis, and it represents the single largest component of bicycle rolling resistance on smooth surfaces.[3][4]

By minimizing how much the casing must flex to support the rider, the shorter contact patch of a wide tire directly reduces hysteresis. Historically, professional mechanics inflated 23-millimeter tires to 120 psi to artificially shorten the contact patch and reduce this flexing.[4]

While high pressure worked on perfectly smooth wooden velodromes, it created a punishing ride on actual roads. The extreme pressure forced the narrow tire to skip over the tarmac, losing traction and transmitting exhausting vibrations directly into the rider's hands.[1]

Laboratory Testing and Wattage

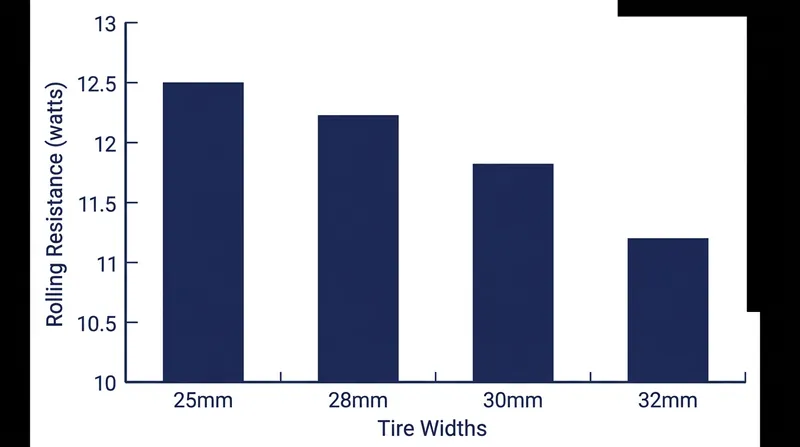

Independent testing facilities quantify this hysteresis effect using motorized steel drums. The testing protocol isolates variables by applying a standard 42.5-kilogram load to the wheel, simulating a typical 85-kilogram rider-and-bike system.

When testing the Continental Grand Prix 5000 S TR at a normalized 80 psi, the 25-millimeter version consumes 12.5 watts of energy at 29 kilometers per hour. Under the exact same conditions, the 32-millimeter version consumes only 11.2 watts.

That 1.3-watt reduction per wheel occurs entirely because the wider casing experiences less structural bending. For a rider outputting 200 watts, saving 2.6 watts across both wheels represents a free 1.3 percent increase in drivetrain efficiency.[2]

The savings scale linearly with speed and rider weight, offering heavier cyclists an even greater absolute wattage reduction. The casing material itself also dictates the baseline hysteresis penalty.[3]

Supple tires built with high thread-count cotton or fine nylon casings bend easily, losing very little energy to heat. Stiff commuter tires feature thick rubber and rigid synthetic belts that resist bending, multiplying the hysteresis penalty when forced into a long, narrow contact patch.[4]

The Suspension Loss Factor

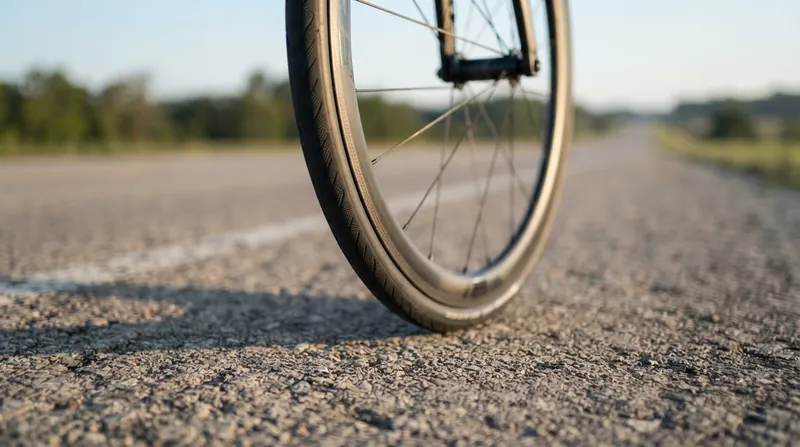

In real-world applications, riders rarely run wide and narrow tires at the exact same pressure. The primary utility of a wider tire is the ability to lower the air pressure without risking a pinch flat against the rim.[1]

Dropping a 32-millimeter tire to 60 psi increases its casing hysteresis slightly, bringing its laboratory rolling resistance roughly in line with a 25-millimeter tire at 80 psi. However, lowering the pressure unlocks a second mechanical advantage: reduced suspension losses.[1]

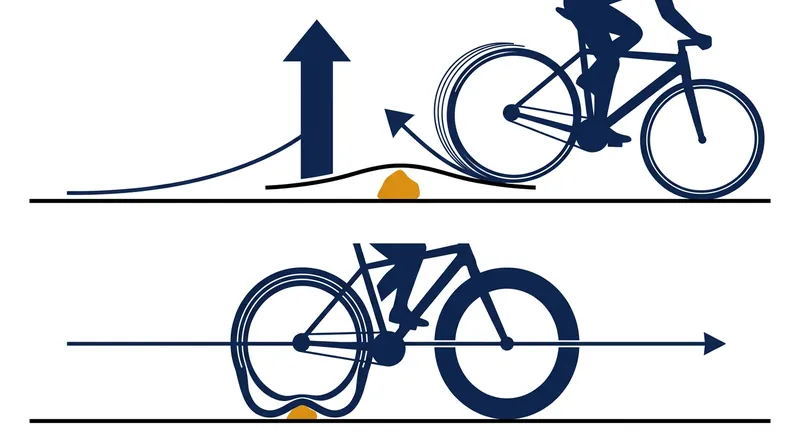

On imperfect asphalt, a rock-hard narrow tire deflects the entire bicycle and rider upward over every pebble and crack. Lifting that mass requires forward kinetic energy, which is permanently lost to gravity and vibration.[1]

A wider tire at a lower pressure absorbs those high-frequency imperfections by deforming locally around them. The tire casing flexes, but the mass of the rider continues moving forward on a level plane.[1]

"When you pump a tire up until it feels fast, you are actually feeling the high-frequency vibrations of suspension loss," explains Silca CEO Josh Poertner in his technical documentation.[1]

"The tire feels fast because it is transmitting energy into your body, but the stopwatch proves it is objectively slower," Poertner notes. Silca's impedance testing demonstrates that on rough roads, eliminating these micro-lifts saves up to 15 watts of energy.[1]

Aerodynamic Trade-Offs

The only physical penalty to wider rubber is aerodynamic drag. A wider tire increases the frontal area of the bicycle, pushing more air out of the way as speeds increase.

Furthermore, if the tire balloons wider than the aerodynamic carbon rim it mounts to, it disrupts the smooth airflow reattaching to the wheel, creating turbulent drag. Wind tunnel data shows that moving from a 25-millimeter to a 32-millimeter tire costs approximately 2 to 3 watts at 35 kilometers per hour.

To mitigate this penalty, wheel manufacturers now design rims with internal widths of 23 to 25 millimeters and external widths exceeding 30 millimeters. These wide rims stretch the tire bead outward, preventing the tire from taking a lightbulb shape.

This structural alignment ensures the airflow transitions smoothly from the rubber to the carbon fiber, reclaiming much of the lost aerodynamic efficiency. For professional racers averaging 45 kilometers per hour, the aerodynamic drag still eclipses the rolling resistance savings, which is why the peloton has settled on 28-millimeter tires.

For recreational cyclists and amateur racers averaging below 32 kilometers per hour, aerodynamic drag is significantly lower. At these speeds, the combined benefits of reduced hysteresis and eliminated suspension losses make the 32-millimeter tire objectively faster.[1]

The transition to wider tires represents a permanent shift in cycling technology, enabled by the widespread adoption of disc brakes that removed the clearance constraints of traditional rim calipers. By understanding that rolling resistance is a function of casing deformation, riders can purchase equipment that genuinely improves their speed.[2]
