How Projector Manufacturers Use the Helmholtz-Kohlrausch Effect to Inflate Brightness Ratings by 2.4 Times

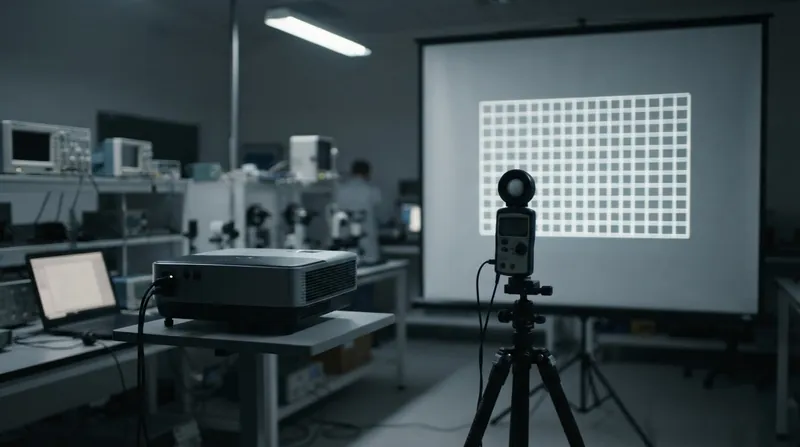

Inside a pitch-black testing room, a technician points a light meter at a completely white projected image, taking exact lux readings at nine specific coordinates across the screen. This grid, defined by the ISO 21118 standard, measures the physical light that actually reaches the wall.[1]

Yet, when the projector ships to a retailer, the box often displays a brightness figure up to 2.4 times higher than what the meter recorded. The discrepancy comes from a shift in how the industry defines light.[2]

Manufacturers are increasingly replacing calibrated physical output with a subjective psychological phenomenon known as the Helmholtz-Kohlrausch effect. By doing so, brands can market a 1,000-lumen device as a 2,400-lumen powerhouse.

Understanding this mathematical leap is essential for anyone purchasing a display. The difference between a physical measurement and a psychological estimate dictates whether a projector will actually overcome ambient daylight in a living room.

The ISO 21118 calibration standard

For decades, the American National Standards Institute and the International Organization for Standardization have governed how display brightness is quantified. The ISO 21118 standard requires a strict, repeatable methodology.[1]

Testers project a pure white image in a dark room with no reflective surfaces. They divide the screen into a grid and measure the illuminance at nine distinct points.[2]

These nine readings are averaged and multiplied by the total screen area to calculate the projector's true luminous flux. This method accounts for the light lost as it travels through the projector's internal lenses, mirrors, and color wheels.

Because it measures the final image on the screen, the ISO 21118 standard provides a reliable baseline. A projector rated at 1,000 ISO lumens will deliver that exact physical energy to the viewing surface, regardless of the technology inside the chassis.

However, this rigorous physical measurement often yields a lower number than marketing departments prefer. As LED projection technology matured, manufacturers sought a way to quantify the vibrant colors these new light sources produced.

The Helmholtz-Kohlrausch effect

LED projectors generate highly saturated colors that look remarkably vivid to the human eye. This visual punch is the result of the Helmholtz-Kohlrausch effect, a well-documented quirk of human optical perception.

The effect dictates that the human eye perceives highly saturated colors as brighter than they objectively are. When two colors emit the exact same physical luminance, the observer will consistently rate the purer, more saturated color as the brighter of the two.

Because LED light sources produce narrower, more intense spectral bands than traditional mercury-vapor lamps, their colors trigger a stronger psychological response. Viewers genuinely perceive the LED image as more luminous than a lamp-based image of the same measured physical output.

Display engineers recognized that the standard nine-point white-screen test completely ignores this psychological advantage. Because the ISO standard measures physical photons rather than human perception, it treats a vivid LED red exactly the same as a dull lamp red.[1]

To account for the perceived vibrancy, some manufacturers decided to abandon the strict physical measurement. They introduced a new, non-standardized metric designed to quantify the psychological impact of the saturated colors.[2]

Deriving the LED lumen rating

This new metric became known as the LED lumen. Unlike the ISO standard, the LED lumen is not recognized by international regulatory bodies, serving instead as an industry-created term used to market the perceived brightness of highly saturated displays.[2]

To calculate LED lumens, manufacturers take the calibrated physical output and multiply it by a subjective factor. Based on internal studies, brands determined that their saturated colors look roughly 1.3 to 2.4 times brighter than their physical measurements suggest.

"Choosing to multiply the ANSI lumens value by 2.4 as opposed to 1.3 to obtain the LED brightness can be completely arbitrary and not necessarily accurate," notes the technical engineering team at BenQ in their brightness standards documentation.

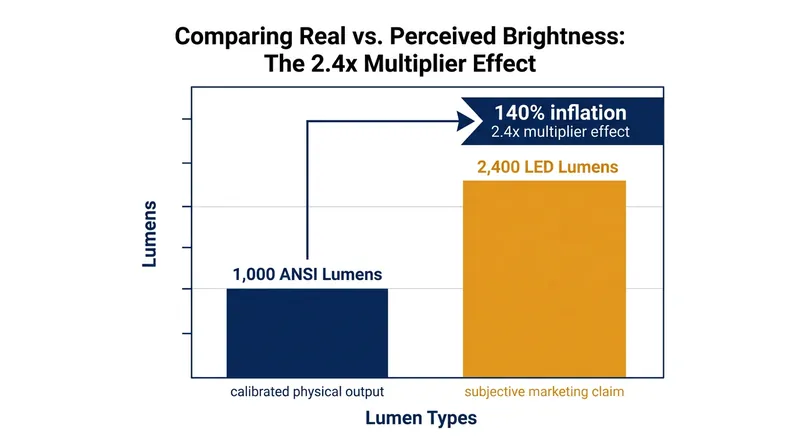

Consequently, a projector that outputs 1,000 physical ISO lumens is often multiplied by 2.4. The manufacturer then prints 2,400 LED lumens on the retail packaging, presenting a massive apparent upgrade over competing models.

This 140 percent inflation creates significant confusion in the consumer market. A buyer comparing a 2,000-lumen traditional projector against a 2,400-lumen LED model might assume the LED unit is physically brighter.

In reality, the LED model may only output 1,000 physical lumens. If the buyer places that projector in a room with heavy ambient daylight, the psychological effect will not be enough to prevent the image from washing out.

The light source lumen loophole

The LED lumen is not the only inflated metric on the market. Some budget manufacturers utilize light source lumens to bypass the ISO 21118 standard entirely, creating an even larger discrepancy between the advertised number and the actual screen output.[2]

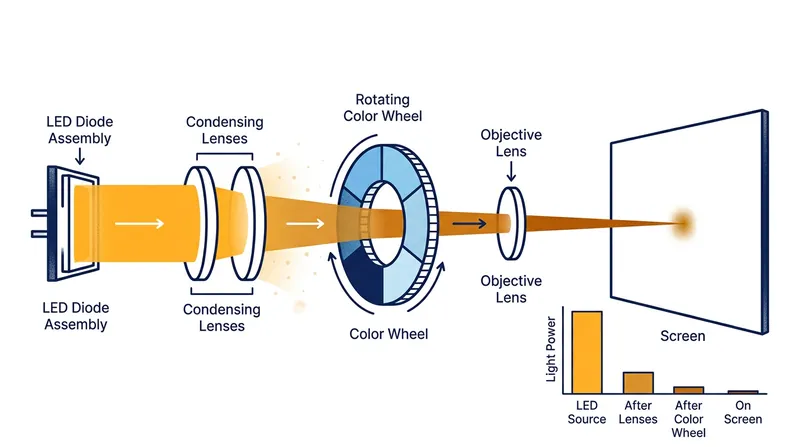

Light source lumens measure the raw output of the LED or laser diode before the light passes through the projector's internal components. This measurement is taken directly at the diode, ignoring the severe optical losses that occur inside the chassis.

As light travels through color wheels, phosphor filters, and focal lenses, a massive percentage of the physical energy is absorbed or scattered. A diode that produces 16,000 raw lumens might only deliver 1,000 lumens to the actual projection screen.

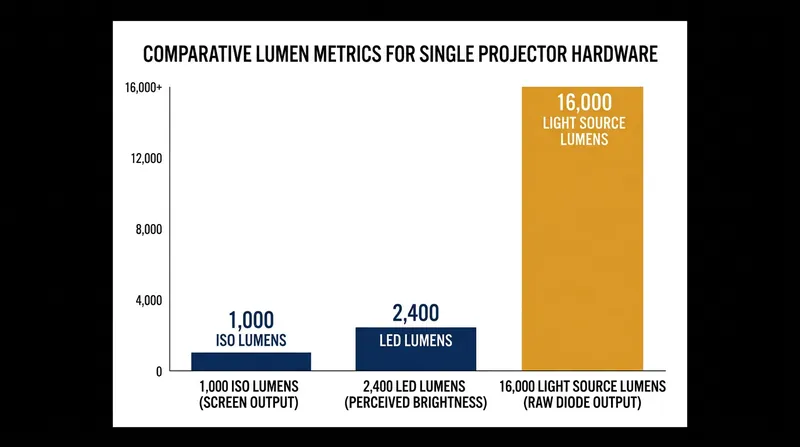

By advertising the raw diode output, a manufacturer can claim a 16,000-lumen rating for a device that is functionally identical to a 1,000 ISO lumen projector. This practice is widely considered deceptive by industry analysts.[2]

Unlike the LED lumen, which attempts to quantify a genuine psychological phenomenon, the light source lumen simply measures the wrong part of the machine. It provides no useful information about the image the viewer will actually see.

Navigating retail brightness claims

The lack of standardization means that the 2.4 multiplier is entirely arbitrary. One brand might use a 1.3 multiplier, while another uses 2.4 for the exact same physical hardware, making cross-brand comparisons impossible.

Furthermore, the psychological brightness boost relies heavily on the specific content being displayed. The effect is most pronounced when viewing highly saturated animated films or vibrant video games in a completely dark room.

When the projector displays muted colors, standard television broadcasts, or plain white text in a spreadsheet, the psychological effect diminishes significantly. In these scenarios, the viewer only sees the baseline physical output, which falls far short of the advertised LED lumen rating.

To make an informed purchase, buyers must look past the inflated LED figures and locate the device's ANSI or ISO lumen rating. Reputable manufacturers will list both numbers in the detailed technical specifications, even if the larger number dominates the box.

If a manufacturer refuses to provide the standardized nine-point measurement, consumers should apply the conversion themselves. Dividing the advertised LED lumen figure by 2.4 provides a safe, conservative estimate of the projector's actual physical capabilities.[2]

By stripping away the psychological multiplier, buyers can accurately evaluate whether a display has the raw power required for their specific environment. The ISO 21118 standard remains the only metric that guarantees a specific amount of light will reach the wall.[3]
