The 128-Bit Constraint: How BC7 Texture Compression Partitions the 4x4 Pixel Block

A single 4x4 block of pixels in a modern video game texture consumes exactly 128 bits of memory when encoded using the BC7 compression format. That 16-byte footprint, standardized by Microsoft in the DirectX 11 specification, represents a hard physical limit. Within those 128 bits, the graphics processing unit must extract enough color and alpha information to paint 16 individual pixels on a screen without introducing the banding and blockiness that plagued earlier compression methods. The mechanism that makes this possible is not a brute-force increase in resolution, but a structural shift in how the color space itself is partitioned and interpolated.[1]

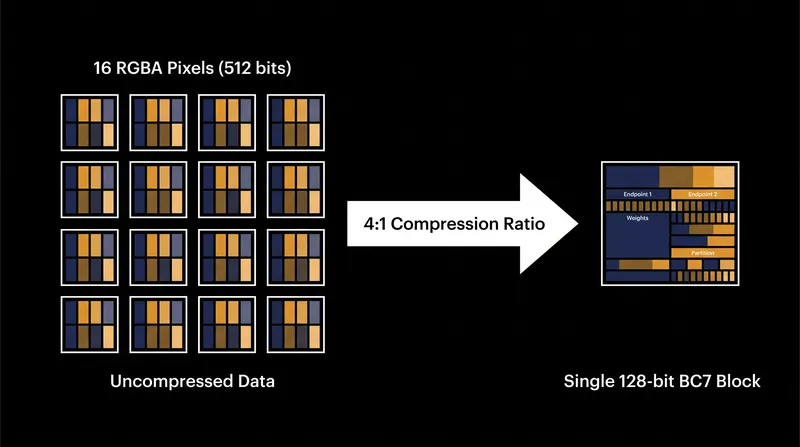

The fundamental math of texture memory is unforgiving. Uncompressed 8-bit RGBA data requires 32 bits per pixel. A 4x4 grid of 16 pixels totals 512 bits. BC7 forces this into 128 bits, achieving a 4:1 compression ratio. While that ratio is impressive, it is actually less aggressive than the formats that preceded it. In 1999, S3 Graphics introduced S3TC (later adopted as DXTC or BC1), which squeezed that same 4x4 block into just 64 bits. BC1 was revolutionary for its time, but its 8:1 compression ratio was visually destructive when applied to complex images.[4][5]

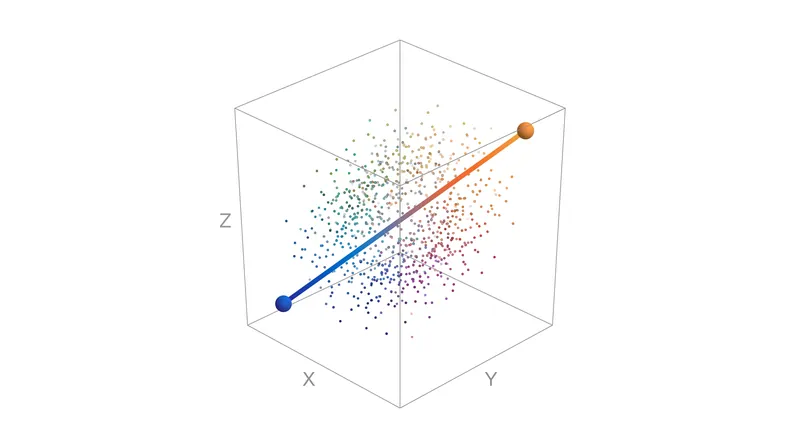

The core mechanism of all block compression is the "color line." As graphics programmer Nathan Reed noted in his 2012 analysis of the formats, the algorithm defines two endpoint colors in a 3D RGB space and interpolates a straight line between them. Every pixel in the 4x4 block is then assigned a 2-bit or 3-bit index, snapping its color to the nearest point on that single line. This works perfectly for a smooth gradient of blue sky, where all the local colors naturally fall along a single trajectory.[4]

But the single-line assumption breaks down immediately when a block contains high-frequency detail. "Most of the BCn formats will give poor-quality results anywhere that three very different colors are present in a single block," Reed wrote. Red, green, and blue pixels cannot physically sit on the same straight line in 3D space. When forced onto one line, the resulting image exhibits the blocky, banded artifacts that defined early 3D gaming.[4]

Microsoft and the Khronos Group designed BC7—also known as BPTC in the OpenGL specification—specifically to solve this geometric limitation without abandoning the 4x4 block structure. The solution was partitioning. Instead of forcing all 16 pixels to share one pair of endpoints, BC7 allows the block to be split into two or three separate subsets.[1][2]

Each subset gets its own independent color line. A single 4x4 block can now accurately represent a sharp edge where a red brick meets a green leaf and a blue sky, because each region is interpolated separately. However, storing a custom pixel map to define these subsets would consume too many bits. Instead, the BC7 specification includes a hardcoded table of 64 predefined partition shapes. The encoder simply stores a 6-bit ID to select the shape that best matches the image data.[3][5]

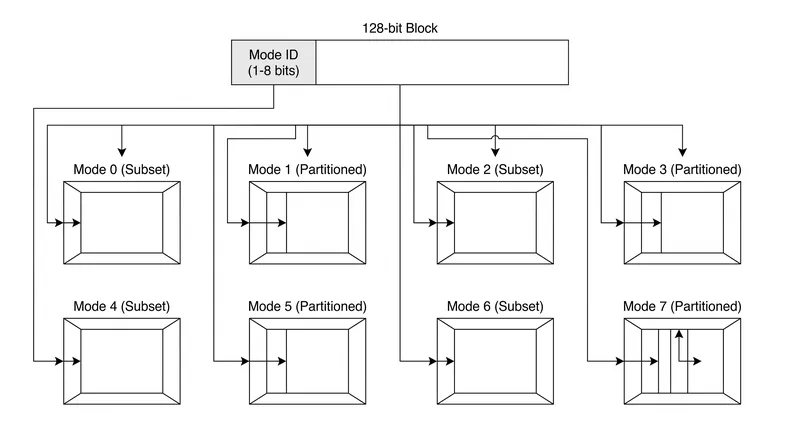

This flexibility introduces a structural problem: a 128-bit block is too small to simultaneously hold three pairs of high-precision endpoints, 16 pixel indices, and the partition ID. The format had to become polymorphic. BC7 solves this by defining eight distinct modes, numbered Mode 0 through Mode 7. The mode is declared in the least significant bits of the block using a unary code—a sequence of zeroes terminated by a one.[1][3]

Because the mode dictates the layout of the remaining bits, each block can trade off features based on its specific needs. Mode 0, for example, supports three subsets but limits the endpoints to 4-bit precision. Mode 6 supports only one subset but offers 7-bit endpoint precision and 4-bit indices, making it ideal for smooth, complex gradients where banding would otherwise be visible.[3]

The format also employs aggressive bit-level optimization to maximize precision. One technique is the "P-bit" or pseudo-bit. Rather than spending three bits to increase the precision of the Red, Green, and Blue channels individually, BC7 shares a single least-significant bit across all three channels of an endpoint, effectively doubling the precision grid without wasting bandwidth.[1][4]

Another optimization is degeneracy breaking. Because swapping the two endpoints of a color line simply inverts the indices along it, the encoder can guarantee that the first index in any subset always starts with a zero. By making that zero implicit, BC7 discards it entirely, saving exactly one bit per subset. This trick allows the format to store 64 bits of index data in a 63-bit space.[1][4]

Alpha transparency is similarly dynamic. Older formats like BC3 appended a separate 64-bit block purely for alpha data, treating it as a completely separate image. BC7 interleaves alpha directly into the 128-bit payload, allocating bits dynamically based on whether the transparency correlates with the color channels. If the alpha channel is highly correlated with the RGB data, the encoder can use a single set of indices for both, freeing up bits for higher endpoint precision.[2][5]

The marketing surrounding BC7 often describes it as delivering "high-quality" or "near-lossless" textures. This framing obscures the reality of how the format actually operates: it is a heavily quantized, lossy approximation. The visual fidelity does not come from preserving the original data, but from a massive expansion of the encoding search space. With eight modes, 64 partitions, and varying endpoint combinations, a compressor must evaluate thousands of permutations for every 16 pixels.[5][6]

Exhaustively testing every combination is computationally impossible for a modern game containing gigabytes of textures. Encoders rely on simulated annealing and gradient descent heuristics to guess the least-bad option. This creates a severe asymmetry. Encoding a texture into BC7 can take hours on a multi-core CPU, shifting the entire computational burden onto the developer's build pipeline.[4][6]

In exchange, the decoding process is instantaneous. The graphics hardware features dedicated silicon that reads the 128-bit block, checks the mode bits, and executes a fixed-cost decompression in nanoseconds. Furthermore, the Khronos Group specification mandates that BC7 decompression hardware must be bit-accurate. An image compressed on an Intel processor will decode to the exact same pixel values on an AMD or NVIDIA GPU.[1][2]

This strict standardization prevents the subtle visual discrepancies that plagued earlier, loosely defined formats where different vendors implemented slightly different interpolation math. By locking down the exact output of the decoder, BC7 ensures that the artistic intent is preserved across all compliant hardware.[2][4]

BC7 represents the physical limit of what can be achieved within a 128-bit constraint. It does not magically create bandwidth; it provides a highly flexible vocabulary for describing local color variations, trading an exponential increase in encoding time for a linear increase in rendering fidelity. The next frontier in texture compression will not come from packing more data into 16 bytes, but from architectures that bypass the 4x4 block entirely.[6]
