Why DirectX 12 Pipeline State Objects Cause PC Games to Stutter

In the era of DirectX 11, PC gamers rarely thought about how a graphics card prepared its instructions. The graphics driver acted as an invisible middleman, intercepting rendering commands and quietly compiling shaders in the background using heuristic guesswork.

DirectX 12 stripped that safety net away in exchange for raw performance. By shifting memory management and state tracking directly to game developers, the modern API removed the driver's overhead but introduced a brutal new responsibility.[1]

That responsibility is the Pipeline State Object, or PSO. When a game fails to prepare these objects before they are needed, the entire rendering engine must stop and wait for the CPU to build them.[2]

The result is a sharp, jarring freeze during gameplay, commonly known as shader compilation stutter. Even the most powerful consumer hardware cannot brute-force its way past this software bottleneck, leaving players frustrated by hitching in otherwise pristine environments.

Understanding why this happens requires looking at how modern graphics APIs bundle rendering instructions. The shift from implicit driver management to explicit developer control has fundamentally changed how PC games must be built and optimized.[1][2]

Bundling the rendering state

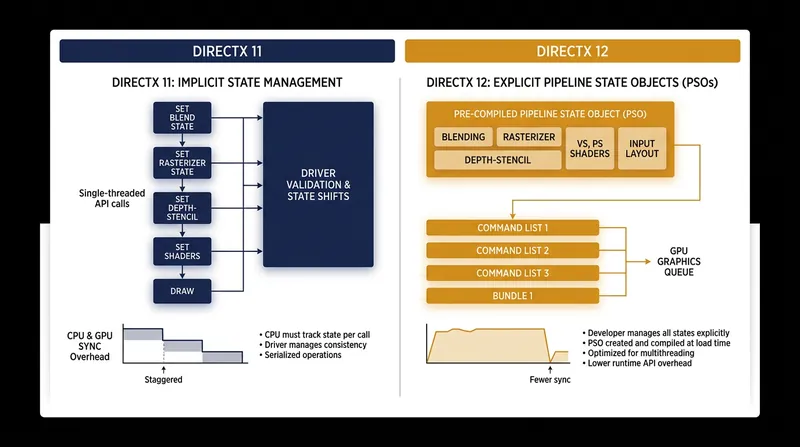

A Pipeline State Object is a massive, monolithic data structure that defines exactly how the graphics processing unit will draw a specific element. It contains the compiled shader bytecode, the blend state, the rasterizer state, and the depth-stencil configuration.[1]

In older APIs, these states were set individually. A game could change the blend mode with one command and swap the pixel shader with another, allowing the driver to figure out the final configuration on the fly.[1][2]

DirectX 12 demands all of this information upfront. Because modern GPU hardware features deep dependencies between different rendering stages, changing a single variable requires the entire pipeline configuration to be validated and baked into a single PSO.[1]

This monolithic approach allows the GPU to switch between complex rendering states almost instantly during a frame. The hardware no longer wastes cycles checking if a new shader conflicts with the current rasterizer state, because the PSO guarantees compatibility.[1]

However, this efficiency comes with a severe catch. The game engine must know every exact permutation of shaders and states it will need before it issues a draw call. If a permutation is missing, the system hits a wall.[2]

The limits of driver heuristics

Under DirectX 11, AMD and NVIDIA spent years building massive, game-specific profiles into their drivers to guess which states would be needed next. If a player loaded into a specific level, the driver would quietly spin up background threads to compile the necessary shaders before they appeared.[3]

This heuristic approach was highly effective for major blockbuster releases, as driver teams had early access to the code. However, it scaled poorly for independent titles, leaving smaller games to suffer from the very stutters that the driver magic hid in larger projects.[3]

DirectX 12 was designed to level this playing field by giving every developer the exact same low-level access that the driver teams previously monopolized. The API assumes that the game engine always knows its own rendering intent better than a generalized graphics driver ever could.[2]

The flaw in this assumption is that many engines were not originally built to track state dependencies so rigidly. Retrofitting a legacy engine to predict every PSO permutation perfectly is a monumental engineering task, leading to the gaps that cause runtime compilation.[2][3]

The synchronous compilation trap

When a DirectX 12 game encounters an object, effect, or material that lacks a pre-compiled PSO, it must generate one immediately. This process is synchronous, meaning the render thread cannot proceed until the compilation is finished.

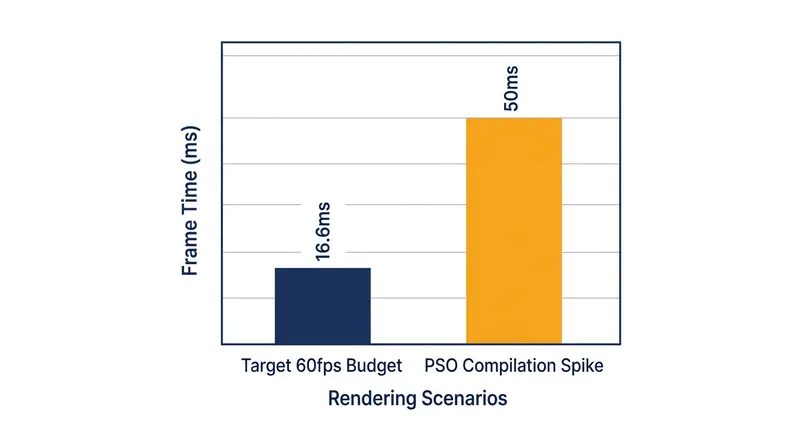

A game running at 60 frames per second has exactly 16.6 milliseconds to calculate physics, process AI, and draw the entire scene. If any step takes longer than that strict budget, the frame is delayed, and the player perceives a stutter.[5]

Generating a new PSO from scratch routinely takes between 20 and 50 milliseconds on a modern desktop CPU. Because this compilation blocks the main render thread, a dropped frame is mathematically guaranteed the moment an uncached shader appears.[3][5]

This is why stuttering often occurs when a player enters a new area, fires a weapon for the first time, or triggers a unique particle effect. The engine is frantically pausing the game to compile the necessary instructions for the GPU.[3]

Once the PSO is compiled, it is stored in the local shader cache. If the player reloads the checkpoint and fires the same weapon, the game remains perfectly smooth, as the required pipeline state is already prepared.

Why consoles avoid the issue

Console gamers rarely experience this specific type of stutter, despite modern consoles using similar low-level APIs. The difference lies in the fixed nature of console hardware, which allows developers to bypass runtime compilation entirely.[2]

Because every PlayStation 5 or Xbox Series X shares the exact same GPU architecture, developers can compile every necessary PSO at the studio. These pre-baked instructions are shipped on the disc, ready to be loaded directly into memory.[2]

The PC ecosystem offers no such luxury. With thousands of different GPU models, driver versions, and operating system configurations in the wild, a shader compiled for an NVIDIA RTX 4090 is entirely useless to an AMD Radeon RX 7900 XTX.[3]

Consequently, PC games must ship with intermediate shader code, which the local machine translates into hardware-specific instructions. Every time a user updates their graphics driver, this local cache is invalidated, forcing the compilation process to start over.[3]

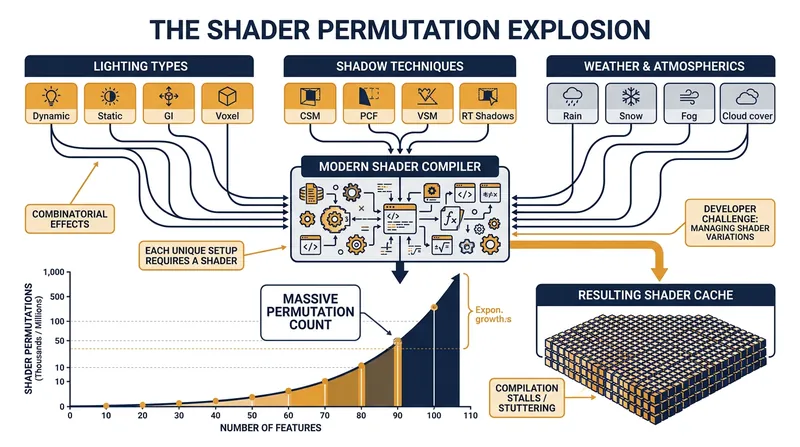

The sheer volume of permutations exacerbates the issue. A single material might need different PSOs for various lighting conditions, shadow qualities, or post-processing effects, turning a handful of shaders into thousands of unique pipeline states.[2][3]

Consider a basic brick wall texture in a modern game. If the engine supports three levels of shadow quality, two types of anti-aliasing, and dynamic weather that makes the wall wet, that single material suddenly requires dozens of distinct Pipeline State Objects.[3]

If the developer fails to cache the specific PSO for a wet brick wall with high shadows and temporal anti-aliasing, the game will run perfectly until it starts raining. At that exact moment, the render thread hits a synchronous block to compile the missing state.[3]

Shifting the compilation burden

To prevent mid-game stuttering, developers increasingly rely on pre-compilation steps. This is the notorious compiling shaders screen that greets players when they first launch modern titles, forcing the CPU to build the most common PSOs upfront.[3]

While this solves the immediate performance issue, it creates friction for the user. Waiting several minutes before playing a new game or after a routine driver update is an inelegant solution to a structural API problem.[3]

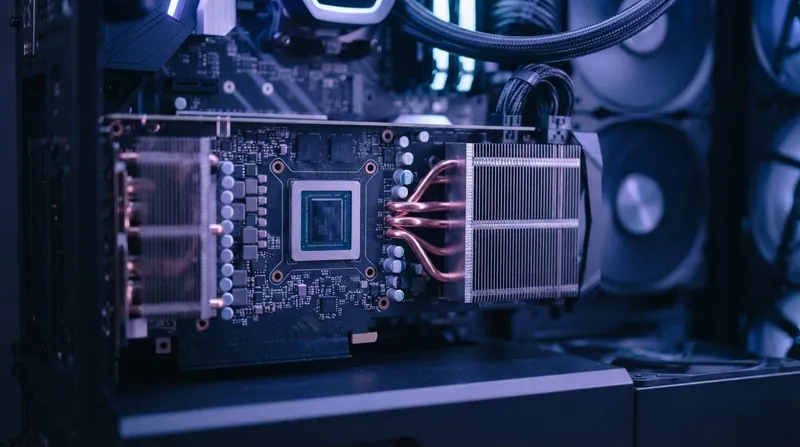

Some engines attempt asynchronous compilation, moving the PSO generation to background CPU threads. This keeps the render thread moving, but it means the game must either skip drawing the object entirely or render it with a low-quality placeholder material.[3]

This approach replaces frame-time stutter with visual pop-in. A character might appear invisible or covered in a generic gray checkerboard texture for a few seconds until the background thread finishes compiling the correct shader.[3]

Valve has implemented a unique workaround for the Steam Deck. By treating the handheld like a console, Steam downloads pre-compiled shader caches generated by other users with the exact same hardware, bypassing local compilation entirely.[5]

Evolving the DirectX standard

Recognizing the friction caused by monolithic PSOs, Microsoft is actively developing new tools to ease the burden. The most significant of these is Advanced Shader Delivery, a feature designed to split pipeline states into more manageable fragments.[4]

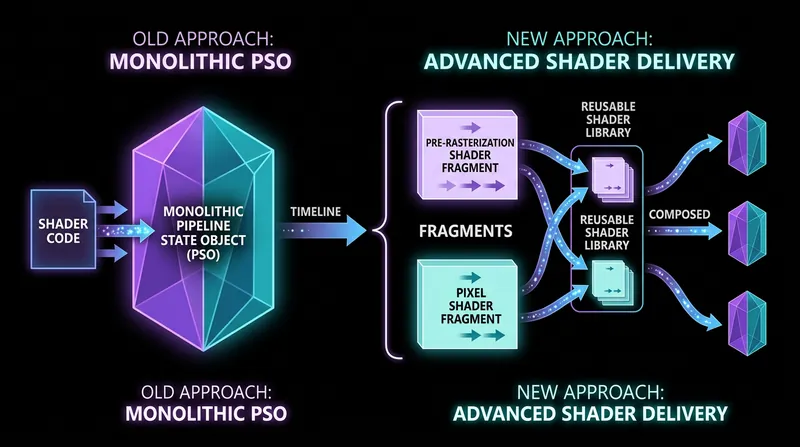

Advanced Shader Delivery allows developers to separate pre-rasterization work from pixel shader execution. By breaking the monolithic PSO into reusable parts, engines can link these fragments together at runtime without triggering a massive compilation stall.[4]

Epic Games is currently integrating this technology into Unreal Engine 5. Mihnea Balta, director of rendering engineering at Epic Games, confirmed the shift, stating that "as Unreal, we're excited about supporting advanced shader delivery in the ecosystem."[4]

Hardware vendors are also stepping in. Intel and NVIDIA are experimenting with driver-level precompiled shader databases, aiming to distribute optimized pipeline states directly through driver updates rather than relying solely on the game engine.[4]

Until these advanced delivery methods become the industry standard, PC gamers will continue to face a trade-off. They must either endure lengthy pre-compilation screens at launch or accept the inevitable frame drops when an uncached shader halts the render thread.[4]
