Structural, Residual, Solubility, and Mineral Trapping: The Four Ways CO2 Is Permanently Stored Underground

Industrial facilities and power plants are currently injecting more than 40 million metric tons of carbon dioxide into deep geological formations each year, relying on the earth's natural architecture to isolate the greenhouse gas from the atmosphere. As we scale carbon capture and storage to meet mid-century climate targets, the security of these underground repositories depends entirely on four distinct trapping mechanisms: structural, residual, solubility, and mineral trapping.[1][7]

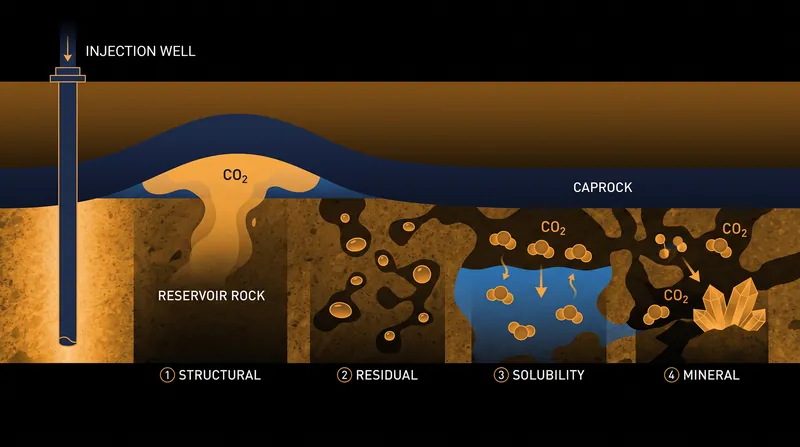

These processes operate on different timescales, collectively ensuring that the injected gas becomes progressively more secure the longer it remains underground. "CO2 can be stored in deep geological formations in a process that mimics how oil and gas have been trapped underground for millions of years," the International Energy Agency noted in its 2021 assessment of the technology.[1][6][7]

To understand how this isolation works, we must first look at structural, or stratigraphic, trapping. Operators pump the gas into porous rock formations—typically deep saline aquifers or depleted oil and gas reservoirs—located at least 800 meters beneath the surface.[2][7]

At this depth, immense geological pressure and temperatures above 31.1 degrees Celsius (88 degrees Fahrenheit) force the CO2 into a supercritical fluid state. In this phase, the carbon dioxide becomes dense like a liquid but retains the ability to flow through microscopic rock pores like a gas.[6]

Because this supercritical CO2 is buoyant and lighter than the surrounding formation brine, it naturally migrates upward through the permeable reservoir rock. It continues to rise until it hits an impermeable caprock layer, such as a thick formation of shale or mudstone, which physically blocks further vertical movement and holds the plume in place.[2][3][5]

As the CO2 plume spreads laterally beneath the caprock, a secondary physical mechanism called residual trapping begins to take effect. The supercritical fluid moves through the microscopic pore spaces of the sandstone or carbonate reservoir rock, displacing the existing salty water.[1][3]

However, as the injection stops and the plume advances, capillary forces snap off trailing droplets of CO2, leaving them permanently stranded in the narrowest pore throats. This process acts like water trapped in a sponge, immobilizing a significant fraction of the injected volume within years to decades and preventing it from migrating further.[1][6]

As time passes, the physical containment of structural and residual trapping transitions into chemical containment through solubility trapping. The trapped supercritical CO2 slowly dissolves into the surrounding saline water, much like carbon dioxide dissolving into a pressurized carbonated beverage.[1][3]

This dissolution fundamentally alters the fluid dynamics of the reservoir. The CO2-saturated brine becomes approximately 1% denser than the surrounding formation water, causing it to sink deeper into the geological basin rather than pushing upward against the caprock. This density-driven convection accelerates the dissolution process and significantly reduces the risk of upward leakage.[5][6]

The ultimate and most permanent stage of geological sequestration is mineral trapping, a geochemical process that unfolds over centuries to millennia. When CO2 dissolves into the formation brine, it creates a weak carbonic acid that reacts with the surrounding reservoir rocks.[1][3][4]

These slow geochemical reactions dissolve silicate minerals within the rock matrix, releasing positively charged cations such as calcium, magnesium, and iron. The dissolved carbon then bonds with these metals to precipitate out as solid carbonate minerals, such as calcite or dolomite.[4][6]

Once mineralized, the carbon is permanently locked into the solid rock structure, completely eliminating any risk of future atmospheric release. While basalts and certain unconventional shales show rapid mineralization potential, deep saline aquifers—which offer the largest global storage volumes—often require thousands of years to achieve full mineral trapping.[3][4]

The physics and chemistry of these four mechanisms are well understood from extensive enhanced oil recovery operations and dedicated storage projects. In 1996, the Sleipner offshore gas facility in Norway became the first large-scale project to rely on these mechanisms, and it has since safely stored more than 20 million metric tons of CO2 roughly 1 kilometer under the North Sea.[2][7]

However, quantifying the exact progression of these mechanisms for new sites remains complex. The U.S. Geological Survey notes that estimating total storage capacity requires highly localized data, as variations in caprock morphology, reservoir permeability, and mineral composition dictate how quickly the CO2 transitions from structural to mineral trapping.[2][5]

Our analysis of these overlapping timelines reveals a critical principle of geological storage: the containment security of a site is inversely proportional to its reliance on the physical caprock. While structural trapping provides the necessary initial containment, the subsequent onset of residual, solubility, and mineral trapping means that the risk of caprock failure approaches zero over geological time.[1][6][8]

The International Energy Agency projects that global storage needs will grow from around 40 million metric tons today to more than 5,000 million metric tons annually by 2050. As the industry scales to meet this demand, the interaction of these four geological mechanisms will dictate the viability of the world's primary strategy for managing hard-to-abate industrial emissions.[7]
