How the Impossibility of Preserving Both Area and Angle Dictates the Choice of Map Projection

Consider a standard slice of pizza. When held flat by the crust, the tip sags under gravity. To stop the droop, the eater folds the crust into a U-shape, making the slice rigid. This works because the pizza slice is a flat plane with a Gaussian curvature of exactly 0; bending it in one direction forces the perpendicular direction to remain straight to maintain that zero curvature. The nearest comparable case to mapping the Earth is trying to do the exact opposite: taking a surface that already curves in multiple directions and forcing it to be flat. The single respect in which the Earth differs from the pizza slice is that its intrinsic curvature is positive, not zero.[5]

That geometric reality is the foundational constraint of cartography. For centuries, mapmakers attempted to draft a "perfect" 2-dimensional representation of the 3-dimensional globe. They failed not because of inadequate surveying tools or poor drafting techniques, but because the universe's physical laws prohibit success.[2]

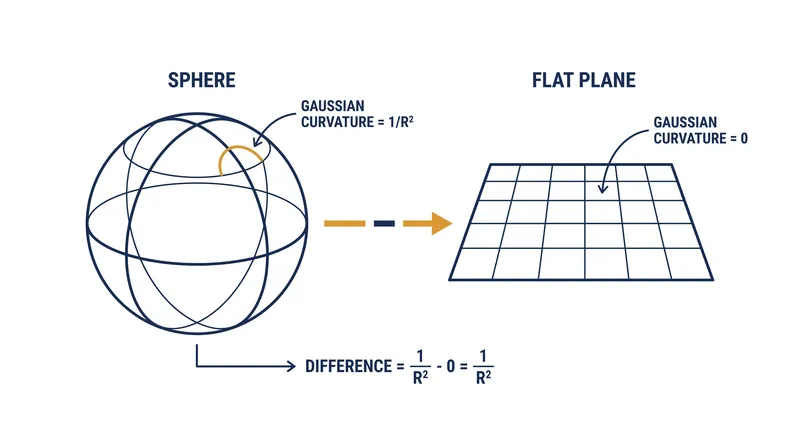

The mathematical proof of this impossibility was published in 1827 by the German mathematician Carl Friedrich Gauss. He named it the Theorema Egregium, which translates from Latin as the "Remarkable Theorem." Gauss demonstrated that the intrinsic curvature of a surface—what mathematicians call Gaussian curvature—is a fixed property.[5]

As Wikipedia notes in its summary of the theorem, "The Gaussian curvature of a surface does not change if one bends the surface without stretching it." Because a sphere of radius R has a constant positive curvature of 1/R², and a flat piece of paper has a curvature of exactly 0, one cannot be transformed into the other without tearing, stretching, or crumpling the material.[5]

This means every flat map of the Earth is a mathematical lie. When cartographers project the globe onto a 2-dimensional plane, they are forced to choose which geometric properties to destroy and which to preserve. The two most critical properties are area, known as equivalence, and angle, known as conformality.[3][4]

Conformality ensures that local angles are preserved. If two roads intersect at a 90-degree angle on the physical Earth, they will intersect at exactly 90 degrees on a conformal map. This property was highly prized by 16th-century navigators, leading to the dominance of the Mercator projection, introduced by Gerardus Mercator in 1569.[4]

A ship captain could draw a straight line across a Mercator map, read the compass bearing, and follow that exact heading across the ocean. But preserving those angles requires stretching the map exponentially as it approaches the poles, warping the scale of the northern and southern extremes.[4]

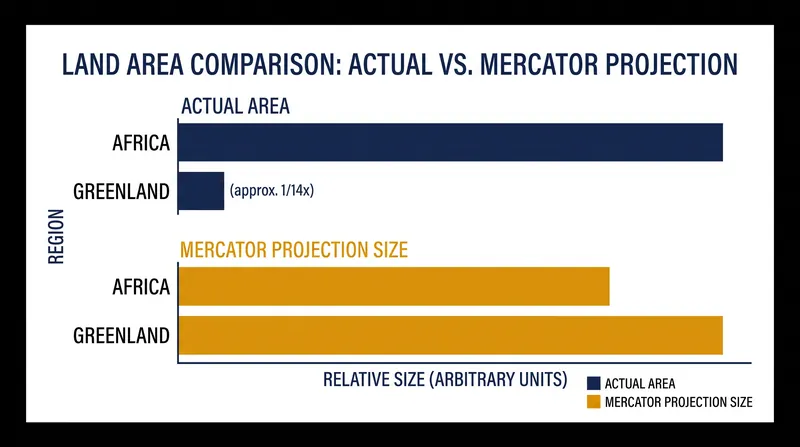

The cost of this conformality is a massive distortion of area. On a standard Mercator projection, Greenland appears roughly the same size as Africa. In reality, the African continent is approximately 14 times larger than Greenland. Antarctica, similarly, is smeared across the entire bottom edge of the map, appearing as a colossal ice wall rather than a circular continent.[3][5]

The alternative is an equal-area projection, which preserves the relative size of landmasses. If a country is 10 percent of the Earth's land area, it will take up exactly 10 percent of the map's land area. This ensures that countries are represented at their true proportional scale.[4]

However, because Gauss's theorem dictates that something must give, equal-area maps sacrifice conformality. Projections like the Gall-Peters map stretch landmasses vertically near the equator and compress them horizontally near the poles. The result is a map where Africa is accurately massive, but its shape appears unnaturally elongated and distorted.[3][5]

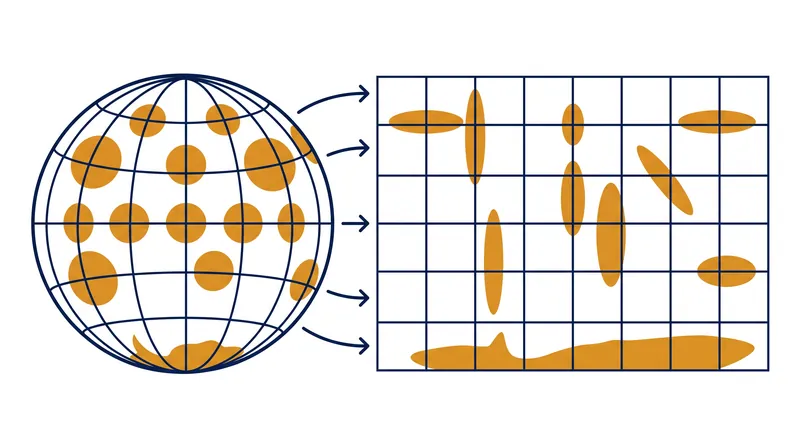

To quantify exactly how much a given projection lies, cartographers rely on a mathematical tool developed by the French mathematician Nicolas Auguste Tissot in 1859. Known as Tissot's indicatrix, the method involves placing perfectly circular, infinitesimally small dots at regular intervals across a globe.[1]

When the globe is projected onto a flat map, those perfect circles warp into ellipses. By measuring the axes of these ellipses, cartographers can calculate the exact magnitude and direction of the distortion at any specific coordinate. On a conformal map, the circles remain perfectly round but vary wildly in size; on an equal-area map, the circles remain the exact same size but are squashed into severe ovals.[1]

Modern digital mapping often attempts to bypass this binary choice by using compromise projections. Formats like the Robinson or the Winkel Tripel do not perfectly preserve either area or angle. Instead, they distribute the distortion across both metrics, minimizing the visual shock to the reader while remaining mathematically inaccurate on all fronts.[4]

Periodically, a new map projection will go viral, accompanied by marketing language claiming it has finally "solved" the mapping problem or created the most "accurate" map in history. The AuthaGraph, a Japanese projection that folds a sphere into a tetrahedron and then unfolds it flat, recently generated such headlines.[3]

A skeptical reader should immediately recognize these claims as hype. While novel projections can redistribute distortion in clever ways—perhaps pushing the worst warping into the empty Pacific Ocean—they cannot override geometry. The fundamental math remains unbroken.[2][6]

As long as the Earth remains a sphere and screens remain flat, the Theorema Egregium guarantees that the perfect map will remain physically impossible. Every map is a specialized tool, and choosing the right one requires understanding exactly which lie it is telling.[4][5]
