How the Expectation and Maximization Steps Iteratively Converge to Maximum Likelihood Estimates for Latent Variables

A common assumption in statistical modeling is that missing data or unobservable latent variables render maximum likelihood estimation impossible, forcing analysts to either discard incomplete records or guess at hidden states. The Expectation-Maximization (EM) algorithm demonstrates that this is mathematically false. By splitting the problem into two alternating phases, it proves that incomplete datasets can still yield optimal parameter estimates without requiring arbitrary imputation.[1]

The mechanism relies on a continuous feedback loop between what is known and what is assumed. When a dataset contains latent variables—such as assigning customers to unobserved demographic clusters or tracking a hidden state in a Markov model—a direct calculation of the maximum likelihood is intractable. The likelihood function requires the missing data, but estimating the missing data requires the likelihood function.[2]

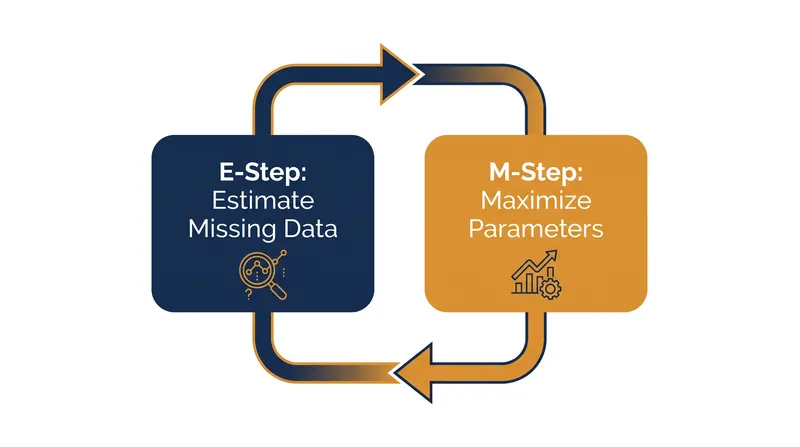

The EM algorithm breaks this deadlock through its two namesake phases: the Expectation (E) step and the Maximization (M) step. In the E-step, the algorithm uses the current, potentially flawed parameter estimates to calculate the expected value of the missing data. It does not assign a hard value to a missing variable; instead, it calculates a probability distribution over all possible values.[1]

"The EM algorithm is a broadly applicable approach to the iterative computation of maximum likelihood estimates, useful in a variety of incomplete-data problems," notes the foundational literature frequently cited by the Harvard Statistics Department. This probabilistic assignment creates a complete, albeit theoretical, dataset that the next phase can process.

Once the E-step generates this expected dataset, the M-step takes over. It treats the probabilistic assignments as if they were hard, observed data and recalculates the model parameters to maximize the likelihood of this newly completed dataset. If the E-step guesses the missing values, the M-step optimizes the model to fit those guesses.[2]

The mathematical guarantee that makes this loop function is that the overall likelihood of the observed data will never decrease after an EM cycle. Each combined E and M step either improves the model's fit or leaves it unchanged. This monotonic increase is driven by Jensen's inequality, which establishes a lower bound on the log-likelihood that the M-step pushes upward.

Researchers analyzing the algorithm's convergence in Gaussian latent tree models found that this lower-bound optimization is highly reliable but computationally intensive. In a 2020 analysis published on arXiv, the convergence behavior was shown to depend heavily on the geometry of the parameter space. When the likelihood surface is smooth, the algorithm climbs steadily toward the peak.[3]

However, the exact speed of this climb—the convergence rate—is dictated by the ratio of missing information to complete information. If a dataset contains 10,000 records but 4,500 of them have latent variables, the algorithm requires significantly more iterations to reach a standard convergence threshold of 0.001 than a dataset with only 500 missing values.[2][3]

In practical applications, such as training a Gaussian Mixture Model with 3 distinct components, analysts typically cap the algorithm at 100 or 200 iterations. If the parameter updates in the M-step shrink below a predefined tolerance—often 0.0001—the algorithm declares convergence and stops, assuming it has reached the peak of the likelihood surface.[1][2]

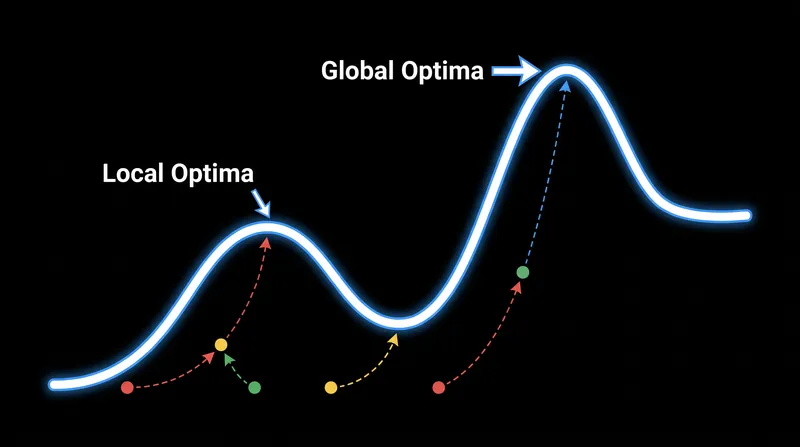

The primary vulnerability of the EM algorithm is its susceptibility to local optima. Because the algorithm is guaranteed only to climb upward, it will stop at the first peak it finds. If the likelihood surface resembles a mountain range rather than a single hill, an unlucky initial parameter guess in the very first E-step can trap the model on a minor peak, missing the global maximum entirely.

To mitigate this, data scientists rarely run the EM algorithm just once. A standard practice involves initializing the algorithm 10 to 50 times with randomized starting parameters, allowing it to explore different regions of the likelihood surface. The final model is selected from the run that achieves the highest overall log-likelihood score.[2]

Despite its formal introduction in 1977, the EM algorithm remains a cornerstone of modern machine learning, underpinning techniques from hidden Markov models in speech recognition to the clustering algorithms used in customer segmentation. Its ability to extract certainty from incomplete information makes it an indispensable tool in environments where perfect data is impossible to acquire.[4]
