The 500-Millisecond Alert: How Goal-Line Technology Actually Confirms a Goal

When a controversial goal-line scramble occurs, broadcasters often claim that Goal-Line Technology (GLT) is simply a high-resolution video replay—a single 'photo finish' camera waiting to snap a picture. The evidence contradicts this entirely. According to World Intellectual Property Organization (WIPO) patent filings and technical standards, GLT relies on continuous, automated tracking systems that operate independently of standard broadcast feeds. The technology actually split into two competing architectural philosophies during its development: optical triangulation using high-speed cameras, and magnetic field sensors interacting with a microchip embedded inside the match ball.[2][3]

The distinction between these two approaches matters because of the sheer speed and physical chaos of a goal-line decision. As former FIFA General Secretary Jerome Valcke noted when the governing body finally embraced the technology, 'The game is so fast, the ball is flying so quickly, we have to help them [the referees].' A football struck firmly can travel at 60 miles per hour, moving roughly one meter per video frame on a standard 25-frame-per-second broadcast camera. At that speed, a ball might cross the line and bounce back out between two standard frames, rendering traditional replay useless. To solve this, both optical and magnetic systems were engineered to deliver a binary, automated verdict to the referee's smartwatch within 500 milliseconds, but they achieve this sub-second alert through entirely different mechanisms.[2]

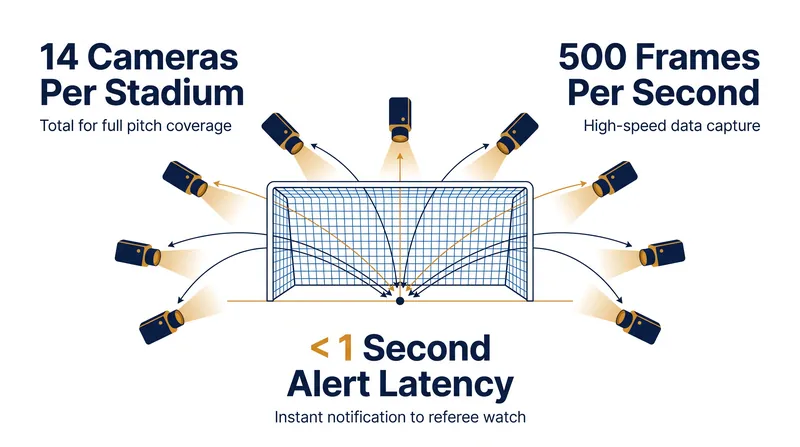

The optical approach, pioneered by Hawk-Eye, deploys 14 dedicated high-speed cameras—seven focused exclusively on each goal—mounted high in the stadium catwalks. These cameras do not just record video; they feed raw visual data to a central computer that identifies the specific cluster of pixels representing the ball. By comparing the ball's position across at least two different camera angles simultaneously, the software calculates its exact three-dimensional coordinates in real time. Because the cameras capture 500 frames every second, the system builds a continuous, millimeter-accurate path of the ball's trajectory.[1][4]

This continuous optical tracking allows the system to function even in a crowded penalty box. If a goalkeeper's body or a defender's leg obscures the ball from three of the cameras, the remaining four still provide enough intersecting angles to triangulate its position. The system does not need to 'see' the ball cross the line in a traditional sense; it mathematically plots the ball's sphere in 3D space relative to the calibrated goal frame, triggering the encrypted radio signal the moment the entire 22-centimeter diameter passes the 12-centimeter-wide line.[1]

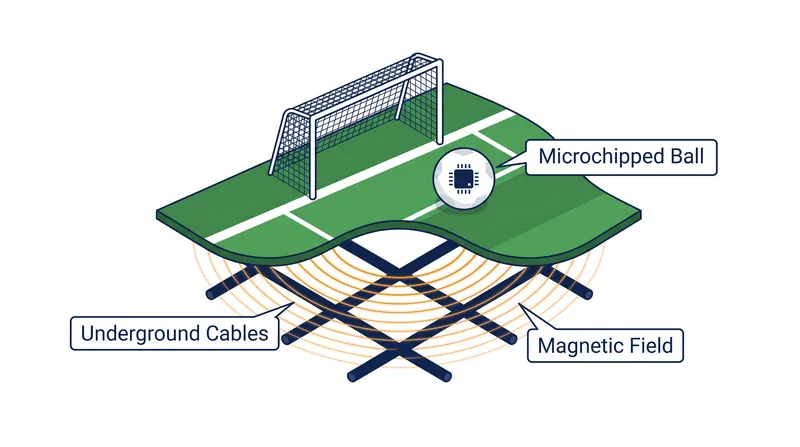

Conversely, the magnetic sensor approach, such as the Cairos system developed with Adidas, removes optics entirely. This architecture involves embedding thin electrical cables in the turf of the penalty area and directly behind the goal line. The electrical current running through these cables generates a localized magnetic field. A featherweight sensor suspended in the center of the match ball measures these magnetic fields as soon as it comes into contact with them, transmitting its exact location data to receivers behind the goal.[2]

The magnetic system's central computer then processes this grid data to determine if the sensor has crossed the threshold. Because it relies on a physical field rather than line-of-sight vision, a magnetic system is theoretically immune to visual obstructions—it does not matter how many players are piled on top of the ball in the mud, because the magnetic field penetrates human bodies and turf equally. If the chip crosses the line, the same split-second radio signal is transmitted to the referee's watch.[2]

Crucially, both of these GLT mechanisms are fundamentally different from the semi-automated offside technology (SAOT) introduced at the 2022 World Cup. While SAOT relies on skeletal tracking of player limbs to determine offside positions, GLT is focused solely on the ball and the goal frame. FIFA explicitly separates the two certifications, noting that GLT's infrastructure is entirely dedicated to the goal line and operates with a much faster latency requirement to ensure the match is not unnecessarily halted.[4]

The cost of this precision dictates where each system is deployed. Installing the seven-camera optical arrays or digging up the pitch to lay magnetic cables costs hundreds of thousands of dollars per stadium, plus the fees for mandatory independent testing by approved institutes. While optical systems have largely won the commercial battle in top European leagues due to their ability to generate 3D broadcast replays, both technologies successfully eliminated the 'ghost goal' from top-flight football, replacing human guesswork with mathematical certainty.
