How the 0.711% U-235 Concentration in Natural Uranium Limits Light-Water Reactor Fuel Burnup

Out of every 100,000 atoms in a freshly mined piece of natural uranium, exactly 711 are the fissile isotope uranium-235. That 0.711% baseline is the fundamental physical constraint that dictates the entire architecture, economics, and fuel cycle of global nuclear power. The remaining 99.289% consists almost entirely of uranium-238, an isotope that does not readily split to release energy. Because light-water reactors—the dominant design worldwide—rely on water to both cool the core and moderate the nuclear reaction, they cannot sustain a chain reaction using uranium in its natural state. The concentration of U-235 is simply too low to overcome the neutron-absorbing properties of the water.[1][3]

To extract meaningful energy from a light-water reactor, the fuel must be physically altered before it ever reaches the core. This process, known as enrichment, strips away a portion of the non-fissile U-238 to artificially inflate the concentration of U-235. For decades, the commercial nuclear industry has standardized an enrichment level of roughly 3% to 5%. This roughly seven-fold increase in fissile density is what allows a standard pressurized or boiling water reactor to operate continuously for 18 to 24 months without refueling.[3][4]

The metric that defines how much energy a reactor successfully extracts from this enriched fuel is called "burnup." Measured in gigawatt-days per metric ton of uranium (GWd/tU), burnup tracks the total thermal energy squeezed out of a given mass of fuel before it must be discharged as waste. In the 1980s, average discharge burnups hovered around 30 GWd/tU. Today, the operational baseline is vastly different. "Average discharges are currently in the region of 50-60 GWd/t and for burn-ups up to and at least a little beyond this figure, there is a clear economic incentive to continue the trend," notes the Nuclear Energy Agency.[4][6]

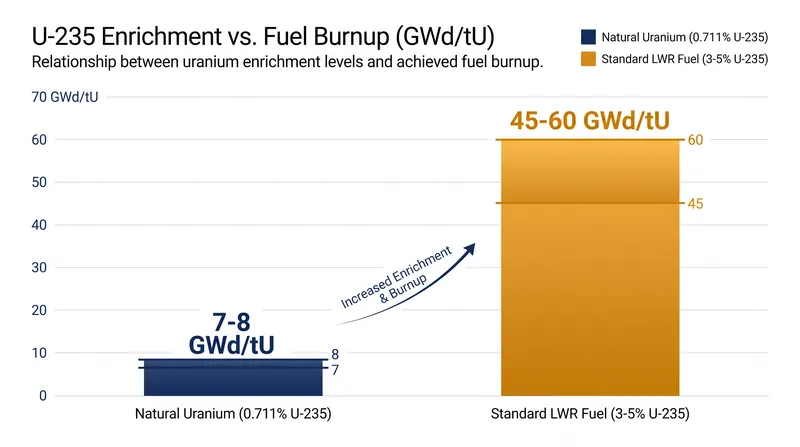

Achieving these higher burnup rates is entirely dependent on the initial U-235 concentration. A reactor fueled by natural, unenriched uranium—such as the heavy-water CANDU designs—typically maxes out at a burnup of just 7 to 8 GWd/tU. At that point, the sparse inventory of U-235 is largely depleted, and the buildup of fission products begins to absorb too many neutrons, poisoning the chain reaction. By artificially raising the U-235 concentration to 5%, light-water reactors can sustain the reaction much longer, extracting an order of magnitude more energy from the same physical mass of heavy metal.[4][6]

However, the relationship between enrichment and burnup is not a simple straight line. As operators attempt to push burnup limits past the 60 GWd/tU threshold, they run into a hard regulatory and physical ceiling: the 5% enrichment limit. For decades, the entire global supply chain—from enrichment centrifuge cascades to fuel fabrication facilities and transport casks—has been licensed and geometrically designed around a maximum U-235 concentration of 5.0 weight percent. This limit was established to guarantee criticality safety outside of a reactor core.[2][4]

The Nuclear Energy Agency calculates that to achieve average discharge burnups significantly beyond 60 GWd/tU, enrichments higher than the current 5.0% limit are mathematically required. The fissile inventory in a 5% enriched assembly simply runs out of reactivity before it can reach 70 or 80 GWd/tU. This has triggered a massive industry push in 2026 toward intermediate enrichments between 5% and 10%, which provide the necessary U-235 density to extend fuel cycles even further without requiring the wholesale redesign of the reactor core.[4][5]

Yet, fissile depletion is only half of the burnup equation. The other half is the physical survival of the fuel assembly itself. Nuclear fuel consists of ceramic uranium dioxide pellets stacked inside long, thin metallic tubes known as cladding, typically made of a specialized zirconium alloy. As burnup increases and the fuel remains in the core for extra years, these zirconium tubes must endure a brutally hostile environment of extreme heat, pressure, and radiation for much longer periods than originally intended.[2][6]

The U.S. Nuclear Regulatory Commission explicitly evaluates these material degradation factors when considering requests for higher burnup limits. Prolonged exposure to high-temperature water and intense neutron radiation causes the zirconium cladding to oxidize and absorb hydrogen from the coolant. This hydrogen pickup leads to severe embrittlement, making the metal tubes significantly more susceptible to cracking, fracturing, or catastrophic failure during a sudden temperature change or a hypothetical loss-of-coolant accident.[2][6]

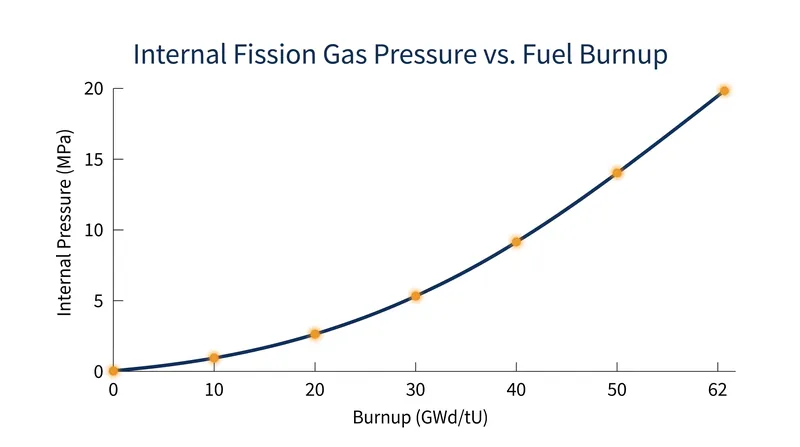

Furthermore, as the U-235 atoms split, they generate fission products, some of which are gases like xenon and krypton. The longer the fuel remains in the reactor to achieve higher burnup, the more these gases accumulate inside the sealed cladding tubes. This internal pressure steadily rises, threatening to balloon or rupture the cladding if it exceeds the external pressure of the reactor coolant. Consequently, pushing burnup limits requires not just more U-235, but fundamentally stronger, more resilient cladding materials.[2][6]

The Department of Energy and national laboratories have spent years simulating these extreme conditions to qualify new "accident-tolerant fuels." These advanced designs often feature thicker cladding, protective coatings, or entirely different alloys designed to withstand the internal gas pressure and external corrosion associated with burnups exceeding 62 GWd/tU. Without these material upgrades, simply enriching the fuel past 5% would result in physical fuel failure long before the U-235 was exhausted.[2][5]

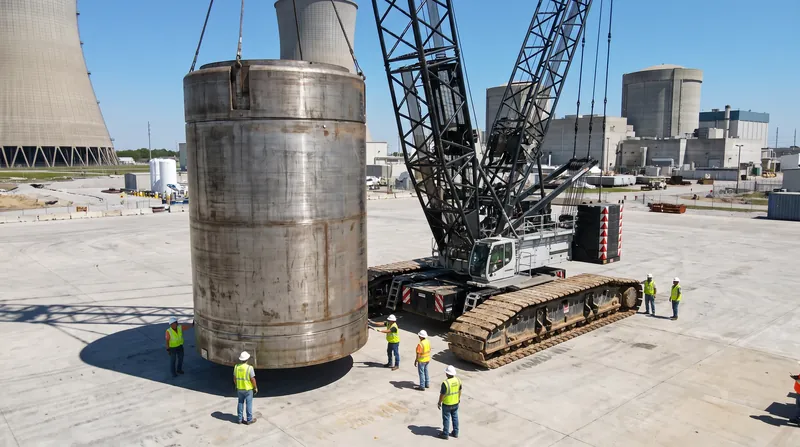

The economic stakes of this physical balancing act are massive for the global energy market. Extending a light-water reactor's operating cycle from 18 months to 24 months by utilizing higher-enriched, higher-burnup fuel drastically reduces the frequency of costly refueling outages, during which the plant generates no revenue. It also directly reduces the volume of spent nuclear fuel that must be stored in cooling pools and eventually transferred to dry casks, as fewer total assemblies are required to generate the exact same amount of lifetime electricity.[4][5]

The 0.711% natural concentration of U-235 forces the nuclear industry into a strict optimization problem. Every gigawatt-day of energy extracted requires balancing the upfront cost of enrichment against the metallurgical endurance of zirconium alloys. As operators prepare to deploy enrichments above 5% to break the 60 GWd/tU barrier, the limiting factor shifts from the raw physics of fissile depletion to the regulatory approval of new transport casks and accident-tolerant cladding. As Factlen's editorial analysis of the fuel cycle indicates, the next major leap in light-water reactor efficiency now depends on whether the supply chain can be re-licensed to handle the denser fuel before the current generation of reactors reaches the end of its operational life.[2][5][7]
