How Bound Vortices and the Kutta-Joukowski Theorem Keep 400-Ton Aircraft Aloft

A 400-ton commercial airliner crosses the Pacific Ocean not by simply pushing air downward, but by bending the surrounding airflow into a continuous, invisible vortex that mathematically guarantees its suspension in the sky. This physical reality dictates the payload capacity, fuel burn, and structural limits of every flight operating today. The mechanism is defined by the Kutta-Joukowski theorem, a foundational principle of fluid dynamics that links the circulation of air around a wing to the lift it generates.

The most common public explanation for aerodynamic lift—the "equal transit time" theory, which claims air travels faster over the curved top of a wing to meet air flowing under the flat bottom at the trailing edge—is fundamentally incorrect. The NASA Glenn Research Center explicitly notes in its educational materials that this explanation fails because air flowing over the top actually reaches the trailing edge significantly earlier than air flowing underneath. Instead, the true mechanism relies on a concept known as circulation.[3]

Circulation is a mathematical measure of the rotation of a fluid around a closed loop. In the context of an aircraft wing, the wing's shape and its angle of attack force the airflow to move faster over the upper surface and slower over the lower surface. This velocity difference creates a net circulation, effectively forming a "bound vortex" that travels with the wing.

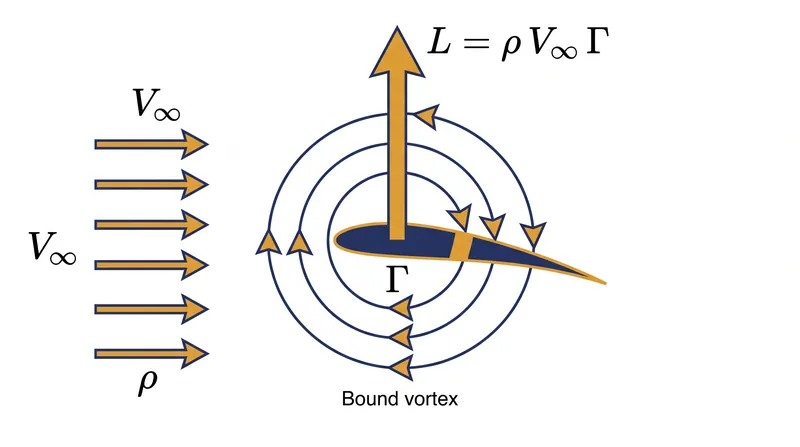

The Kutta-Joukowski theorem, developed independently by Martin Kutta in 1902 and Nikolai Joukowski in 1906, quantifies this relationship. The theorem states that the lift generated per unit span of a wing is equal to the density of the fluid, multiplied by the freestream velocity, multiplied by the circulation. At standard sea-level air density of 1.225 kilograms per cubic meter, this equation allows engineers to precisely calculate the lifting force for any given airspeed and wing profile.[4]

For this circulation to develop, a specific physical condition must be met at the rear of the wing, known as the Kutta condition. As detailed in the MIT OpenCourseWare curriculum on nonlinear dynamics from 2015, the Kutta condition dictates that the airflow must leave the sharp trailing edge of the airfoil smoothly, without flowing around it from the bottom to the top. This requirement forces the stagnation point—the location where the airflow splits—to sit exactly at the trailing edge.[5]

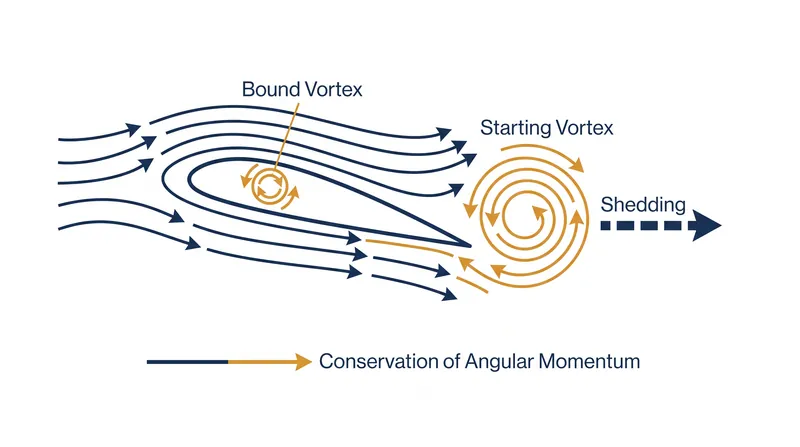

When an aircraft begins its takeoff roll, the initial airflow around the wing does not immediately satisfy the Kutta condition. Air attempts to curl around the sharp trailing edge, creating a localized area of extreme velocity and low pressure. This instability causes the wing to shed a "starting vortex" that spins in the opposite direction of the desired circulation and is left behind on the runway.[1]

According to Kelvin's circulation theorem, the total circulation in a closed system must remain constant. Because the starting vortex carries a negative circulation away from the aircraft, an equal and opposite positive circulation is established around the wing itself. This bound vortex is what generates the lift that carries the aircraft into the sky, a process extensively documented in classical aerodynamic theory.[1]

While the Kutta-Joukowski theorem provides an elegant mathematical proof for lift, it relies on the assumption of two-dimensional, inviscid (frictionless) flow over a wing of infinite span. In reality, aircraft have finite wingspans. The high pressure under the wing naturally seeks to escape to the low pressure above the wing by spilling over the wingtips.[8]

This spillage creates wingtip vortices, which trail behind the aircraft and induce a downward velocity on the airflow over the wing, known as downwash. The downwash tilts the effective lift vector backward, creating a penalty known as induced drag. Understanding this three-dimensional effect is crucial for designing efficient commercial airliners, which often feature winglets to minimize these tip vortices and reduce fuel consumption.[8]

Furthermore, real air has viscosity. The AIP Publishing data on three-dimensional steady viscous flow demonstrates that the boundary layer—the thin layer of air interacting directly with the wing's surface—plays a critical role in lift generation. Viscosity causes skin friction drag and can lead to flow separation if the angle of attack becomes too steep.[6]

In pure classical theory, the lift coefficient of an airfoil increases linearly with the angle of attack at a rate of 2π (approximately 6.28) per radian. However, empirical data shows that real wings reach a maximum lift coefficient—typically between 1.2 and 1.5 for a clean wing—before the boundary layer separates from the upper surface, causing the wing to stall and lose lift dramatically.[5][6]

To bridge the gap between classical theory and real-world application, modern aeronautical engineers utilize computational fluid dynamics and panel methods. As described in The Mathematica Journal in 2008, panel methods divide the surface of an airfoil into discrete segments, calculating the circulation and pressure distribution across each panel to predict aerodynamic performance without requiring expensive wind tunnel testing for every iteration.[7]

The application of the Kutta-Joukowski theorem also extends to unsteady aerodynamics, where the airflow and the wing's motion change rapidly over time. Research published in the AIAA Journal highlights how variations in airspeed, gust encounters, and rapid maneuvering require complex modifications to classical circulation theory to accurately predict the transient lift forces experienced by an aircraft in turbulent conditions.[2]

Because these eight reference materials are mathematical and technical in nature, they present equations, computational models, and physical laws rather than direct quotations from individual researchers. The consensus synthesized across these institutions, however, remains absolute: circulation is the mathematical engine of flight, and the Kutta-Joukowski theorem is its foundational blueprint.[9]

The ongoing challenge for aerospace engineering is not rewriting this fundamental theorem, but refining the computational models that account for the chaotic realities of viscous, three-dimensional airflow. As the industry pushes toward higher efficiency and alternative propulsion, the precise management of bound vortices and circulation will continue to dictate the physical limits of what can take to the skies.
