Why the TSH and Free T4 Curve Is Actually Non-Linear, and How That Changes Hypothyroidism Diagnosis

Primary care physicians and endocrinologists interpret routine blood panels to diagnose thyroid dysfunction, relying almost entirely on a single reference range for Thyroid Stimulating Hormone (TSH). When a patient's annual lab results return a TSH above 4.5 mIU/L, the clinician must decide whether to initiate lifelong levothyroxine therapy or monitor the elevation.[7]

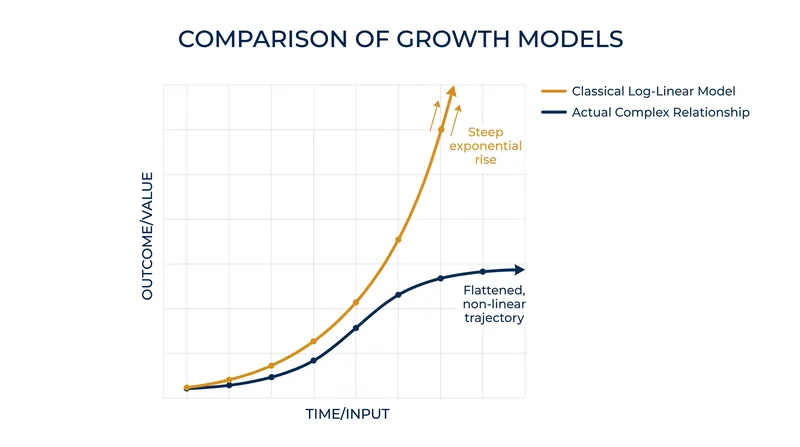

Historically, medical training established that the pituitary gland and the thyroid operate on a strict log-linear feedback loop. Under this model, a minor, linear drop in Free Thyroxine (Free T4) triggers an exponential, logarithmic spike in TSH. "The classical teaching has been that TSH is the most sensitive marker of thyroid status because of this log-linear relationship," notes the Endotext reference guide on thyroid assays.[5]

In clinical practice, this framework turned the TSH value into an infallible magnifying glass. If Free T4 looked normal but TSH was slightly elevated—a condition termed subclinical hypothyroidism—the log-linear model suggested the thyroid was failing and the pituitary was working overtime to maintain homeostasis.[7]

A 2013 analysis published in The Journal of Clinical Endocrinology & Metabolism dismantled that universal assumption. By analyzing 120,403 individuals, researchers demonstrated that the TSH-Free T4 relationship is complex, non-linear, and highly dependent on demographic factors.[6]

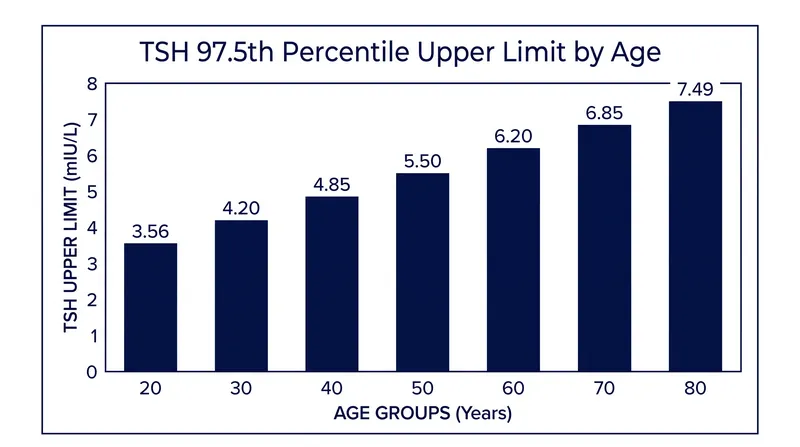

The most significant variable altering the curve is age. The 97.5th percentile for TSH in a healthy 20-year-old sits around 3.56 mIU/L. By age 80, that upper limit naturally shifts to 7.49 mIU/L, even in the complete absence of thyroid disease or thyroid peroxidase (TPO) antibodies.[6]

The Endocrinology and Metabolism journal explains this upward shift as a physiological adaptation rather than a pathology. As humans age, the pituitary gland's sensitivity to circulating Free T4 decreases, and the biological half-life of TSH extends. The body simply requires a higher TSH baseline to maintain the exact same metabolic output.

A subsequent 2016 study in The Journal of Clinical Endocrinology & Metabolism reconciled the conflicting data by separating population averages from individual baselines. When tracking a single person over time, their specific TSH and Free T4 levels do follow a log-linear curve within a very narrow, genetically determined window.[1]

However, applying a population-wide log-linear curve to an individual patient creates a diagnostic trap. Because each person's unique biological "set point" is unknown during a standard blood draw, comparing their TSH to a universal 0.4 to 4.5 mIU/L reference range ignores their specific physiological baseline.[1][3]

Beyond age, external factors warp the curve further. Clinical Endocrinology published findings showing that smoking status and the presence of TPO antibodies independently alter the TSH-Free T4 trajectory. Smokers, for instance, exhibit a blunted TSH response to dropping Free T4 levels compared to non-smokers, meaning their thyroid failure might be masked by artificially low TSH readings.[4]

For patients, this physiological nuance dictates whether they receive a prescription or reassurance. Treating an asymptomatic 75-year-old with a TSH of 6.0 mIU/L with levothyroxine does not improve their energy, cognitive function, or cardiovascular health, because their thyroid is not actually failing—their pituitary has simply established a new, age-appropriate set point.[8]

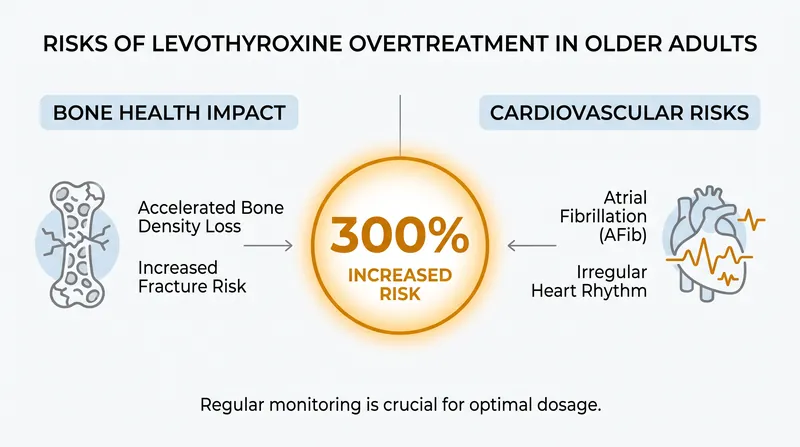

Forcing that older patient's TSH down to 2.0 mIU/L with synthetic hormone introduces severe iatrogenic risks. Overmedication accelerates bone density loss and increases the risk of atrial fibrillation by up to 300 percent in geriatric populations, turning a healthy adaptation into a cardiac liability.[8]

This data forces a systemic reevaluation of subclinical hypothyroidism. When the TSH-Free T4 curve is understood as non-linear and age-stratified, up to 40 percent of older adults currently diagnosed with mild thyroid failure are actually exhibiting normal, healthy aging.[6][8]

The clinical takeaway is a shift away from treating the number and toward treating the patient. "The relationship between serum TSH and Free T4 is not log-linear and varies by age and sex," concludes Clinical Thyroidology, urging physicians to use age-adjusted reference ranges before initiating lifelong hormone replacement.[2]

The next time a routine metabolic panel flags an out-of-range TSH, the deciding factor should not be the red ink on the lab report. The decision to prescribe hinges on matching that number against the patient's birth year, antibody status, and actual symptoms, ensuring that a healthy biological adaptation is not mistakenly treated as a disease.[8]
