The Z-Scheme: How Photosystems I and II Split Water and Power the Biosphere

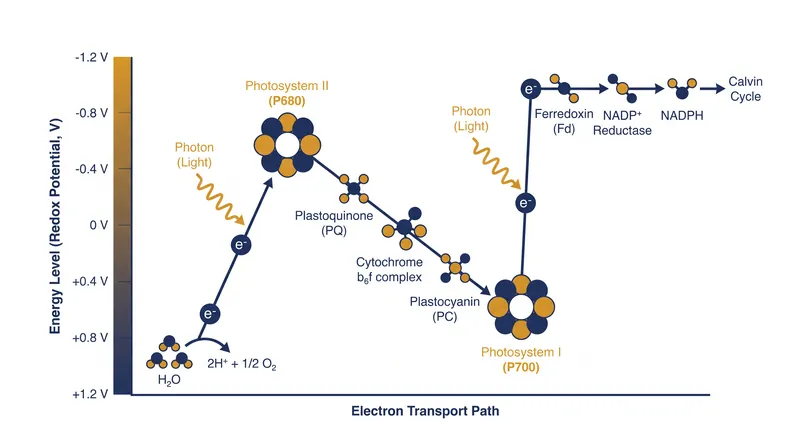

In 1960, biochemists Robert Hill and Fay Bendall published a paper in Nature that plotted the energy levels of electron carriers in chloroplasts on a graph. They noticed that the sequence formed a distinct, jagged "Z" shape. With this observation, they proposed that plants do not use a single light-gathering engine, but two distinct photosystems working in tandem to force electrons uphill against their thermodynamic gradient.[3]

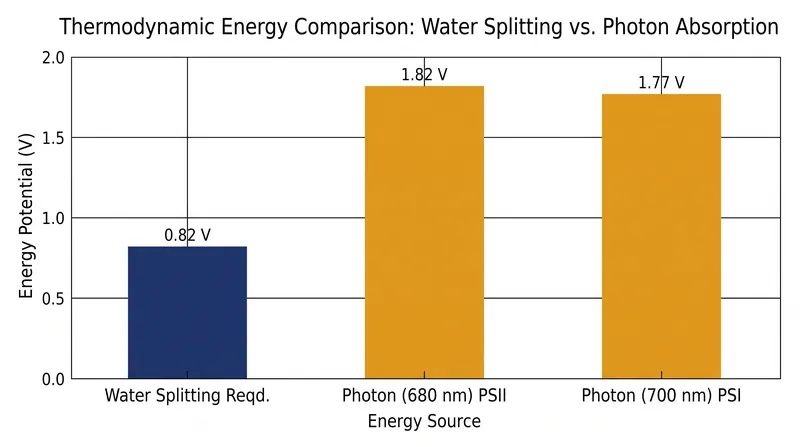

This theoretical model, now universally known as the Z-scheme, solved a fundamental biological thermodynamic problem. Splitting a single water molecule requires an immense amount of energy—specifically, an oxidation potential of +0.82 volts at pH 7. Meanwhile, reducing carbon dioxide into sugars requires electrons with high reducing power. No single photon of visible light carries enough energy to accomplish both tasks simultaneously.

The solution nature evolved over 2.4 billion years is a two-stroke molecular engine. Photosystem II (PSII) absorbs a photon and uses the energy to strip electrons from water, releasing oxygen as a byproduct. Those electrons are then passed down an electron transport chain, losing some energy but creating a proton gradient, before arriving at Photosystem I (PSI).[2]

At PSI, a second photon is absorbed, re-energizing the electron to a level high enough to reduce NADP+ to NADPH. This molecule, along with adenosine triphosphate (ATP) generated by the proton gradient, provides the chemical currency required to fix carbon dioxide into solid sugars during the Calvin cycle.[3]

The physical architecture of PSII is a marvel of molecular engineering. At its core lies the oxygen-evolving complex (OEC), an intricate cluster of four manganese atoms and one calcium atom held together by oxygen bridges.[4]

When a photon strikes the light-harvesting antenna of PSII, the energy is funneled to a specialized chlorophyll pair known as P680, named for its absorption peak at 680 nanometers. This excitation ejects an electron, turning P680 into P680+, the strongest biological oxidizing agent known to science, boasting a redox potential of approximately +1.2 volts.[2]

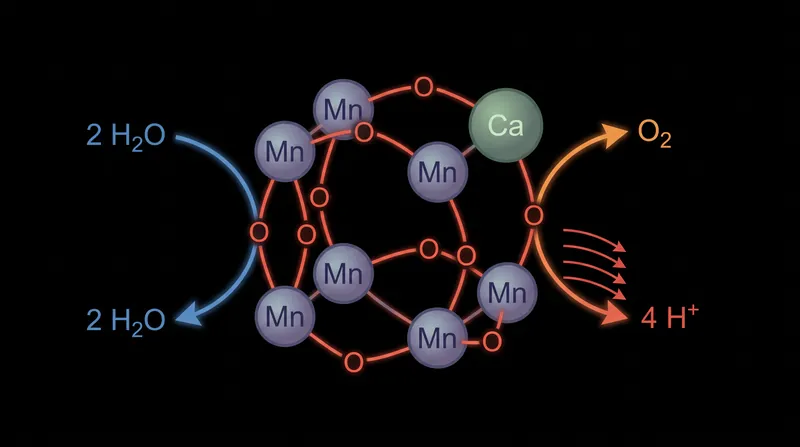

P680+ is so electron-hungry that it can tear electrons away from stable water molecules. The oxygen-evolving complex acts as a biological capacitor, accumulating four positive charges through four successive photon strikes before it splits two water molecules, releasing four protons and exactly one molecule of oxygen gas.[1]

The precise mechanism of this proton release has been mapped using X-ray free-electron lasers (XFEL), which capture femtosecond snapshots of the protein complex in action. These high-resolution images reveal how water molecules are guided into the catalytic site and how protons are shuttled out through dedicated, water-lined protein channels.[4]

Once ejected from PSII, the electron does not travel directly to PSI. It is handed off to a mobile, lipid-soluble carrier molecule called plastoquinone, which ferries it across the thylakoid membrane to the cytochrome b6f complex.

As the electron passes through the cytochrome b6f complex, a portion of its energy is used to pump additional protons across the membrane into the thylakoid lumen. This creates a steep electrochemical gradient, a reservoir of potential energy similar to water held behind a hydroelectric dam.[3]

The protons flow back across the membrane through an enzyme called ATP synthase, physically spinning a molecular turbine at rates up to 130 revolutions per second to convert ADP into ATP. This process, known as photophosphorylation, supplies the raw kinetic energy needed for the dark reactions of carbon fixation.

Meanwhile, the electron, now depleted of its initial energy, arrives at Photosystem I via another mobile carrier, a copper-containing protein called plastocyanin. Here, the electron waits at a different chlorophyll pair known as P700 for a second photon strike.[3]

The absorption of light by PSI re-excites the electron, boosting it to an even higher energy state than before, reaching a redox potential of roughly -1.2 volts. This second lift is crucial; without it, the electron would lack the reducing potential required to drive the formation of NADPH.

The energized electron is transferred through a series of iron-sulfur clusters to ferredoxin, and finally to the enzyme ferredoxin-NADP+ reductase. This enzyme catalyzes the final step of the light reactions, producing the NADPH required for the Calvin cycle.[3]

The Z-scheme is not merely a biological curiosity; it is the thermodynamic bottleneck of the entire biosphere. Every carbon atom in every living organism, and every molecule of oxygen in the atmosphere, has passed through this dual-photosystem pathway.

Researchers at the Max Planck Institute for Chemical Energy Conversion are studying the Z-scheme to design artificial photosynthetic systems. By mimicking the oxygen-evolving complex, they hope to develop efficient catalysts for splitting water into hydrogen and oxygen using sunlight.

"Water-splitting in photosynthesis serves as the ultimate inspiration for renewable energy carriers," the Max Planck researchers note, emphasizing that understanding the fundamental principles of biological water splitting is essential for the development of artificial, solar-driven fuel production.

The natural system operates with a quantum efficiency approaching 100 percent, meaning nearly every absorbed photon results in an electron transfer. However, the overall energy conversion efficiency from sunlight to biomass is much lower, largely due to the thermodynamic losses built into the Z-scheme to ensure unidirectional electron flow.[2][5]

If artificial systems can replicate the precise spatial arrangement and redox tuning of PSII and PSI, they could provide a blueprint for producing clean, renewable hydrogen fuel on a global scale, bypassing the inefficiencies of biological growth.

Yet, the natural mechanism remains vastly more complex than any synthetic analog. The protein scaffolds of PSII and PSI are constantly damaged by the very light energy they harvest, requiring a continuous cycle of degradation and repair—specifically the D1 protein in PSII, which is replaced roughly every 30 minutes in bright sunlight—to maintain function.[2]

Understanding the exact sequence of proton and electron transfers in the Z-scheme provides a window into the evolutionary leap that transformed Earth from an anaerobic rock into a vibrant, oxygen-rich planet. It remains the most consequential chemical reaction in the history of life.[4]
